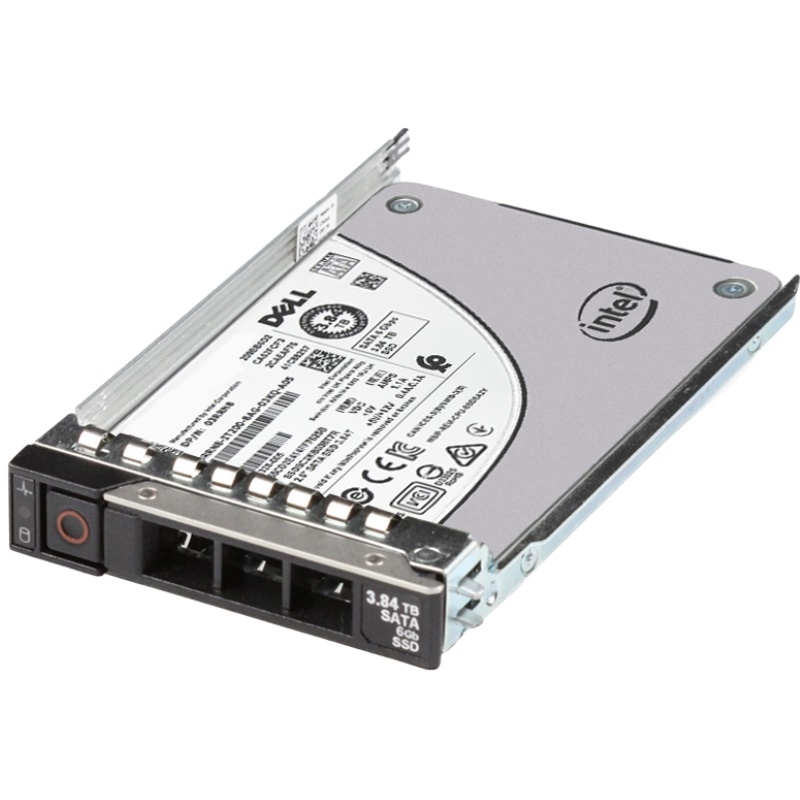

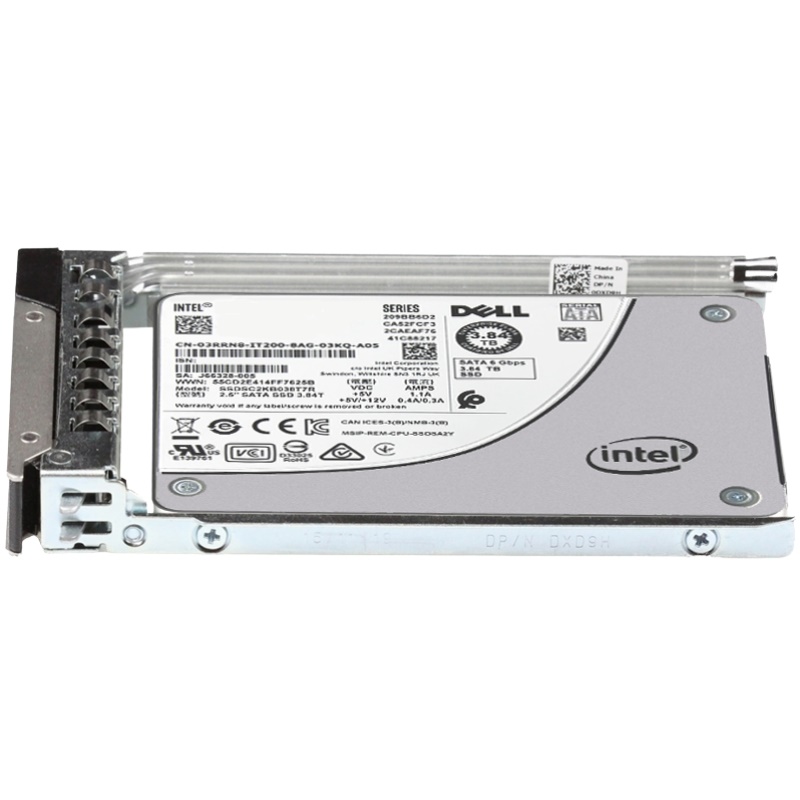

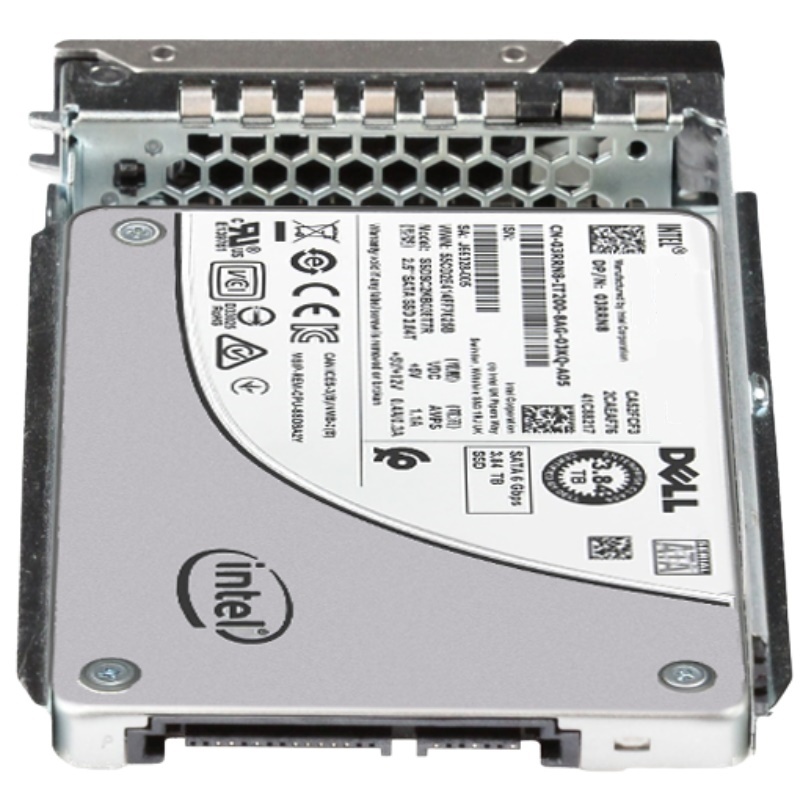

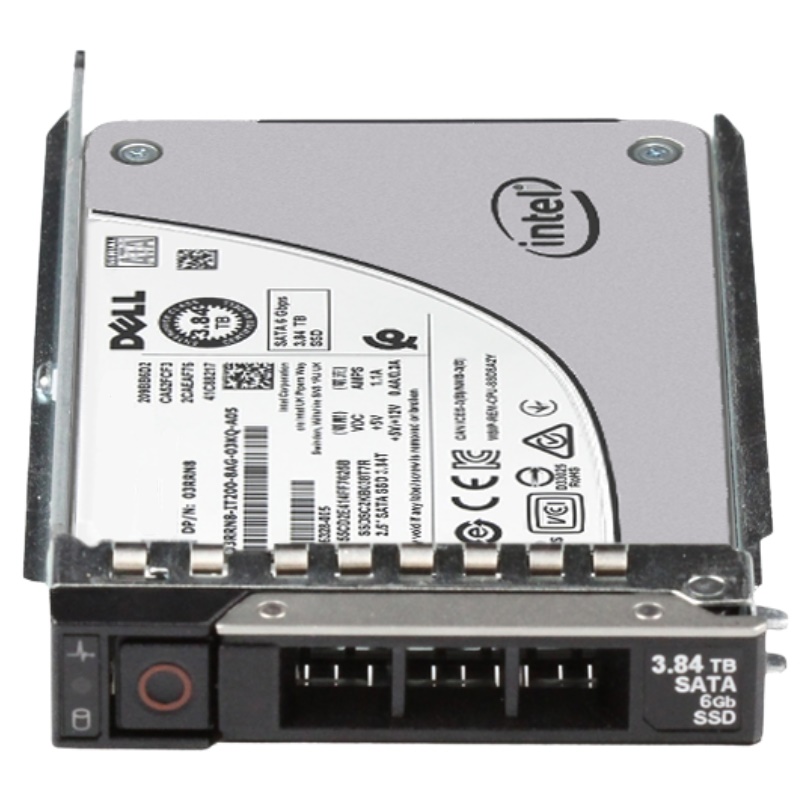

59YY0 Dell 3.84TB SED SATA-6GBPS SFF Mixed-Use TLC Hot Swap PowerEdge Server SSD

Dell 59YY0 3.84TB SATA SSD Overview

At the heart of modern enterprise storage lies the critical need for speed, security, and relentless reliability. The Dell part number 59YY0, a 3.84TB Self-Encrypting SATA SSD, is engineered to meet these demands head-on. Designed specifically for Dell PowerEdge 14th, 15th, and 16th generation servers, this drive represents a pinnacle of mixed-use storage technology, blending high IOPS performance with robust capacity and built-in security features. It is the ideal solution for businesses running data-intensive applications, virtualized environments, and transaction-heavy databases where downtime is not an option and data breach is a critical concern. This drive is not merely a component; it is a foundational element of a resilient and efficient data center infrastructure.

Key Technologies

Triple-Level Cell

Historically, enterprise SSDs favored Single-Level Cell (SLC) or Multi-Level Cell (MLC) NAND for their superior endurance and speed. However, advancements in TLC NAND technology, combined with sophisticated controllers and intelligent firmware, have enabled its successful adoption into the enterprise space. The 59YY0 utilizes TLC NAND, which stores three bits of data per cell. This allows for a higher capacity and a more cost-effective solution compared to MLC or SLC, without a prohibitive sacrifice in performance or longevity. Through advanced wear-leveling algorithms, over-provisioning, and robust error correction codes (ECC), this drive delivers the endurance required for mixed-use workloads, making TLC a viable and economical choice for modern data centers.

The Power of Self-Encrypting Drives (SEDs)

Data security is paramount. This drive is a Self-Encrypting Drive (SED), meaning it has encryption hardware built directly into the drive's controller. It automatically encrypts all data written to it and decrypts all data read from it using powerful AES-256 encryption algorithms. The encryption keys are managed internally, separate from the host server's CPU, which eliminates performance overhead ("performance tax") typically associated with software-based encryption. This implementation complies with TCG (Trusted Computing Group) Enterprise security standards, ensuring a standardized, interoperable approach to hardware-based security. The primary benefits are immense:

• Instantaneous Data Sanitization: Instead of spending days overwriting every sector of a 3.84TB drive, sanitization is instantaneous. Deleting or cryptographically erasing the encryption key renders all data on the drive permanently and irretrievably unreadable. This is crucial for drive decommissioning, repurposing, or secure RMA processes.
• Protection Against Physical Theft: If a drive or an entire server is physically stolen, the data remains protected. Without the correct authentication credentials, the encrypted data is meaningless.
• Regulatory Compliance: Helps organizations meet stringent data protection regulations like GDPR, HIPAA, SOX, and others that mandate the encryption of sensitive data at rest.

Understanding Mixed-Use Workload Endurance

Enterprise workloads are rarely purely read-only or write-only. They are "mixed." A database server, for instance, constantly writes new transactions (inserts/updates) while also serving read queries. The 59YY0 is explicitly classified as a Mixed-Use drive, meaning its design is optimized to handle a balanced combination of read and write operations at high rates. Its endurance is measured by its TBW (Total Bytes Written) rating and its DWPD (Drive Writes Per Day). A high DWPD value indicates that over its warranty period, you can write the entire drive's capacity multiple times per day. This robust endurance is achieved through high-quality TLC NAND, significant over-provisioning (extra, unseen NAND capacity used for maintenance operations), and a advanced controller that efficiently manages write amplification and wear leveling.

Power Loss Protection: Safeguarding Data Integrity

An unexpected power loss during a write operation is a nightmare scenario, potentially leading to data corruption or loss. Enterprise SSDs like the 59YY0 mitigate this risk with integrated Power Loss Protection (PLP) circuits. These systems typically consist of onboard capacitors that act as a temporary power reservoir. In the event of a sudden power failure, these capacitors provide enough hold-up energy for the drive's controller to complete any in-progress writes and safely commit data from volatile cache buffers to the non-volatile NAND flash memory. This ensures data integrity is maintained and that the drive remains in a consistent, uncorrupted state, ready for normal operation when power is restored.

Compatibility and Integration

Designed for Dell PowerEdge Servers (14G, 15G, 16G)

This drive is not a generic component; it is purpose-built and validated for Dell's PowerEdge server lineup. This ensures seamless integration and optimal performance. It is fully compatible with the PowerEdge 14th Generation (e.g., R640, R740xd, MX740c), 15th Generation (e.g., R650, R750xa, MX750c), and 16th Generation (e.g., R660, R760) servers. Using a Dell-qualified drive ensures:

• Full Firmware Integration: The drive's firmware is tested and optimized to work with the Dell PERC (PowerEdge RAID Controller) and BOSS (Boot Optimized Storage Solution) controller firmware stacks, preventing compatibility issues.
• Unified Management: The drive can be monitored, configured, and managed directly through the Dell OpenManage ecosystem, including iDRAC (Integrated Dell Remote Access Controller), providing a single pane of glass for system health monitoring, including SSD wear-level indicators and predictive failure alerts.
• Warranty and Support: Using a certified drive maintains the integrity of your server's support contract and ensures any issues are resolved efficiently by Dell support.

Use Cases

The combination of high capacity, strong mixed-use performance, and top-tier security makes the 59YY0 SSD exceptionally versatile within the data center.

Boot Drives for Hyperconverged Infrastructure (HCI)

In HCI platforms like VMware vSAN or Dell VxRail, reliability and performance are paramount. This drive is an excellent choice for hosting the ESXi or other hypervisor boot partition, ensuring fast node boot times and reliable operation.

Caching and Tiering Layers

Its high IOPS performance makes it ideal for read-intensive or write-back caching applications, accelerating access to frequently used data stored on larger, slower HDD arrays or as a performance tier in an automated storage tiering strategy.

Virtualization and Database Workloads

Virtualized environments, hosting dozens of virtual machines, generate random I/O patterns that are highly demanding. This drive's mixed-use design is perfect for supporting the OS disks and application data of a large VM population. Similarly, transactional databases (SQL Server, Oracle, MySQL) benefit from the low latency and high IOPS for both transaction logs (write-intensive) and data files (read-intensive).
