Dell 81V1W Broadcom 57406 Dual-Ports Interface Card.

Dell 81V1W Broadcom 57406 Network Interface Card Overview

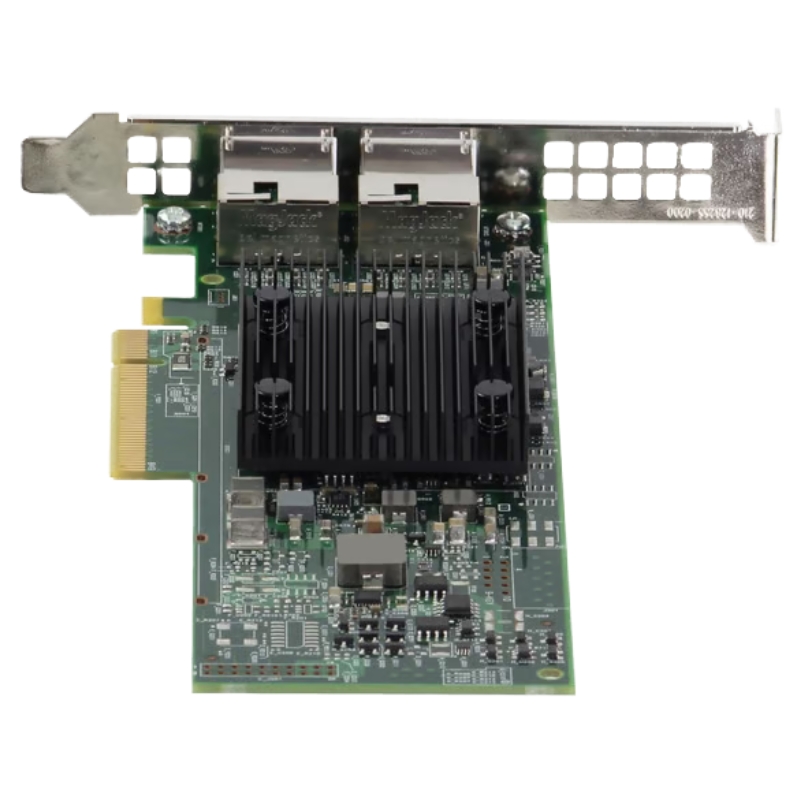

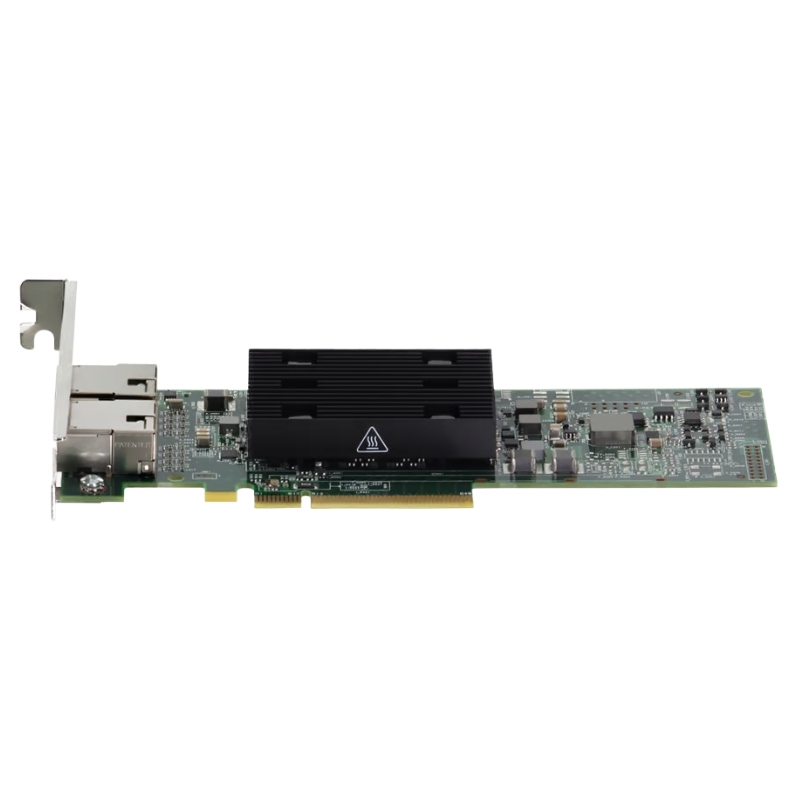

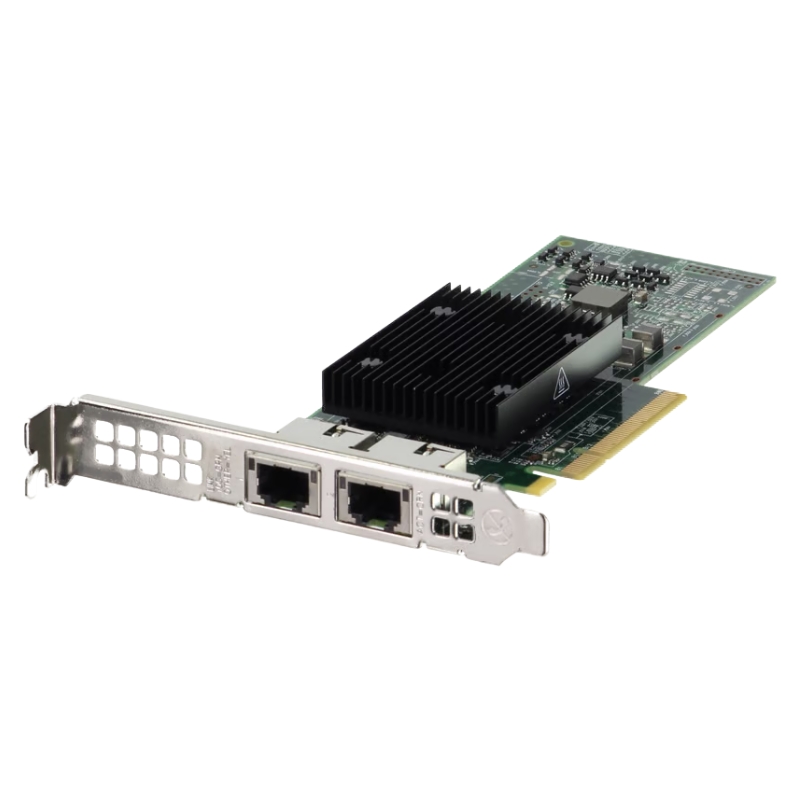

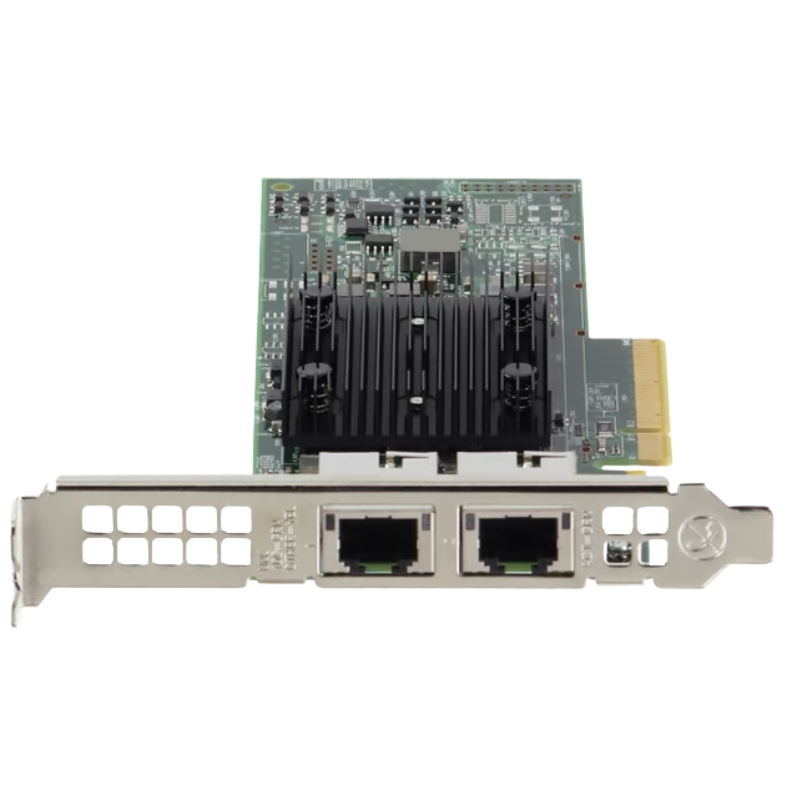

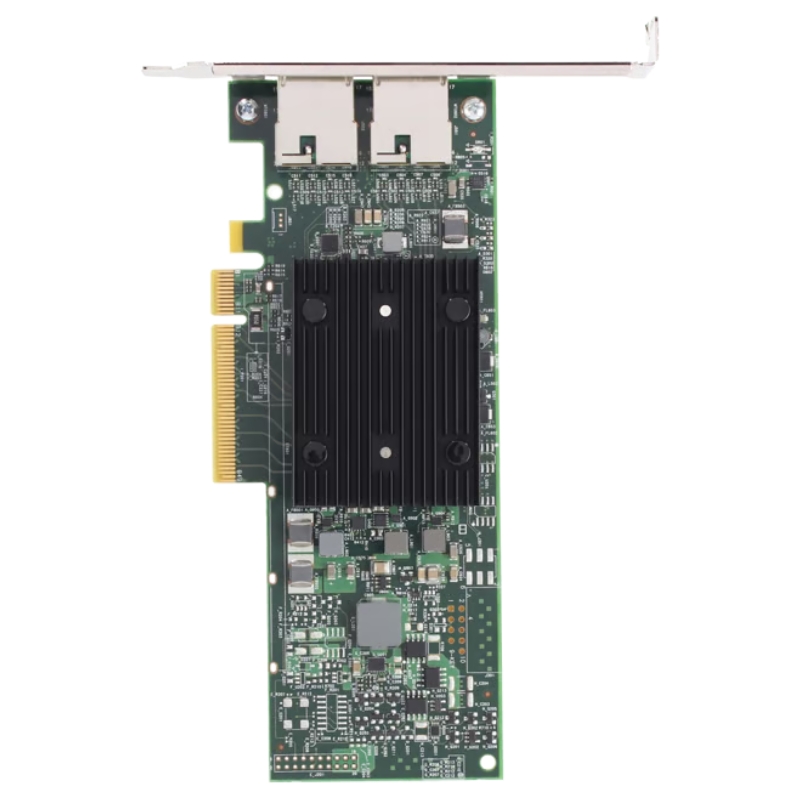

The Dell 81V1W Broadcom 57406 Dual-Port RJ-45 10Gbps Full-Height Network Interface Card (NIC) is a high-performance network adapter designed to meet the increasing demands for faster and more reliable data communication. It supports 10Gbps Ethernet speeds on both ports, offering outstanding bandwidth for data-intensive applications, virtualization, and cloud computing environments.

Key Features of Dell 81V1W Broadcom 57406

• Dual-Port Connectivity: Provides two RJ-45 ports with 10Gbps speed, ensuring high availability and redundancy.
• Broadcom Technology: Powered by the Broadcom 57406 chipset, which delivers advanced networking capabilities and reliability.
• PCIe 3.0 Interface: High-speed PCI Express 3.0 interface ensures optimal data transfer rates.
• Full-Height Form Factor: Suitable for full-height server configurations, maximizing compatibility with enterprise systems.
• Energy Efficient: Supports IEEE 802.3az Energy Efficient Ethernet (EEE) for reduced power consumption.

Performance Benefits of 10Gbps Network Interface Cards

10Gbps network interface cards (NICs) like the Dell 81V1W Broadcom 57406 provide a significant boost in network performance compared to traditional 1Gbps NICs. The increased bandwidth is essential for modern data centers, cloud environments, and enterprise networks that handle high volumes of traffic. By deploying 10Gbps NICs, businesses can reduce latency, improve throughput, and enhance overall network efficiency.

High-Speed Data Transfer

With dual 10Gbps ports, the Dell 81V1W enables high-speed data transfer between servers, storage devices, and other network components. This capability is crucial for virtualization, big data analytics, and video streaming applications where low latency and high throughput are critical.

Scalable and Flexible Network Solutions

The dual-port design of this NIC offers flexibility and scalability for various networking configurations. It can be used in failover mode to ensure continuous availability or load balancing mode to distribute traffic across both ports for improved performance.

Broadcom 57406 Chipset Advantages

The Broadcom 57406 chipset is known for its advanced networking features and high reliability. It supports key technologies such as Virtual LAN (VLAN) tagging, TCP/IP offloading, and Remote Direct Memory Access (RDMA). These features help reduce CPU utilization, enhance data transmission efficiency, and improve server performance.

TCP/IP Offload Engine (TOE) Support

The Dell 81V1W NIC supports TCP/IP Offload Engine (TOE) technology, which offloads TCP/IP processing from the server’s CPU to the network adapter. This reduces CPU load and improves overall system performance, especially in environments with high network traffic.

RDMA and Low Latency Performance

Remote Direct Memory Access (RDMA) technology allows the NIC to access memory directly without involving the CPU, reducing latency and improving data throughput. This feature is particularly beneficial for applications that require high-performance computing (HPC), storage, and virtualization.

Compatibility and Use Cases

The Dell 81V1W Broadcom 57406 NIC is compatible with various Dell PowerEdge servers and other enterprise-grade systems. It is ideal for a wide range of applications, including:

• Data Centers: Enhances network performance and supports large-scale data transfer operations.
• Virtualization: Provides high bandwidth and low latency for virtual machines (VMs) and virtualized workloads.
• Cloud Computing: Enables fast and reliable network connectivity for cloud-based services.
• High-Performance Computing (HPC): Supports demanding computing environments with minimal latency and high throughput.

Virtualization Support

With support for virtualization technologies like VMware, Microsoft Hyper-V, and KVM, the Dell 81V1W NIC allows seamless integration into virtualized environments. The dual-port configuration provides dedicated network paths for different virtual machines, enhancing security and performance.

Cloud and Enterprise Applications

Enterprises increasingly rely on cloud-based applications for their daily operations. The Dell 81V1W Broadcom 57406 ensures fast and reliable connectivity for these applications, reducing downtime and improving user experience.

Energy Efficiency and Environmental Considerations

The Dell 81V1W NIC is designed with energy efficiency in mind. It complies with the IEEE 802.3az Energy Efficient Ethernet (EEE) standard, which reduces power consumption during periods of low network activity. This not only helps reduce operating costs but also minimizes the environmental impact of data center operations.

Advanced Power Management

The advanced power management features of the Broadcom 57406 chipset allow the NIC to adjust its power consumption based on network activity. This dynamic power adjustment helps achieve optimal energy efficiency without compromising performance.

Reduced Operating Costs

By lowering power consumption, businesses can reduce operating costs associated with cooling and energy. This makes the Dell 81V1W an excellent choice for organizations looking to improve their sustainability while maintaining high performance.

Installation and Deployment

Installing and deploying the Dell 81V1W Broadcom 57406 is straightforward, thanks to its compatibility with most Dell PowerEdge servers. The NIC comes with a full-height bracket, ensuring a secure fit in compatible systems. Additionally, Dell provides drivers and firmware updates to ensure optimal performance and compatibility with various operating systems.

Step-by-Step Installation Guide

1. Power off the server and disconnect it from the power source.
2. Open the server chassis and locate the appropriate PCIe slot.
3. Insert the Dell 81V1W NIC into the PCIe slot and secure it with the retaining screw.
4. Reconnect the power source and boot up the server.
5. Install the necessary drivers and configure the NIC settings according to your network requirements.

Reliability and Support

Dell is known for its high-quality hardware and excellent customer support. The Dell 81V1W NIC is backed by Dell’s comprehensive warranty and support services, giving you peace of mind and ensuring your network remains operational at all times.

Scalable Networking Solution

With dual 10Gbps ports and advanced networking features, the Dell 81V1W NIC provides a scalable solution that grows with your business. Its support for virtualization, cloud computing, and high-performance applications makes it an essential component for modern IT environments.
