8GXHR Dell 32GB DDR5 5600MT/s PC5-44800 CL46 ECC Memory

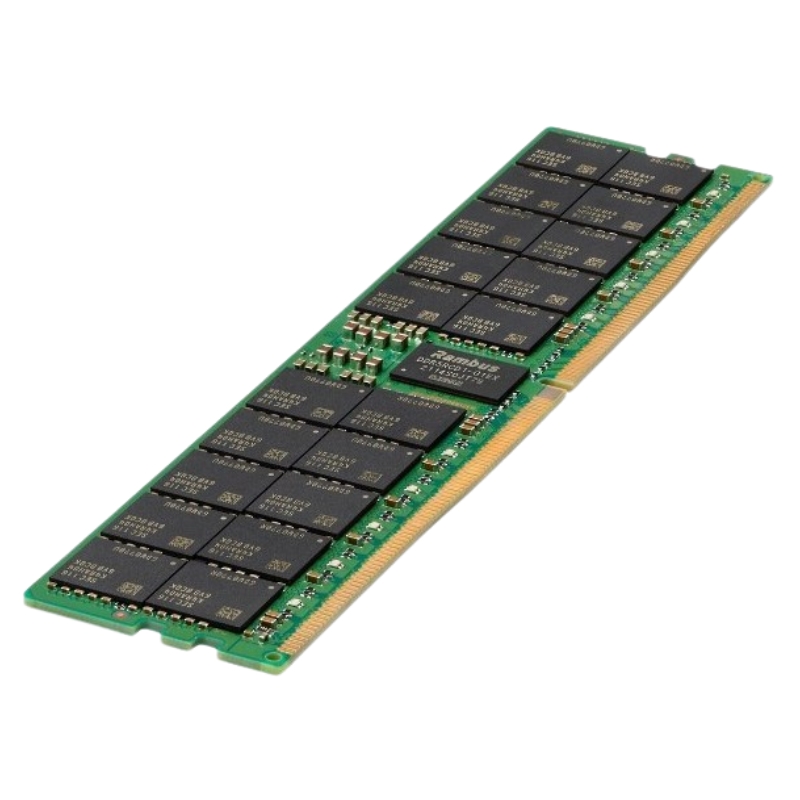

The Dell 8GXHR 32GB DDR5 RDIMM Memory

In the realm of enterprise computing and high-performance servers, memory is not merely a component; it is the lifeblood that dictates system stability, data integrity, and overall throughput. The Dell 8GXHR 32GB DDR5 5600MT/s PC5-44800 RDIMM represents a significant leap forward in this critical domain. This specific memory module is engineered for servers and workstations where error-free operation and relentless performance are non-negotiable. It belongs to the latest generation of DDR5 SDRAM, offering substantial improvements in speed, efficiency, and reliability over its DDR4 predecessors. This category page is dedicated to providing a comprehensive technical deep-dive into this memory module, its specifications, and its ideal use cases.

Core Function of RAM in a Server

The Random Access Memory (RAM) in a server acts as a high-speed temporary workspace for the CPU. It holds the operating system, application programs, and active data so the processor can access them quickly. The larger and faster the RAM, the more data the server can process without resorting to slower storage drives, thereby accelerating virtually every task the server performs.

Capacity: 32GB

With a substantial 32 Gigabytes of capacity per module, this RDIMM allows for the creation of high-memory configurations. For a dual-processor server with 16 memory slots, this translates to a potential maximum of 512GB of total RAM, enabling efficient handling of memory-intensive applications like large databases, virtualization hosts, and in-memory analytics.

Speed: 5600MT/s (PC5-44800)

The module operates at a data rate of 8GXHR 5600 Mega Transfers per second (MT/s). This is also expressed as PC5-44800. The "PC5" denotes a DDR5 module, and the number "44800" refers to the module's bandwidth in MB/s (MegaBytes per second). For a 64-bit (8-byte) channel, the calculation is: 5600 MT/s * 8 bytes = 44,800 MB/s of peak bandwidth per module. This high bandwidth is crucial for reducing data bottlenecks in multi-core processors.

Understanding CAS Latency: CL46

CAS Latency (CL), measured in clock cycles, is the delay between the memory controller requesting data and the moment the data is available. A CAS Latency of CL46 is typical for DDR5 modules at 5600MT/s. While this number is higher than DDR4 latencies, it is relative to the much faster clock speed of DDR5. The actual time delay in nanoseconds is often similar or even improved, resulting in high-speed, responsive performance.

Voltage: 1.1v

8GXHR DDR5 modules operate at a lower voltage of 1.1 volts compared to DDR4's 1.2v. This reduction in power consumption is critical for data centers where energy efficiency directly impacts operational costs and thermal output, allowing for denser server configurations without excessive heat.

Reliability

Module Format: 288-pin RDIMM

This module uses a 288-pin layout, which is physically and electrically incompatible with DDR4's 288-pin design (the key notch is in a different position). The RDIMM designation is one of the most critical aspects for server use.

How ECC Works

ECC memory includes extra bits (e.g., 8 bits for a 64-bit word) that store an encrypted code. When data is written to memory, a code is calculated and stored alongside it. When the data is read, the code is recalculated and compared to the stored code. If a single-bit error is detected, it is instantly corrected before being sent to the CPU. Multi-bit errors are detected (though not always corrected) and reported, allowing the system to halt gracefully to prevent data corruption.

Use Cases and Applications

The combination of high speed, large capacity, and robust ECC/RDIMM architecture makes this memory module suitable for a wide range of demanding workloads. Hypervisors like VMware vSphere and Microsoft Hyper-V require large pools of memory to host multiple virtual machines. The 32GB capacity allows for dense VM consolidation, improving server utilization and reducing total cost of ownership.

In-Memory Databases (IMDB)

Applications like SAP HANA, 8GXHR Oracle Database In-Memory, and Microsoft SQL Server Hekaton hold entire datasets in RAM for lightning-fast transaction processing and analytics. The high bandwidth of DDR5-5600 is a massive benefit for these workloads.

Enterprise Resource Planning (ERP) and CRM

Large-scale business applications from vendors like SAP, Oracle, and Salesforce run most efficiently on servers with ample, high-performance, and reliable ECC memory to ensure transaction integrity and user responsiveness.

Mixing Memory Kits

While it is generally recommended to use identical memory kits (same part number, size, speed, and latency) for all DIMMs in a system, mixing *can* sometimes work. However, the system will operate all memory at the speed and timings of the slowest module installed. For guaranteed stability, using identical modules is the best practice.
