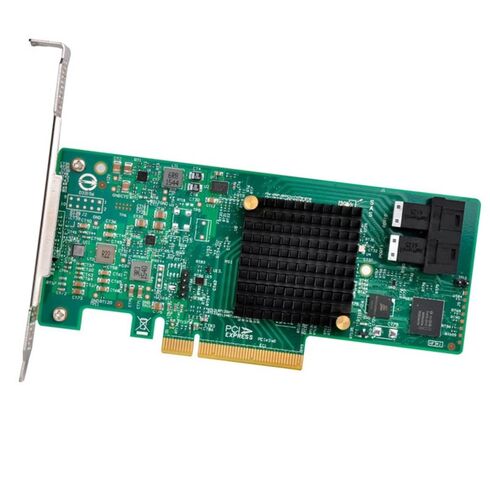

Network DevicesDell 9311-8I SAS-SATA PCI-E 3.0 x8 Host Bus Adapter - 3YDX4
3YDX4
Hover on image to enlarge
Brief Overview of 3YDX4
Dell 9311-8I 8-Port Internal 12GBPS SAS-SATA PCI-E 3.0 x8 Host Bus Adapter - 3YDX4. New Sealed in Box (NIB)
with 3-Year Replacement WarrantyOur Advantages
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
Payment Options
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
Delivery
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Please sign in so that we can notify you about a reply
Description
DELL 3YDX4 9311-8i 8-Port SAS PCIe 3.0 Host Bus Adapter
Key Features and Specifications
- High-Speed SAS Connectivity: Delivers a data transfer rate of up to 12Gb/s, ensuring fast and reliable performance for demanding storage systems.
- 8-Port Configuration: Provides 8 internal ports, offering ample connectivity options for various storage drives.
- PCIe 3.0 Compatibility: Fully compliant with PCIe 3.0 x8 interface, allowing high data throughput for optimal system performance.
- Advanced Storage Protocol: Features the IO controller SAS 3008 Fusion MPT 2.5 for improved data management and drive control.
Connectivity and Data Transfer Rates
- Mini SAS HD SFF8643 Connectors: Equipped with two x4 connectors for reliable and efficient cable connections.
- SAS 3.0 Support: Supports the SAS 3.0 standard with a maximum bandwidth of 9600 MB/s, ensuring high-speed data transfer.
- Half Duplex Operation: Offers an 8-lane wide bus for optimal performance with half-duplex data transfer capabilities.
Host Bus and Form Factor
- Host Bus: PCIe 3.0 x8 lane, ensuring superior data burst transfer rates of up to 8000 MB/s.
- Low Profile Design: Compact form factor (2.6” x 6.0”) fits easily into servers and workstations with space constraints.
- Cable Support: Uses passive copper cables for reliable and cost-effective connectivity.
RAID Configuration and Power Consumption
- Integrated RAID: Supports various RAID configurations, including RAID 0, 1, 1E, 10, providing flexibility in storage management.
- Power Requirements: Operating voltage of +12V +/-8% and 3.3V +/-9%, with nominal PCI power consumption of 13W.
- Hot Spare Capability: Features hot spare support for RAID 1E, enhancing data protection and system reliability.
Environmental and Durability Features
- Temperature Range: Operates in environments from 0°C to 55°C, and can be stored between -45°C to 105°C, making it highly durable for various conditions.
- Airflow and Humidity: Designed to function in 5% to 90% non-condensing humidity and requires 200 LFM airflow for optimal cooling.
- MTBF Rating: With a Mean Time Between Failures (MTBF) of over 2,800,000 hours, it offers exceptional reliability and longevity.
Operating System Compatibility
- Microsoft Windows: Compatible with various versions of Windows for versatile use in enterprise environments.
- Linux Support: Includes support for major Linux distributions, including SUSE, Red Hat, and FreeBSD.
- Virtualization Support: Compatible with VMware for seamless integration into virtualized infrastructures.
- Solaris Support: Fully compatible with Solaris for users requiring high-performance computing on this OS.
Part Number: 3YDX4
Introduction
The Dell 9311-8I SAS-SATA PCI-E 3.0 x8 Host Bus Adapter is an essential component for users who require high-performance storage connectivity solutions. One of its standout features is the part number, specifically the 3YDX4. In this section, we will explore the benefits and importance of this feature, highlighting why it sets the Dell 9311-8I apart from other similar host bus adapters.
Enhanced Compatibility and Flexibility
Seamless Integration with Dell Systems
One of the primary advantages of the Dell 9311-8I's part number, 3YDX4, is that it is specifically tailored for Dell systems. This compatibility ensures seamless integration and optimal performance when used with Dell servers and storage arrays. By choosing a host bus adapter designed for your specific system, you can avoid potential compatibility issues and maximize the efficiency of your storage infrastructure.
Wide Range of Supported Drives
The part number 3YDX4 on the Dell 9311-8I signifies that it supports a wide range of SAS and SATA drives. Whether you need to connect high-performance SAS drives or cost-effective SATA drives, this host bus adapter has got you covered. This versatility allows users to mix and match different drive types based on their specific requirements and budget constraints.
Efficient Data Transfer
Premium Performance
The Dell 9311-8I with the part number 3YDX4 offers exceptional performance when it comes to data transfer. With its PCI-E 3.0 x8 interface, this host bus adapter provides ample bandwidth to ensure fast and reliable data transfers between your server and storage devices. This high bandwidth capability is crucial for demanding applications that require rapid data access and processing, such as databases, virtualization, and data analytics.
Optimized Storage Performance
By incorporating the Dell 9311-8I with the part number 3YDX4 into your storage infrastructure, you can significantly enhance the overall performance of your system. This host bus adapter supports advanced features like RAID (Redundant Array of Independent Disks) and JBOD (Just a Bunch of Disks), enabling efficient data organization and protection. The 3YDX4 part number ensures that you have access to these advanced features, allowing you to configure your storage environment to meet your specific needs.
Reliability and Scalability
Robust Connectivity
The part number 3YDX4 on the Dell 9311-8I represents a host bus adapter that offers robust connectivity options. With eight SAS/SATA ports, this adapter allows you to connect multiple drives simultaneously, expanding the storage capacity of your system. Whether you are looking to build a small-scale storage solution or a large enterprise-grade storage infrastructure, the Dell 9311-8I with the 3YDX4 part number provides the necessary connectivity for your expanding storage needs.
Hot-Swappable Support
Another important feature associated with the part number 3YDX4 is its hot-swappable support. This means that you can add or remove drives without shutting down the system, ensuring minimal disruption to your operations. The hot-swappable capability not only saves time but also reduces the risk of data loss during maintenance or drive replacement.
Key Benefits Summary:
- Seamless integration with Dell systems for enhanced compatibility.
- Wide range of supported SAS and SATA drives for flexibility.
- Premium performance with PCI-E 3.0 x8 interface for fast data transfer.
- Optimized storage performance with RAID and JBOD support.
- Robust connectivity with eight SAS/SATA ports for scalability.
- Hot-swappable support for convenient maintenance and drive replacement.
In conclusion, the Dell 9311-8I SAS-SATA PCI-E 3.0 x8 Host Bus Adapter with part number 3YDX4 offers a comprehensive storage connectivity solution for users demanding high-performance and reliable data transfer. With its enhanced compatibility, a wide range of supported drives, premium performance, optimized storage capabilities, robust connectivity, and hot-swappable support, this host bus adapter ensures that your storage infrastructure meets your specific requirements while providing the reliability and scalability necessary for seamless operations.
Features
Product/Item Condition:
New Sealed in Box (NIB)
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
