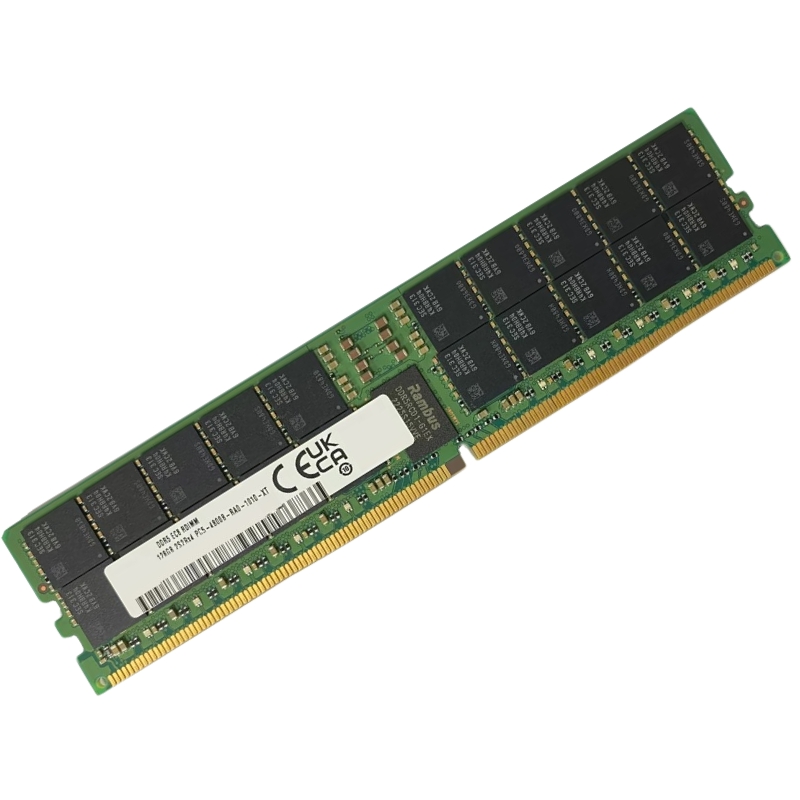

9C0R6 Dell 128GB PC5-51200 DDR5 6400MT/s 2Rx4 ECC Memory

Dell 9C0R6 128GB DDR5 Memory Module

The transition from DDR4 to DDR5 9COR6 represents one of the most significant advancements in server memory technology in recent years. DDR5 memory modules offer substantial improvements in performance, power efficiency, and reliability compared to their DDR4 predecessors. With data rates starting at 4800 MT/s and scaling beyond 6400 MT/s, DDR5 provides nearly double the bandwidth of equivalent DDR4 modules. This performance boost is critical for modern data centers, high-performance computing applications, and enterprise servers that demand maximum throughput for processing massive datasets and running complex computational workloads.

The Evolution from DDR4 to DDR5

DDR5 introduces several key architectural changes that enable its enhanced performance characteristics. The most notable innovation is the implementation of two independent 40-bit data channels (32 data bits with 8 ECC bits each) per module, effectively creating dual sub-channels within a single DIMM. This architectural shift allows for improved concurrency and reduced latency in memory operations. Additionally, DDR5 incorporates decision feedback equalization (DFE) to enable higher data transfer rates while maintaining signal integrity, and features on-die ECC for improved reliability at the chip level before data even reaches the module-level ECC protection.

Capacity Details

This 128GB module utilizes a single 128GB capacity on one DIMM, providing substantial memory density in a single slot. The dual-rank architecture means the memory chips are organized into two separate logical ranks that can be accessed independently, improving memory controller efficiency and overall performance. As an ECC Registered module, it includes both Error Correcting Code functionality for detecting and correcting memory errors and Registered buffers that reduce electrical load on the memory controller, enabling support for higher module capacities and more DIMMs per channel in server configurations.

Firmware

Successful integration of DDR5 memory modules like the Dell 9C0R6 requires appropriate system firmware, including BIOS and memory controller firmware that supports DDR5 technology. Dell regularly releases firmware updates for their PowerEdge servers that may include memory compatibility improvements, performance optimizations, and reliability enhancements. Before installing new DDR5 memory, it's recommended to update to the latest available firmware version to ensure compatibility and access to any memory-related enhancements. Additionally, some systems may offer BIOS settings that allow fine-tuning of memory parameters for specific workload requirements or power management preferences.

Reliability

The Dell 9C0R6 is manufactured using enterprise-grade components selected for reliability, durability, and consistent performance in 24/7 operation. The memory chips undergo rigorous testing and screening to ensure they meet the stringent requirements for server environments. The printed circuit board (PCB) is designed with multiple layers and optimized trace routing to maintain signal integrity at high speeds. Additional components such as the PMIC, register, and passive components are sourced from qualified suppliers and subjected to thorough validation processes. This comprehensive approach to quality ensures the module can withstand the demands of continuous operation in data center environments with minimal failure rates.

Thermal Management

DDR5 modules operating at high speeds like 6400 MT/s generate significant heat that must be properly managed to ensure reliability and prevent performance throttling. The Dell 9C0R6 incorporates a thermal sensor that monitors module temperature and can communicate with the system's management controller. Server designs typically include specific airflow patterns and, in some cases, dedicated memory cooling solutions to maintain optimal operating temperatures. It's important to ensure proper system cooling according to the server manufacturer's specifications, particularly in high-ambient temperature environments or when operating at maximum memory capacity with all DIMM slots populated.

Scalability

The Dell 9C0R6 provides a foundation for scalable memory configurations that can grow with business needs. Starting with a partial memory configuration and adding modules as requirements increase allows for incremental investment while maintaining performance consistency. The 128GB capacity per module represents a sweet spot for balancing density, performance, and cost in modern server environments. As DDR5 technology continues to evolve, early adoption of standards-compliant modules like the 9C0R6 ensures compatibility with future server platforms that will continue to support the DDR5 standard, protecting your investment and providing migration paths for hardware refresh cycles.

Compatibility

The Dell 9C0R6 utilizes the standard 288-pin RDIMM form factor, maintaining physical compatibility with DDR4 DIMMs while being electrically incompatible due to different keying notches. The module measures the standard 133.35mm (5.25 inches) in length and follows JEDEC specifications for DDR5 registered DIMMs. This physical design ensures proper fitment in Dell PowerEdge servers and other compatible systems designed for DDR5 technology, while the different keying prevents accidental installation in incompatible DDR4 slots that could cause damage to both the module and the motherboard.
