Dell 9C7P8 Server Motherboard for PowerEdge

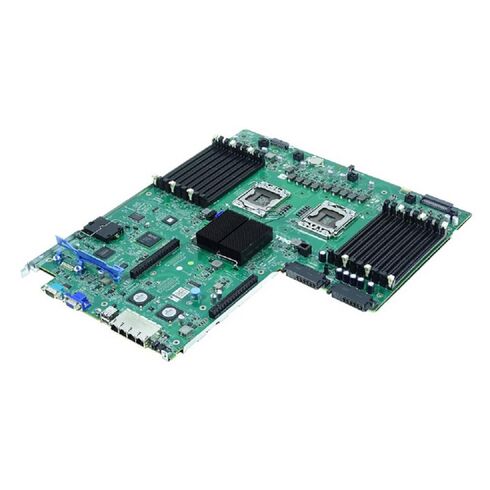

Dell 9C7P8 R710 LGA1366 Server Motherboard

The Dell 9C7P8 R710 LGA1366 server motherboard is a high-performance component designed for enterprise-level servers. Built to support Intel's LGA1366 processors, this motherboard ensures robust processing power, efficient energy usage, and advanced scalability options. Compatible with Dell PowerEdge R710 servers, it delivers excellent reliability and versatility, making it ideal for data centers, virtualization tasks, and other mission-critical applications.

Key Features of the Dell 9C7P8 R710 Motherboard

Processor Compatibility

At the heart of the Dell 9C7P8 R710 motherboard is its compatibility with Intel Xeon 5500 and 5600 series processors. These processors provide outstanding performance, support for hyper-threading, and Intel Turbo Boost technology, making them ideal for multitasking and computationally intensive workloads.

Memory Support

This motherboard supports up to 288GB of DDR3 registered ECC memory across 18 DIMM slots. This ensures high-speed memory access and error correction, which are essential for maintaining data integrity in enterprise environments.

Storage and RAID Options

The Dell 9C7P8 motherboard features robust storage capabilities, including support for multiple SATA and SAS drives. Its compatibility with Dell’s PERC RAID controllers allows businesses to configure storage setups for redundancy or performance, depending on their specific needs.

Expansion Capabilities

Equipped with PCIe slots, this motherboard allows for easy installation of additional network cards, GPUs, or other peripherals. This ensures flexibility in expanding server functionality as business requirements grow.

Energy Efficiency

The Dell 9C7P8 R710 motherboard is designed with energy efficiency in mind. With features like power capping and dynamic voltage scaling, it minimizes power consumption without compromising performance, which is crucial for lowering operating costs in data centers.

Subcategories and Related Components

Processors for the Dell 9C7P8 R710 Motherboard

Compatible processors include the Intel Xeon E5504, E5540, X5650, and X5675, among others. These CPUs offer a range of core counts and clock speeds, allowing users to select the most suitable option for their specific applications.

Memory Modules

Supported memory modules include DDR3 ECC registered DIMMs with speeds of 1066MHz and 1333MHz. Popular choices for maximizing performance include 16GB or 32GB DIMMs for high-capacity setups.

RAID Controllers

Recommended RAID controllers for this motherboard include the PERC H700 and PERC 6/i. These controllers support RAID levels 0, 1, 5, 6, 10, 50, and 60, providing flexibility in balancing performance and redundancy.

Chassis Compatibility

The Dell 9C7P8 R710 motherboard is specifically designed for the Dell PowerEdge R710 chassis. This chassis provides excellent cooling, hot-swappable drive bays, and tool-less maintenance options.

Common Use Cases

Virtualization

With its multi-core processor support and large memory capacity, the Dell 9C7P8 R710 motherboard is well-suited for virtualization environments. It enables the creation of multiple virtual machines to maximize hardware utilization and streamline IT infrastructure.

Data Center Applications

This motherboard’s robust design and reliable components make it ideal for use in data centers. It can handle database hosting, application servers, and cloud computing tasks with ease.

File and Storage Servers

Paired with appropriate RAID controllers and high-capacity drives, the Dell 9C7P8 motherboard excels in file and storage server configurations. Its scalability ensures it can grow alongside your storage requirements.

Maintenance and Upgrades

Firmware Updates

Regular firmware updates from Dell ensure that the motherboard remains secure and compatible with the latest hardware components and software environments.

Replacement Parts

Replacement components for the Dell 9C7P8 R710 motherboard, such as heat sinks, I/O shields, and power connectors, are readily available, ensuring minimal downtime in case of hardware failure.

Custom Configuration

Businesses can customize their server configurations with this motherboard to meet specific needs, whether for high-performance computing, storage, or networking tasks.

Specifications of the Dell 9C7P8 R710 Motherboard

Processor Support

Supports dual-socket configuration for Intel Xeon 5500 and 5600 series CPUs.

Chipset

Built on the Intel 5520 chipset, offering advanced features such as QuickPath Interconnect (QPI).

Memory

18 DIMM slots, up to 288GB DDR3 ECC registered memory, speeds of 800MHz, 1066MHz, and 1333MHz.

Storage Interfaces

Support for up to 8 x 2.5-inch or 3.5-inch SATA/SAS drives, depending on chassis configuration.

Expansion Slots

Two PCIe 2.0 x8 slots, one PCIe 2.0 x4 slot.

Integrated Networking

Dual Gigabit Ethernet ports for high-speed data transfer and network redundancy.

Management Features

Integrated Dell Remote Access Controller (iDRAC) for remote management and monitoring capabilities.

Buying and Selling the Dell 9C7P8 R710 Motherboard

New and Refurbished Options

The Dell 9C7P8 R710 motherboard is available as both new and refurbished. Refurbished models undergo rigorous testing to ensure performance and reliability, often providing a cost-effective alternative to new units.

Wholesale and Bulk Purchases

Bulk purchasing options are available for businesses seeking to build or upgrade multiple servers, offering significant cost savings and streamlined logistics.

Warranty and Support

Ensure your purchase includes a warranty, whether buying new or refurbished. Dell provides robust support services, including driver downloads, installation guides, and troubleshooting resources.

Environmental and Operational Considerations

Temperature and Cooling

The Dell 9C7P8 R710 motherboard operates within a recommended temperature range of 10°C to 35°C. Adequate cooling solutions, such as efficient airflow and high-quality fans, are essential for optimal performance.

Power Requirements

This motherboard supports high-efficiency power supplies to reduce energy costs and ensure stable operation, even under heavy workloads.

Noise Levels

When paired with the Dell PowerEdge R710 chassis, this motherboard benefits from optimized cooling systems, keeping noise levels manageable in data center environments.
