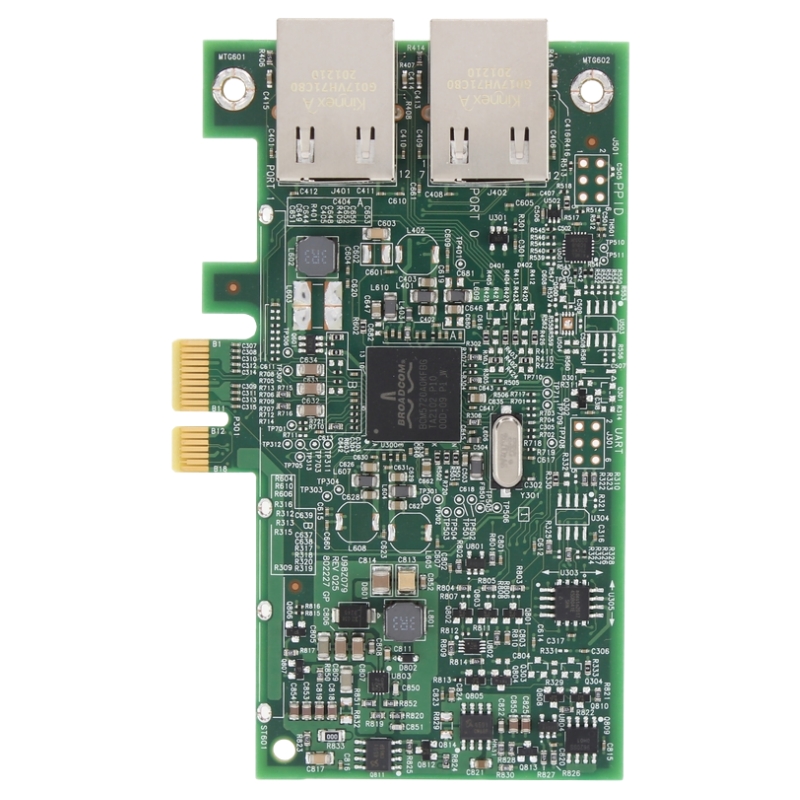

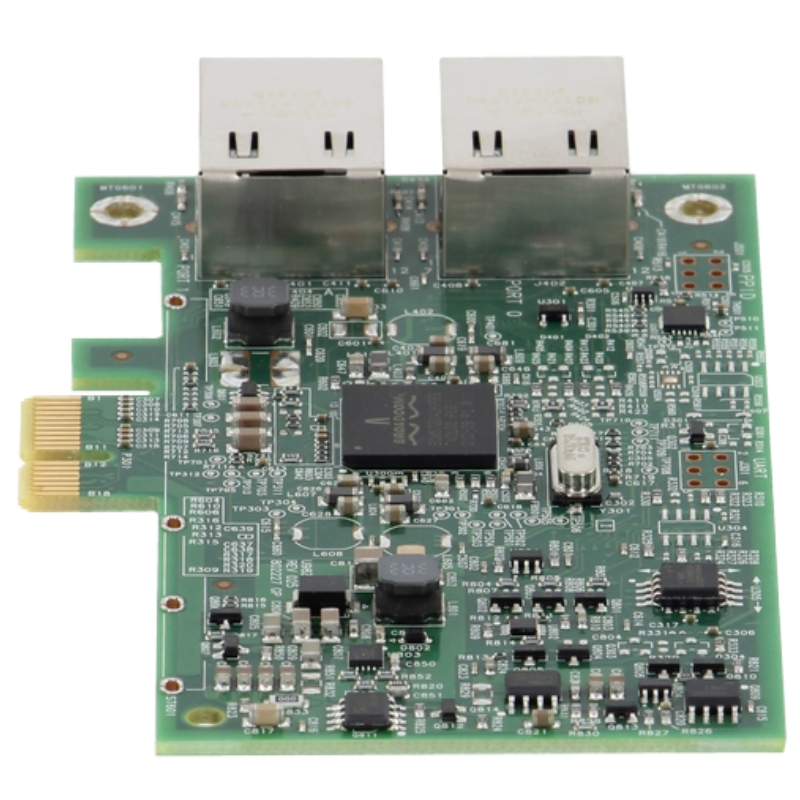

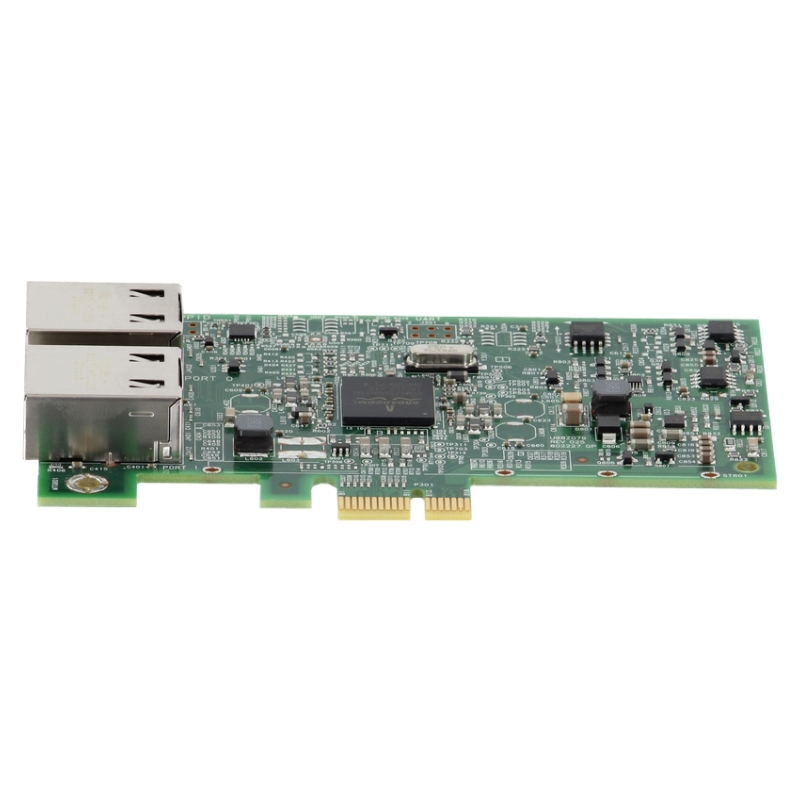

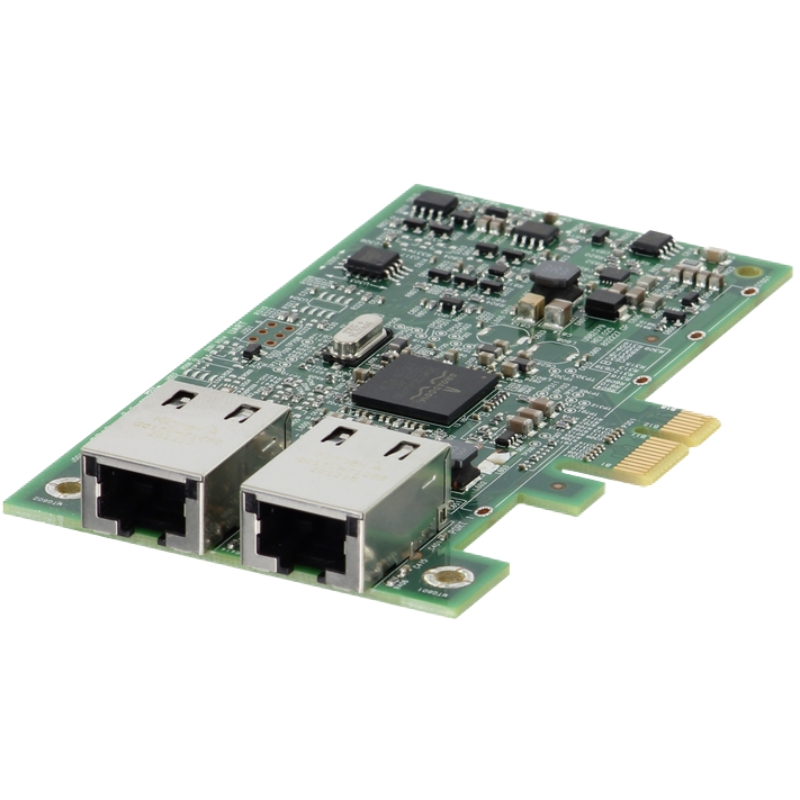

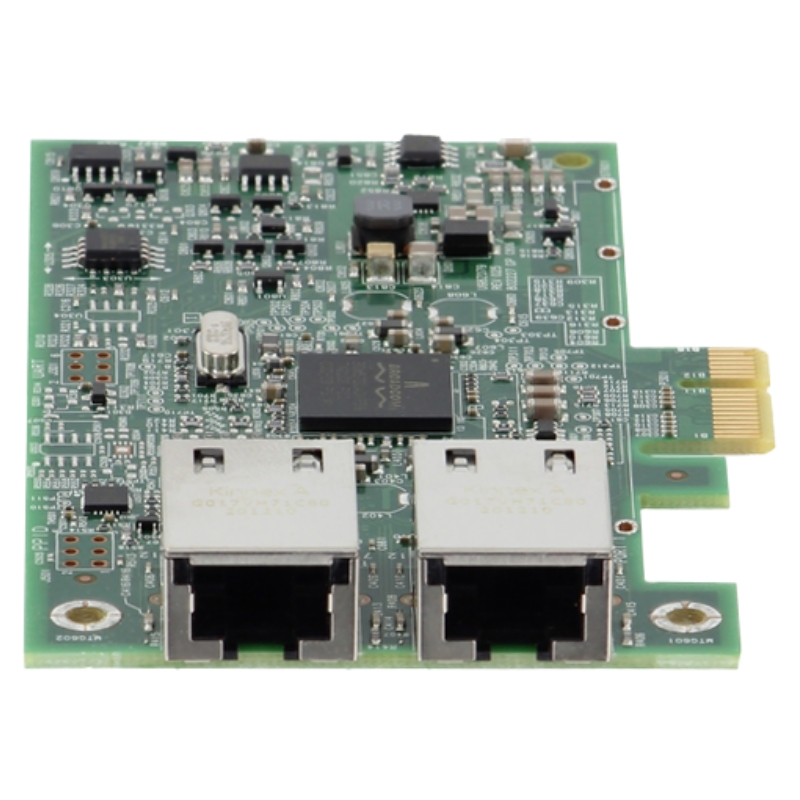

9R3XX Dell Broadcom 5720 1GBE Dual Port Network Lom Mezzanine Card.

Key Features of the 9R3XX Dell Broadcom 5720 Network Card

• Dual Port Gigabit Ethernet (1GBE): Two ports ensure enhanced network connectivity and redundancy, ideal for applications requiring high uptime and bandwidth availability.
• Broadcom 5720 Chipset: The Broadcom 5720 chipset offers superior performance, power efficiency, and support for advanced networking protocols, ensuring fast and stable data transmission.
• Low Profile Design: The mezzanine card is designed with a compact low-profile form factor, making it suitable for tight spaces and reducing the overall footprint within the server chassis.
• Improved Power Efficiency: The Broadcom 5720 chipset supports energy-efficient networking, helping to minimize power consumption without sacrificing performance.
• Compatibility with Dell Servers: This card is engineered specifically for use with Dell PowerEdge servers, ensuring seamless integration and optimal performance with Dell’s server hardware and management tools.

The 9R3XX Dell Broadcom 5720 1GBE Dual Port Network Card

Choosing the 9R3XX Dell Broadcom 5720 1GBE Dual Port Network LOM Mezzanine Card offers numerous benefits to organizations that rely on high-performance, dependable network connections. Below are the top reasons why this card is highly regarded in the industry:

1. High Availability and Redundancy

With dual ports, the 9R3XX card provides enhanced fault tolerance, allowing for automatic failover in case of a connection failure. This feature is critical for maintaining uninterrupted network access, particularly in enterprise and mission-critical environments.

2. Seamless Integration with Dell Servers

The 9R3XX Dell Broadcom card is specifically designed to integrate flawlessly with a wide range of Dell PowerEdge servers, ensuring easy setup, configuration, and management. Dell's server management tools, such as iDRAC and OpenManage, work seamlessly with this card to provide real-time monitoring and diagnostics, allowing IT administrators to manage network performance with ease.

3. Low Latency and High-Speed Networking

For applications requiring low latency and high throughput, such as virtualization, cloud computing, and large-scale database operations, the 9R3XX Dell Broadcom 5720 card ensures optimal performance with minimal delays and smooth data processing. The dual ports enable the card to balance the network traffic load and improve overall throughput.

4. Enhanced Security Features

The card incorporates advanced security features, such as hardware offload for encryption and secure tunneling, ensuring that sensitive data is transmitted securely across the network. These security capabilities are essential for organizations that need to meet compliance standards and protect critical business information.

Specifications of the 9R3XX Dell Broadcom 5720 1GBE Dual Port Network Card

The technical specifications of the 9R3XX Dell Broadcom 5720 1GBE Dual Port Network LOM Mezzanine Card provide valuable insights into its capabilities, ensuring it meets the performance standards of modern enterprise networks.

Software and Driver Support

For compatibility with various operating systems and software environments, the 9R3XX Dell Broadcom 5720 card supports a wide range of drivers and management tools. These drivers are crucial for ensuring full functionality and network performance, as they enable features like load balancing, failover, and quality of service (QoS) configurations.

• Supported Operating Systems: Windows Server, Linux distributions (such as Red Hat, Ubuntu, CentOS), VMware ESXi, and other enterprise-level operating systems.
• Management Software: Dell OpenManage, iDRAC for remote management, Broadcom NetXtreme management suite.
• Driver Availability: The latest Broadcom drivers are readily available for download from the official Dell support website, ensuring up-to-date functionality and performance enhancements.

Applications and Use Cases of the 9R3XX Dell Broadcom 5720 Card

The 9R3XX Dell Broadcom 5720 1GBE Dual Port Network LOM Mezzanine Card is highly versatile and can be used in a wide array of environments. Below are several key applications and use cases for this network card:

Data Centers

In modern data centers, where uptime, speed, and efficiency are critical, the 9R3XX Dell Broadcom 5720 card provides the necessary performance to keep systems running smoothly. With dual Gigabit Ethernet ports, the card helps balance traffic loads, while its low profile ensures that it can be installed in servers with limited space.

Enterprise Networks

For large enterprise networks, the 9R3XX card offers reliable network connections and redundancy. Whether you're managing a financial institution, healthcare provider, or a large corporate infrastructure, this card ensures continuous communication between servers and systems, providing enhanced network availability and security.

Cloud Computing Environments

As cloud infrastructure continues to grow, network connectivity becomes more important than ever. The 9R3XX card supports cloud-based workloads, ensuring that virtual machines and cloud applications have a stable, high-performance network connection. Its support for virtualization technologies, such as VMware and Hyper-V, makes it ideal for cloud-hosted environments.

Virtualization and Server Farms

In server farms and virtualized environments, the 9R3XX card enhances the performance of virtualized workloads. By supporting multiple virtual machines with robust networking, this card ensures that each VM operates efficiently and securely, without network bottlenecks or connection issues.

Installation and Configuration of the 9R3XX Dell Broadcom 5720 Card

Installing and configuring the 9R3XX Dell Broadcom 5720 1GBE Dual Port Network LOM Mezzanine Card is straightforward when following the proper steps. Here's a brief guide on how to do it:

Step 1: Install the Card in the Server

Ensure that your Dell server is powered off and disconnected from any power source. Open the server chassis, and locate the mezzanine card slot on the server motherboard. Insert the 9R3XX card into the slot, ensuring that it is securely seated. Close the chassis and reconnect the power cables.

Step 2: Install the Drivers and Management Software

Upon booting the server, install the necessary drivers and management tools. These can be downloaded from the official Dell support website. Follow the on-screen instructions to install the drivers compatible with your operating system.

Step 3: Configure the Network Settings

Once the drivers are installed, you can begin configuring the network settings. You may need to access the server’s BIOS or operating system network settings to assign IP addresses and configure advanced features such as failover, load balancing, and QoS policies. Utilize Dell’s management software for monitoring and optimizing performance.

Step 4: Test the Connectivity

After installation and configuration, it’s important to verify that both Ethernet ports are functioning correctly. Test network connectivity by sending test packets between devices connected to the network. You can also utilize the server management tools to check for any errors or network disruptions.
