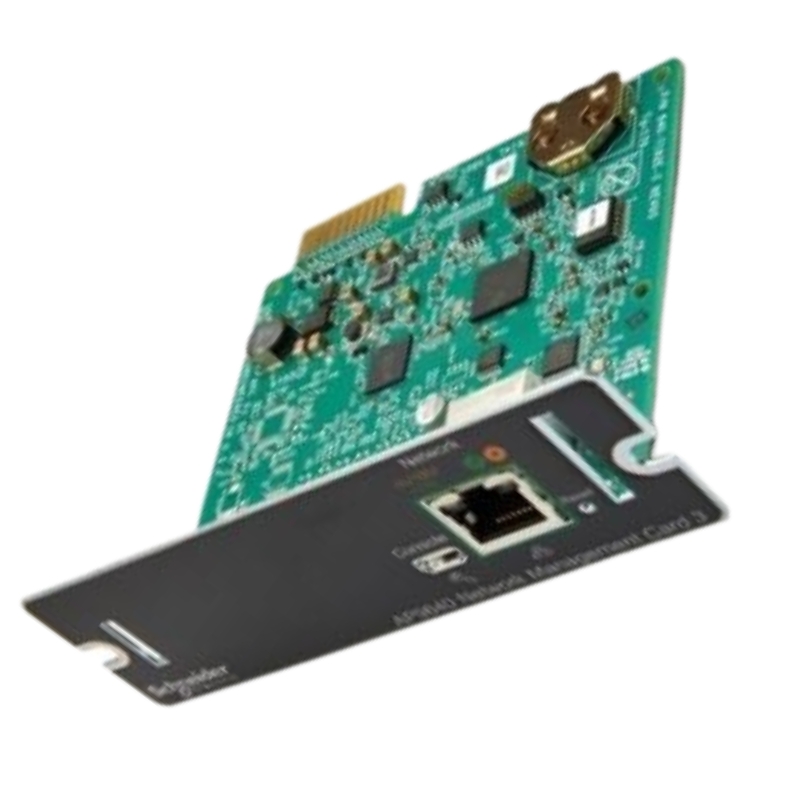

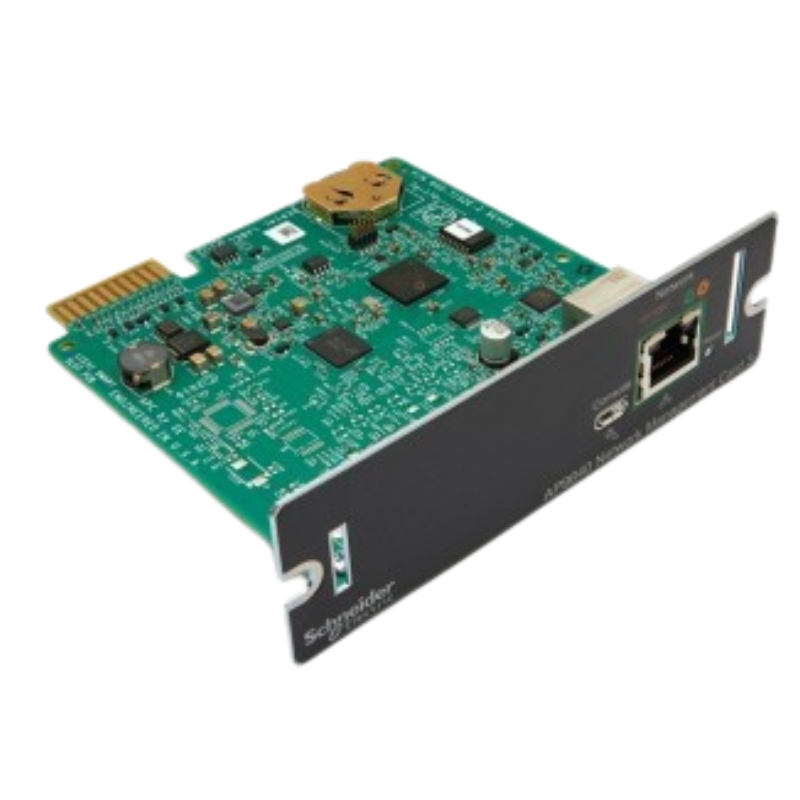

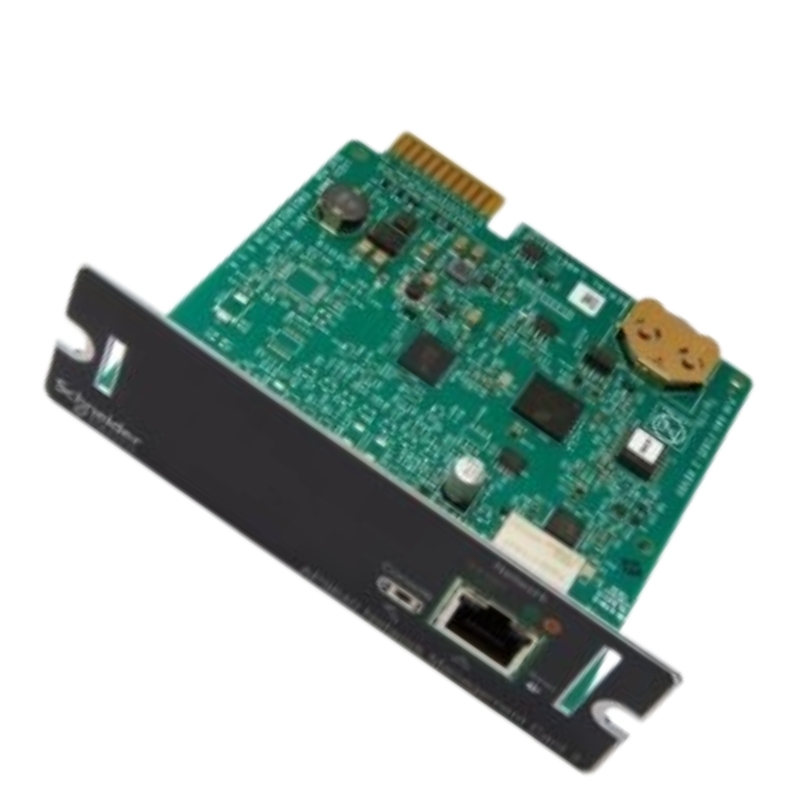

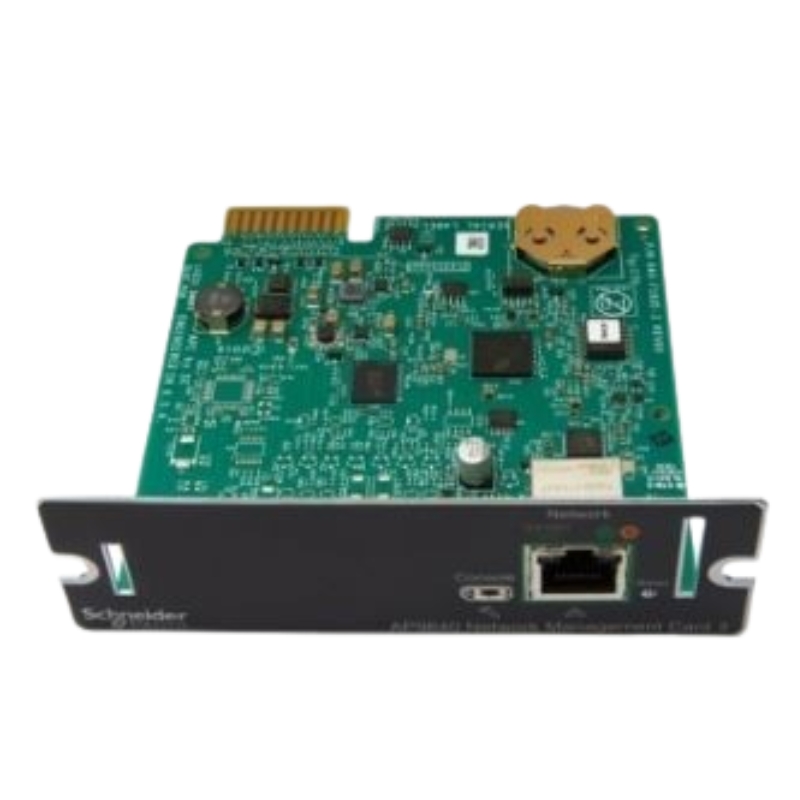

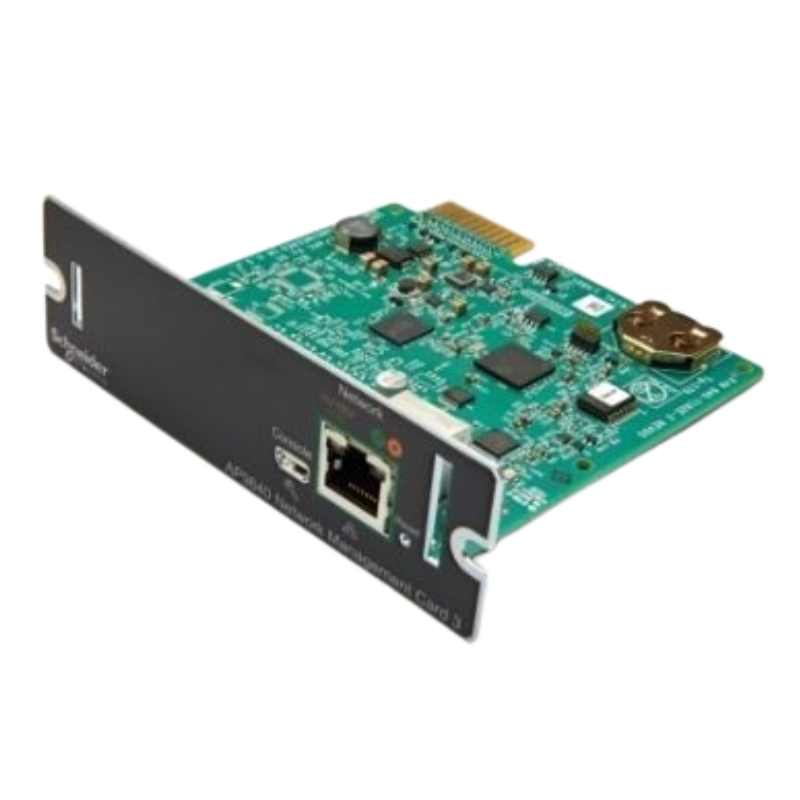

Dell AB202856 Card 3 Remote Management Adapter
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Product Specifications
Key Information
- Brand: Dell
- Part Number: AB202856
- Device Type: Remote Management Adapter
- Form Factor: Plug-in Module
- Connectivity Technology: Wired
Supported Connectivity Types
- Cabling Types: Ethernet 10base-t, Ethernet 100base-tx, Ethernet 1000base-t
- Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet
- Data Transfer Rate: 1 Gbps
Protocols Supported
- Network / Transport Protocol: Tcp/ip, Smtp
- Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2
Enhanced Features
- IPv6 & IPv4 Support
- Radius Authentication Capability
- Temperature Sensor Integration
Environmental Specifications
- Operating Temperature: 32 - 113 °F (0 - 45 °C)
- Operating Humidity: 0 - 95%
- Operating Elevation: 0 - 10,000 ft (0 - 3000 meters)
Storage Conditions
- Storage Temperature: -5 - 45 °C
- Storage Humidity: 0 - 95%
- Storage Elevation: 0 - 50,000 ft (0 - 15,000 meters)
Physical Dimensions
- Height: 1.5 Inches (38 mm)
- Width: 4.76 Inches (121 mm)
- Depth: 4.49 Inches (114 mm)
- Net Weight: 0.2 lbs (0.09 kg)
Compatibility and Design
Designed For Various Models
- SCL500RM1UC
- SCL500RM1UNC
- SMT3000R2I-AR
- SMTL1000RM2UC
- SMTL1000RMI2UC
- SMTL750RM2UC
- SMTL750RMI2UC
- SMX2KR2UNCX145
- SRT1000RMXLI
- SRT1000RMXLI-NC
- SRT1000XLI
- SRT10KXL-TW
- SRT1500RMXLI
- SRT1500RMXLI-NC
- SRT1500XLI
- SRT1500XLJ
- SRT2400XLJ
- SRT3000XLA-TW
- SRT3000XLTW
- SRT5KRMXLW-TW
- SRT6KXLTW
AB202856 Dell Management Card 3 with PowerChute Network Shutdown & Environmental Monitoring
The AB202856 Dell Management Card 3 is an advanced remote management adapter designed to offer efficient and reliable monitoring, shutdown capabilities, and environmental controls for IT infrastructures. As a crucial part of a comprehensive data center management system, it enables IT professionals to have full control over power management, system status, and environmental conditions in their server racks and other networked devices. This device integrates seamlessly with Dell PowerEdge servers and Dell's industry-leading PowerChute software suite, providing a high level of automation and intelligence for optimizing uptime and operational efficiency.
Key Features of the AB202856 Dell Management Card 3
The Dell Management Card 3 with PowerChute Network Shutdown and Environmental Monitoring offers several key features that significantly improve the management and protection of critical infrastructure. These features include:
- Remote Management: Enables full control over servers and other networked devices from anywhere, allowing IT administrators to manage systems remotely, even during power outages.
- PowerChute Network Shutdown Integration: Automates the safe shutdown of servers and devices during a power failure, preventing data corruption and ensuring that all systems are powered off properly.
- Environmental Monitoring: Continuously monitors environmental conditions such as temperature and humidity, and provides alerts to prevent potential damage due to overheating or excessive moisture.
- Support for SNMP: Supports Simple Network Management Protocol (SNMP), which is essential for integrating with other network management tools and monitoring software.
- Secure Communication: The card supports secure communication protocols, ensuring the integrity of remote access and control operations.
- Event Logging: Provides comprehensive event logs that help administrators track activities and troubleshoot issues more effectively.
Installation and Configuration of the AB202856 Management Card 3
Installing and configuring the AB202856 Dell Management Card 3 is a straightforward process, especially for systems that already use Dell servers and network equipment. The following steps outline the general process for installation:
Hardware Installation
To install the AB202856 Management Card 3, follow these steps:
- Power down the server and ensure that all necessary precautions are in place to avoid static discharge or electrical damage.
- Insert the management card into the appropriate slot on the server's motherboard, typically located near the server’s primary power connectors.
- Secure the card in place and reassemble the server, following any specific guidance from Dell's hardware manuals.
- Reconnect the server to its power source and power it up to initiate the card's detection process.
Software Configuration
Once the hardware is installed, the software configuration steps can be followed:
- Ensure the server is running the latest version of the Dell iDRAC (Integrated Dell Remote Access Controller) software to ensure compatibility with the AB202856 card.
- Access the server's management interface, either through a direct connection or via a web browser, using the appropriate IP address.
- In the management interface, configure the remote management settings, including user access controls, notifications, and shutdown schedules based on the organization's requirements.
- Install the PowerChute Network Shutdown software on the server to integrate automatic shutdown functionalities during power events, such as power loss or battery depletion.
PowerChute Network Shutdown Integration
PowerChute Network Shutdown is a key feature of the AB202856 Dell Management Card 3, and it ensures the safe shutdown of networked devices during an unexpected power failure. This feature integrates seamlessly with the card, providing IT administrators with the ability to configure power event responses according to business needs. Some of the main aspects of this integration include:
- Graceful Shutdowns: PowerChute Network Shutdown allows servers and other connected devices to shut down gracefully when power loss is detected, minimizing the risk of data corruption or hardware damage.
- Customizable Event Triggers: Administrators can set up custom event triggers to automatically initiate shutdown procedures when specific environmental thresholds are reached (e.g., high temperature or humidity).
- Battery Monitoring: The integration provides ongoing monitoring of UPS (Uninterruptible Power Supply) battery levels, ensuring that devices can operate safely during outages until the UPS battery runs out.
- Alerting and Reporting: PowerChute provides detailed reporting and alerts for power events, helping administrators to identify trends and optimize system availability.
Environmental Monitoring Capabilities
Environmental monitoring is a critical feature of the AB202856 Dell Management Card 3. This function is essential for preventing overheating, humidity damage, and other environmental threats that could impact the reliability and performance of IT equipment. The key environmental monitoring capabilities of this system include:
Temperature Monitoring
Temperature is one of the most important factors in maintaining optimal performance in data centers and server rooms. The AB202856 card allows administrators to monitor the temperature in real-time, with customizable threshold alerts to prevent overheating. This feature helps mitigate the risk of thermal damage, which can lead to hardware failures or performance degradation.
Humidity Monitoring
Excessive humidity levels can lead to the formation of condensation inside server equipment, which can damage sensitive components. The AB202856 card provides continuous humidity monitoring, sending alerts when conditions exceed predefined thresholds. This helps administrators ensure that the environment remains conducive to optimal hardware performance.
Alert Notifications
The system sends real-time alerts to administrators whenever the monitored environmental conditions (temperature, humidity, airflow, etc.) go beyond the acceptable range. These alerts can be sent via email, SNMP traps, or direct integration with other network management systems. This proactive alerting system enables quick intervention before serious damage can occur.
Security Features of the AB202856 Management Card 3
Security is paramount when dealing with remote management systems, and the AB202856 Dell Management Card 3 is designed with several key security features to safeguard against unauthorized access and ensure secure communication. These features include:
- HTTPS and SSL Encryption: Communications between the management card and connected devices are encrypted using SSL (Secure Socket Layer) technology, ensuring that data transmitted between the card and the administrator’s console is secure.
- IP Filtering: The card supports IP filtering, allowing administrators to restrict access to certain IP addresses, enhancing security by limiting the devices that can connect to the management interface.
- Two-Factor Authentication: For added security, the management interface supports two-factor authentication, requiring both a password and an additional verification step before granting access.
- Role-Based Access Control (RBAC): Administrators can define different roles and permissions for users accessing the management card, ensuring that only authorized personnel have control over specific functions of the system.
Compatibility and Integration with Dell and Third-Party Systems
The AB202856 Dell Management Card 3 is designed to work seamlessly with a wide range of Dell PowerEdge servers and third-party devices. The following integration capabilities make it a highly versatile solution:
Integration with Dell Servers
As part of the Dell family of products, the AB202856 Management Card 3 integrates smoothly with PowerEdge servers, including various models in the PowerEdge R and T series. It allows for direct access to server health monitoring, including CPU usage, memory utilization, and disk health, alongside environmental and power-related monitoring.
Third-Party Device Support
For environments that include non-Dell equipment, the card offers SNMP support, which enables it to integrate with third-party management platforms. This capability ensures that the AB202856 can be part of a multi-vendor infrastructure, providing centralized monitoring and control.
Cloud and Virtualization Integration
In modern data centers that rely heavily on cloud and virtualization technologies, the AB202856 card integrates well with cloud-based management platforms and virtual machine (VM) environments. It ensures that both physical and virtualized resources are monitored and controlled, offering a unified management solution for IT administrators.
Benefits of Using the AB202856 Dell Management Card 3
Using the AB202856 Dell Management Card 3 provides numerous benefits, including:
- Enhanced Reliability: By offering remote management, environmental monitoring, and automatic power shutdown, the card helps ensure the consistent uptime of critical IT systems.
- Operational Efficiency: The card reduces the need for on-site intervention, improving the overall efficiency of IT operations by automating key tasks like shutdowns and environmental alerts.
- Cost Savings: Proactively managing power and environmental conditions reduces the risk of costly downtime and hardware failures, providing significant long-term cost savings.
- Improved Security: With robust security features, the card helps protect against unauthorized access and provides peace of mind for administrators who manage sensitive data and infrastructure.
