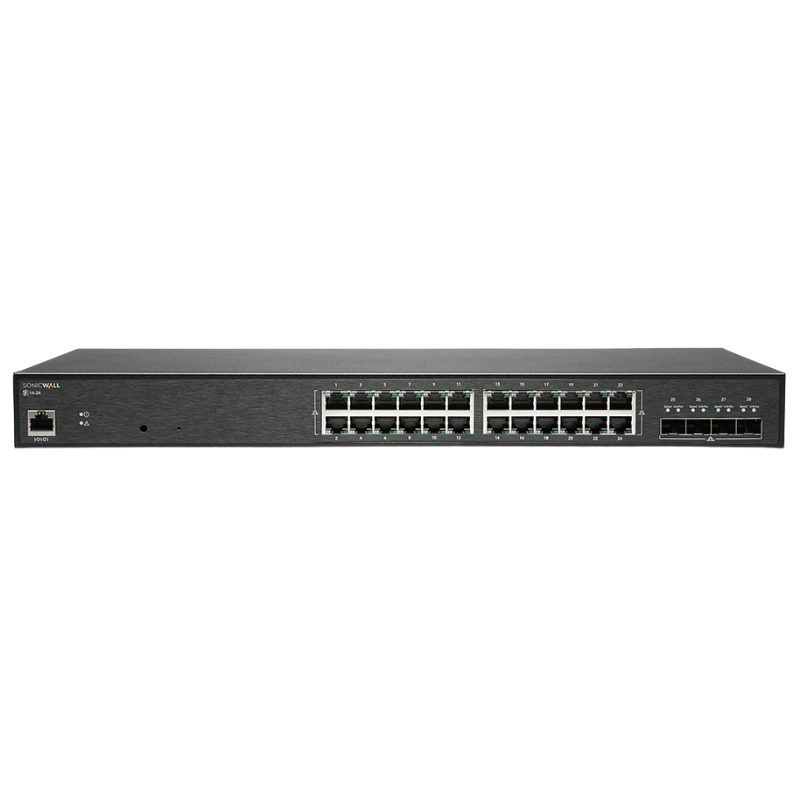

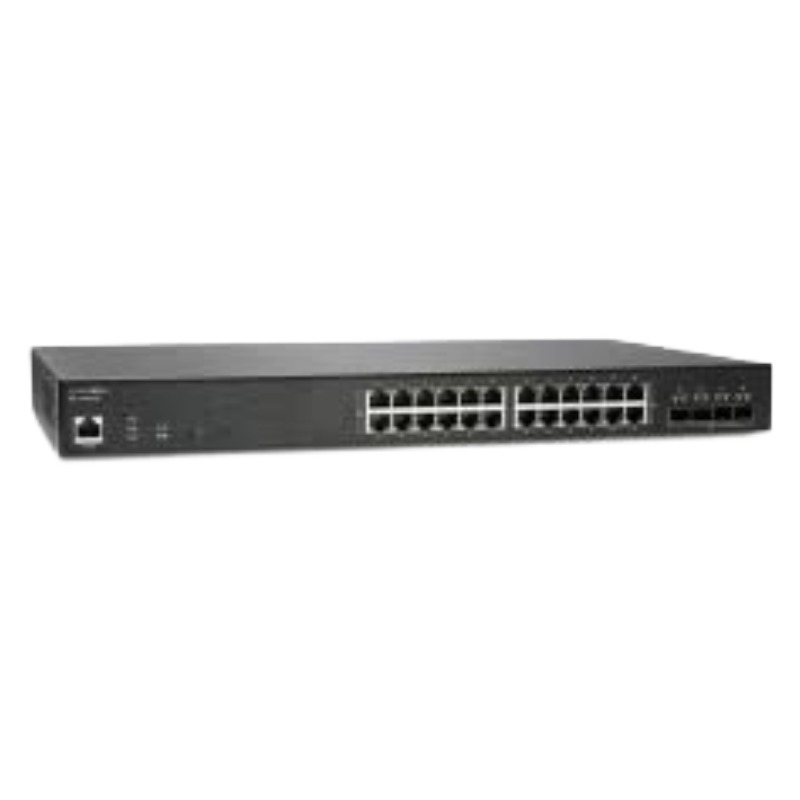

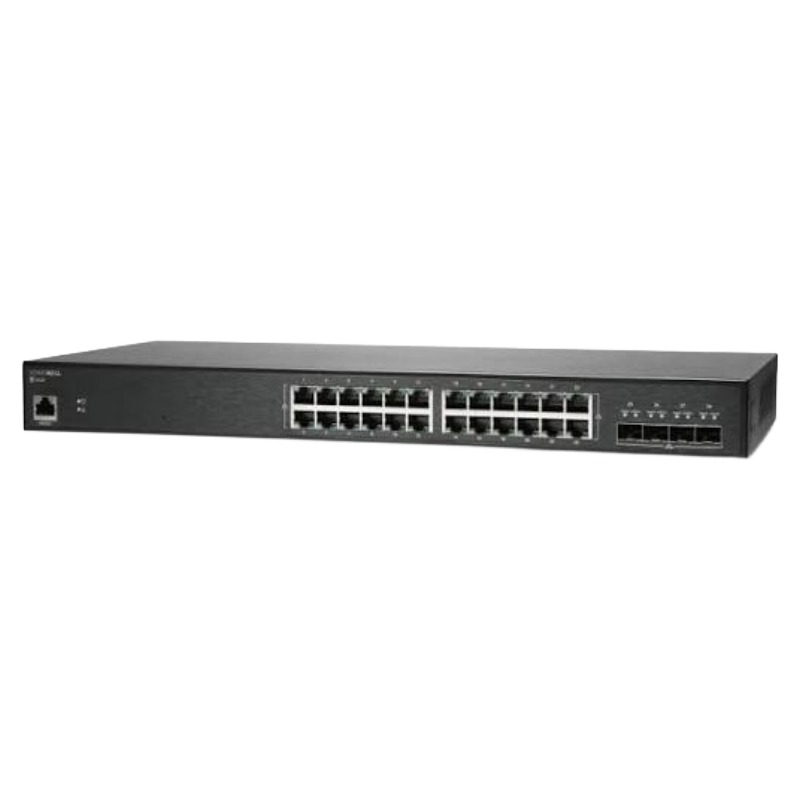

AB560349 Dell SWS14 24 28 ports managed Switch

Dell AB560349 Switch SWS14-24: High-Performance Managed Networking

Experience enterprise-grade networking with the Dell AB560349 Switch SWS14-24, designed to deliver secure, efficient, and high-speed connectivity for modern data centers and business infrastructures.

Manufacturer Information

• Manufacturer: Dell
• Part Number: AB560349
• Product Type: Networking Switches
• Switching Capacity: 128 Gbps
• Subtype: 10 Gigabit Ethernet
• Enclosure Type: Rack-mountable 1u

Key Hardware Attributes

• Form Factor: 1U rack-mountable chassis for streamlined installation
• Port Configuration: 24 x 10/100/1000Base-T RJ-45 interfaces paired with 4 x 10GBase-X SFP+ uplinks
• Performance Throughput: 128 Gbps switching capacity ensures seamless traffic handling
• MAC Address Capacity: Supports up to 32,000 entries for large-scale deployments
• Expandable Memory: Equipped with 512MB RAM and 128MB flash memory

Advanced Network Management Features

• Comprehensive VLAN capabilities with support for up to 4096 virtual interfaces
• Multiple spanning tree protocol support including RSTP and MSTP for network redundancy
• Zero-touch configuration simplifies large network rollouts
• Robust security options with RADIUS authentication and ACL (Access Control List) functionality
• Remote management protocols: SNMPv1, v2c, v3, HTTPS, SSH, and CLI

Optimized Data Traffic and Control Protocols

• Supports Link Aggregation Control Protocol (LACP) for improved bandwidth and redundancy
• DHCP features including relay, snooping, and client support
• Energy-efficient Ethernet (EEE) compliance for reduced operational costs
• Flow control and auto-negotiation capabilities for reliable data transmission
• Storm control and back pressure management to safeguard network stability

Comprehensive Quality of Service (QoS) Capabilities

Prioritize mission-critical applications with DSCP-based QoS and traffic management, ensuring optimal performance across all connected devices and services.

Compliance and Industry Standards

• Adheres to IEEE 802.1p, 802.1x, and 802.1AB (LLDP) standards for seamless integration
• Supports IGMP snooping for efficient multicast traffic management
• Syslog support for comprehensive event logging and troubleshooting

Connectivity and Expansion Options

• 24 x Gigabit Ethernet RJ-45 ports
• 4 x 10G SFP+ uplink ports for high-speed data transfers
• 1 x RJ-45 console port for direct device management

Power and Energy Efficiency

• Built-in internal power supply supporting 120/230V AC at 50/60Hz
• Energy-conscious design consuming just 36W during active operation

Notable Operational Features

• Firmware upgradeable for long-term platform viability
• Fanless design ensures quiet, efficient performance in noise-sensitive environments
• Jumbo frame support for high-volume data transfers
• Port mirroring for effective network diagnostics
• Daisy-chaining capability for scalable network expansion

Dell AB560349 Sws14 24 28 Ports 128 Gbps 10 Gigabit Ethernet Managed Rack-mountable Networking Switch Overview

The Dell AB560349 Sws14 24 28 Ports 128 Gbps 10 Gigabit Ethernet Managed Rack-mountable Networking Switch represents a powerful and efficient solution for enterprise-grade networking environments. Built to deliver high-speed, low-latency, and reliable data transmission, this switch is ideal for data centers, server farms, and enterprise networks requiring resilient, scalable, and secure connectivity. Featuring 24 to 28 ports with 10 Gigabit Ethernet capability, advanced Layer 2 and Layer 3 management functions, and a rack-mountable form factor, this networking switch ensures optimal network performance and streamlined infrastructure deployment.

Category Breakdown: 10 Gigabit Ethernet Managed Networking Switches

The category of 10 Gigabit Ethernet Managed Networking Switches caters to enterprise customers seeking enhanced bandwidth, intelligent traffic control, and secure infrastructure management. These switches are integral to modern data centers and enterprise networks where increasing data demands, virtualization, and cloud connectivity require hardware capable of sustaining high-speed, reliable, and intelligent data flows.

10 Gigabit Ethernet Managed Switch

A 10 Gigabit Ethernet Managed Switch is a high-performance networking device capable of supporting 10 Gbps data rates on each port. Unlike unmanaged switches, managed switches offer advanced features such as VLAN segmentation, Quality of Service (QoS) controls, SNMP monitoring, redundant power options, link aggregation, and more. These switches are central to ensuring network reliability, efficiency, and security.

Key Applications for Enterprise Networking

• Data Center Aggregation and Core Switching
• Enterprise Campus Network Backbones
• High-Density Server Connectivity
• Virtualized Network Infrastructures
• High-Performance Computing (HPC) Clusters
• Cloud and Storage Area Network (SAN) Backbones

Technical Highlights of the Dell AB560349 Networking Switch

The Dell AB560349 excels in enterprise environments thanks to its powerful specifications and capabilities.

Port Configuration and Throughput

Equipped with 24 to 28 ports, this networking switch ensures scalable, high-density connectivity options. Each port supports 10 Gigabit Ethernet, providing the necessary bandwidth for intensive applications such as virtualization, storage networking, and enterprise data services. The switch's aggregate throughput capacity of 128 Gbps enables simultaneous high-speed data flows, eliminating bottlenecks and maintaining consistent network performance.

High Port Density Advantages

A high port density in a single rack-mounted chassis simplifies infrastructure by reducing the number of required switches, conserving rack space, and lowering power and cooling demands. This consolidation contributes to operational efficiency in high-performance environments.

Managed Switching Capabilities

Being a fully managed switch, the Dell AB560349 supports a suite of enterprise-level network management features. These include:

• Layer 2 and Layer 3 switching functions
• VLAN segmentation for traffic isolation and security
• Quality of Service (QoS) for traffic prioritization
• Link Aggregation (LAG) for increased bandwidth and redundancy
• Spanning Tree Protocol (STP) to prevent network loops
• SNMP-based remote management
• Comprehensive security policies including access control lists (ACLs)

Rack-Mountable Form Factor

The Dell AB560349 is designed with a rack-mountable 1U or 2U chassis, fitting seamlessly into existing server and network racks. This design promotes space-efficient deployment and organized cable management in data centers and wiring closets.

Subcategory Insight: Enterprise Rack-Mountable Ethernet Switches

Within the networking hardware market, rack-mountable Ethernet switches are the backbone of enterprise infrastructure. These devices offer scalable, modular, and serviceable options for organizations handling large-scale networking demands.

Features of Enterprise Rack-Mountable Switches

• High-speed connectivity with support for Gigabit and 10 Gigabit Ethernet ports
• Redundant power and cooling modules
• Comprehensive Layer 2 and Layer 3 management features
• Advanced security capabilities, including port-based security and 802.1X authentication
• SNMP, CLI, Web GUI, and API-based management interfaces

Advanced Network Management and Monitoring Capabilities

Effective management is critical for enterprise networks, and the Dell AB560349 offers extensive options:

SNMP and Remote Monitoring

The switch supports Simple Network Management Protocol (SNMP), enabling centralized monitoring of network devices, real-time performance tracking, and alerting. This is essential for proactive network health management and issue resolution.

CLI and Web-Based GUI Management

Network administrators can configure and monitor the switch through a secure Command-Line Interface (CLI) or an intuitive web-based graphical user interface (GUI). These tools offer flexibility for both advanced users and those preferring graphical configuration workflows.

Automated Configuration and Policy Enforcement

The switch supports automated provisioning, firmware updates, and policy enforcement, reducing manual overhead and minimizing configuration errors in dynamic environments.

Performance Optimization Features

Quality of Service (QoS)

With built-in Quality of Service (QoS) features, the Dell AB560349 prioritizes mission-critical traffic, such as VoIP, video conferencing, and enterprise applications. This ensures consistent performance and minimal latency for sensitive workloads.

Link Aggregation and Redundancy

Through Link Aggregation Control Protocol (LACP), multiple physical links can be combined into a single logical link for increased bandwidth and redundancy. This feature is vital for failover protection and ensuring uninterrupted service delivery.

Security and Access Control

Access Control Lists (ACLs)

The switch includes Access Control Lists (ACLs) to restrict traffic based on IP addresses, MAC addresses, or protocol types, protecting against unauthorized access and potential network breaches.

Port Security

Administrators can implement port security policies to control which devices can connect to each port, limiting network exposure to rogue devices or unauthorized endpoints.

802.1X Authentication

Support for 802.1X port-based network access control provides an additional security layer, enforcing device authentication before granting network access.

Energy Efficiency and Sustainability

Energy-Efficient Ethernet (EEE)

The Dell AB560349 incorporates Energy-Efficient Ethernet (EEE)

Redundant and Hot-Swappable Power Supplies
