AFBR-89BDDZ-FT1 Dell 100GbE QSFP28 BIDI 850/900nm Networking Transceiver

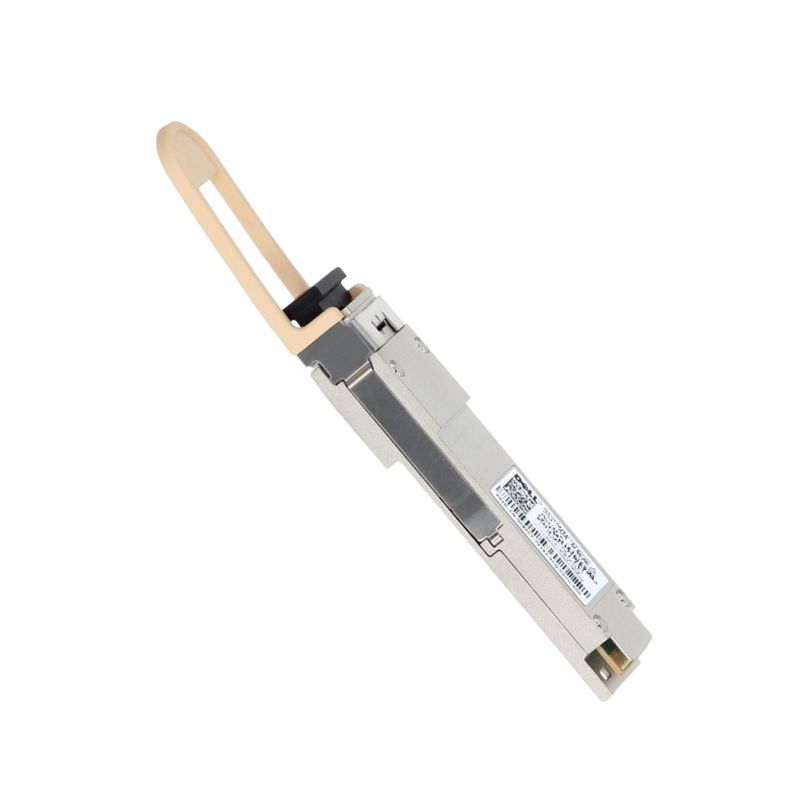

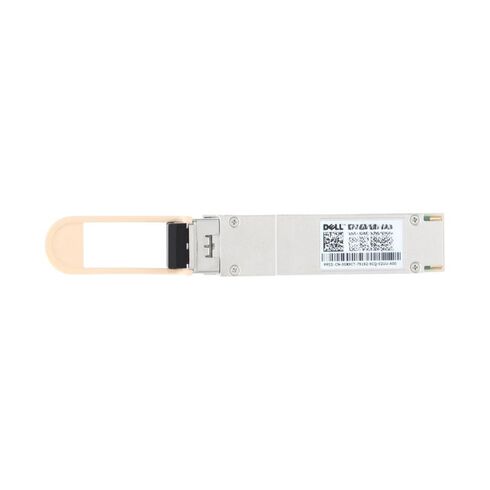

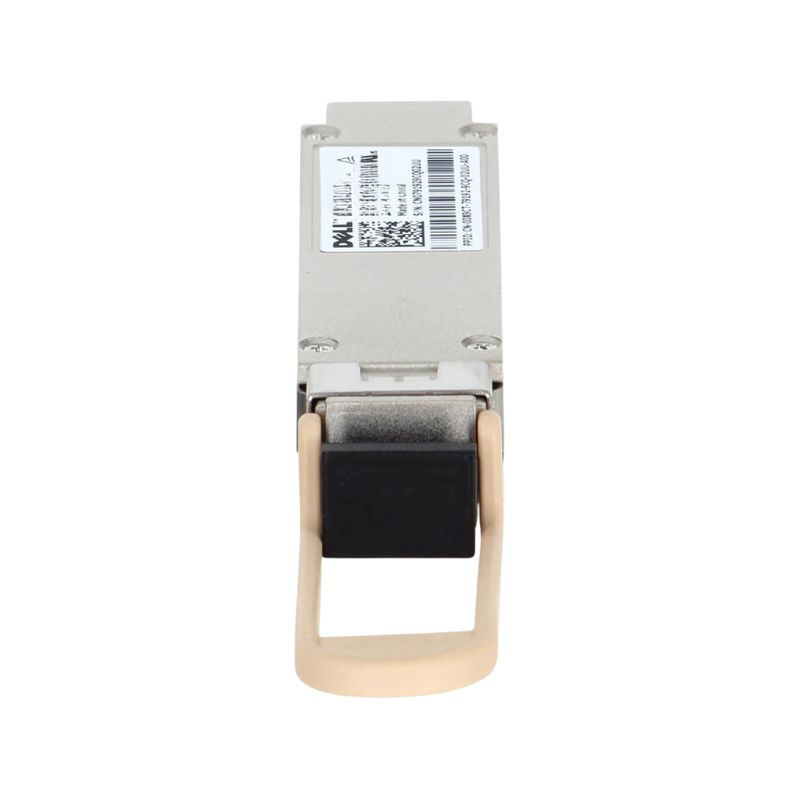

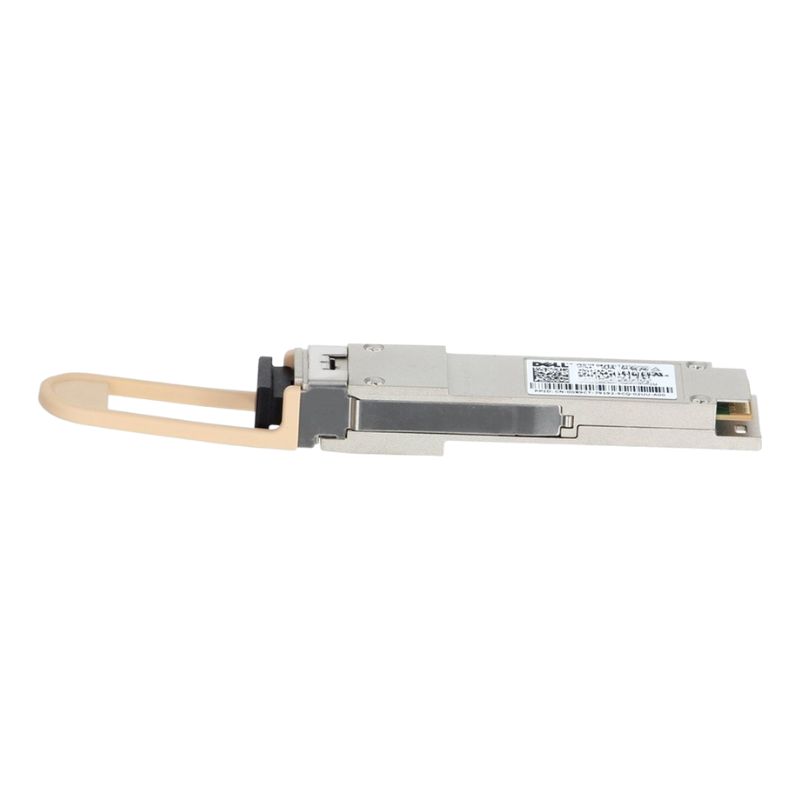

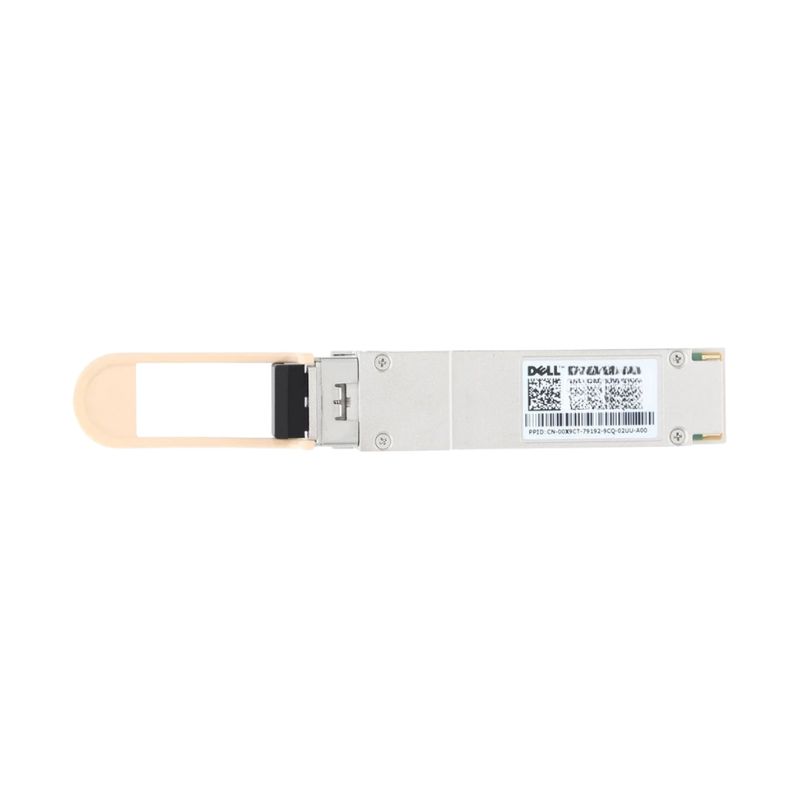

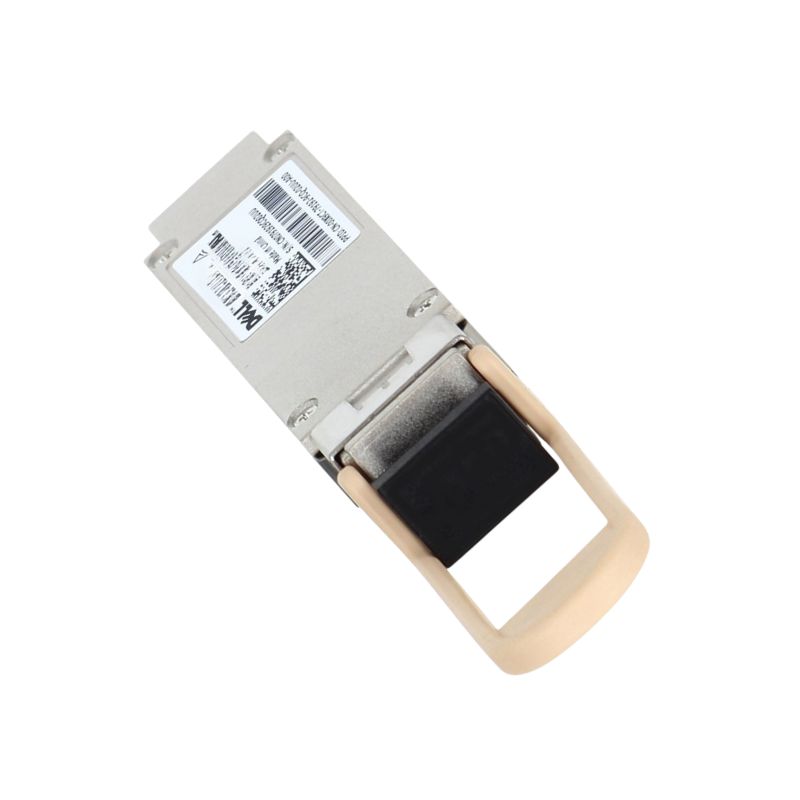

Dell AFBR-89BDDZ-FT1 100GbE QSFP28 BIDI Optical Transceiver

The Dell AFBR-89BDDZ-FT1 is a high-performance 100 Gigabit Ethernet (100GbE) QSFP28 BIDI transceiver designed for reliable data communication over multimode fiber (MMF). This optical transceiver supports bidirectional transmission using 850/900nm wavelengths and LC duplex connectors, offering robust connectivity for enterprise and data center networks.

Product Identification

• Brand: Dell
• Part Number: AFBR-89BDDZ-FT1

Technical Specifications

• Device Type: Optical Transceiver Module
• Form Factor: QSFP28
• Data Rate: 100GbE
• Optical Wavelength: Up to 850/900nm
• Connector Type: LC Duplex
• Fiber Type: Multimode Fiber (MMF)

Key Features of Dell AFBR-89BDDZ-FT1

• High-speed 100GbE data transfer capabilities
• Compact QSFP28 form factor for space-efficient installations
• Supports bidirectional (BIDI) multimode fiber links
• 850/900nm optical wavelength for short-range connectivity
• LC duplex connectors ensuring secure and reliable connections
• Low power consumption for energy-efficient operations
• Compatible with a wide range of Dell PowerSwitch models

Performance Advantages

• High-bandwidth support for demanding network environments
• Reduced latency for critical enterprise applications
• Durable design optimized for continuous operation in data centers
• Supports both short-range and medium-range multimode fiber links

Compatible PowerSwitch Devices

• Powerswitch Mx5108n
• Powerswitch Mx9116n
• Powerswitch S3248t-on
• Powerswitch S4112-on
• Powerswitch S4128
• Powerswitch S4148
• Powerswitch S4148u-on
• Powerswitch S4300-on
• Powerswitch S5448f-on
• Powerswitch Z9264f-on
• Powerswitch Z9432f-on
• Powerswitch Z9664f-on

Enhanced Network Efficiency

• Supports simultaneous bidirectional data streams over a single fiber link
• Optimized for short-range MMF connections, reducing network bottlenecks
• Ensures stable signal quality and minimal data loss

Enterprise-Grade Reliability

• Tested and certified by Dell for compatibility with a wide array of switches
• Durable QSFP28 form factor suitable for high-density installations
• Provides consistent performance in mission-critical environments

Energy-Efficient Design

• Low power consumption reduces operational costs
• Supports sustainable network operations in modern data centers
• Compact design allows more transceivers per rack unit

Data Centers

• High-speed uplinks between core and aggregation switches
• Short-distance multimode fiber connections across server racks
• Supports virtualization and cloud infrastructure demands

Enterprise Networks

• High-performance LAN connectivity for large office networks
• Reliable link between storage and network devices
• Scalable solution for growing IT infrastructures

Telecommunication Networks

• Supports metro and campus networking deployments
• Ensures high-speed optical connections in dense urban environments
• Enables efficient bidirectional data transfer over a single fiber strand

Dell AFBR-89BDDZ-FT1 100GbE Networking Transceivers

The Dell AFBR-89BDDZ-FT1 is a high-performance 100 Gigabit Ethernet (100GbE) QSFP28 BiDi (Bidirectional) transceiver designed to optimize high-speed data transmission across data centers and enterprise networks. This module operates over multimode fiber (MMF) with 850/900nm wavelengths, utilizing LC duplex connectors to ensure efficient and reliable connectivity. Engineered to meet demanding network requirements, it enables rapid deployment, enhanced bandwidth, and seamless scalability in modern network environments.

Advanced Data Transmission Capabilities

Designed for next-generation networking infrastructure, the Dell AFBR-89BDDZ-FT1 transceiver delivers exceptional throughput and ultra-low latency for data-intensive applications. Supporting 100GbE speeds, it allows organizations to handle massive amounts of data traffic without bottlenecks. Its bidirectional communication technology ensures simultaneous transmission and reception over a single fiber pair, significantly reducing cabling complexity and infrastructure costs. This makes it ideal for high-density server environments, high-performance computing clusters, and cloud data centers where speed and efficiency are paramount.

Optical Performance and Multimode Fiber Compatibility

The AFBR-89BDDZ-FT1 operates on 850nm and 900nm wavelengths, making it fully compatible with OM3 and OM4 multimode fiber standards. This capability allows for transmission distances up to 100 meters on OM3 and up to 150 meters on OM4 fiber, enabling flexible network design for both short-range and mid-range connections. The LC duplex interface ensures secure and stable optical connectivity, minimizing signal loss and maintaining high data integrity even in complex network layouts. The transceiver's optical performance is calibrated to support error-free communication in demanding environments, including data aggregation points and core network switches.

Integration and Compatibility with Dell Networking Equipment

Engineered specifically for Dell network switches and routers, the AFBR-89BDDZ-FT1 is plug-and-play compatible, simplifying network deployment and minimizing downtime. The transceiver is fully hot-swappable, allowing technicians to replace or upgrade network modules without interrupting service. It supports a wide range of Dell PowerSwitch models, ensuring seamless interoperability and future-proofing network investments. Dell’s firmware and diagnostic tools enable real-time monitoring of transceiver health, including temperature, optical power, and error rates, ensuring proactive network management and maintenance.

Energy Efficiency and Thermal Management

With energy consumption optimization in mind, the Dell AFBR-89BDDZ-FT1 is designed to operate efficiently, reducing power draw without compromising performance. Its low-power design contributes to lower operating costs and aligns with sustainable IT infrastructure strategies. The module’s thermal management ensures stable operation under high network load conditions, preventing overheating and prolonging the lifespan of both the transceiver and connected equipment. Proper airflow management within data center racks ensures consistent performance even in high-density deployments.

High Reliability and Error-Free Connectivity

Reliability is a critical factor for enterprise-grade networking components, and the AFBR-89BDDZ-FT1 meets stringent industry standards to deliver dependable performance. Its optical and electronic components undergo rigorous testing to guarantee consistent operation in mission-critical applications. The transceiver supports forward error correction (FEC), reducing packet loss and enhancing data integrity across high-speed links. Redundant network designs leveraging multiple AFBR-89BDDZ-FT1 modules can provide failover capabilities, ensuring continuous uptime and minimizing the risk of service interruptions.

Scalable Network Infrastructure Solutions

The Dell AFBR-89BDDZ-FT1 plays a key role in scaling network infrastructure to meet growing bandwidth demands. Its high-speed 100GbE capabilities make it suitable for connecting top-of-rack switches, core aggregation layers, and high-performance computing nodes. Network architects can leverage these transceivers to expand capacity incrementally without major infrastructure overhauls. By reducing cabling complexity through bidirectional transmission, organizations can achieve cost-efficient network expansions while maintaining optimal performance.

Use Cases in Enterprise and Data Center Environments

The versatility of the Dell AFBR-89BDDZ-FT1 transceiver makes it suitable for a wide array of network applications. In enterprise environments, it supports high-speed access and aggregation switches, facilitating seamless interconnectivity for servers, storage arrays, and virtualization platforms. In data center settings, it enables high-density deployments for spine-leaf architectures, optimizing east-west traffic and accelerating data-intensive operations. Cloud service providers benefit from its low-latency performance and reliable connectivity for distributed computing and storage systems.

Operational Considerations

Deploying and managing AFBR-89BDDZ-FT1 transceivers is straightforward due to Dell’s comprehensive support ecosystem. Real-time monitoring of optical power levels, signal quality, and operational status helps IT teams maintain optimal network performance. The transceiver’s hot-swappable design allows for rapid replacement, reducing maintenance windows and preventing service disruptions. Additionally, Dell provides extensive documentation and firmware updates to ensure long-term compatibility with evolving networking standards and technologies.

Compliance with Industry Standards

The Dell AFBR-89BDDZ-FT1 transceiver adheres to QSFP28 MSA (Multi-Source Agreement) standards, guaranteeing interoperability with a broad range of 100GbE networking devices. Compliance with IEEE 802.3bm standards ensures compatibility with high-speed Ethernet protocols, while adherence to RoHS and other environmental regulations reflects Dell’s commitment to sustainable, eco-friendly design. These standards ensure reliable performance, regulatory compliance, and a reduced environmental footprint in enterprise and data center networks.

Future-Ready Networking Capabilities

With the exponential growth of data traffic, investing in 100GbE transceivers like the AFBR-89BDDZ-FT1 prepares networks for future scalability and emerging technologies. The module’s bidirectional architecture reduces the need for extensive fiber cabling while supporting higher port densities. As organizations migrate toward next-generation networking solutions, including software-defined networking (SDN) and network virtualization, this transceiver provides the performance and reliability required for seamless adoption. Its advanced optical features ensure long-term network flexibility and operational efficiency.
