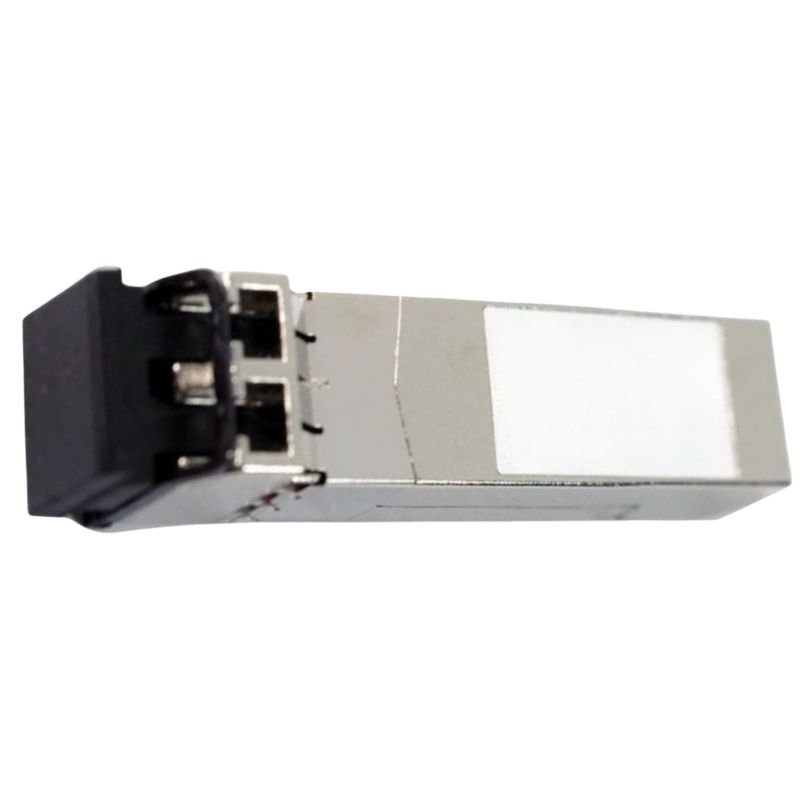

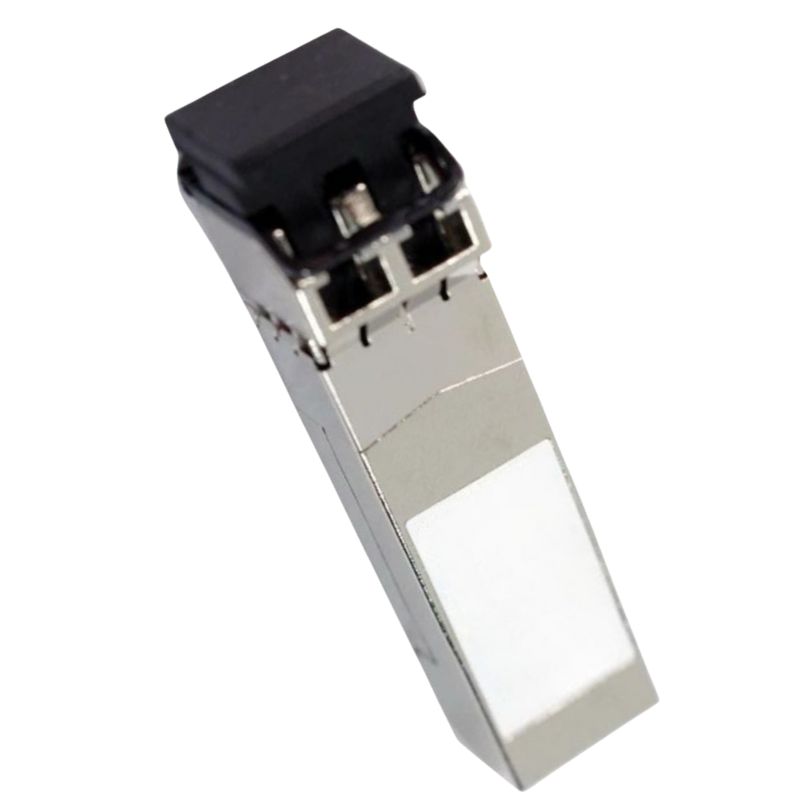

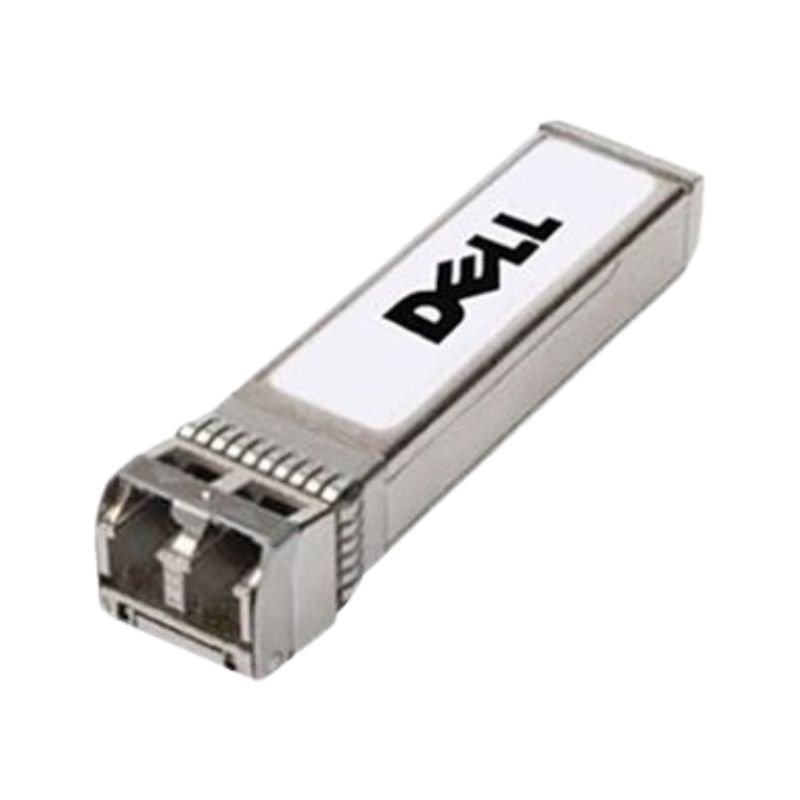

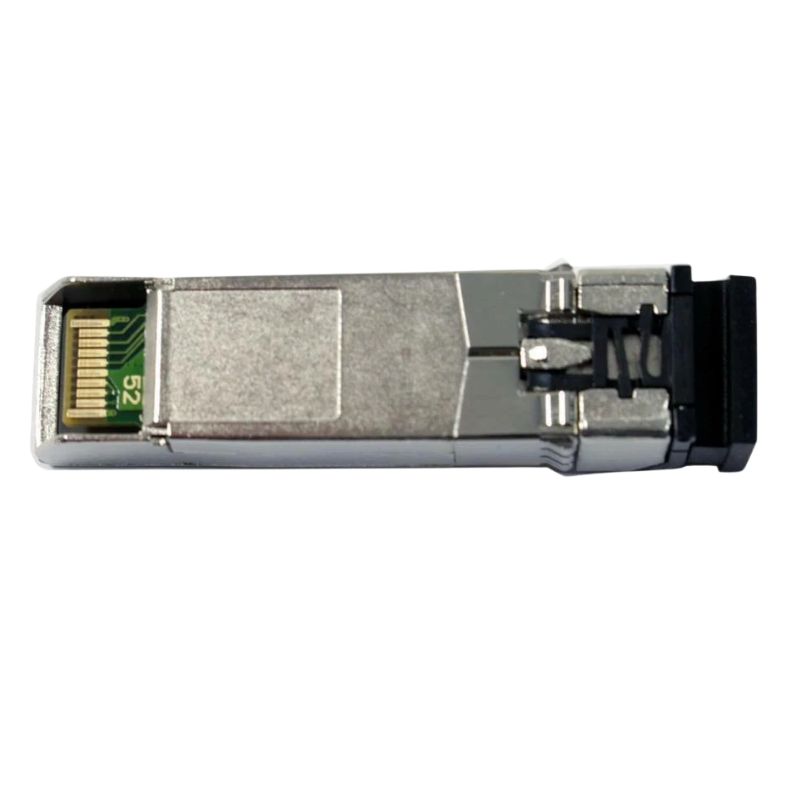

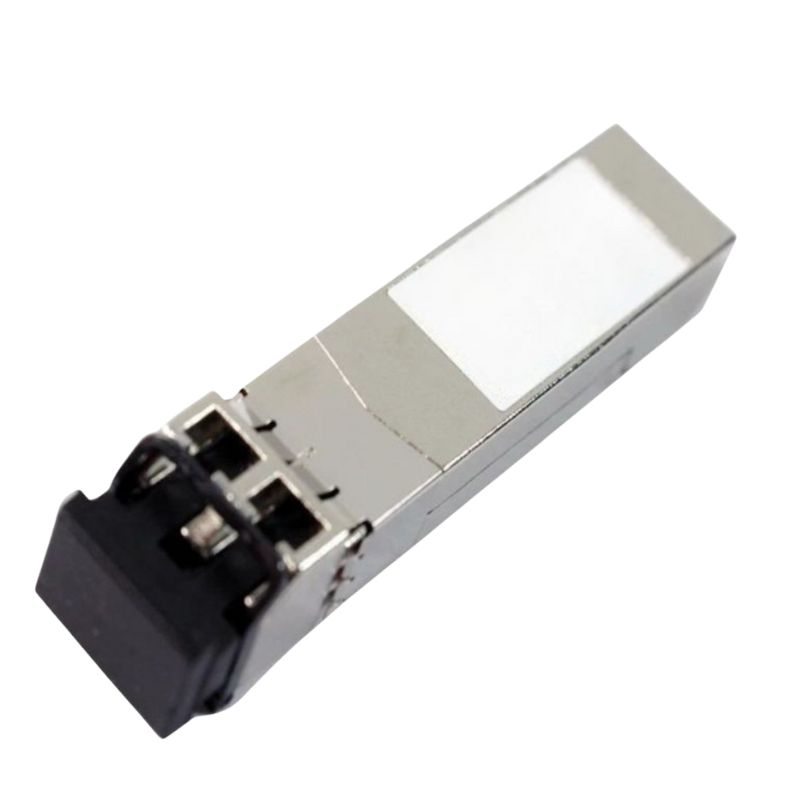

C043H Dell 10GB SFP+ LR Transceiver

Overview of the Dell Transceiver

The C043H Dell 10GB SFP+ LR Transceiver belongs to a high-performance optical networking hardware category designed for enterprise-grade data communication, high-speed server interconnects, and long-range fiber optic transmission. This category includes Small Form-Factor Pluggable Plus (SFP+) modules optimized for 10 Gigabit Ethernet (10GbE) environments, specifically configured for Long Range (LR) optical transmission standards. These transceivers are widely deployed in data centers, campus networks, enterprise backbone infrastructures, and high-bandwidth storage systems where stable, low-latency, and long-distance connectivity is required.

Main Information

• Manufacturer: Dell
• Model Number: C043H
• Product Type: Optical Transceiver

Key Features

• Form Factor Type: Small Form-factor Pluggable Plus (SFP+)
• Optical Wavelength: 1310 nm center frequency
• Laser Component Type: Uncooled Distributed Feedback (DFB) laser
• Photo-Detector Type: PIN photodiode receiver layout

Performance & Cabling Specs

• Network Standard: 10GBASE-LR compliance protocol
• Data Transfer Rate: 10.3125 Gbps line speed
• Fiber Medium Type: Single-Mode Fiber (SMF) core
• Physical Connection: Duplex LC fiber optic port receptacle
• Maximum Link Range: 10 kilometers (6.2 miles) transmission distance
• Minimum Link Range: No minimum distance floor penalty

 Electrical & Operational Features

• Hot-Pluggable Design: Allows swap insertion without system shutdown
• Telemetry Monitoring: Digital Diagnostic Monitoring (DDM / DOM) enabled
• Supply Voltage Floor: Single 3.3V power rails supply configuration
• Power Consumption: Energy efficient drawing under 1 Watt total
• Operating Temp Range: Standard commercial 0°C to 70°C case warmth
• Structural Enclosure: All-metal housing for superior EMI suppression

Overview of the Dell 10GB SFP+ LR Transceiver

As part of Dell’s certified networking ecosystem, the C043H module is engineered to integrate seamlessly with Dell switches, routers, and network interface cards, ensuring interoperability, performance consistency, and compliance with industry optical standards such as IEEE 802.3ae 10GBASE-LR. The category of Dell 10GB SFP+ LR transceivers represents a critical segment in modern optical networking where fiber optic communication replaces traditional copper-based limitations.

Definition and Functional Role

The 10GB SFP+ LR transceiver category refers to optical modules that support 10 Gigabit Ethernet transmission over single-mode fiber (SMF) using long-range laser technology. “LR” stands for Long Reach, indicating the module’s ability to transmit data over distances typically up to 10 kilometers depending on fiber quality and network design. The C043H Dell transceiver fits within this category as a hot-swappable optical interface that converts electrical signals into optical signals and vice versa.

These modules are essential in environments where high-speed communication must be maintained across geographically distributed infrastructure, such as between buildings, across campuses, or within large-scale data center interconnects. The category emphasizes reliability, scalability, and low signal attenuation over extended distances.

Key Standards and Protocol Compliance

The Dell C043H 10GB SFP+ LR transceiver adheres to multiple networking and optical communication standards that ensure interoperability across multi-vendor environments. The most important standard is IEEE 802.3ae, which defines 10 Gigabit Ethernet over optical fiber. Additionally, it aligns with MSA (Multi-Source Agreement) specifications for SFP+ modules, ensuring physical and electrical compatibility across supported devices.

This compliance ensures that organizations using Dell networking equipment can maintain standardized infrastructure while achieving high-speed optical connectivity without proprietary limitations.

Dell 10GB SFP+ LR Transceiver

The C043H module operates on a wavelength of approximately 1310nm, which is optimal for long-range single-mode fiber transmission. This wavelength minimizes dispersion and attenuation, allowing data signals to travel farther distances without degradation. The transmitter typically uses a distributed feedback (DFB) laser, which provides stable output power and enhanced signal integrity over long distances.

The receiver component is designed with high sensitivity photodiodes capable of detecting weak optical signals, ensuring accurate data reconstruction even at extended fiber runs.

Transmission Distance and Performance

One of the defining characteristics of the LR category is its transmission range capability. The C043H Dell 10GB SFP+ LR transceiver supports distances up to 10 kilometers over OS2 single-mode fiber. This makes it ideal for campus interconnects, metropolitan network extensions, and large enterprise infrastructures where shorter-range SR (Short Reach) modules would be insufficient.

The module delivers consistent 10Gbps throughput with minimal packet loss, low latency, and stable jitter performance, which is critical for applications such as virtualization clusters, cloud computing environments, and high-frequency trading systems.

Form Factor and Physical Design

The SFP+ form factor is compact, energy-efficient, and hot-swappable, allowing network administrators to install or replace modules without shutting down systems. The C043H follows the standard SFP+ cage interface, ensuring compatibility with Dell networking hardware that supports 10GbE optical uplinks.

Its compact design also contributes to higher port density in switches, enabling organizations to scale their networks efficiently without increasing rack space requirements.

Compatibility and Integration in Dell Networking Ecosystem

The C043H Dell 10GB SFP+ LR Transceiver is designed to function within a wide range of Dell networking equipment, including Dell PowerSwitch series, Dell Networking N-Series, S-Series, and select modular chassis systems. Its compatibility ensures seamless integration into existing Dell-managed infrastructures without requiring additional configuration or proprietary adapters.

This makes it particularly valuable for enterprises that rely on standardized Dell ecosystems for their core switching and routing infrastructure.

Interoperability with Third-Party Equipment

Although optimized for Dell systems, the C043H module adheres to industry MSA standards, allowing it to function in many third-party SFP+ compatible devices. However, performance validation and firmware compatibility checks are recommended to ensure full operational stability when deployed outside Dell-certified environments.

Use Cases and Applications of Dell 10GB SFP+ LR Transceivers

In modern data centers, high-speed optical links are essential for connecting aggregation switches, spine-leaf architectures, and storage clusters. The C043H LR transceiver enables long-distance connectivity between racks or even between separate buildings within a data center campus, ensuring high bandwidth availability and redundancy.

Enterprise Campus Networks

Large enterprises often operate across multiple buildings or geographically distributed campuses. The LR capability allows network engineers to extend 10GbE connectivity across these locations without relying on costly carrier-grade solutions. This improves internal communication efficiency and reduces latency between departments and systems.

Cloud Infrastructure and Virtualization

Virtualized environments and cloud computing infrastructures require high-speed, low-latency network backbones. The C043H module supports these requirements by enabling stable 10Gbps connections between compute nodes, storage arrays, and virtualization hosts.

Telecommunications and Service Provider Networks

Telecom operators utilize LR transceivers for metro aggregation, backhaul connections, and edge networking deployments. The ability to transmit over 10 kilometers makes the C043H suitable for linking network aggregation points across urban environments.

Performance Optimization and Best Practices

Maintaining signal integrity is crucial in long-range optical communication. Proper cleaning of fiber connectors, ensuring high-quality OS2 fiber, and avoiding physical damage to cables significantly improves module performance. The C043H transceiver is designed to minimize noise, but external conditions still play a major role in overall performance.

Network Redundancy Strategies

For mission-critical environments, deploying redundant fiber paths using multiple C043H modules ensures continuous network availability. Link aggregation and failover configurations further enhance reliability and resilience.

Comparison with Other SFP+ Transceiver Types

Short Range (SR) transceivers typically operate over multimode fiber and support distances up to 300 meters, making them suitable for intra-rack or intra-data center connectivity. In contrast, LR transceivers like the C043H are optimized for long-distance transmission up to 10 kilometers using single-mode fiber.

LR vs ER and ZR Variants

Extended Range (ER) and ZR transceivers extend transmission distances beyond 40 kilometers or more but come at higher cost and power consumption. The C043H LR module offers a balanced solution between cost-efficiency and performance for medium-to-long distance enterprise requirements.

Link Failure Issues

Link failures may occur due to dirty connectors, incompatible fiber types, or improper seating of the transceiver. Ensuring proper physical inspection and replacement of damaged fiber cables resolves most connectivity issues.

Signal Degradation

Signal degradation can result from excessive fiber length, bending, or environmental interference. Monitoring DDM values helps identify attenuation issues before they impact network performance.

Compatibility Errors

In some cases, third-party switches may not fully support Dell-coded modules. Firmware updates or validated compatibility checks are recommended to resolve such issues.

Enterprise Value of Dell 10GB SFP+ LR Transceiver

The Dell 10GB SFP+ LR transceiver category, including the C043H model, plays a critical role in modern enterprise networking by enabling scalable, high-speed, and long-distance optical communication. Its combination of industry-standard compliance, Dell ecosystem integration, and long-range capability makes it an essential component for organizations that require reliable 10GbE connectivity across distributed environments. By supporting high-bandwidth applications, reducing network bottlenecks, and enabling efficient infrastructure scaling, this category continues to be a foundational element in enterprise and data center network architecture.
