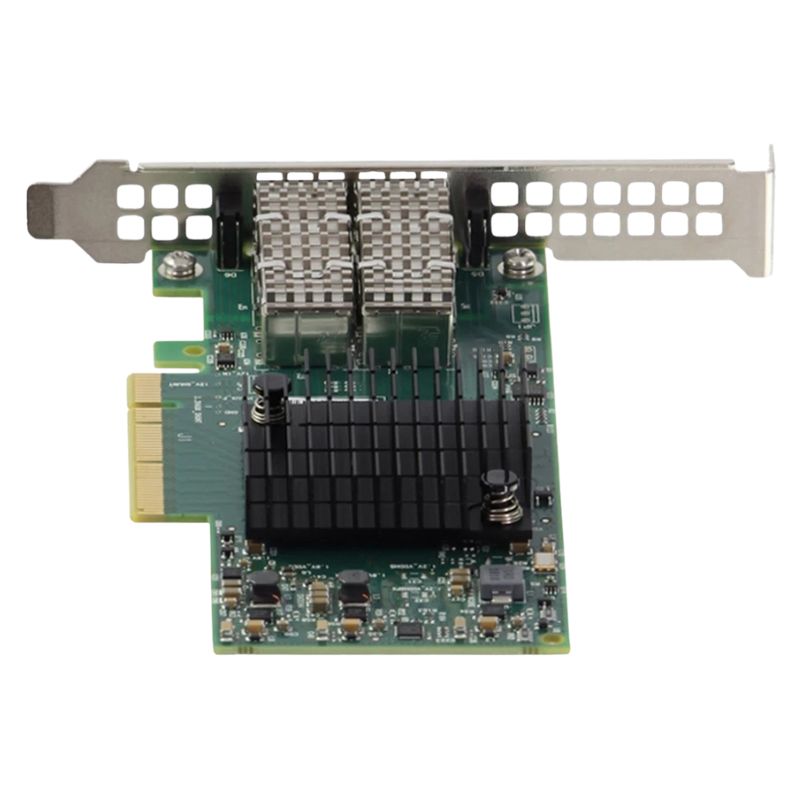

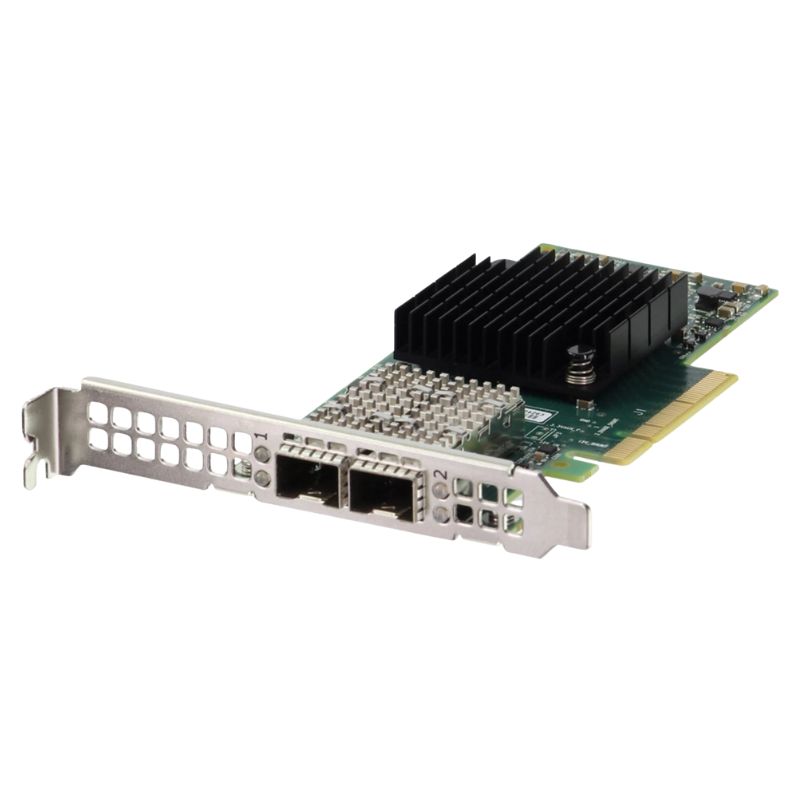

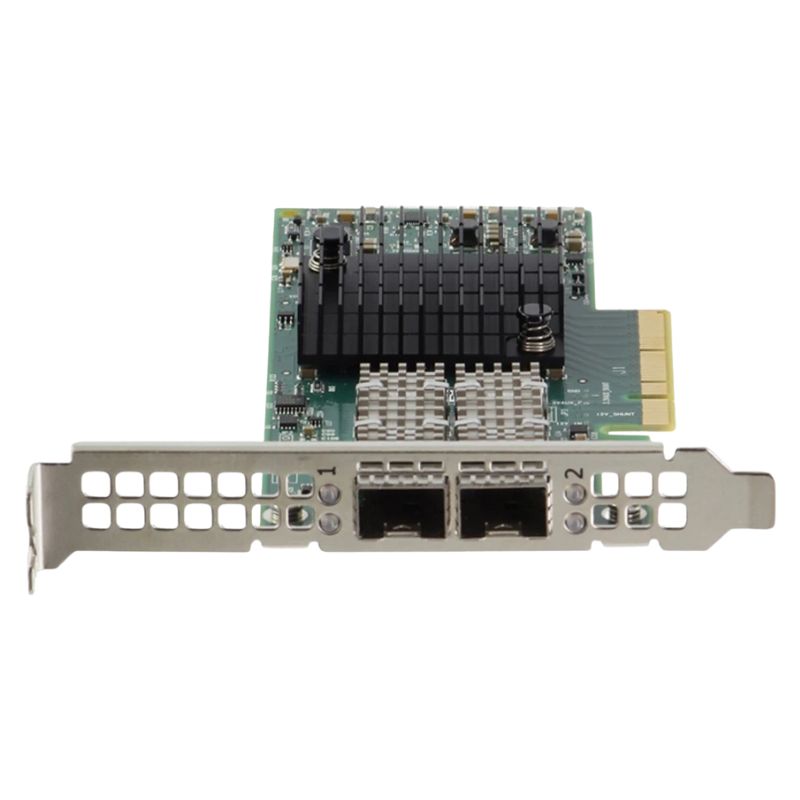

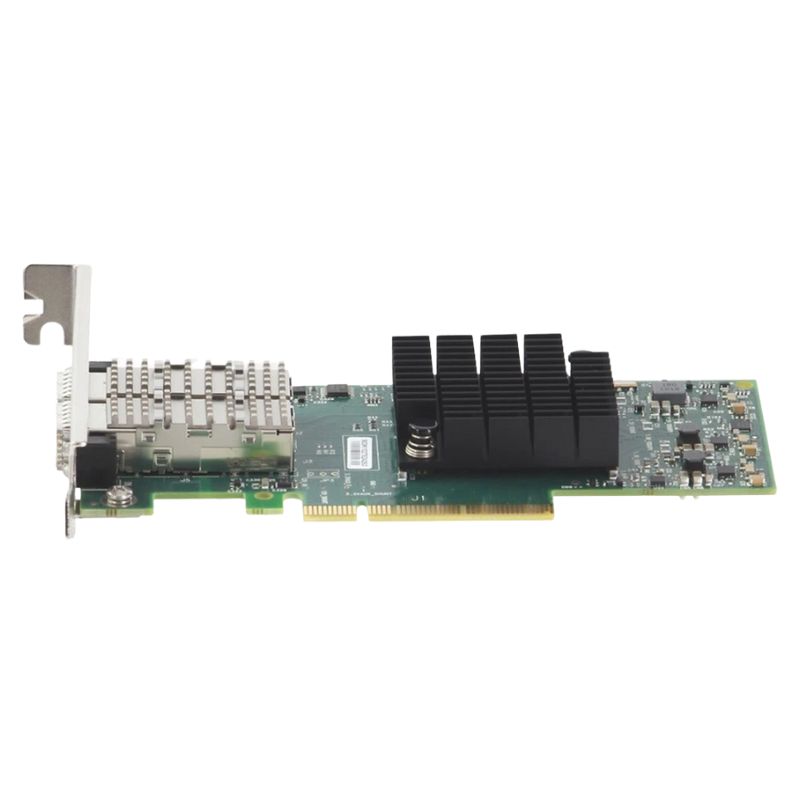

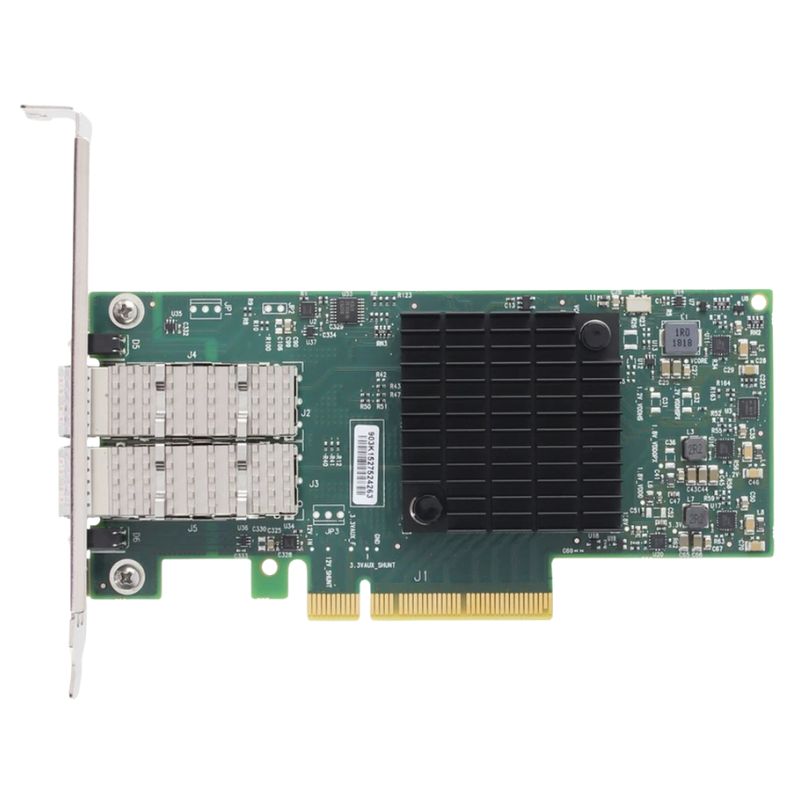

CP6JX Dell Mellanox Pcie 3.0 Dual-Port 25 Gigabit Network Adapter

Dell CP6JX ConnectX-4 Lx 25GbE Dual-Port Network Adapter

High-Performance Networking Solution for Modern Data Centers

The Dell CP6JX (Mellanox MCX4121A-ACAT ConnectX-4 Lx EN) is a dual-port 25 Gigabit Ethernet network adapter engineered for high-throughput enterprise environments. Designed for scalability, low latency, and efficient data handling, it is ideal for virtualization, cloud computing, and storage-intensive workloads.

Manufacturer & Product Identification

Core Product Details

• Brand: Dell
• Model / Part Number: CP6JX
• Device Type: Network Adapter
• Architecture: Mellanox ConnectX-4 Lx (MCX4121A-ACAT)
• Port Configuration: Dual-Port Ethernet Interface

Hardware Design & Interface Specifications

Physical and Bus Architecture

• Form Factor: Plug-in PCI Express Card
• Bus Type: PCI Express 3.0 x8
• Backward Compatibility: PCIe 1.1, PCIe 2.0, PCIe 3.0 support

Expansion Connectivity

• Network Interfaces: 2 x 25Gb Ethernet ports
• Connectivity Type: Wired high-speed LAN connection

Networking Capabilities & Performance

Data Transmission Features

• Maximum Bandwidth: 25 Gbps per port
• Total Ports: Dual 25 Gigabit Ethernet interfaces
• Supported Protocols: TCP/IP, UDP/IP, iSCSI

Advanced Networking Protocol Support

• Remote Network Monitoring (RMON 2, RMON)
• Quality of Service (QoS) optimization
• Link Aggregation Control Protocol (LACP)
• Virtual LAN (VLAN) tagging and management
• Jumbo Frames support for enhanced throughput
• RDMA (Remote Direct Memory Access) capability
• TCP/IP offloading for reduced CPU usage

Key Features & Optimization Technologies

Performance Enhancements

• Auto-negotiation for adaptive connectivity
• Priority-based Flow Control (PFC)
• DiffServ support for traffic classification
• Energy Efficient Ethernet (IEEE 802.3az)
• MSI-X support for improved interrupt handling

Virtualization & Data Center Efficiency

• Hardware acceleration for virtualization workloads
• Optimized for cloud-scale infrastructure environments
• Reduced latency for high-speed data processing

Supported Industry Standards

Compliance & Protocol Standards

• IEEE 802.1Q – VLAN tagging
• IEEE 802.1p – Traffic prioritization
• IEEE 802.3ad – Link aggregation (LACP)
• IEEE 802.3ae – 10/25 Gigabit Ethernet standard
• IEEE 802.3az – Energy Efficient Ethernet
• IEEE 802.1Qbb – Priority-based flow control
• IEEE 802.1Qaz – Enhanced transmission selection
• IEEE 802.1Qau – Congestion notification

Interface & Deployment Compatibility

System Integration

• Compatible with enterprise-grade Dell server platforms
• Designed for high-density data center deployment
• Seamless integration with virtualized environments

Use Case Scenarios

• Cloud computing infrastructure optimization
• High-frequency trading and low-latency networks
• Storage area networks (SAN) and iSCSI environments
• Enterprise virtualization and containerized systems

Operational Advantages

• Improved network throughput efficiency
• Reduced CPU overhead through hardware offloading
• Enhanced scalability for enterprise workloads
• Stable dual-port redundancy for failover support

Dell CP6JX Dual-Port 25Gb Network Adapter Overview

The Dell CP6JX Mellanox MCX4121A-ACAT ConnectX-4 Lx EN PCIe 3.0 Dual-Port 25 Gigabit Network Adapter belongs to a high-performance class of Ethernet network interface cards (NICs) designed for enterprise servers, data centers, virtualization environments, cloud computing infrastructures, and high-throughput storage systems. This category of network adapters is built to deliver ultra-low latency, high bandwidth scalability, and advanced offloading capabilities that significantly reduce CPU overhead while increasing overall system efficiency. It is widely deployed in modern IT infrastructures where reliable, fast, and scalable network connectivity is essential for workloads such as virtualization clusters, software-defined storage, high-performance computing (HPC), and large-scale database systems.

High-Speed 25GbE Networking Architecture

Dual-Port 25 Gigabit Ethernet Capability

At the core of this category is its dual-port 25 Gigabit Ethernet design, enabling simultaneous high-speed data transmission across two independent network channels. This allows servers to achieve an aggregated bandwidth of up to 50Gbps when both ports are utilized effectively. Dual-port architecture is especially beneficial in redundancy configurations, load balancing scenarios, and high-availability systems where uninterrupted network access is critical.

Optimized PCIe 3.0 Interface

The PCI Express 3.0 interface ensures that the adapter can communicate efficiently with the host system, minimizing bottlenecks between the CPU, memory, and network stack. PCIe 3.0 provides sufficient lane bandwidth to fully support dual 25GbE throughput, ensuring that data transfer between the network adapter and server remains stable even under heavy workloads such as virtual machine migrations or large-scale storage replication tasks.

Low Latency Packet Processing

One of the defining characteristics of this network adapter category is its ultra-low latency packet processing engine. The Mellanox ConnectX-4 Lx architecture is engineered to handle high packet rates with minimal delay, making it suitable for real-time applications such as financial trading systems, live analytics platforms, and distributed computing frameworks. Reduced latency improves application responsiveness and overall system performance in demanding enterprise environments.

Advanced Network Offloading Technologies

Hardware Offload Acceleration

This category of network adapters incorporates advanced hardware offloading capabilities that significantly reduce CPU utilization. Tasks such as TCP/UDP segmentation, checksum calculations, and packet encapsulation are handled directly by the network adapter hardware. This allows the server CPU to focus on application-level processing instead of network protocol overhead, improving system efficiency and scalability.

RDMA over Converged Ethernet (RoCE)

Remote Direct Memory Access (RDMA) over Converged Ethernet is a key feature supported by ConnectX-4 Lx adapters. RDMA enables direct memory-to-memory data transfers between servers without involving the operating system kernel, dramatically reducing latency and CPU overhead. This is particularly beneficial for distributed storage systems, big data processing, and HPC workloads where fast inter-node communication is essential.

TCP/IP Stateless Offloads

TCP/IP stateless offloading further enhances network performance by delegating repetitive protocol processing tasks to the NIC hardware. This includes checksum offload, Large Send Offload (LSO), and Large Receive Offload (LRO). These features help improve throughput while maintaining low CPU usage, making the adapter suitable for virtualized environments with high network traffic density.

Enterprise Data Center Applications

Virtualization and Cloud Infrastructure

In virtualization environments such as VMware ESXi, Microsoft Hyper-V, and KVM-based platforms, the Dell CP6JX Mellanox ConnectX-4 Lx adapter plays a crucial role in ensuring high-speed virtual machine networking. Its support for Single Root I/O Virtualization (SR-IOV) allows multiple virtual machines to directly access physical network resources, improving performance and reducing hypervisor overhead. This makes it an ideal choice for cloud service providers and enterprise private cloud deployments.

Software-Defined Storage (SDS)

Software-defined storage systems rely heavily on fast and reliable network communication between storage nodes. This network adapter category enables high-speed data replication, synchronization, and redundancy across distributed storage clusters. Its low latency and high throughput capabilities help maintain data integrity and improve storage performance in environments such as Ceph, VMware vSAN, and Microsoft Storage Spaces Direct.

High-Performance Computing (HPC)

In HPC environments, where thousands of compute nodes must communicate efficiently, the Mellanox ConnectX-4 Lx architecture provides the necessary bandwidth and latency characteristics. Applications such as scientific simulations, weather modeling, AI training clusters, and computational fluid dynamics benefit significantly from reduced network overhead and enhanced data exchange speed.

Big Data and Analytics Platforms

Big data frameworks such as Hadoop, Spark, and distributed NoSQL databases require consistent and high-throughput networking. This adapter category ensures smooth data ingestion, processing, and retrieval across distributed nodes. Its ability to handle large volumes of small and large packets efficiently makes it suitable for analytics pipelines and real-time data processing systems.

Hardware Design and Engineering Excellence

ConnectX-4 Lx ASIC Architecture

The ConnectX-4 Lx ASIC is a highly optimized network processing engine designed to deliver enterprise-grade performance at reduced power consumption. It integrates multiple hardware accelerators that handle packet processing, encryption, and virtualization tasks efficiently. This results in improved throughput and reduced system bottlenecks.

Energy Efficiency and Thermal Optimization

Energy efficiency is a key design consideration in this category. The adapter is engineered to deliver high bandwidth performance while maintaining low power consumption, making it suitable for dense data center deployments. Advanced thermal management ensures stable operation even under continuous high-load conditions.

Compact Form Factor for Server Integration

The Dell CP6JX variant is designed to integrate seamlessly into enterprise server architectures. Its compact PCIe form factor allows it to fit into a wide range of rack-mounted servers without requiring additional space or cooling modifications. This makes it ideal for large-scale deployments where space efficiency is critical.

Network Performance Optimization Features

Quality of Service (QoS) Support

Quality of Service capabilities allow administrators to prioritize network traffic based on application requirements. This ensures that critical workloads such as database transactions or real-time analytics receive priority bandwidth allocation over less critical processes.

Traffic Shaping and Load Balancing

The adapter supports advanced traffic shaping mechanisms that help distribute network load evenly across available ports. This reduces congestion and improves overall network stability, especially in environments with unpredictable traffic patterns.

Jumbo Frame Support

Jumbo frame support enables the transmission of larger Ethernet frames, reducing CPU overhead and improving throughput for bulk data transfers. This is particularly beneficial in storage and backup environments where large file transfers are common.

Virtualization and Multi-Tenant Environments

Single Root I/O Virtualization (SR-IOV)

SR-IOV technology allows a single physical network adapter to be divided into multiple virtual functions, each of which can be assigned to different virtual machines. This reduces latency and improves network performance in multi-tenant environments such as cloud data centers and hosting platforms.

Virtual Switching and Overlay Networks

Modern cloud infrastructures rely on overlay networking technologies such as VXLAN and GRE. This adapter category supports efficient encapsulation and decapsulation of virtual network traffic, enabling seamless communication across distributed virtual environments.

Container Networking Support

Containerized environments such as Kubernetes benefit from the adapter’s ability to handle high-density network traffic with minimal overhead. It supports container networking interfaces (CNI) that ensure efficient communication between microservices and distributed applications.

Compatibility and System Integration

Server Platform Compatibility

The Dell CP6JX Mellanox MCX4121A-ACAT adapter is compatible with a wide range of enterprise servers, particularly Dell PowerEdge systems. It integrates seamlessly with modern server motherboards equipped with PCIe 3.0 slots, ensuring stable performance and reliable operation across diverse hardware environments.

Operating System Support

This network adapter category supports multiple operating systems including Linux distributions, Windows Server editions, and virtualization hypervisors. Drivers and firmware updates are optimized to ensure stability, performance, and compatibility across enterprise environments.

Driver and Firmware Optimization

Regular firmware updates and optimized drivers play a crucial role in maintaining peak performance. The Mellanox ecosystem provides continuous improvements that enhance stability, security, and feature support for evolving data center requirements.

Security and Data Protection Features

Hardware-Based Encryption Support

Some configurations within this adapter category support hardware-accelerated encryption, ensuring secure data transmission without impacting CPU performance. This is essential for environments handling sensitive or regulated data.

Secure Boot and Firmware Integrity

Secure boot mechanisms ensure that only trusted firmware is executed on the network adapter, protecting against unauthorized modifications and potential security threats at the hardware level.

Network Isolation Capabilities

Virtualization and multi-tenant environments benefit from strong network isolation features that prevent unauthorized cross-traffic between virtual machines or containers, enhancing overall infrastructure security.

Performance Scaling in Modern IT Infrastructure

Horizontal Scalability in Data Centers

The dual-port architecture allows seamless scaling across multiple servers, enabling distributed workloads to be balanced efficiently across large clusters. This scalability is essential for modern hyperscale data centers and cloud service providers.

Load Distribution Across Network Fabrics

The adapter supports intelligent load distribution across network fabrics, ensuring that traffic is evenly balanced and preventing bottlenecks in high-density environments.

High Throughput for Distributed Applications

Distributed applications rely on fast and reliable network communication. This category of network adapters ensures that data is transmitted quickly and efficiently across multiple nodes, improving overall application performance.
