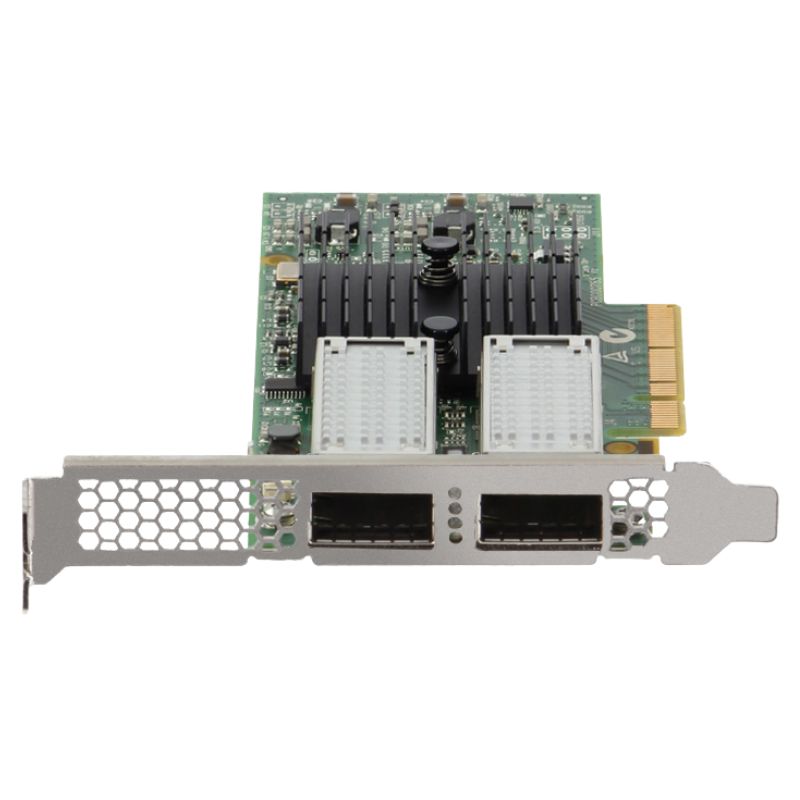

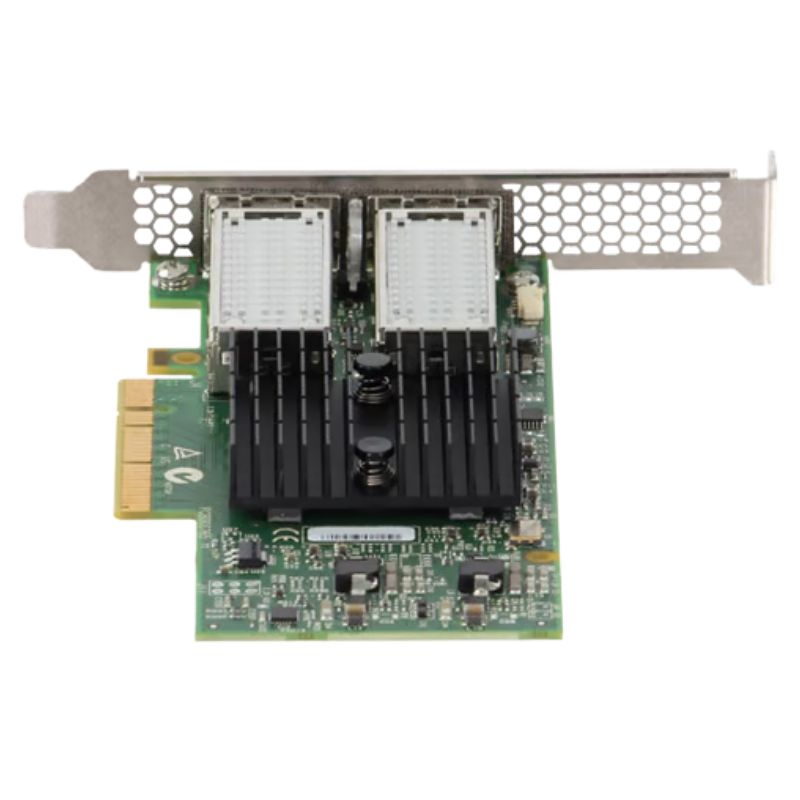

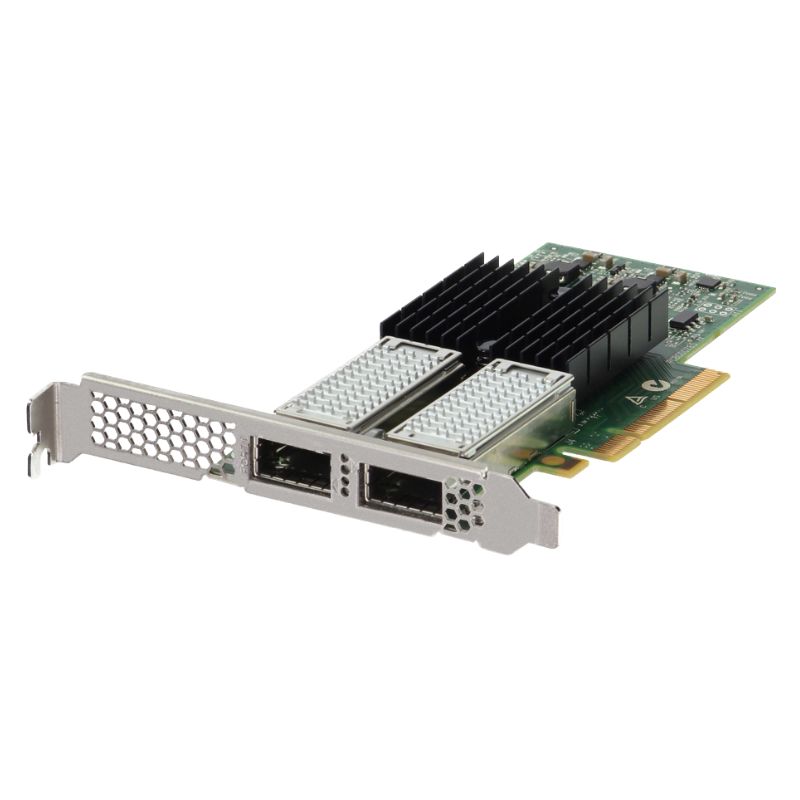

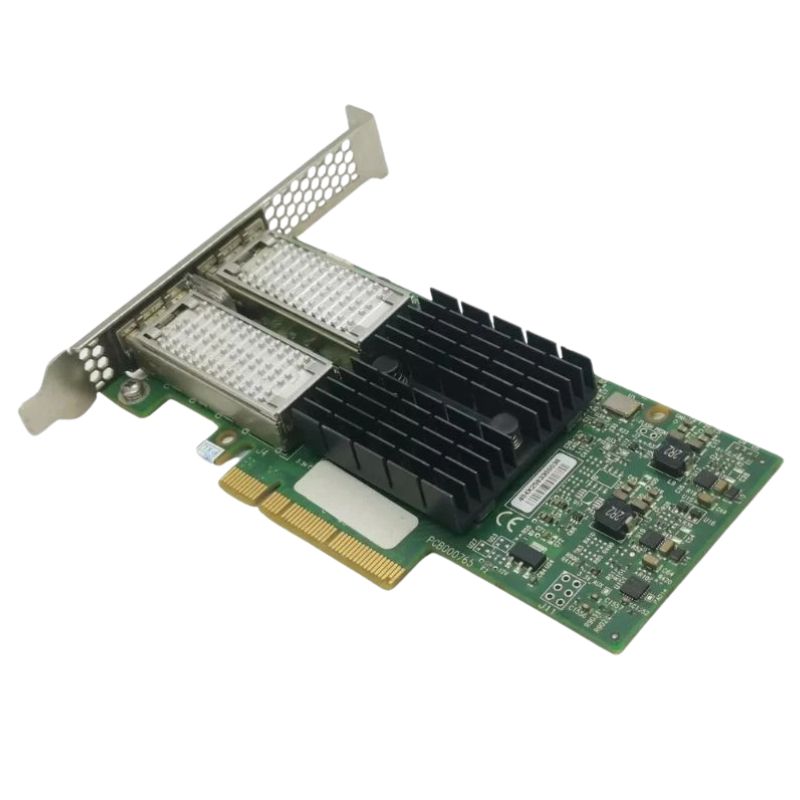

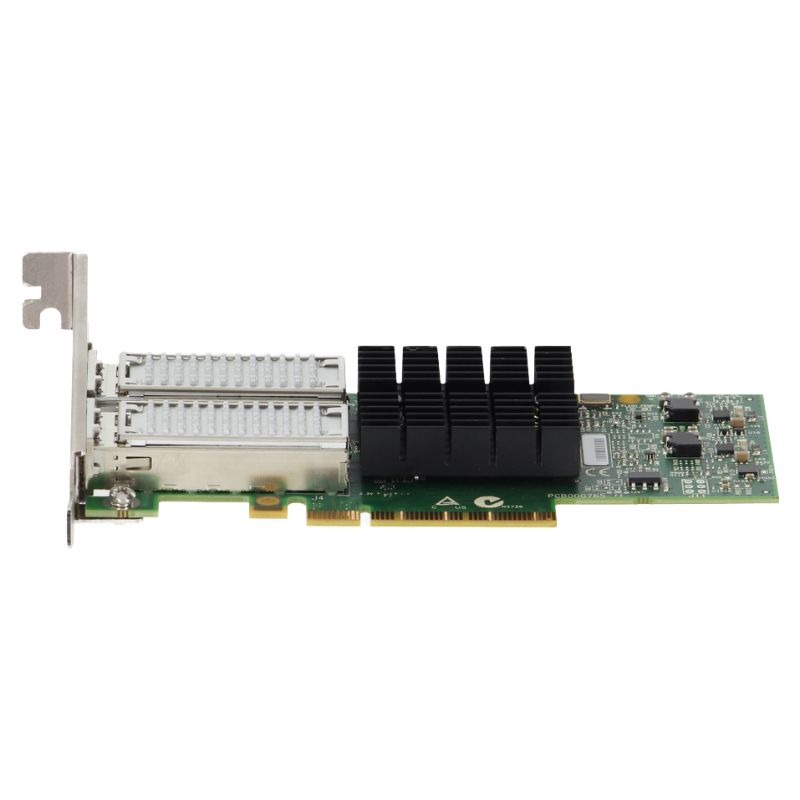

CX324A Dell Connectx-3 40GBE Dual Port QSFP+ Network Card

Overview of Dell CX324A 40GBE 2 Port QSFP+ Adapter

The Dell CX324A ConnectX-3 is a high-performance dual-port QSFP+ network interface card engineered for enterprise-grade connectivity. Designed to deliver lightning-fast data throughput, this plug-in card ensures reliable wired networking for demanding workloads.

General Specifications

• Brand: Dell
• Model: CX324A
• Category: Network Adapter

Technical Information

• Compact plug-in card design
• Optimized for server integration

Interface Type

• PCI Express architecture
• Seamless compatibility with modern systems

Connectivity & Networking

• Dual 40 Gigabit QSFP+ slots
• Supports simultaneous high-speed connections

Connection Technology

• Wired networking for stable performance
• Reduced latency and enhanced reliability

Supported Protocols

• 40 Gigabit Ethernet standard
• Optimized for enterprise data centers

Data Transfer Capabilities

• Up to 40 Gbps throughput
• Ideal for bandwidth-intensive applications

Available Interfaces

• 2 x 40Gb Ethernet – QSFP+
• Designed for scalable networking solutions

Dell CX324A ConnectX-3 40GbE Dual Port QSFP+ Interface Card

The Dell CX324A ConnectX-3 40GbE Dual Port QSFP+ Network Interface Card represents a high-performance networking solution designed for enterprise data centers, cloud infrastructure, virtualization environments, and high-performance computing workloads. Built on the advanced Mellanox ConnectX-3 architecture, this adapter delivers ultra-low latency, high throughput, and efficient offload capabilities that significantly improve server communication efficiency and reduce CPU overhead in demanding network environments.

This category of network interface cards is widely adopted in environments where bandwidth-intensive applications such as distributed storage systems, large-scale virtualization clusters, real-time analytics, and high-frequency trading systems require consistent and reliable 40 Gigabit Ethernet performance. The Dell CX324A is engineered to integrate seamlessly with Dell PowerEdge servers while maintaining compatibility across multiple operating systems and virtualization platforms.

Architecture and Core Design of ConnectX-3 Technology

The ConnectX-3 architecture is based on a highly optimized silicon design that incorporates multiple hardware offload engines to accelerate networking operations. These engines handle tasks such as TCP/IP checksum offloading, segmentation offload, and packet classification, which reduces CPU utilization and increases overall system efficiency. By moving processing tasks from the host CPU to the network card itself, the Dell CX324A ensures that compute resources remain available for application workloads rather than network processing overhead.

40GbE High-Speed Data Path Structure

The dual-port 40GbE QSFP+ interface provides an aggregated bandwidth of up to 80Gbps full duplex performance under optimal conditions. Each port supports high-speed packet transmission with minimal jitter, ensuring deterministic network behavior for latency-sensitive applications. The internal data path is designed to handle large packet bursts efficiently, reducing packet drops and maintaining stable throughput under heavy load conditions.

PCI Express Host Interface Optimization

The adapter utilizes a PCI Express interface that connects directly to the server motherboard, typically leveraging PCIe Gen3 lanes for maximum throughput. This direct connection ensures minimal latency between the network adapter and system memory, enabling high-speed data transfers essential for distributed computing environments. The PCIe interface also supports advanced features such as multiple queues and interrupt moderation to further optimize performance.

Dual Port QSFP+ Connectivity and Physical Layer Design

QSFP+ Interface Advantages

The QSFP+ (Quad Small Form-factor Pluggable Plus) interface is a compact, high-density connector designed for 40GbE networking. Each port supports multiple lanes of high-speed transmission, enabling efficient data aggregation within a single physical interface. This design reduces cable complexity while increasing port density in data center switch environments.

Dual Port Redundancy and Load Balancing

The dual-port configuration of the Dell CX324A allows for advanced networking strategies such as link aggregation, redundancy failover, and load balancing. In enterprise environments, this dual-port capability ensures continuous network availability even in the event of a port or cable failure. It also allows administrators to distribute traffic intelligently across both interfaces for optimized bandwidth utilization.

High-Density Data Center Integration

In modern data centers, rack space efficiency is a critical design factor. The compact dual-port QSFP+ configuration enables higher network density per server, reducing the number of required physical adapters while maintaining high throughput capabilities. This makes the Dell CX324A particularly suitable for blade servers and high-density rack-mounted systems.

Performance Characteristics and Throughput Capabilities

The Dell CX324A is engineered to minimize network latency through hardware-based packet processing and optimized buffer management. This ensures that data packets are transmitted and received with minimal delay, which is essential for applications such as financial trading platforms, real-time analytics, and distributed database synchronization.

High Bandwidth Efficiency

With support for 40GbE per port, the adapter is capable of handling extremely high data throughput demands. This level of bandwidth is particularly beneficial for backup systems, virtualization clusters, and large-scale storage replication systems that require consistent high-speed data movement between nodes.

Advanced Queue Management

The network card supports multiple transmit and receive queues, allowing efficient distribution of network traffic across multiple CPU cores. This parallel processing capability improves scalability in multi-threaded server environments and reduces bottlenecks in high-traffic systems.

Virtualization and Cloud Computing Optimization

SR-IOV Support for Virtual Machines

Single Root I/O Virtualization (SR-IOV) enables the Dell CX324A to present multiple virtual network interfaces to hypervisors and virtual machines. This allows direct hardware access for virtual workloads, significantly improving network performance in virtualized environments such as VMware vSphere, Microsoft Hyper-V, and KVM-based systems.

Efficient Resource Isolation

Virtualized environments require strict isolation between workloads. The adapter ensures secure traffic separation between virtual machines while maintaining high throughput and low latency. This improves overall system stability and ensures predictable network performance across multi-tenant infrastructures.

Cloud Infrastructure Scalability

Cloud service providers benefit from the scalability offered by the CX324A, as it allows for efficient scaling of compute and storage resources without introducing network bottlenecks. The adapter supports dynamic workload distribution and integrates well into software-defined networking architectures.

RDMA and High-Performance Data Transfer Capabilities

Remote Direct Memory Access (RDMA) Support

The Dell CX324A supports RDMA over Converged Ethernet (RoCE), enabling direct memory-to-memory data transfer between servers without involving the CPU. This dramatically reduces latency and increases throughput in distributed computing environments.

Minimized CPU Overhead

By bypassing the traditional network stack, RDMA allows applications to transfer data directly between systems with minimal CPU intervention. This is especially beneficial in environments such as high-performance computing clusters and large-scale storage systems where CPU efficiency is critical.

High-Throughput Storage Networks

Storage systems such as distributed file systems and object storage platforms benefit significantly from RDMA capabilities, as it reduces the overhead associated with traditional TCP/IP networking. This leads to faster data replication, improved storage synchronization, and enhanced system responsiveness.

Compatibility with Dell Server Infrastructure

Integration with PowerEdge Servers

The Dell CX324A is designed for seamless integration with Dell PowerEdge server platforms. This ensures optimal hardware compatibility, firmware synchronization, and driver support across enterprise deployments. Dell-certified hardware integration also improves system reliability and simplifies deployment processes in large-scale environments.

Firmware and Driver Ecosystem

Proper operation of the CX324A requires optimized firmware and driver support that is typically provided through Dell support channels and Mellanox software packages. These drivers ensure compatibility with enterprise operating systems and enable advanced features such as offload engines and virtualization support.

Multi-Operating System Support

This network interface card is compatible with a wide range of operating systems including Linux distributions, Windows Server editions, and specialized UNIX-based systems. This cross-platform support makes it suitable for heterogeneous IT environments.

Use Cases in Enterprise and Data Center Environments

High-Performance Computing Clusters

HPC environments require extremely fast inter-node communication to process large-scale simulations, scientific computations, and engineering workloads. The Dell CX324A supports these requirements by providing ultra-low latency and high throughput connectivity between compute nodes.

Cloud Data Centers and Hyperscale Infrastructure

Hyperscale environments depend on efficient networking to manage massive workloads across distributed systems. The CX324A enables high-density connectivity that supports cloud orchestration platforms and containerized workloads with consistent network performance.

Storage Area Network Acceleration

In SAN environments, the adapter enhances data transfer speeds between storage arrays and compute nodes. This results in faster backup operations, improved disaster recovery performance, and more efficient data replication strategies across geographically distributed sites.

Thermal Design and Power Efficiency

Optimized Power Consumption Profile

The Dell CX324A is designed to maintain a balance between high performance and power efficiency. Its architecture includes energy-efficient components that reduce overall power draw while maintaining consistent 40GbE throughput capabilities.

Thermal Dissipation and Cooling Requirements

Due to the high-speed nature of 40GbE networking, the adapter includes advanced thermal management features to ensure stable operation under heavy workloads. Proper airflow within server chassis is essential to maintain optimal operating temperatures and prevent thermal throttling.

Enterprise Cooling Integration

In rack-mounted data center environments, cooling systems are designed to handle dense server configurations. The CX324A aligns with these systems by maintaining predictable heat output characteristics that integrate effectively with standard enterprise cooling architectures.

Network Security and Data Integrity Features

Hardware-Based Packet Filtering

The adapter supports hardware-level packet filtering mechanisms that help improve network security and reduce exposure to malicious traffic. These filters operate independently of the host CPU, ensuring efficient enforcement of security policies.

Secure Data Transmission

Data integrity is maintained through checksum offloading and error correction mechanisms that ensure accurate packet delivery across high-speed networks. This is essential in environments where data accuracy is critical, such as financial systems and scientific research platforms.

Deployment Considerations and Installation Architecture

Server Slot Configuration

The installation of the Dell CX324A requires a compatible PCIe slot within enterprise servers. Proper slot selection ensures optimal lane allocation and maximum throughput performance. Server BIOS settings may also need configuration adjustments to fully enable advanced networking features.

Network Topology Integration

When deployed in data centers, the adapter integrates into leaf-spine or hierarchical network topologies. These architectures enable scalable and efficient data flow between compute and storage layers while minimizing latency across the network fabric.

Firmware Synchronization Practices

Maintaining updated firmware is essential for ensuring compatibility with evolving network standards and security protocols. Regular updates help maintain stability and performance across enterprise deployments.

Performance Optimization Techniques

Interrupt Moderation

Interrupt moderation reduces CPU overhead by controlling the frequency of network interrupts generated by the adapter. This allows for more efficient CPU utilization and improved system stability under high network loads.

Traffic Prioritization Mechanisms

The CX324A supports traffic prioritization features that allow administrators to assign different levels of importance to network traffic. This ensures that critical applications receive the necessary bandwidth and low-latency pathways.

Queue Pair Optimization

Queue pairs enable parallel processing of network traffic streams, improving scalability and performance in multi-core server environments. This architecture is particularly beneficial in virtualization and cloud workloads.
