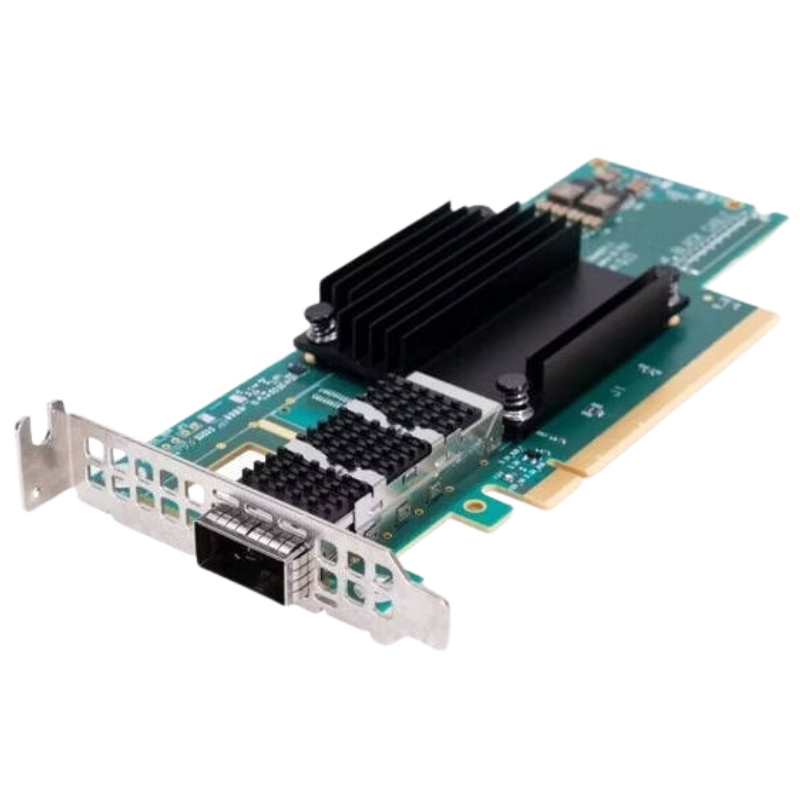

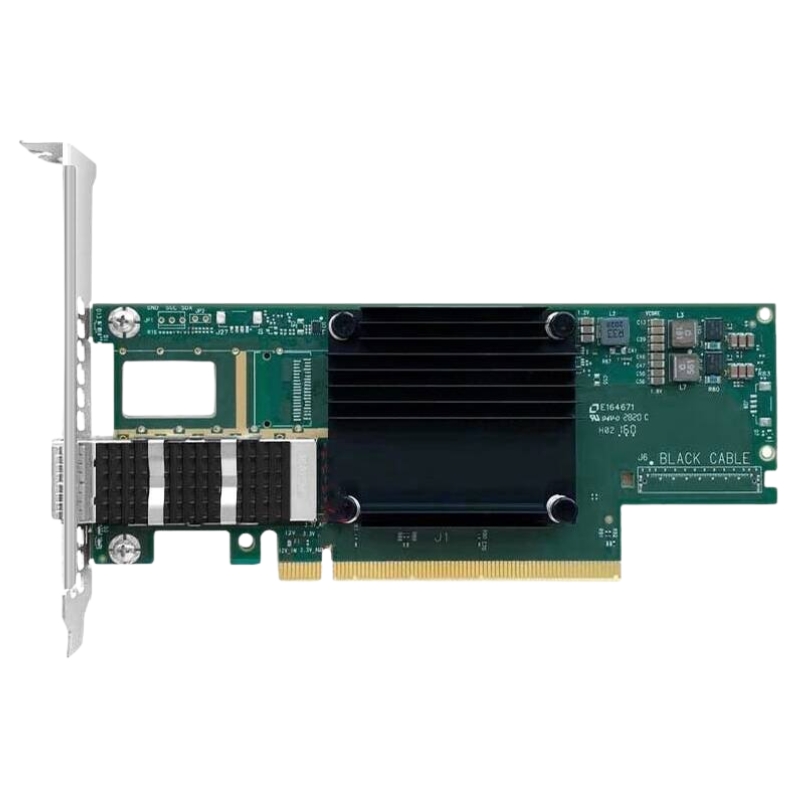

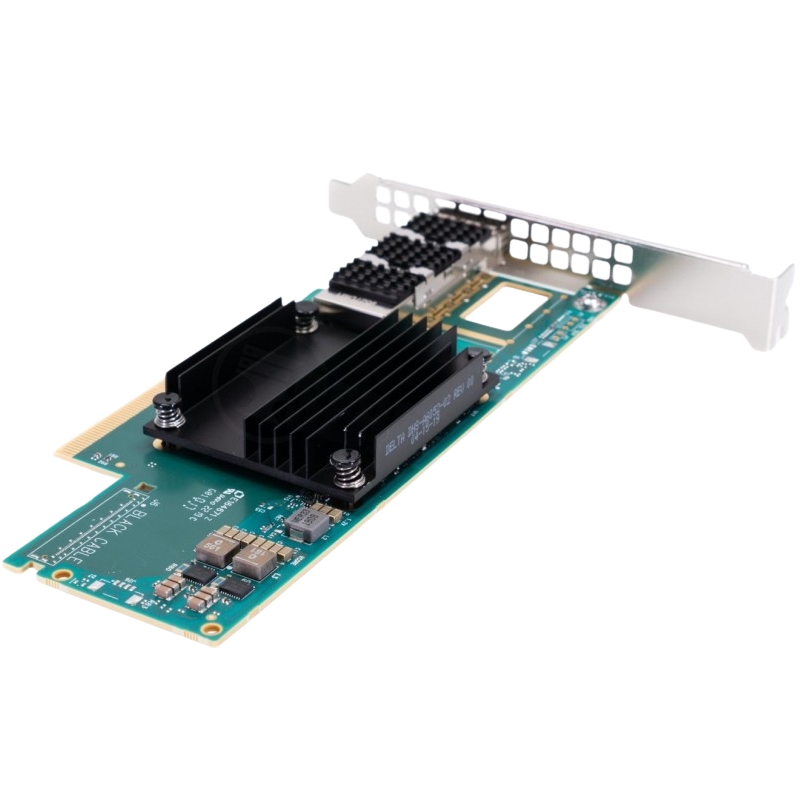

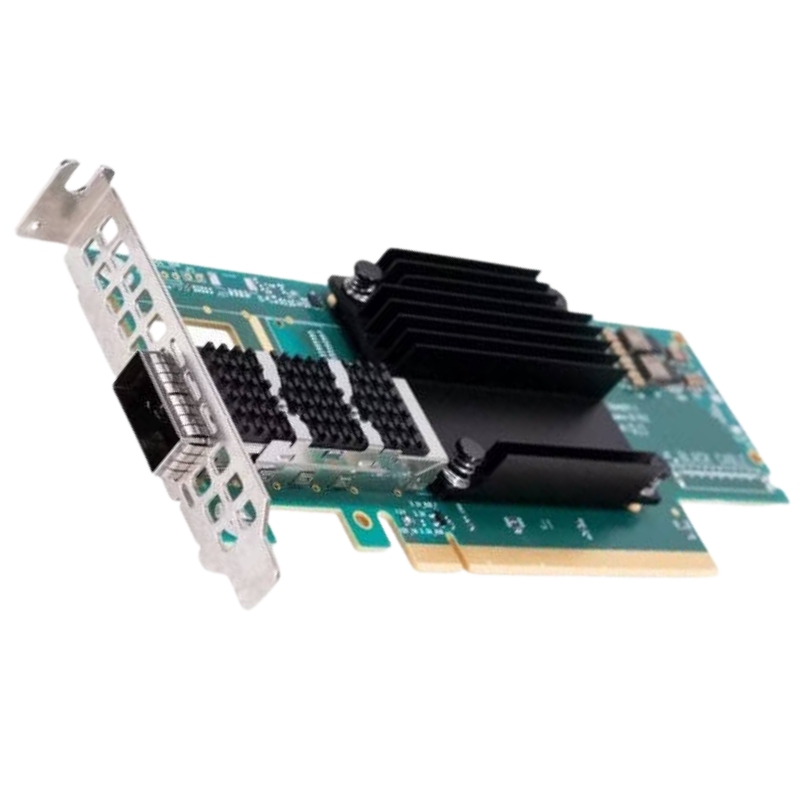

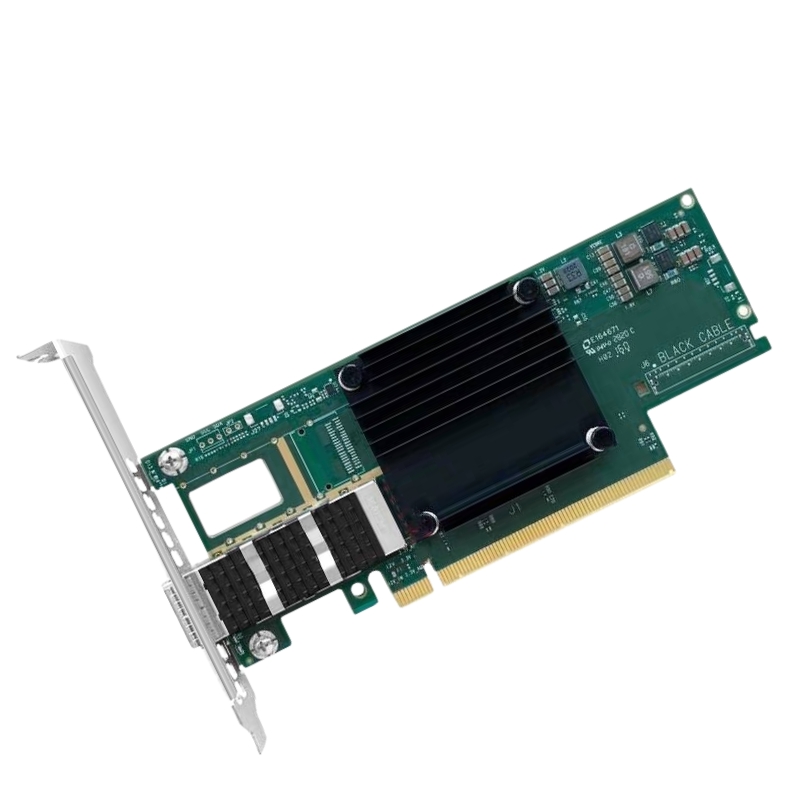

DXMD8 Dell MCX653105A-ECAT Mellanox Single-Port VPI HDR100 Adapter

Dell DXMD8 Mellanox Adapter

The Dell DXMD8 Mellanox MCX653105A-ECAT ConnectX-6 Single-Port VPI HDR100 QSFP Adapter is engineered for enterprises requiring ultra-fast connectivity and reliable performance. Designed with a full-height bracket, this plug-in card delivers exceptional throughput and seamless integration into modern data center infrastructures. Supporting both Ethernet and InfiniBand technologies, it ensures versatility and scalability for demanding workloads.

Product Information

• Brand Name: Dell
• Part number: DXMD8
• Product Type: ConnectX-6 Single-Port VPI HDR100 QSFP Adapter

Extended Information

• Built as a plug-in card, ensuring straightforward integration into server systems.
• Full-height bracket design for compatibility with standard chassis configurations.
• Supports multiple speeds including 10, 25, 40, 50, and 100 Gb/s.
• Delivers flexible bandwidth options for diverse networking requirements.
• Ideal for enterprises scaling their infrastructure to meet growing data demands.
• Compatible with SDR, DDR, QDR, FDR, EDR, and HDR100 standards.
• Provides high-speed interconnects for HPC and cloud environments.
• Ensures low latency and maximum throughput for mission-critical workloads.

Connector Type

• Equipped with a single-port QSFP56 connector for streamlined connectivity.
• Advanced networking protocols for enhanced performance.

PCI-E Interface

• Utilizes PCI-E Gen 3.0 and 4.0 SerDes at 8.0 GT/s and 16.0 GT/s.
• Features SNAPI (single-slot) PCIe 2x8 in a row for efficient data transfer.
• Ensures compatibility with modern server architectures.

Adapter Card Bracket

• Designed with a tall bracket.
• Provides stability and compatibility with enterprise-grade systems.

Dell DXMD8 Adapter Overview

The Dell DXMD8 Mellanox MCX653105A-ECAT ConnectX-6 Single-Port VPI HDR100 QSFP Full Height Plug-in Adapter represents a high-performance networking solution designed for modern data center infrastructures that demand ultra-low latency, exceptional throughput, and seamless scalability. Built on the advanced architecture of the ConnectX-6 generation, this adapter is engineered to deliver HDR100 InfiniBand and high-speed Ethernet connectivity within enterprise, HPC, AI, and cloud environments. As organizations continue to scale workloads across virtualization, software-defined storage, machine learning clusters, and high-performance computing environments, the need for reliable, high-bandwidth interconnects has become mission critical. This category page focuses on the Dell-branded implementation of the ConnectX-6 HDR100 VPI adapter and explores its architecture, technical features, performance capabilities, compatibility, and use cases in depth.

Single-Port VPI HDR100

The single-port QSFP interface on the Dell DXMD8 ConnectX-6 adapter supports HDR100 speeds over InfiniBand and equivalent 100GbE speeds when configured in Ethernet mode. HDR100 InfiniBand represents a significant evolution over previous FDR and EDR generations, providing lower latency and improved signal integrity for mission-critical applications. The QSFP connector supports both passive and active copper cables as well as optical transceivers, enabling flexible deployment across short-reach rack-level connections and longer data center interconnect scenarios. This flexibility ensures that the adapter can be used in various environments, from tightly packed HPC clusters to large-scale enterprise data centers.

Full Height

The full-height plug-in design ensures compatibility with standard rackmount server chassis that provide adequate clearance for full-height PCIe adapters. This mechanical form factor allows enhanced thermal dissipation compared to low-profile variants, which is essential for maintaining stable performance under sustained 100Gb/s workloads. Thermal management is a critical factor in high-speed networking hardware. The Dell DXMD8 adapter incorporates an optimized heatsink design to dissipate heat efficiently, ensuring consistent operation even under peak load conditions. This is particularly important in AI and HPC clusters where sustained bandwidth and low latency are required around the clock.

Performance

One of the defining characteristics of the Dell DXMD8 Mellanox MCX653105A-ECAT ConnectX-6 adapter is its ability to deliver ultra-low latency communication while sustaining high throughput. HDR100 InfiniBand technology provides up to 100Gb/s bandwidth with reduced link-level latency compared to previous generations. This performance profile is essential for distributed computing tasks, parallel processing workloads, and large-scale database synchronization.

Low Latency

Latency is often the limiting factor in high-performance computing clusters. Applications such as computational fluid dynamics, genomic sequencing, and financial modeling require rapid exchange of small packets between nodes. The ConnectX-6 architecture minimizes serialization delays and improves packet processing efficiency through advanced offload engines.Remote Direct Memory Access (RDMA) capabilities enable direct memory-to- memory data transfers between servers without CPU intervention. This significantly reduces latency and CPU overhead, allowing processors to focus on compute-intensive tasks rather than networking operations.

Scalable

Artificial intelligence and machine learning workloads generate massive volumes of data that must be shared across GPU clusters. The Dell DXMD8 ConnectX-6 HDR100 adapter ensures that GPUs and CPUs can communicate rapidly, reducing training time and improving model convergence rates. High-bandwidth networking is essential for distributed deep learning frameworks that rely on synchronized parameter updates. The HDR100 capability supports consistent performance across multi-node GPU deployments. By reducing network bottlenecks, the adapter enables linear or near-linear scaling of compute resources in clustered environments.

InfiniBand

When operating in InfiniBand mode, the Dell DXMD8 ConnectX-6 adapter leverages HDR100 technology to provide high-throughput, low-latency communication. InfiniBand is commonly used in supercomputing environments and enterprise HPC clusters where performance is the top priority. InfiniBand also supports advanced features such as adaptive routing and congestion control mechanisms that improve reliability and efficiency in large-scale fabrics.

Ethernet Mode

In Ethernet mode, the adapter can deliver 100GbE connectivity, supporting modern data center networking standards. This is particularly useful in cloud environments where Ethernet remains the dominant protocol. With hardware offloads for TCP/IP, RoCE (RDMA over Converged Ethernet), and NVMe over Fabrics, the adapter provides optimized storage and virtualization performance.

Compatibility

The Dell DXMD8 adapter is designed for compatibility with Dell PowerEdge servers and other enterprise-grade platforms that support PCIe Gen4 full-height adapters. Integration with Dell firmware and management tools ensures streamlined deployment and monitoring within existing infrastructure.

Integration

Dell’s management ecosystem allows administrators to monitor network health, firmware status, and performance metrics. This simplifies lifecycle management and reduces operational complexity in large-scale deployments.

Use Cases

High-Performance

In HPC environments, the Dell DXMD8 Mellanox MCX653105A-ECAT ConnectX-6 adapter enables high-speed node interconnects that facilitate parallel processing at scale. Its low-latency RDMA capabilities make it suitable for tightly coupled workloads that require frequent synchronization.

Cloud and Virtualized

Cloud service providers rely on 100GbE networking to deliver high-performance services to customers. The VPI flexibility of the ConnectX-6 adapter ensures compatibility with both InfiniBand and Ethernet infrastructures, supporting diverse workload requirements.

Storage Networks

Enterprises implementing NVMe over Fabrics can leverage the adapter’s hardware offloads to build high-speed, low-latency storage networks. This results in faster data access and improved application responsiveness.
