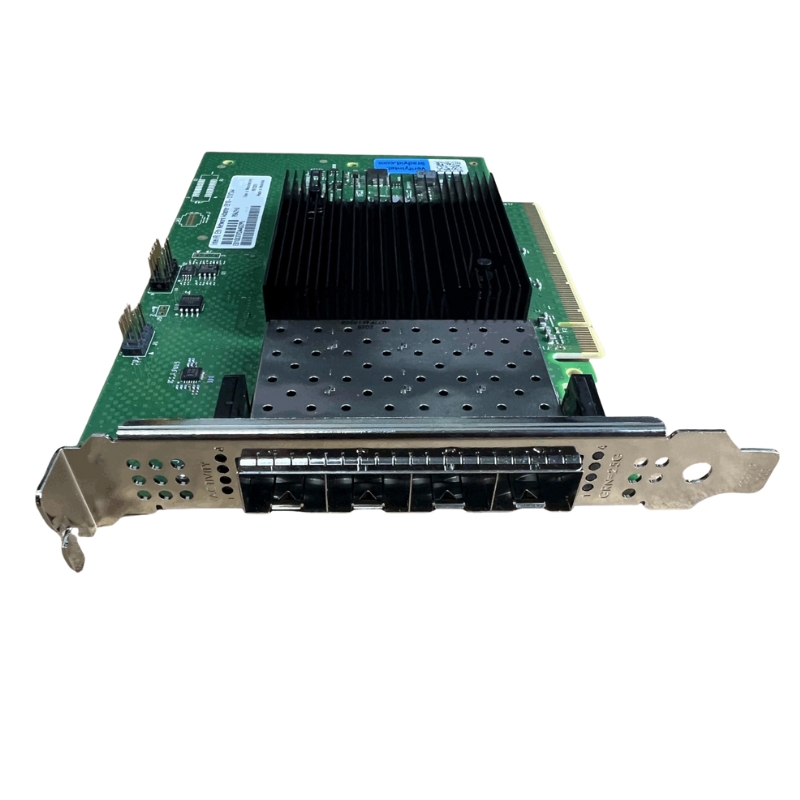

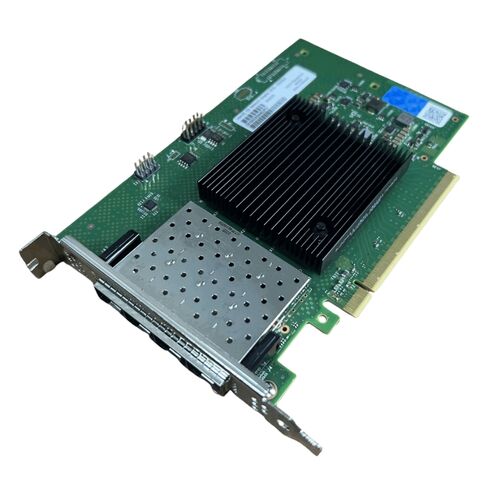

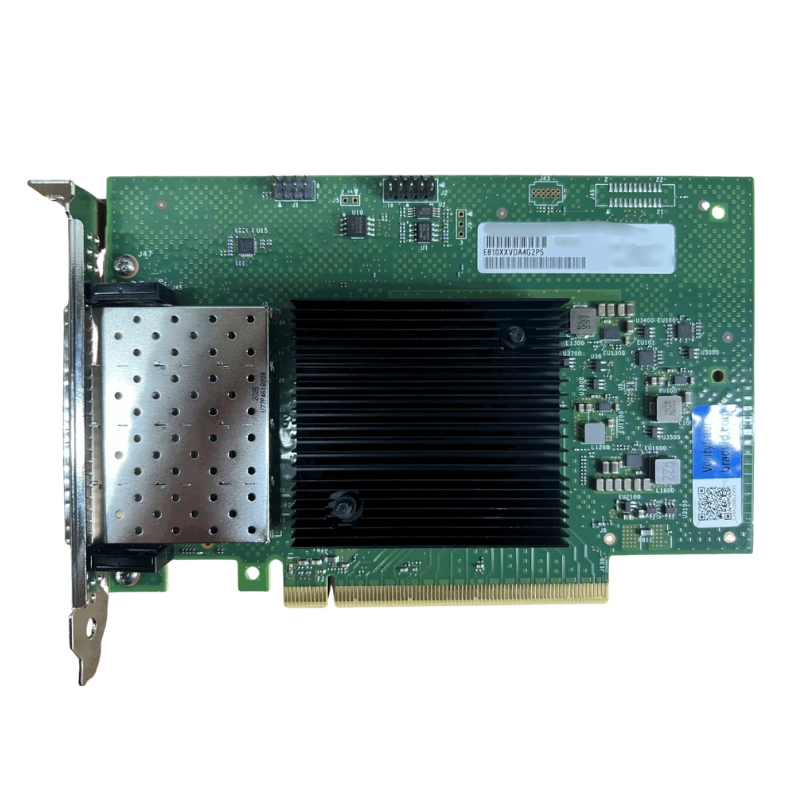

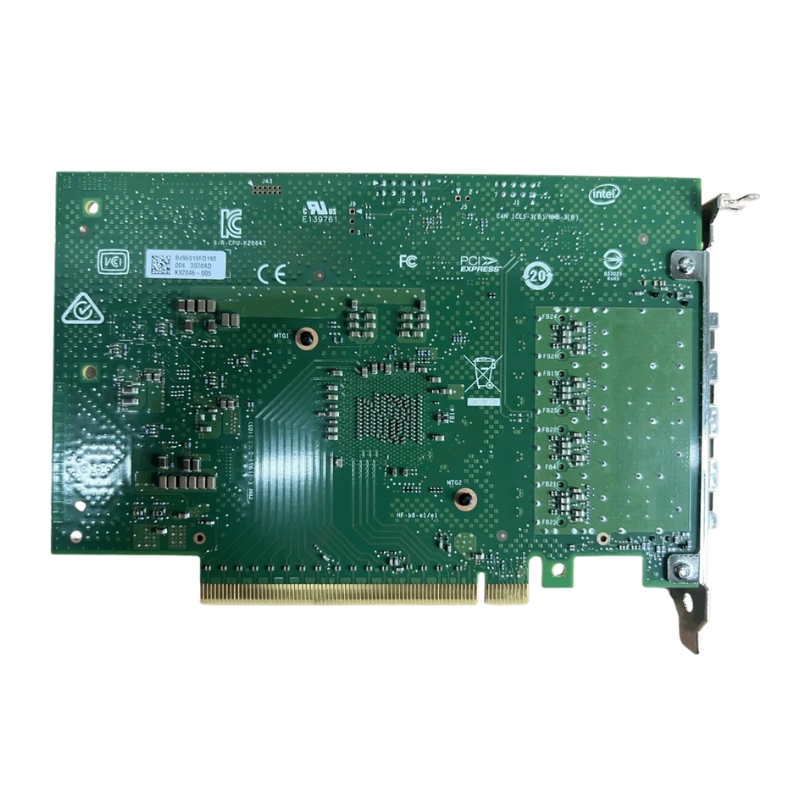

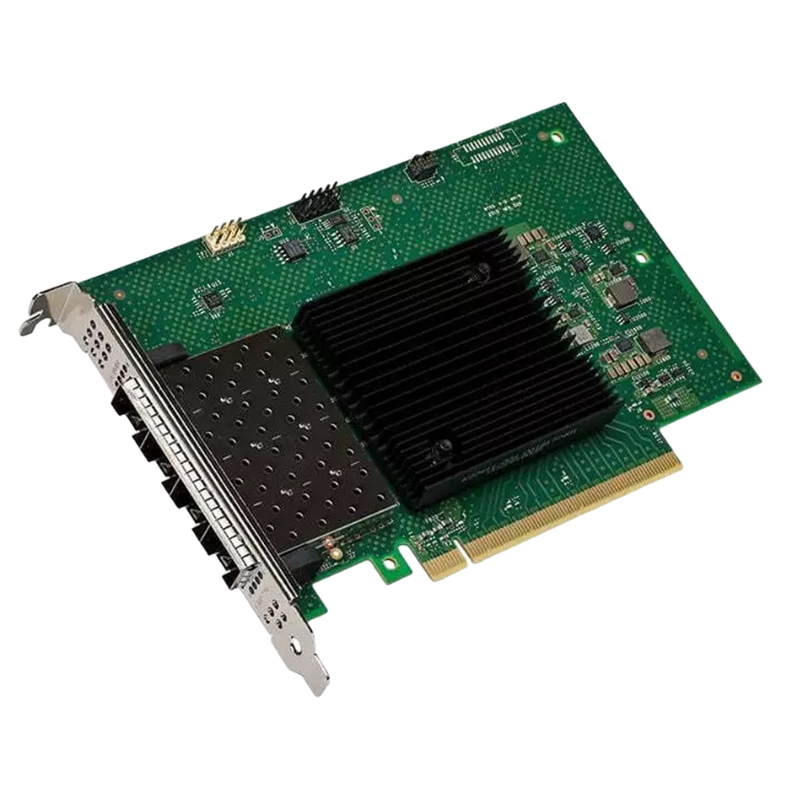

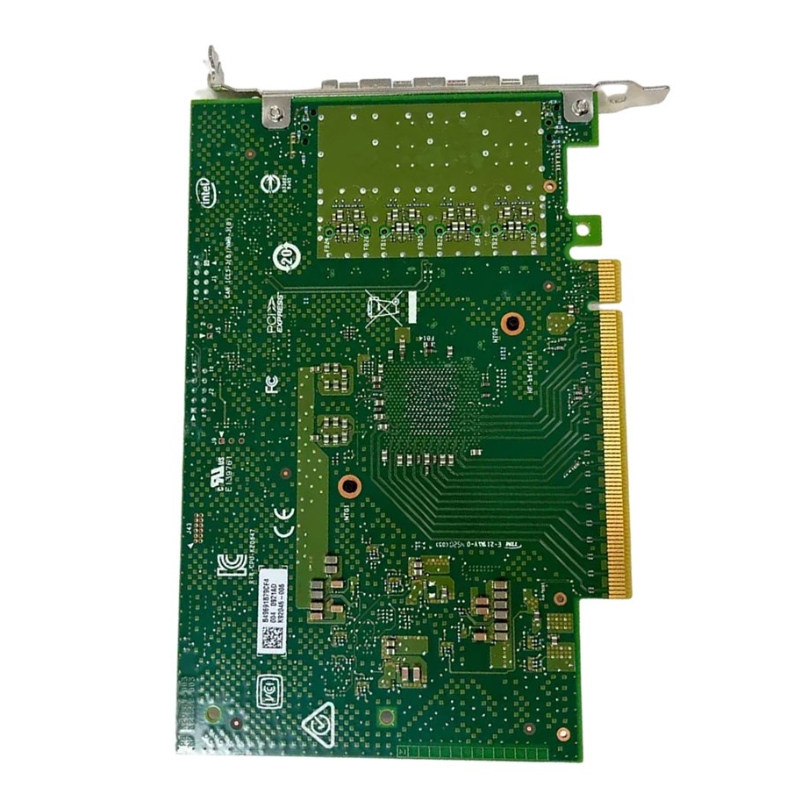

540-BCZX Dell E810 25GbE SFP28 PCI-Express 4 Ports Network Adapters

Highlights of Dell 25GbE SFP28 PCIE Adapters

The Dell 540-BCZX Intel E810 Quad-Port 10/25GbE SFP28 PCIe Adapter is a powerful enterprise-grade networking solution engineered for ultra-fast connectivity. With PCI Express 4.0 support and four SFP28 ports, this adapter ensures reliable throughput, scalability, and efficiency for modern data centers, virtualization, and cloud infrastructures.

Main Information

• Brand: Dell
• Model Number: 540-BCZX
• Device Type: Network Adapter

Technical Specifications

• Form Factor: Plug-in Card (Full-Height)
• Interface (Bus) Type: PCI Express 4.0 x16
• PCI Specification Revision: PCIe 3.0, PCIe 4.0

Port Configuration

• Ports: Quad-port (4 x SFP28)
• Port Type: SFP28 (Small Form-Factor Pluggable 28)
• Data Transfer Rate: Up to 25Gbps per port
• Supported Speeds: 1GbE / 10GbE / 25GbE Ethernet
• Connectivity Technology: Wired

Network Protocols

• iSCSI
• iWARP
• NFS

Advanced Features

• RDMA Support (Remote Direct Memory Access)
• Virtual Machine Device Queues (VMDq)
• Single Root I/O Virtualization (SR-IOV)
• Data Direct I/O Technology (DDIO)
• RDMA over Converged Ethernet (RoCE v2)
• Flexible Port Partitioning (FPP)
• Intelligent Offloads for optimized performance
• On-chip QoS and traffic management

Interfaces

• 2 x 1GbE / 10GbE / 25GbE Ethernet - SFP28

Overview of Dell 540-BCZX Intel E810 25GbE Network Adapter

The Dell 540-BCZX Intel E810 25GbE SFP28 PCI-Express 4 Ports Full Height Network Adapter represents a next-generation networking solution engineered for enterprise data centers that demand extreme bandwidth, ultra-low latency, and highly scalable connectivity. Built on Intel’s advanced Ethernet controller architecture, this network interface card is designed to support modern workloads that include cloud computing, virtualization clusters, high-performance computing environments, and storage-intensive applications. The integration of four high-speed 25 Gigabit Ethernet SFP28 ports enables dense aggregation of network traffic while maintaining consistent throughput across multiple virtual machines and physical servers.

As enterprise infrastructures continue evolving toward hyper-converged systems and software-defined networking, this adapter provides a foundational component that ensures seamless data transmission and optimized workload balancing. Its PCI Express 4.0 interface ensures significantly higher data transfer capacity compared to previous generations, making it suitable for next-level server deployments requiring sustained network performance under heavy loads.

Intel E810 Controller Integration and Network Efficiency

At the core of the Dell 540-BCZX adapter lies the Intel Ethernet E810 controller, which is designed to deliver highly efficient packet processing and advanced networking features that significantly reduce CPU overhead. This allows server processors to focus more on application workloads rather than network management tasks, thereby improving overall system efficiency.

The Intel E810 chipset is optimized for cloud-scale networking environments where packet density and throughput are critical. It incorporates intelligent offloading technologies that enhance virtualization performance and ensure consistent data delivery even in complex multi-tenant infrastructures. This level of optimization makes the adapter highly suitable for enterprise-grade data centers requiring predictable performance and minimal latency variation.

Advanced Packet Processing Capabilities

The packet processing engine embedded within the Intel E810 architecture is designed to handle large volumes of network traffic with minimal delay. It supports hardware-based acceleration features that reduce CPU cycles required for routine networking operations. This allows the system to maintain stability under high concurrency workloads such as database replication, distributed computing, and real-time analytics processing.

The architecture is also optimized for microsecond-level latency control, ensuring that time-sensitive applications such as financial trading systems and telecom infrastructure can operate with precision and reliability. The enhanced packet steering capabilities contribute to smoother traffic distribution across multiple cores and processing threads.

25GbE SFP28 Connectivity for High-Density Data Centers

Next-Generation Bandwidth Expansion

The inclusion of 25GbE SFP28 ports provides a substantial increase in bandwidth density compared to traditional 10GbE solutions. This makes the Dell 540-BCZX adapter ideal for environments transitioning toward higher-speed networking infrastructure. The 25GbE standard offers a balanced combination of speed, efficiency, and scalability, enabling organizations to optimize their data center architecture without immediately requiring a full shift to 100GbE infrastructure.

Each SFP28 port is capable of delivering consistent high-speed throughput, allowing enterprises to support multiple high-bandwidth applications simultaneously. This ensures seamless operation for workloads involving large-scale data transfers, virtualization migration, and real-time cloud service provisioning.

Efficient Optical and Copper Compatibility

The SFP28 interface supports both optical fiber and copper-based transceivers, offering flexibility in deployment across different networking environments. This adaptability allows data centers to integrate the adapter into existing infrastructure without requiring extensive modifications. Whether used in short-range intra-rack communication or long-distance inter-rack connectivity, the adapter maintains consistent performance levels.

The flexibility of media compatibility also reduces infrastructure costs by enabling hybrid networking configurations that combine legacy systems with modern high-speed components. This makes the adapter suitable for gradual infrastructure upgrades in enterprise environments.

PCI Express 4.0 Interface and System Throughput Enhancement

High-Speed Bus Architecture

The PCI Express 4.0 interface integrated into the Dell 540-BCZX adapter provides a significant leap in data transfer capability compared to previous PCIe generations. This enhanced bandwidth ensures that network traffic is transmitted between the adapter and system memory without bottlenecks, allowing full utilization of the 25GbE ports.

By leveraging PCIe Gen4 lanes, the adapter can handle high-density packet flows efficiently, making it suitable for servers running compute-heavy workloads. This ensures that data-intensive applications experience reduced latency and improved responsiveness under peak network conditions.

Optimized Lane Utilization for Enterprise Servers

The architecture efficiently distributes network data across available PCIe lanes, reducing congestion and ensuring smooth communication between the network adapter and server CPU. This level of optimization is essential for modern data centers where multiple virtual machines and containers operate simultaneously on shared hardware resources.

The improved lane utilization also contributes to energy efficiency by reducing unnecessary data retransmission and lowering overall system overhead, which is critical in large-scale deployments.

Multi-Port Design for Scalable Network Architectures

Four-Port High-Density Connectivity Model

The Dell 540-BCZX adapter features four independent 25GbE SFP28 ports, allowing for high-density network aggregation within a single PCIe slot. This multi-port design is particularly advantageous for enterprise environments that require segmentation of network traffic across multiple virtual networks or application domains.

Each port operates independently, enabling administrators to configure separate traffic channels for different workloads. This enhances network efficiency and allows for better resource allocation across distributed computing environments.

Load Distribution and Traffic Segmentation

The multi-port architecture supports intelligent traffic distribution, which helps balance network load across multiple channels. This prevents congestion and ensures consistent throughput for mission-critical applications. In virtualized environments, this capability is particularly valuable for maintaining isolation between tenant workloads while maximizing resource utilization.

Enhanced Virtual Network Management

The adapter’s design allows seamless integration with virtual network overlays and software-defined networking frameworks. This enables administrators to define flexible network topologies that can be dynamically adjusted based on workload requirements. The ability to manage multiple virtual networks through a single physical adapter simplifies infrastructure management and reduces hardware complexity.

Enterprise Virtualization and Cloud Computing Optimization

Support for Virtual Machine Density

The Dell 540-BCZX Intel E810 adapter is optimized for environments with high virtual machine density. Its hardware acceleration features reduce virtualization overhead by offloading network processing tasks from the hypervisor to the adapter itself. This improves VM performance and ensures consistent network responsiveness across all instances.

In cloud computing environments, where resources are dynamically allocated, the adapter ensures that each virtual machine receives predictable network bandwidth. This stability is essential for service providers offering scalable cloud infrastructure to enterprise clients.

SR-IOV and Virtualization Acceleration

Single Root I/O Virtualization (SR-IOV) support enables the adapter to create multiple virtual functions, allowing direct assignment of network resources to virtual machines. This reduces latency and eliminates bottlenecks associated with software-based network sharing mechanisms.

The result is improved application performance in environments running containerized workloads, microservices architectures, and distributed computing frameworks.

Storage Networking and Data Intensive Workloads

High-Speed Storage Access Integration

The Dell 540-BCZX adapter plays a critical role in storage networking environments, particularly those utilizing network-attached storage and storage area networks. Its high throughput ensures rapid data access and efficient storage replication across distributed systems.

This capability is essential for databases, analytics platforms, and enterprise backup systems that require constant data synchronization across multiple nodes.

Low Latency Data Transfer Optimization

The adapter’s architecture is designed to minimize latency in storage communication pathways. This ensures that read and write operations occur with minimal delay, improving overall application performance. In environments where real-time data processing is critical, this low latency design becomes a key advantage.

Security and Data Protection Features

Hardware-Level Security Integration

Security is an integral component of the Dell 540-BCZX Intel E810 adapter, which incorporates hardware-based security features to protect data integrity during transmission. These features help prevent unauthorized access and ensure secure communication between network endpoints.

Encryption offloading capabilities reduce the processing burden on the main CPU while maintaining secure data flows across the network. This is particularly important in industries handling sensitive information such as finance, healthcare, and government operations.

Secure Network Traffic Isolation

The adapter supports advanced segmentation techniques that isolate network traffic between different virtual environments. This reduces the risk of cross-tenant interference and enhances overall system security in multi-user environments.

Energy Efficiency and Thermal Optimization

Low Power Consumption Design

Despite its high-performance capabilities, the Dell 540-BCZX adapter is designed with energy efficiency in mind. The Intel E810 controller incorporates power management technologies that dynamically adjust power usage based on network load.

This ensures reduced energy consumption during low traffic periods while maintaining full performance during peak demand. Such efficiency is critical in large-scale data centers where power usage directly impacts operational costs.

Thermal Management in High-Density Deployments

The full-height adapter design supports effective heat dissipation, ensuring stable performance even in high-temperature server environments. Efficient thermal management contributes to long-term hardware reliability and reduces the need for additional cooling infrastructure.
