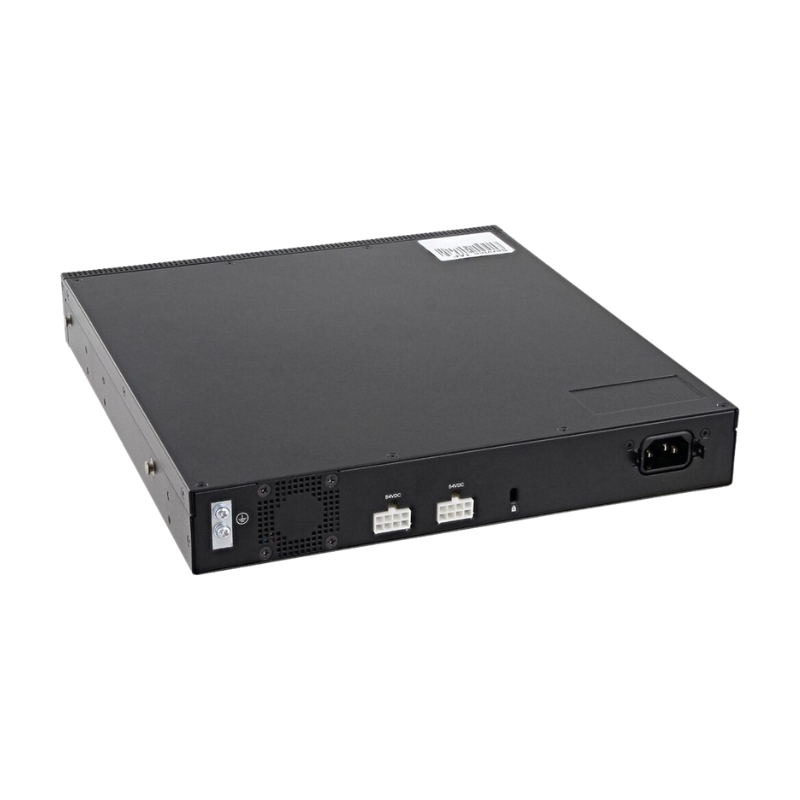

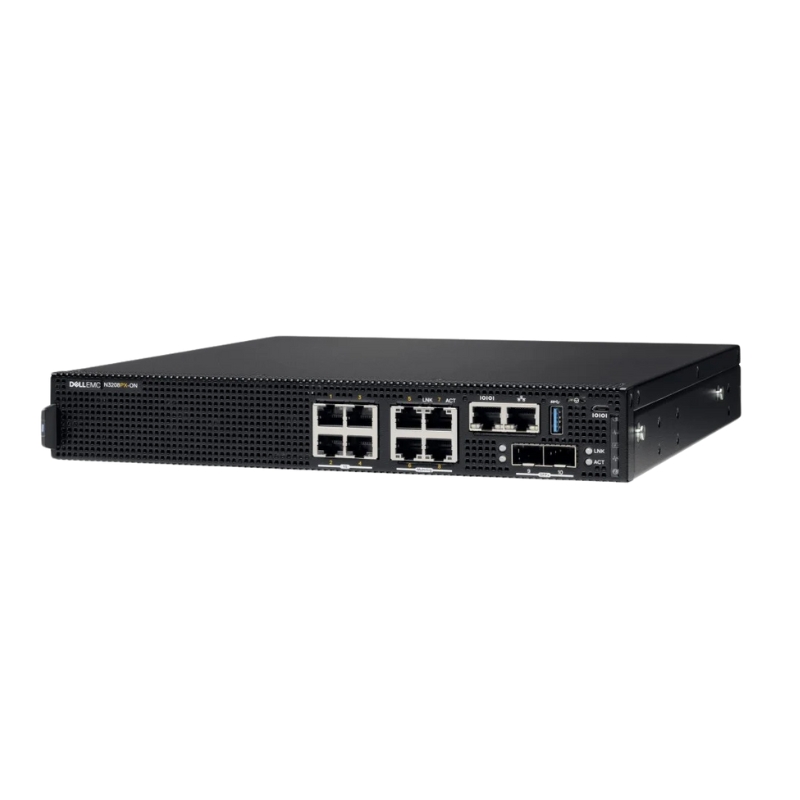

Dell EMC N3208PX-ON 8-Port Network Switches

Overview of DELL EMC Powerswitch N3208PX-ON

Key Specifications

• Device Type: Managed Switch featuring 8 Ports
• Chassis Type: 1U Rack-Mountable with Front-to-Back Airflow
• Ethernet Standard: 5 Gigabit Ethernet

Port Configuration

• Available Ports:
  • 4 x 10/100/1000/2.5G/5G (PoE++ enabled)
  • 4 x 10/100/1000 (PoE++ enabled)
  • 2 x 10 Gigabit SFP+
• Power Over Ethernet: Supports PoE++ for enhanced power delivery

Performance Metrics

• Switching Capacity: 88 Gbps
• Forwarding Rate: 122 Million Packets Per Second (Mpps)

Routing and Capacity

• Static IPv4 Routes: 1024
• Static IPv6 Routes: 1024
• Dynamic IPv4 Routes: 8160
• Dynamic IPv6 Routes: 4096
• Maximum LAG Member Ports: 8
• Maximum Dynamic Ports in a Stack: 144
• OSPF Routes: 8158
• RIP Routes: 512
• Maximum MAC Address Table Size: 32,000 Entries

Supported Routing Protocols

• Protocols include OSPF, RIP, IGMPv2, and IPv4-to-IPv6 Multicast

Remote Management Options

• Supported Management Protocols: SNMP (versions 1, 2, 3), RMON (1, 2, 3, 9), Telnet, HTTP, TFTP, SSH-2

Security Features

• Encryption Algorithms: MD5, AES, SSL, TLS
• Authentication Methods: RADIUS, TACACS+, Secure Shell Version 2 (SSH2)

Advanced Networking Functions

• Includes features such as Flow Control, MDI/MDI-X, Auto-negotiation, and ARP Support
• VLAN support, Port Mirroring, and Quality of Service (QoS) management
• Compatible with Energy Efficient Ethernet and supports Dynamic VLANs (GVRP)
• Compliant with Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP)

Compliance Standards

• Meets various IEEE standards, including 802.2, 802.3, 802.1Q
• Efficiency Certification: 80 Plus Platinum Certification

Hardware Specifications

• RAM: 4 GB
• Flash Memory: 8 GB

Power Management Features

• Power Supply Type: Internal, Hot-Plug Power Supply
• Installed Power Supplies: 1 (expandable to 2)
• Power Redundancy: Optional, with a 1+1 configuration available
• Power Output: 320 Watts
• Operational Power Consumption: 827 Watts

Ports

The Dell EMC N3208PX-ON Network Switch is equipped with 8 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and efficient networking solution. These ports provide a high level of flexibility and scalability, allowing users to easily connect multiple devices and expand their network as needed.

Increased Connectivity

With 8 ports, users can connect a wide range of devices such as computers, servers, printers, and IP cameras to the network switch. This enables seamless communication and data transfer between devices, enhancing productivity and efficiency in the workplace.

Reduced Network Congestion

Having 8 ports allows for better distribution of network traffic, reducing congestion and minimizing the risk of bottlenecks. This ensures that each connected device can operate at its maximum potential without experiencing slowdowns or interruptions.

Scalability

The availability of 8 ports provides room for future expansion. As businesses grow and add more devices to their network, the Dell EMC N3208PX-ON Network Switch can accommodate the increased demand without the need for additional equipment. This scalability helps businesses save costs in the long run by avoiding the need for frequent upgrades or replacements.

Power-over-Ethernet

The Dell EMC N3208PX-ON Network Switch features Power-over-Ethernet (PoE) capabilities, which is an essential feature for businesses that rely on network-powered devices such as IP phones, wireless access points, and surveillance cameras. With 1 PoE port available, this switch provides power and data connectivity to compatible devices over a single Ethernet cable.

Simplified Installation

By utilizing PoE technology, the Dell EMC N3208PX-ON Network Switch eliminates the need for separate power cables for each connected device. This simplifies the installation process, reduces cable clutter, and minimizes the overall cost of deploying network-powered devices.

Flexibility and Mobility

The PoE feature allows businesses to deploy devices in locations where power outlets may not be readily accessible. This provides greater flexibility and mobility in configuring and repositioning devices as needed, without the limitations imposed by power constraints.

Cost Savings

Powering devices through a centralized network switch reduces energy consumption and lowers electricity costs. With the ability to manage and control power usage for each connected device, businesses can optimize their energy efficiency and contribute to a greener environment.

Management Interface

The Dell EMC N3208PX-ON Network Switch offers multiple management interfaces, including a Command Line Interface (CLI), Web GUI, and SNMP (Simple Network Management Protocol). These interfaces provide users with various options to monitor, configure, and troubleshoot their network easily and efficiently.

Command Line Interface (CLI)

The CLI provides advanced users with a powerful and flexible way to interact with the network switch. It allows for precise configuration and customization of network settings through command-based input. The CLI is especially beneficial for experienced network administrators who prefer a text-based interface for managing their network infrastructure.

Web GUI

The Web GUI offers a user-friendly graphical interface that simplifies network management for both novice and experienced users. It provides an intuitive platform to monitor network performance, configure settings, and perform troubleshooting tasks. The Web GUI's visual representation of network topology and device status enables quick identification of issues and efficient problem resolution.

Simple Network Management Protocol (SNMP)

SNMP is a widely adopted network management protocol that allows for centralized monitoring and control of network devices. With SNMP support, users can collect and analyze network statistics, receive real-time alerts for critical events, and remotely manage network devices from a central management system. This enhances network visibility, streamlines troubleshooting processes, and improves overall network performance.

Rack-Mountable

The Dell EMC N3208PX-ON Network Switch is designed to be rack-mountable, making it an ideal choice for businesses seeking a space-efficient and organized networking solution. With its compact form factor and 1U height, this switch can be easily installed in standard server racks, cabinets, or wall-mount enclosures.

Space Saving

Rack-mountable switches save valuable floor space by utilizing the vertical space within server racks. This allows businesses to optimize their infrastructure layout and accommodate more networking equipment in a limited area. The Dell EMC N3208PX-ON Network Switch's rack-mountable design helps businesses make the most of their available space.

Improved Cable Management

Installing the switch in a rack enables neat and organized cable management. The switch's ports are conveniently positioned at the rear, allowing for easy cable routing and minimizing cable clutter. This enhances airflow within the rack, reduces the risk of cable damage, and simplifies future maintenance or expansion tasks.

Enhanced Security

Rack-mounting the network switch provides an added layer of physical security. Server racks are typically located in secure areas with restricted access, protecting the switch from unauthorized tampering or accidental damage. This ensures the integrity and reliability of the network infrastructure.
