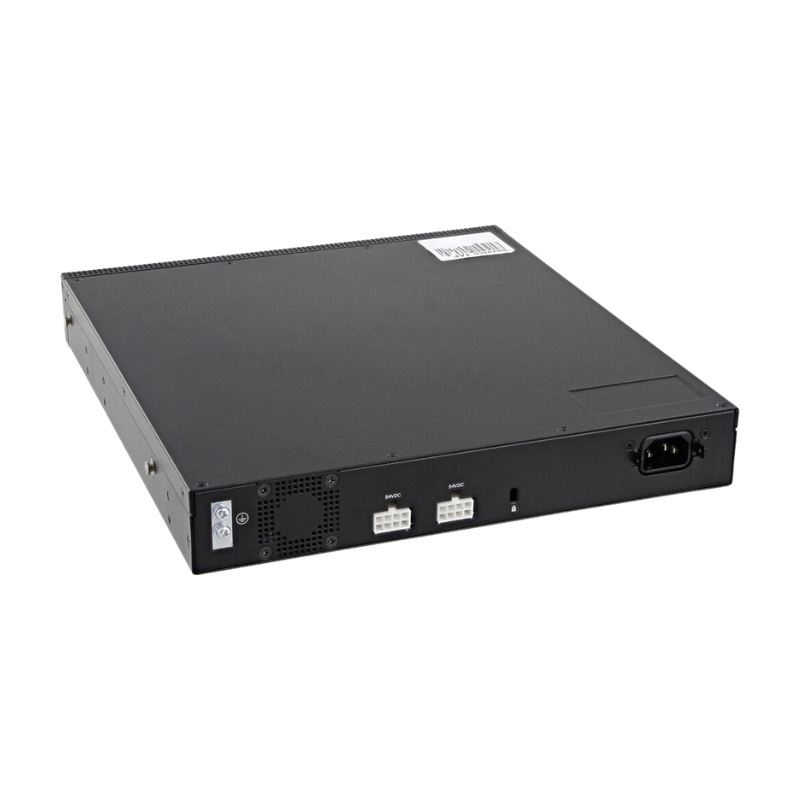

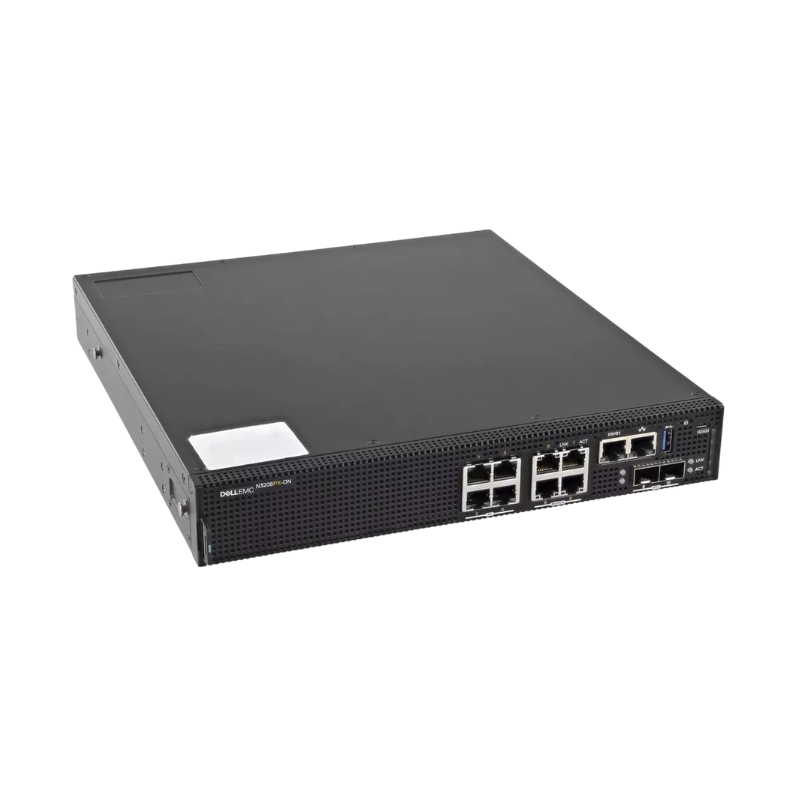

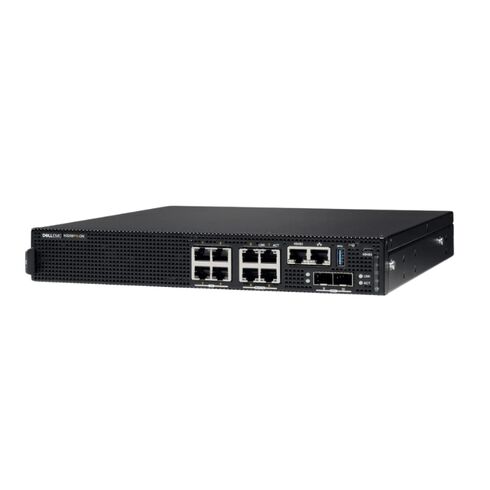

Dell EMC N3208PX-ONF 8-Port Managed Network Switches

DELL EMC Powerswitch N3208PX-ONF Overview

Key Attributes

• Device Classification: Managed Switch with 8 Ports
• Form Factor: 1U Rack-Mountable with Front-to-Back Airflow Design
• Ethernet Category: 5 Gigabit Ethernet

Port Details

• Port Configuration:
  • 4 x 10/100/1000/2.5G/5G (PoE++ compatible)
  • 4 x 10/100/1000 (PoE++ compatible)
  • 2 x 10 Gigabit SFP+
• Power Over Ethernet: PoE++ for enhanced power delivery

Performance Capabilities

• Switching Capacity: 88 Gbps
• Forwarding Rate: 122 Million Packets Per Second (Mpps)

Routing and Capacity Specifications

• Static IPv4 Routes: 1024
• Static IPv6 Routes: 1024
• Dynamic IPv4 Routes: 8160
• Dynamic IPv6 Routes: 4096
• Max Member Ports per LAG: 8
• Max Dynamic Ports in Switch Stack: 144
• OSPF Routes: 8158
• RIP Routes: 512
• Maximum MAC Address Table Size: 32,000 Entries

Supported Routing Protocols

• Includes OSPF, RIP, IGMPv2, and IPv4-to-IPv6 Multicast protocols

Remote Management Features

• Supported Protocols: SNMP (versions 1, 2, 3), RMON (1, 2, 3, 9), Telnet, HTTP, TFTP, SSH-2

Security and Encryption

• Encryption Standards: MD5, AES, SSL, TLS
• Authentication Methods: RADIUS, TACACS+, Secure Shell Version 2 (SSH2)

Advanced Features

• Equipped with Flow Control, MDI/MDI-X capabilities, Auto-negotiation, and ARP support
• Offers VLAN support, Port Mirroring, and Quality of Service (QoS) functionality
• Features Energy Efficient Ethernet and Dynamic VLAN Support (GVRP)
• Compatible with Rapid Spanning Tree Protocol (RSTP) and Multiple Spanning Tree Protocol (MSTP)

Compliance Standards

• Complies with multiple IEEE standards, including 802.2, 802.3, and 802.1Q
• Efficiency Certification: 80 Plus Platinum

Hardware Specifications

• RAM: 4 GB
• Flash Memory: 8 GB

Power Management Capabilities

• Power Supply Type: Internal Hot-Plug Power Supply
• Installed Power Supply: 1 (expandable to 2)
• Optional Power Redundancy: Available, supports 1+1 configuration
• Power Output: 320 Watts
• Operational Power Consumption: 827 Watts

Ports

The Dell EMC N3208PX-ONF Managed Network Switches are equipped with 8 ports, making them a versatile and powerful networking solution for businesses of all sizes. These switches offer a wide range of benefits and features that can greatly enhance network connectivity and performance.

Increased Connectivity

With 8 ports, the N3208PX-ONF switches provide ample connectivity options for your network infrastructure. Whether you need to connect multiple devices, servers, or switches, these switches offer the flexibility to accommodate your needs. This allows for seamless communication between various devices and ensures a reliable and efficient network environment.

Scalability

The 8 ports on these switches also allow for easy scalability. As your business grows and expands, you may need to add more devices to your network. With the N3208PX-ONF switches, you have the ability to easily connect new devices without any hassle. This scalability ensures that your network can keep up with the demands of your growing business.

Redundancy

Having multiple ports on the N3208PX-ONF switches also offers redundancy in case of a port failure. If one port malfunctions or experiences issues, you can simply switch to another available port without any disruption to your network connectivity. This redundancy is crucial for businesses that rely heavily on their network infrastructure for day-to-day operations.

Flexibility

The 8 ports on these switches also provide flexibility in terms of network configuration. You can create separate VLANs (Virtual Local Area Networks) or segment your network based on different departments or functions within your organization. This flexibility allows for better network management and improved security.

Management

One of the key features of the Dell EMC N3208PX-ONF Managed Network Switches is their managed capabilities. This management feature offers numerous benefits to users, allowing for efficient network administration and control.

Centralized Control

With the managed feature, these switches can be centrally controlled and configured. This means that network administrators can easily monitor and manage the switches from a central location. This simplifies the management process and saves time, especially in larger network environments where multiple switches are deployed.

Enhanced Security

Managed switches provide enhanced security features compared to unmanaged switches. With the N3208PX-ONF switches, you have the ability to implement advanced security measures such as access control lists (ACLs) and port security. These features allow you to restrict access to your network and protect against unauthorized users or potential threats.

Quality of Service (QoS)

Another important benefit of the management feature is the ability to prioritize network traffic using Quality of Service (QoS) settings. With QoS, you can ensure that critical applications or services receive sufficient bandwidth and are not affected by other less important traffic. This improves overall network performance and user experience.

Monitoring and Troubleshooting

The managed feature also enables comprehensive monitoring and troubleshooting capabilities. Network administrators can monitor network traffic, analyze performance metrics, and identify potential issues or bottlenecks. This proactive approach allows for timely troubleshooting and ensures optimal network performance.

Power-over-ethernet

The Dell EMC N3208PX-ONF Managed Network Switches come with Power-over-Ethernet (PoE) functionality, which provides significant benefits for businesses that require both data connectivity and power delivery over a single Ethernet cable.

Convenience and Cost Savings

With PoE, you can eliminate the need for separate power cables for devices such as IP cameras, wireless access points, or VoIP phones. This eliminates clutter and simplifies the installation process. Additionally, using PoE can result in cost savings as you don't need to invest in additional power outlets or electrical infrastructure.

Flexibility in Device Placement

PoE allows for greater flexibility in device placement. Devices can be installed in locations where power outlets may not be readily available, such as ceilings or walls. This flexibility enhances the design and deployment of your network infrastructure, ensuring optimal coverage and functionality.

Centralized Power Management

The PoE feature also enables centralized power management. Network administrators can monitor and control the power consumption of PoE devices from a central location. This not only helps in optimizing power usage but also allows for easy troubleshooting in case of power-related issues.

Future-Proofing

By incorporating PoE into your network infrastructure with the N3208PX-ONF switches, you are future-proofing your network. As more devices become PoE-compatible, you can easily integrate them into your network without the need for additional power infrastructure. This scalability ensures that your network can adapt to evolving technology requirements.

Layer

The Dell EMC N3208PX-ONF Managed Network Switches are designed with Layer 3 capabilities, offering advanced routing functionality and numerous benefits for your network infrastructure.

Efficient Routing

With Layer 3 capabilities, these switches can efficiently route traffic between different VLANs or subnets. This allows for better segmentation of your network and improved performance. Layer 3 switches can make intelligent routing decisions based on IP addresses, resulting in faster data transmission and reduced latency.

Improved Network Performance

Layer 3 switches can perform routing functions at wire speed, which means there is no performance degradation when handling large amounts of traffic. This ensures that your network operates at its maximum capacity without any bottlenecks. Improved network performance leads to enhanced productivity and user satisfaction.

Enhanced Network Security

Layer 3 switches offer enhanced network security compared to Layer 2 switches. With Layer 3 capabilities, you can implement access control policies, create virtual private networks (VPNs), and perform deep packet inspection. These security features help protect your network from unauthorized access and potential threats.

Scalability and Flexibility

Layer 3 switches provide scalability and flexibility in network design. You can easily add or remove VLANs or subnets as your network requirements change. This scalability ensures that your network can grow with your business. Additionally, Layer 3 switches support advanced routing protocols such as OSPF or BGP, allowing for seamless integration with other networks or service providers.

In conclusion, the Dell EMC N3208PX-ONF Managed Network Switches offer a range of valuable features that enhance network connectivity, management, power delivery, and routing capabilities. With 8 ports, managed functionality, Power-over-Ethernet support, and Layer 3 capabilities, these switches provide businesses with the flexibility, scalability, security, and performance they need to meet their networking requirements. Whether you are a small business or a large enterprise, the N3208PX-ONF switches deliver reliable and efficient networking solutions.
