D1XM2 Dell Emulex 2 Port 64GFC SW Optical LC SFP+ HBA

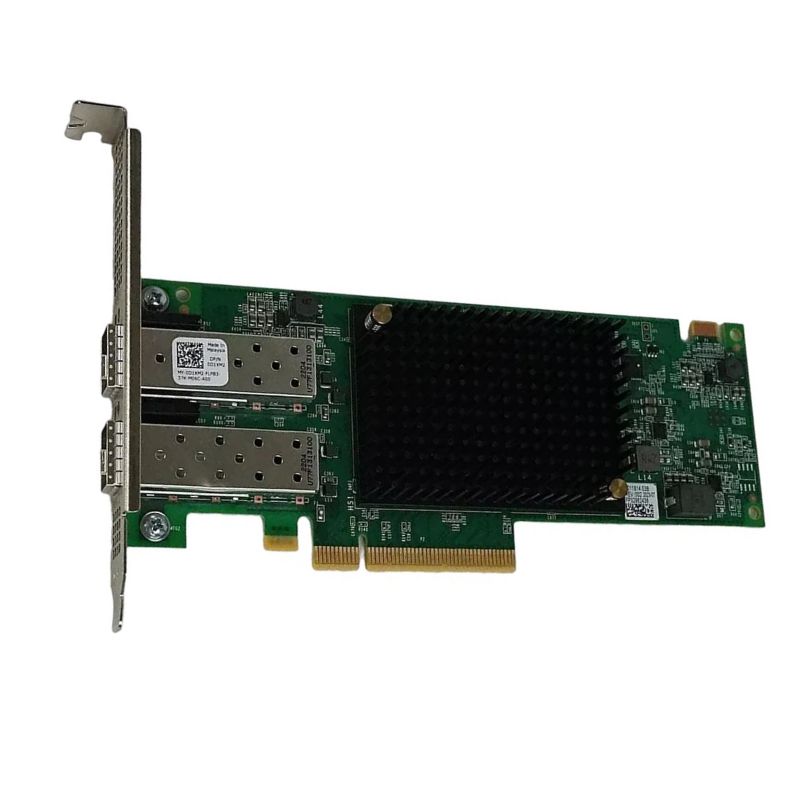

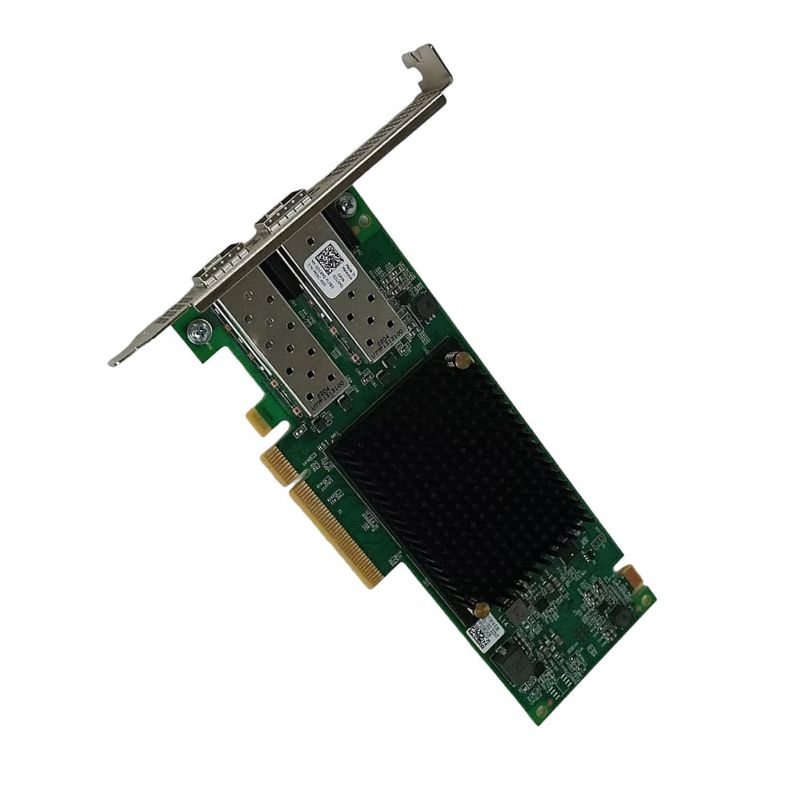

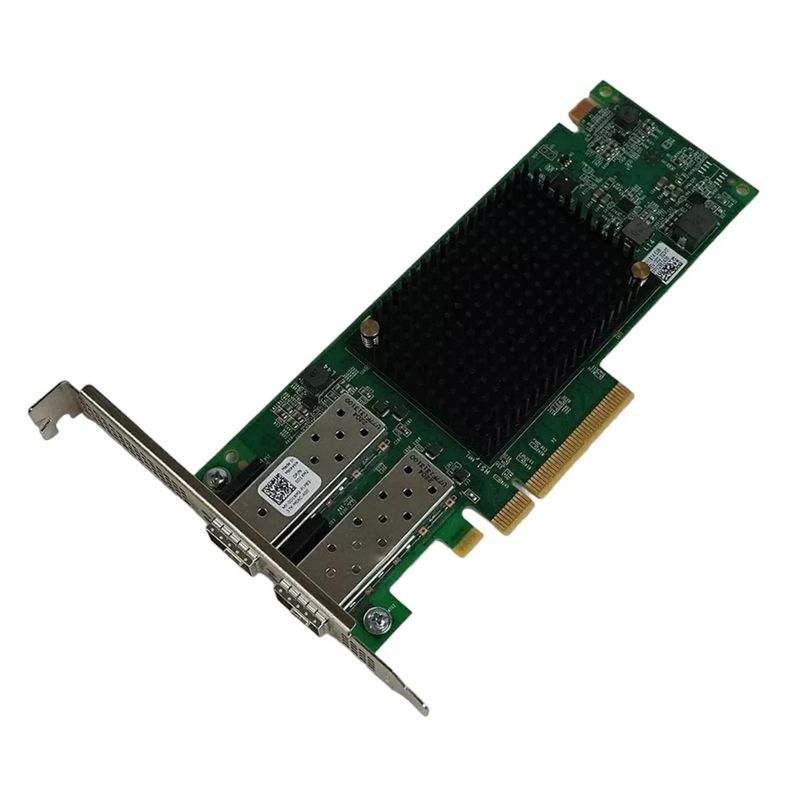

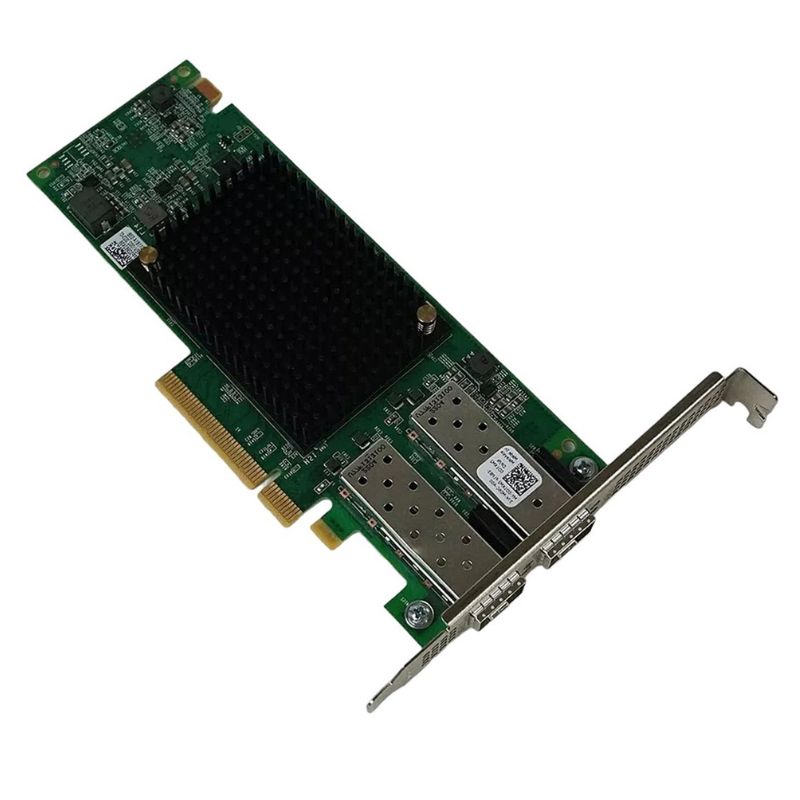

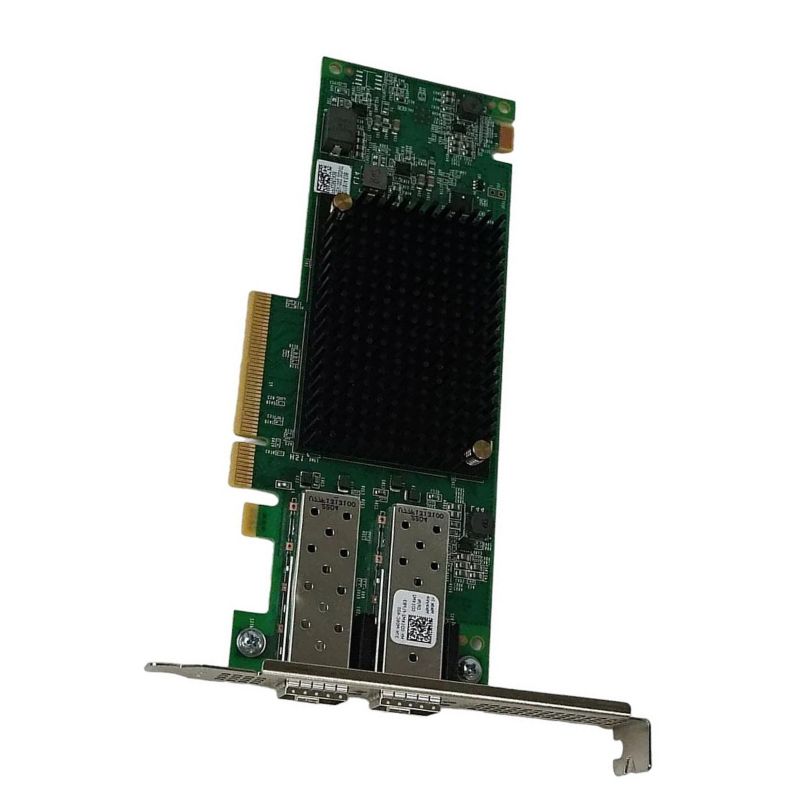

Dell D1XM2 Emulex 2-Port 64G Fibre Channel Host Bus Adapter

The Dell D1XM2 Emulex 2-Port 64GFC Host Bus Adapter (HBA) is a high-performance storage networking solution engineered for modern enterprise data centers. Designed to deliver ultra-fast Fibre Channel connectivity, this Gen 7 adapter supports 64GFC, 32GFC, and 16GFC data rates, enabling organizations to achieve exceptional storage throughput, low latency, and reliable connectivity for mission-critical applications. With dual-port architecture, PCIe Gen 4 technology, and broad operating system compatibility, the Dell D1XM2 HBA is ideal for SAN environments, virtualization platforms, cloud infrastructures, and high-performance storage networks.

General Information

• Manufacturer: Dell
• Part Number: D1XM2
• Product Type: Fibre Channel Host Bus Adapter
• Adapter Series: Emulex Gen 7
• Ports: 2 Fibre Channel Ports
• Connector Type: LC Optical Interface

Supported Fibre Channel Speeds

• 64GFC (28.9 Gbaud PAM4)
• 32GFC (28.05 Gbaud NRZ)
• 16GFC (14.025 Gbaud NRZ)
• Automatic speed negotiation and detection

Advantages of 64G Fibre Channel Technology

• Higher storage bandwidth
• Reduced latency for mission-critical workloads
• Improved virtual machine performance
• Accelerated database operations
• Enhanced backup and disaster recovery efficiency
• Optimized storage area network scalability

Benefits of Dual-Port Connectivity

• Redundant storage paths
• Improved fault tolerance
• Higher aggregate throughput
• Enhanced workload distribution
• Support for multipath storage environments

PCIe Gen 4 Benefits

• Increased data transfer capacity
• Lower communication latency
• Enhanced server performance
• Support for next-generation storage systems
• Improved virtualization efficiency

Optical Technology Features

• Short-wave laser transceivers
• LC optical connectors
• Support for high-speed Fibre Channel networks
• Reliable signal integrity
• Optimized data transmission performance

Multimode Fiber Support

• 0.5m to 100m at 64GFC and 32GFC on 50/125 μm OM4 MMF
• 0.5m to 100m at 64GFC and 32GFC on 50/125 μm OM5 MMF
• 0.5m to 70m at 64GFC and 32GFC on 50/125 μm OM3 MMF

Single-Mode Fiber Support

• Up to 10 km at 32GFC and 16GFC using 9/125 μm single-mode fiber
• Requires Emulex-approved longwave optical transceivers

Supported Operating Systems

• Microsoft Windows Server
• Oracle Linux
• Oracle Linux with Unbreakable Enterprise Kernel (UEK)
• Oracle Solaris
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware vSphere
• OpenEuler

Supported Hardware Architectures

• AMD x64 Systems
• Intel x64 Systems
• AMD x86 Platforms
• Intel x86 Platforms
• ARMv8 64-bit Architecture
• PowerPC Systems

Supported Standards

• FC-DA and FC-DA-2
• FC-FS Series
• FC-GS-2, FC-GS-3, FC-GS-4, FC-GS-5
• FC-GS-6 and FC-GS-7
• FC-LS-2, FC-LS-3, FC-LS-5
• INCITS 569-202x Revision 5.0
• FC-NVMe Standards
• FCP-2, FCP-3, FCP-4
• SBC-3
• SPC-3 and SPC-4
• SSC-2, SSC-3, SSC-4

Operating

• Operating Temperature: 0°C to 55°C
• Storage Temperature: -20°C to 85°C
• Humidity Range: 5% to 95% non-condensing

Dell D1XM2 2 Port 64GFC Optical LC SFP+ Adapter Overview

The Dell D1XM2 Emulex 2 Port 64GFC Short Wave Optical LC SFP+ Host Bus Adapter represents an advanced Fibre Channel connectivity solution engineered for modern enterprise storage area networks. Designed to deliver exceptional throughput, ultra-low latency, and reliable connectivity, this host bus adapter enables servers to communicate efficiently with high-performance storage systems. As organizations continue to deploy mission-critical workloads, virtualization platforms, cloud infrastructures, and data-intensive applications, the demand for high-bandwidth Fibre Channel adapters continues to increase.

The adapter utilizes dual-port 64 Gigabit Fibre Channel technology, providing organizations with a scalable platform capable of supporting current and future storage requirements. Its advanced architecture allows businesses to maintain consistent data access while ensuring optimal performance across demanding environments. The inclusion of short wave optical connectivity further enhances deployment flexibility within data centers, making it suitable for a broad range of enterprise storage networking applications.

Enterprise-Class Fibre Channel Connectivity

Enterprise storage environments require robust and dependable networking components capable of supporting continuous operations. The Dell D1XM2 Emulex adapter provides dedicated Fibre Channel connectivity that separates storage traffic from traditional Ethernet communications. This separation minimizes congestion and improves overall infrastructure performance.

By leveraging 64GFC technology, organizations gain access to significantly higher bandwidth compared to previous Fibre Channel generations. This increase enables faster storage access, improved application responsiveness, and enhanced support for large-scale virtualized environments.

Dual-Port Configuration Advantages

The dual-port architecture delivers multiple operational benefits. Each port can function independently, creating redundant communication paths between servers and storage arrays. This redundancy helps eliminate single points of failure and supports business continuity objectives.

Organizations deploying high-availability infrastructures often rely on multiple Fibre Channel paths to maintain uninterrupted storage access. The Dell D1XM2 adapter supports such configurations while providing the performance necessary for modern workloads.

64G Fibre Channel Technology and Performance Capabilities

The adoption of 64G Fibre Channel technology introduces substantial improvements in throughput, efficiency, and scalability. Modern storage systems generate enormous amounts of data, requiring networking solutions capable of sustaining high transaction volumes without bottlenecks.

The Dell D1XM2 adapter is engineered to maximize storage network performance through optimized hardware acceleration and advanced data processing capabilities. This ensures consistent application performance even during periods of peak demand.

High-Speed Data Transfer Operations

Data-intensive applications such as database management systems, enterprise resource planning platforms, machine learning workloads, and large-scale analytics environments benefit significantly from high-speed Fibre Channel connectivity. The adapter's bandwidth capabilities allow organizations to move large datasets rapidly between servers and storage resources.

Faster data movement translates into reduced backup windows, accelerated application execution, and improved user experiences across enterprise environments.

Enhanced Storage Throughput

Storage throughput remains a critical factor in determining overall infrastructure efficiency. The Dell D1XM2 adapter supports high-volume input and output operations while maintaining low latency characteristics. This capability enables organizations to optimize storage investments and improve operational productivity.

Whether deployed with all-flash arrays, hybrid storage platforms, or large-scale SAN architectures, the adapter contributes to efficient storage utilization and consistent performance delivery.

Low Latency Communication

Latency plays a crucial role in enterprise storage networking. Applications requiring immediate access to storage resources depend upon fast communication between compute and storage layers. The Dell D1XM2 adapter minimizes latency through optimized Fibre Channel processing mechanisms.

Lower latency contributes to improved database performance, faster transaction processing, and enhanced responsiveness across virtualized environments. This advantage becomes increasingly important as organizations expand digital transformation initiatives.

Short Wave Optical Technology Benefits

Short wave optical Fibre Channel technology offers a practical and cost-effective solution for high-speed communication within enterprise data centers. The Dell D1XM2 adapter incorporates short wave optical capabilities designed to support reliable connectivity across common infrastructure layouts.

Short wave optical deployments provide organizations with flexibility while maintaining excellent signal integrity and performance characteristics.

Optimized Data Center Connectivity

Modern data centers often require extensive connectivity between servers, storage arrays, switches, and backup systems. Short wave optical technology supports these requirements through efficient transmission capabilities over multimode fiber cabling.

The use of multimode fiber allows organizations to implement high-performance Fibre Channel networks without introducing unnecessary complexity. This contributes to streamlined deployment and simplified infrastructure management.

Signal Integrity and Reliability

Maintaining signal quality is essential for enterprise storage communications. The Dell D1XM2 adapter utilizes optical technologies that preserve signal integrity across supported distances. Reliable signal transmission helps prevent communication errors and supports uninterrupted data access.

Organizations operating mission-critical applications benefit from stable connectivity that minimizes performance degradation and reduces the likelihood of network-related disruptions.

LC SFP+ Interface Integration

The LC SFP+ interface incorporated into the Dell D1XM2 adapter enables flexible deployment options across a variety of enterprise environments. The compact design allows efficient utilization of server resources while supporting high-density connectivity requirements.

LC connectors remain widely adopted throughout enterprise storage networking environments due to their reliability, performance characteristics, and ease of implementation.

Flexible Infrastructure Deployment

Organizations frequently operate diverse storage infrastructures consisting of multiple vendors, storage arrays, and networking platforms. The standardized LC SFP+ interface facilitates interoperability and simplifies integration efforts.

This flexibility enables organizations to expand Fibre Channel networks efficiently while maintaining compatibility with existing infrastructure investments.

Simplified Maintenance Operations

Infrastructure maintenance becomes more manageable when standardized optical interfaces are utilized. The Dell D1XM2 adapter supports straightforward installation, replacement, and upgrade procedures, reducing operational complexity for IT teams.

Efficient maintenance processes contribute to reduced downtime and improved service availability across enterprise environments.

Storage Area Network Optimization

Storage area networks serve as the foundation for enterprise storage architectures. The Dell D1XM2 Emulex adapter enhances SAN performance by delivering reliable connectivity, increased bandwidth, and advanced data handling capabilities.

Organizations implementing large-scale SAN environments require components capable of supporting continuous growth while maintaining predictable performance characteristics.

Scalable SAN Infrastructure

As data volumes continue to expand, scalability becomes a critical consideration for storage networking investments. The Dell D1XM2 adapter provides a platform capable of supporting future growth without requiring immediate infrastructure replacement.

Its advanced Fibre Channel capabilities enable organizations to accommodate increasing storage demands while maintaining operational efficiency.

Virtualization Environment Performance

Virtualized infrastructures depend heavily on reliable storage connectivity. Virtual machines generate substantial storage traffic, requiring networking solutions capable of maintaining consistent performance across dynamic workloads.

The Dell D1XM2 adapter provides the throughput and reliability necessary to support large-scale virtualization deployments. Its architecture enables efficient communication between virtualized compute resources and centralized storage systems.

Support for Hypervisor Platforms

Enterprise virtualization platforms require stable and high-performance storage access. The adapter supports storage-intensive operations associated with virtual machine deployment, migration, replication, and backup activities.

Improved Fibre Channel performance contributes to enhanced virtual machine responsiveness and overall infrastructure efficiency.

Virtual Desktop Infrastructure Benefits

Virtual desktop infrastructure environments often generate significant storage activity during user login periods and application execution. The Dell D1XM2 adapter helps maintain consistent user experiences by providing reliable access to centralized storage resources.

High-speed Fibre Channel connectivity supports efficient desktop delivery while minimizing latency-related performance issues.

Business Continuity and Reliability Features

Enterprise organizations require storage networking solutions capable of supporting continuous operations. The Dell D1XM2 Emulex adapter incorporates features designed to enhance reliability, availability, and infrastructure resilience.

Its dual-port design, Fibre Channel architecture, and enterprise-class engineering contribute to dependable operation across mission-critical environments.

Continuous Data Access

Business-critical applications rely on uninterrupted access to storage resources. The Dell D1XM2 adapter contributes to continuous data availability by supporting resilient storage network architectures capable of maintaining operations during infrastructure events.

This reliability helps organizations protect productivity, customer experiences, and operational continuity.
