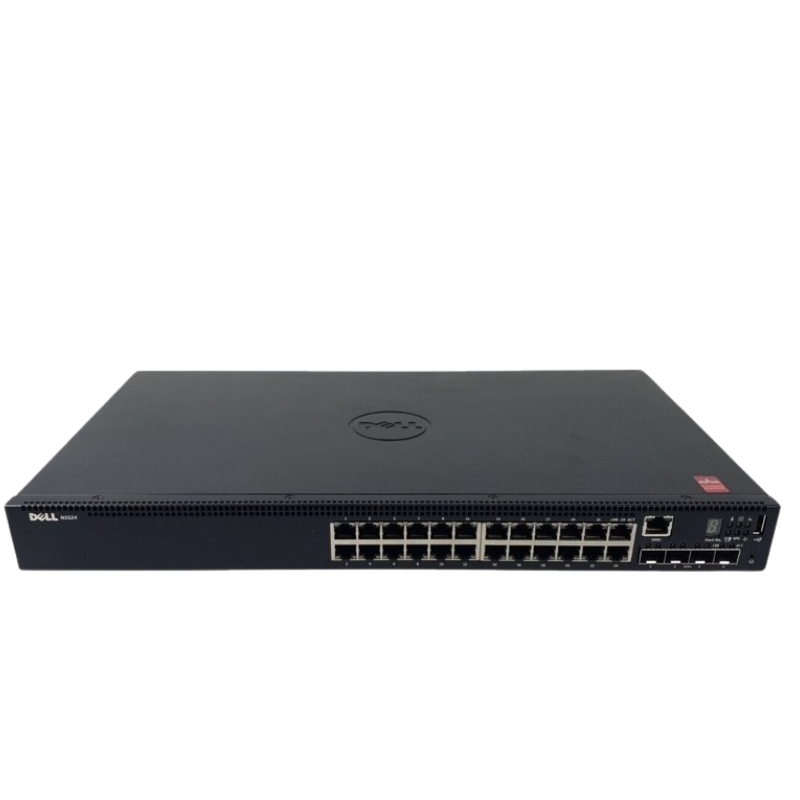

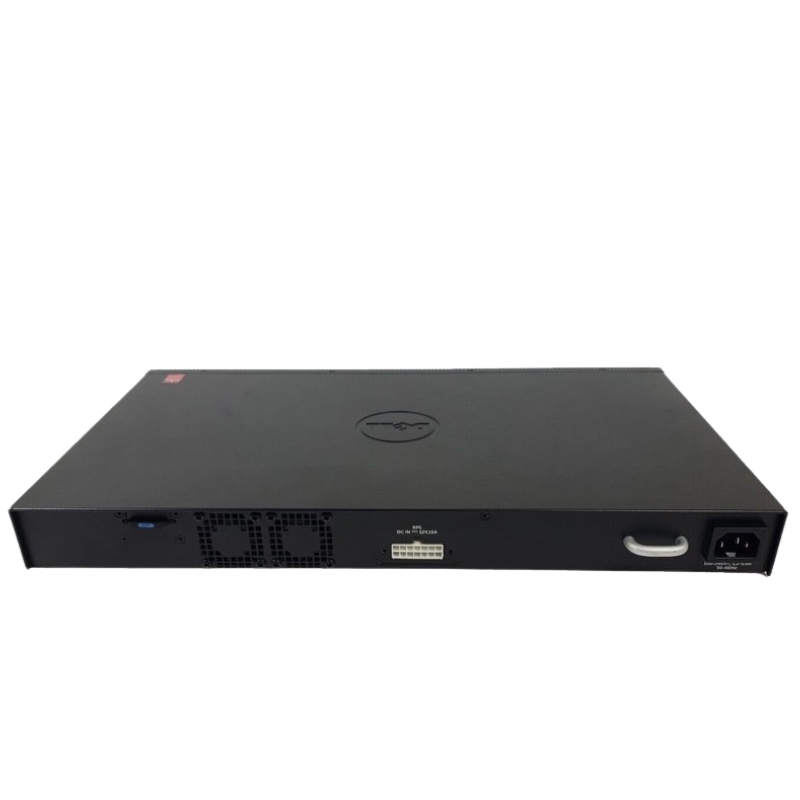

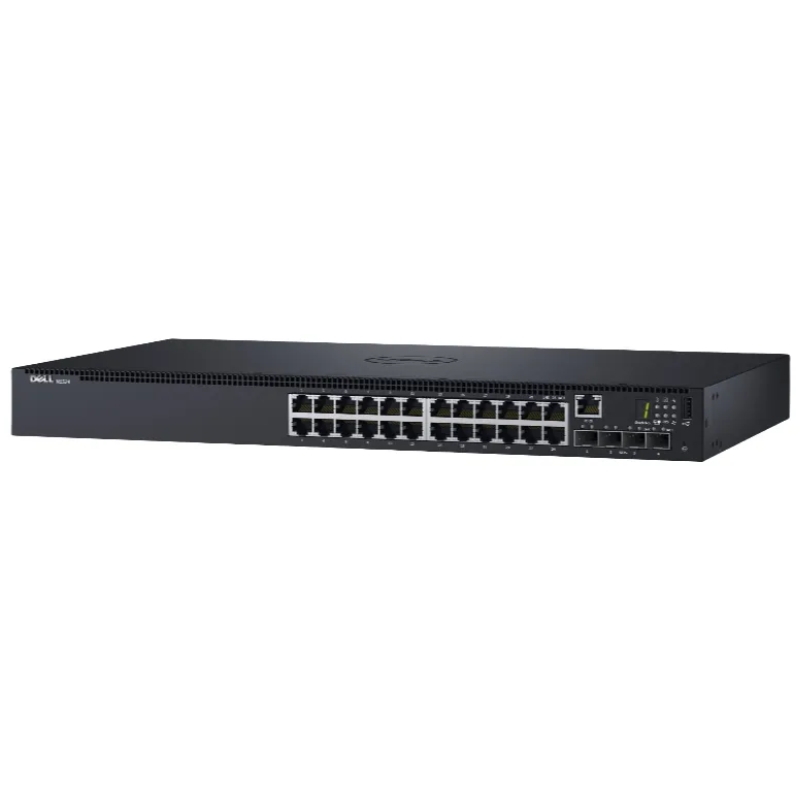

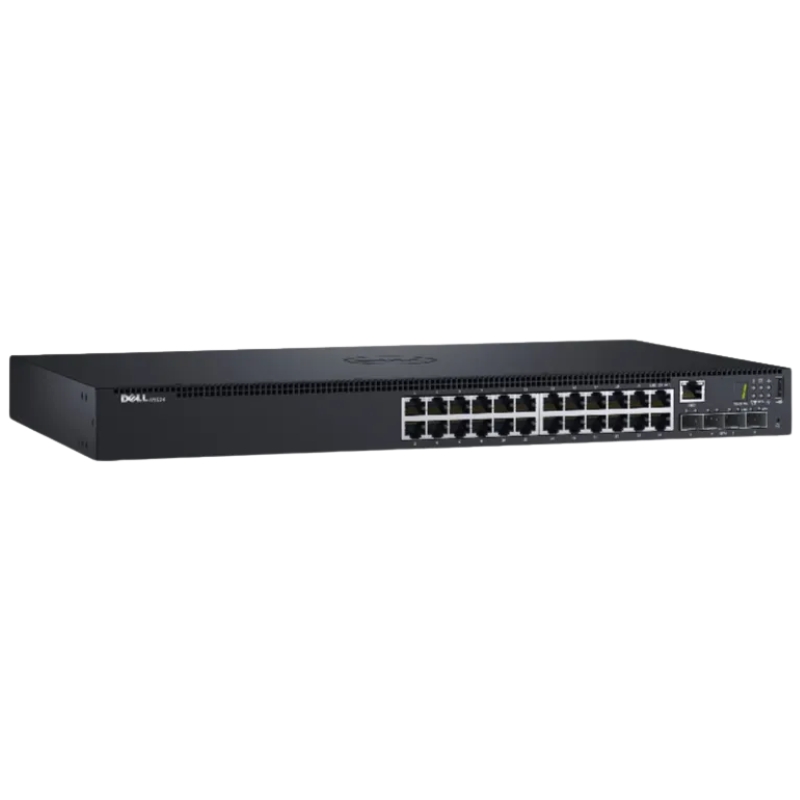

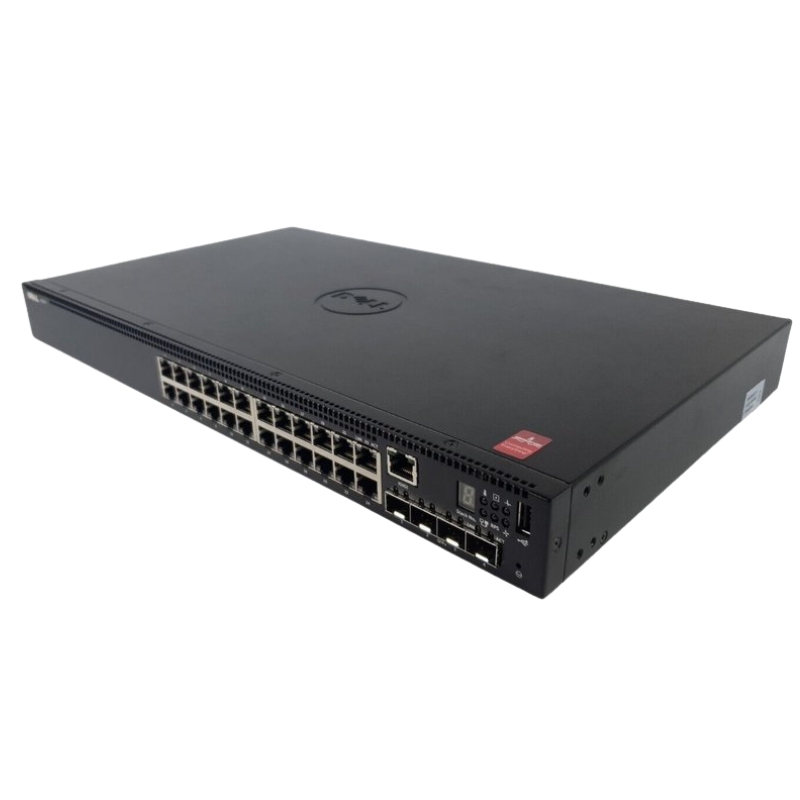

Dell N1524 24 Port 1GbE 4P SFP+ Managed Stackable Switches G62KT.

DELL G62KT Networking N1524 Switch

Product Specifications

• Model: N1524
• Device Type: Layer 2+ Managed Stackable Switch
• Form Factor: Rack-mountable, 1U

Key Features

• Port Configuration:
  • 24 x 10/100/1000 Mbps Ethernet Ports
  • 4 x 10 Gigabit SFP+ Ports
• Performance Metrics:
  • Switching Fabric Capacity: 128 Gbps
  • Forwarding Rate: 128 Mpps

Capacity and Performance

• VLAN Support: Up to 512 Virtual Interfaces
• ARP and NDP Entries:
  • ARP Entries: 1,024
  • NDP Entries: 400
• Priority Queues: 8 per port
• Routing Capabilities:
  • Static IPv4 Routes: 256
  • Static IPv6 Routes: 128
  • Dynamic IPv4 Routes: 256
• ACL Capabilities:
  • Maximum ACLs: 100
  • Total Rules System-wide: 2,048
  • Max Rules Per ACL: 1,023

Routing Protocols

• Supported Protocols: RIP-1, RIP-2
• Static Routing for IPv4 and IPv6

Management and Security Features

• Remote Management Protocols:
  • Protocols: Telnet, TFTP
• Encryption Standards:
  • Supported Algorithms: MD5, AES, SSL, TLS
• Authentication Mechanisms:
  • Methods: Secure Shell (SSH), RADIUS, TACACS+

Memory Specifications

• RAM: 1 GB
• Flash Memory: 256 MB

Connectivity Options

• Interface Types:
  • 24 x Gigabit LAN - RJ-45
  • 4 x 10 Gigabit LAN - SFP+
  • 1 x Serial (RS-232) - RJ-45 (Management)
  • 1 x USB - Type A
  • 2 x Network Stack Devices

Power Specifications

• Power Supply Type: Internal Power Supply
• Installed Units: 1
• Power Output: 40 Watts
• Operational Power Consumption: 30.2 Watts

Ports

The Dell N1524 Managed Stackable Network Switches come equipped with 24 ports, making them an ideal choice for businesses and organizations that require a high number of network connections. These switches offer versatility and scalability, allowing users to efficiently manage their network infrastructure.

Increased Connectivity

With 24 ports, the Dell N1524 Managed Stackable Network Switches provide users with ample connectivity options. This is especially beneficial for businesses that have multiple departments or require a large number of devices to be connected to the network. The abundance of ports ensures that all devices can be easily connected without the need for additional switches or hubs.

Efficient Network Management

The 24 ports on the Dell N1524 Managed Stackable Network Switches enable efficient network management. Each port can be used to connect a device, such as a computer, printer, or server, allowing for seamless communication and data transfer within the network. The ability to connect multiple devices directly to the switch simplifies network administration and reduces the need for complex configurations.

Scalability

The 24 ports on these switches also provide scalability for future expansion. As businesses grow and add more devices to their network, having additional ports readily available allows for easy integration without the need for purchasing additional hardware. This scalability ensures that the Dell N1524 Managed Stackable Network Switches can accommodate the evolving needs of a growing organization.

Speed

The Dell N1524 Managed Stackable Network Switches offer a speed of 1GbE (Gigabit Ethernet), which is crucial for businesses that require fast and reliable data transfer. This feature provides numerous benefits and is essential for ensuring smooth network operations.

High-Speed Data Transfer

The 1GbE speed of these switches enables high-speed data transfer between connected devices. This is especially important for businesses that deal with large files or require real-time data transfer, such as video conferencing or multimedia streaming. The high-speed connection ensures that data is transmitted quickly and efficiently, minimizing delays and enhancing productivity.

Improved Network Performance

By offering a 1GbE speed, the Dell N1524 Managed Stackable Network Switches significantly improve network performance. The fast data transfer rate allows for seamless communication between devices, reducing latency and improving overall network efficiency. This is particularly beneficial for businesses that rely on a responsive and reliable network for their day-to-day operations.

Enhanced User Experience

The 1GbE speed of these switches enhances the user experience by providing faster access to network resources. Whether it's accessing files from a server or browsing the internet, users will benefit from the increased speed offered by the Dell N1524 Managed Stackable Network Switches. This improved user experience translates into increased productivity and satisfaction among employees.

SFP+

The Dell N1524 Managed Stackable Network Switches are equipped with 4 SFP+ (Small Form-factor Pluggable Plus) ports, offering users additional flexibility and connectivity options. This feature is particularly advantageous for businesses with high-bandwidth requirements and those that need to connect to fiber optic networks.

Flexible Connectivity

The 4 SFP+ ports on these switches allow for flexible connectivity options. SFP+ modules can be used to connect to various media types, including fiber optic cables, providing businesses with the flexibility to choose the most suitable medium for their network infrastructure. This ensures that the Dell N1524 Managed Stackable Network Switches can adapt to different networking environments and support diverse connectivity needs.

High-Bandwidth Applications

The SFP+ feature of these switches enables high-bandwidth applications, such as data center connectivity or video surveillance systems. By supporting fiber optic connections, businesses can achieve faster data transmission rates and greater bandwidth capacity. This is particularly important for organizations that deal with large amounts of data or require real-time streaming of high-definition video.

Future-Proofing

The inclusion of 4 SFP+ ports in the Dell N1524 Managed Stackable Network Switches ensures future-proofing for businesses. As technology advances and the demand for higher bandwidth increases, these switches can easily accommodate the growing needs of an organization. The ability to connect to fiber optic networks through SFP+ ports allows businesses to stay ahead of the curve and adapt to the changing networking landscape.

In conclusion, the Dell N1524 Managed Stackable Network Switches offer an array of features that cater to the needs of modern businesses. The 24 ports provide increased connectivity, efficient network management, and scalability for future expansion. The 1GbE speed ensures high-speed data transfer, improved network performance, and an enhanced user experience. The 4 SFP+ ports offer flexible connectivity options, support high-bandwidth applications, and provide future-proofing capabilities. With these features, the Dell N1524 Managed Stackable Network Switches are a reliable and versatile choice for businesses seeking a robust network infrastructure solution.
