Dell HYJ81 8 Ports 10GbE SFP+

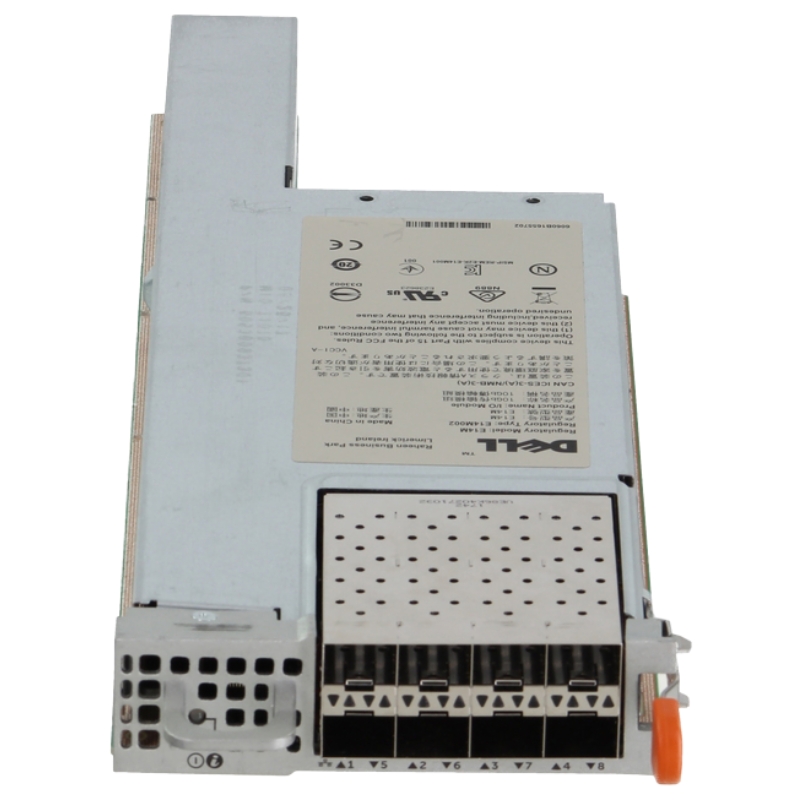

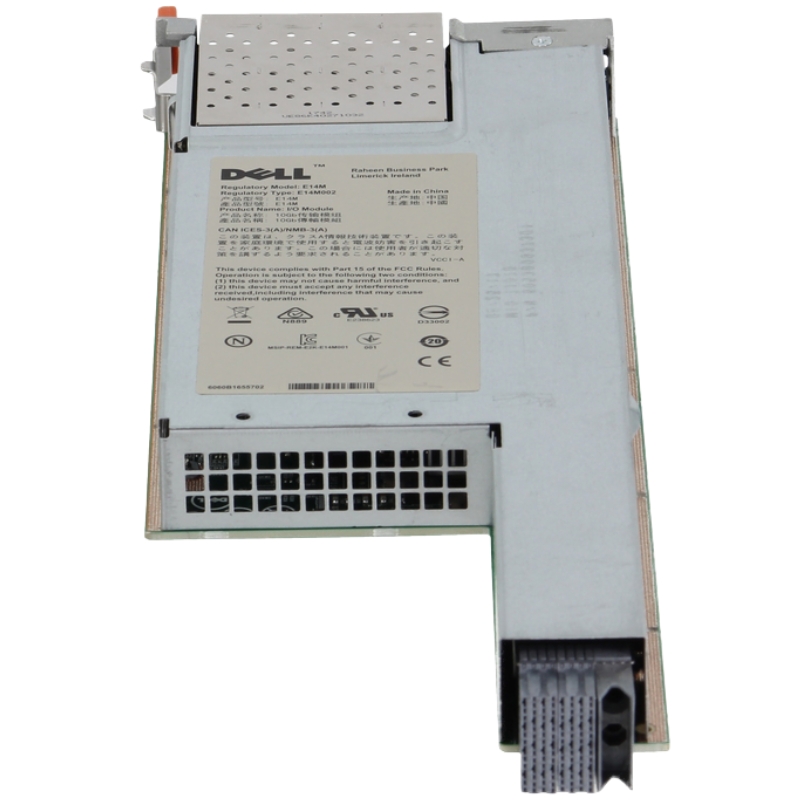

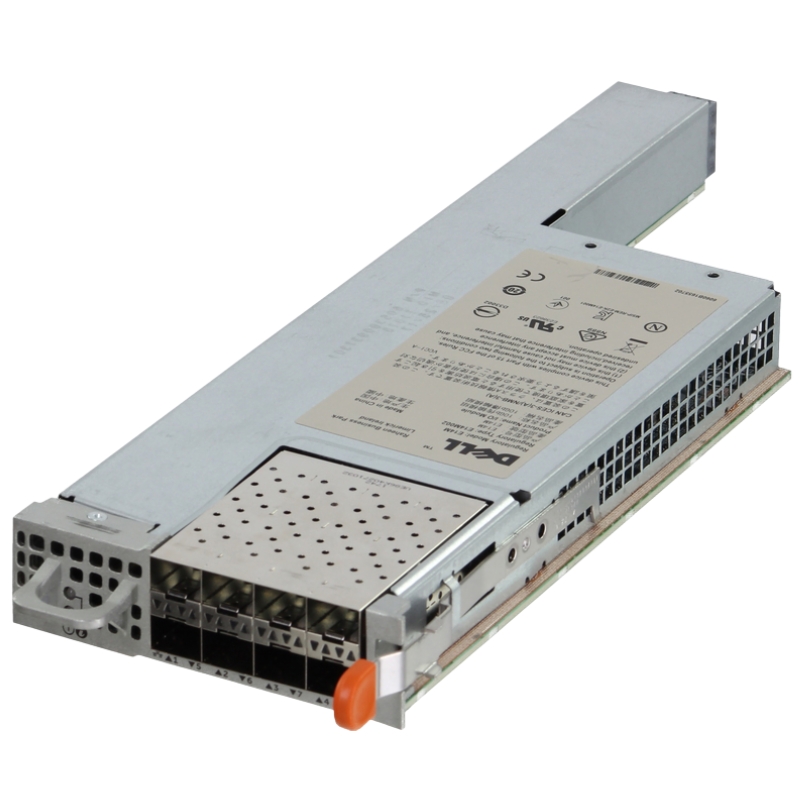

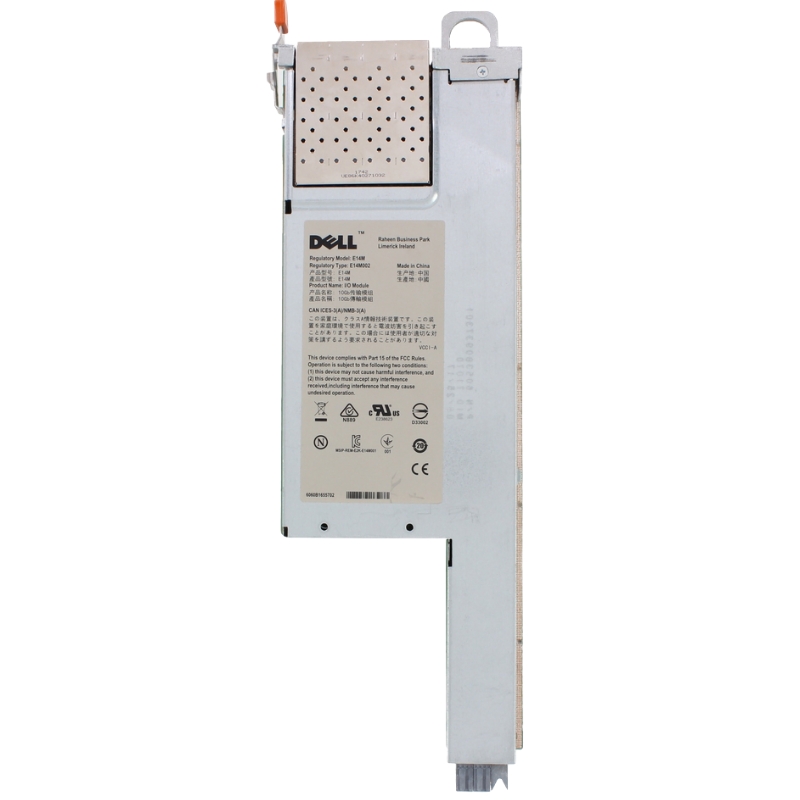

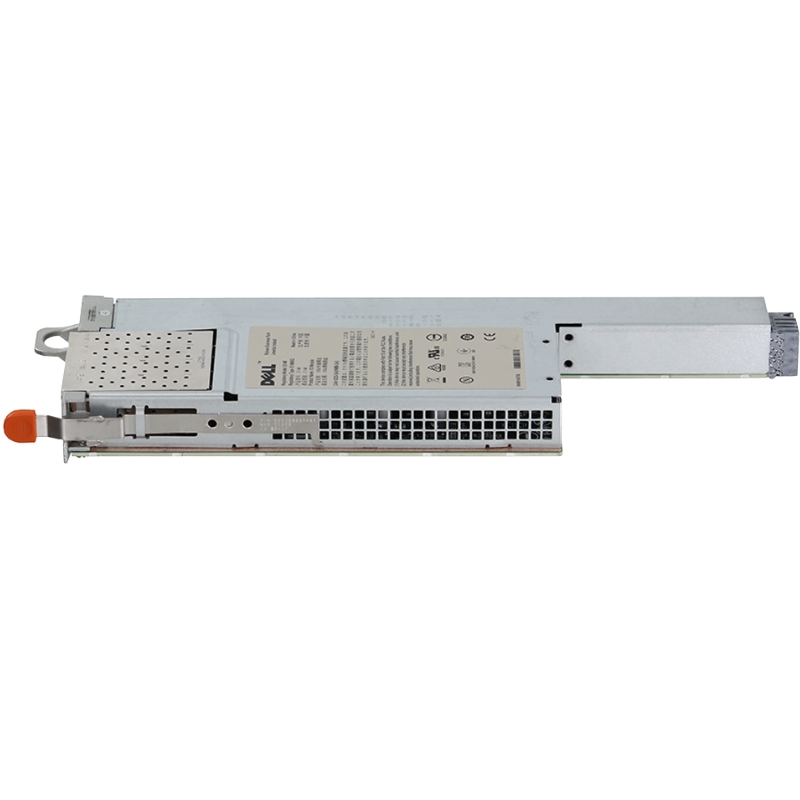

Dell HYJ81 FX2 Pass-Through 8 Port 10GbE SFP+

The Dell HYJ81 FX2 Pass-Through 8 Port 10GbE SFP+ is a vital component in modern data center networking, offering high-speed, reliable connectivity for enterprises looking to enhance their network performance and scalability. This device is part of the Dell PowerEdge FX2 ecosystem, providing excellent flexibility and efficiency when integrated with other FX2 modular infrastructure solutions. This category encompasses all the essential details, features, and applications of the Dell HYJ81 switch, ensuring users can fully understand and leverage its capabilities in their networking environments.

Features of the Dell HYJ81 FX2 Pass-Through 8 Port 10GbE SFP+

The Dell HYJ81 FX2 Pass-Through 8 Port 10GbE SFP+ is designed to deliver exceptional speed, stability, and ease of use. Below are the key features that make it a standout in the category:

High-Speed Connectivity

With 8 10GbE SFP+ ports, the Dell HYJ81 FX2 offers a fast and robust network connection that is ideal for demanding applications in data centers. These ports provide sufficient bandwidth to handle large volumes of data traffic, making it suitable for environments that require high-speed networking, such as virtualized servers, storage, and other enterprise-level operations.

Flexible Pass-Through Functionality

The pass-through functionality allows the Dell HYJ81 to provide direct connectivity between the server nodes and the top-of-rack (ToR) switches. This eliminates the need for additional network switches, simplifying network management and reducing potential points of failure. The pass-through capability enhances the scalability and flexibility of the overall network architecture, particularly in modular server configurations.

Optimized for the Dell PowerEdge FX2 Chassis

As a part of the Dell PowerEdge FX2 system, the HYJ81 is designed to integrate seamlessly with the FX2 chassis. The modular nature of the FX2 platform allows users to customize their data center infrastructure by adding networking components like the HYJ81 to their existing system. The plug-and-play compatibility of the HYJ81 ensures easy installation and setup with minimal downtime.

Advantages of Using the Dell HYJ81 FX2 Pass-Through 8 Port 10GbE SFP+

The Dell HYJ81 FX2 Pass-Through 8 Port 10GbE SFP+ offers numerous advantages, making it a preferred choice for businesses looking to enhance their network infrastructure. These advantages include:

Enhanced Performance

With support for 10GbE speeds, the Dell HYJ81 ensures that data transfer between networked devices is fast and efficient. This high-speed connectivity enables better performance for data-intensive applications like cloud computing, virtualization, and big data analytics, ensuring that your business can meet the demands of modern workloads.

Scalability and Flexibility

As your network needs grow, the Dell HYJ81 can scale with your business. The modularity of the FX2 chassis means that you can easily add or upgrade network components, including switches, without significant hardware changes or disruptions. This scalability is a key feature that allows businesses to expand their data center infrastructure without major overhauls.

Lower Total Cost of Ownership

Investing in the Dell HYJ81 Pass-Through 8 Port 10GbE SFP+ allows businesses to reduce the number of network switches and cables required for operation. This can lead to significant savings in both hardware and operational costs. The streamlined design also reduces the overall complexity of the network, lowering the management overhead for IT teams.

Technical Specifications of the Dell HYJ81 FX2 Pass-Through 8 Port 10GbE SFP+

The Dell HYJ81 FX2 is a feature-packed solution with specific technical specifications that support its high-speed performance and network flexibility. Understanding these specifications is crucial for businesses looking to evaluate whether the device is a suitable fit for their infrastructure needs. Below is a breakdown of the key technical features:

Ports and Connectivity

• 8 x 10GbE SFP+ Ports
• Supports Direct Connectivity to Top-of-Rack Switches
• Compatible with a wide range of SFP+ modules for flexibility in fiber-optic connections

Dimensions and Weight

• Width: 2.7 inches (68.6 mm)
• Height: 0.9 inches (22.86 mm)
• Depth: 16.9 inches (429 mm)
• Weight: 1.8 lbs (0.8 kg)

Power Consumption

• Typical Power Consumption: 30W
• Maximum Power Consumption: 50W
• Reduces power consumption compared to traditional switches due to its efficient design

Environmental Specifications

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Humidity Range: 10% to 90% non-condensing

Applications of the Dell HYJ81 FX2 Pass-Through 8 Port 10GbE SFP+

The Dell HYJ81 FX2 Pass-Through 8 Port 10GbE SFP+ is ideal for a variety of applications in different industries. Whether you are upgrading an existing data center infrastructure or deploying new server setups, this module offers the right solution for network optimization and performance. Below are some of the common use cases:

Data Center Infrastructure

Data centers are one of the primary environments where the Dell HYJ81 excels. It provides the necessary high-speed network connectivity to support virtualized environments, massive storage systems, and high-demand applications. By integrating with the FX2 chassis, it ensures that your data center operates efficiently, with minimal latency and maximum uptime.

Cloud Computing and Virtualization

Cloud platforms and virtualized networks require high-throughput, low-latency switches that can handle large traffic loads. The Dell HYJ81 delivers the speed and reliability needed to support cloud-based services and virtual machines, ensuring smooth data flow between the physical hardware and virtualized resources.

Storage Networks

When managing large-scale storage solutions, the Dell HYJ81 provides a reliable link between servers and storage arrays. It can handle the heavy data transfer rates required in storage area networks (SANs), ensuring that data is moved efficiently without bottlenecks. The 10GbE speed enables seamless integration with high-performance storage systems, including flash storage and hybrid solutions.

Enterprise Networking

The Dell HYJ81 is also suited for businesses with high-demand enterprise networking requirements. Its scalability and flexibility make it a solid choice for large enterprises, where performance, reliability, and cost-efficiency are critical. By providing direct, pass-through connectivity to ToR switches, it simplifies network topologies and reduces hardware complexity.

Installation and Setup of the Dell HYJ81 FX2 Pass-Through 8 Port 10GbE SFP+

Installing and setting up the Dell HYJ81 FX2 Pass-Through 8 Port 10GbE SFP+ is straightforward, especially for organizations already using Dell's modular infrastructure. However, it is essential to follow best practices for optimal performance. Below are the key steps involved:

Step 1: Install the Dell FX2 Chassis

The first step is to ensure the Dell FX2 chassis is correctly installed in the data center. This involves placing the chassis in a 19-inch rack and ensuring that power and cooling systems are functioning correctly.
