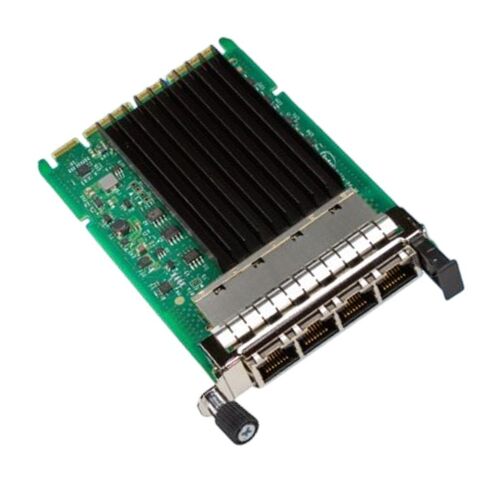

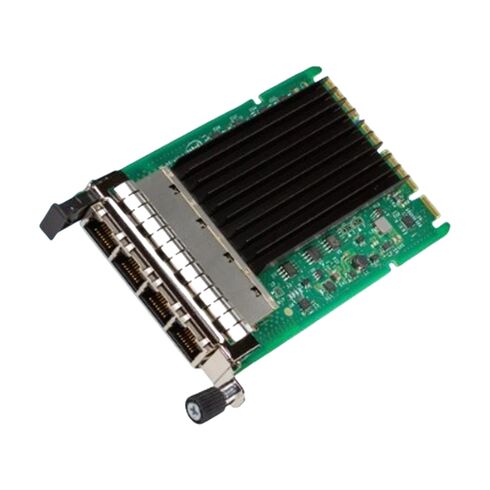

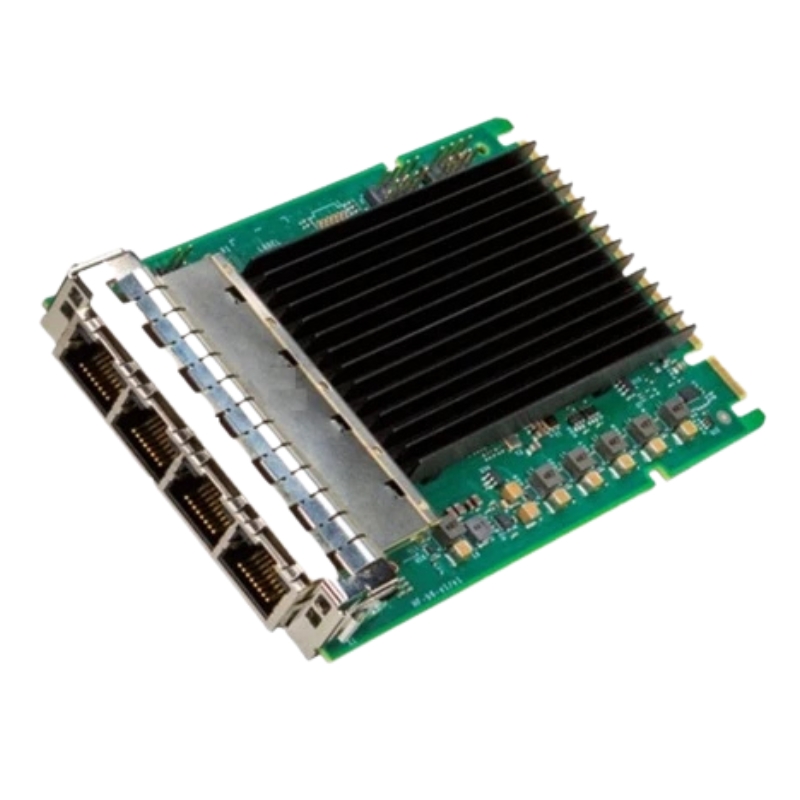

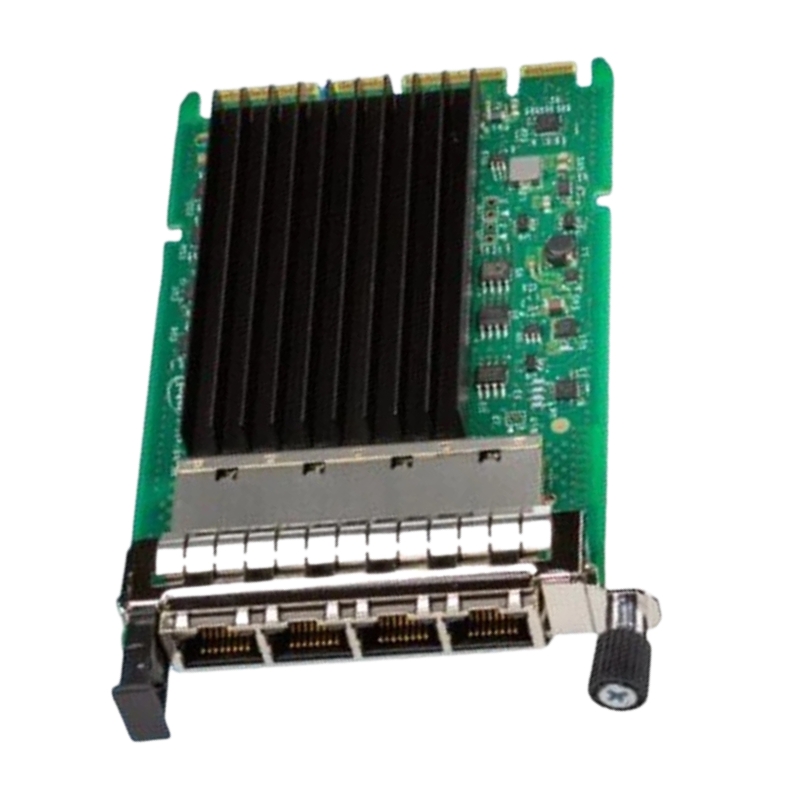

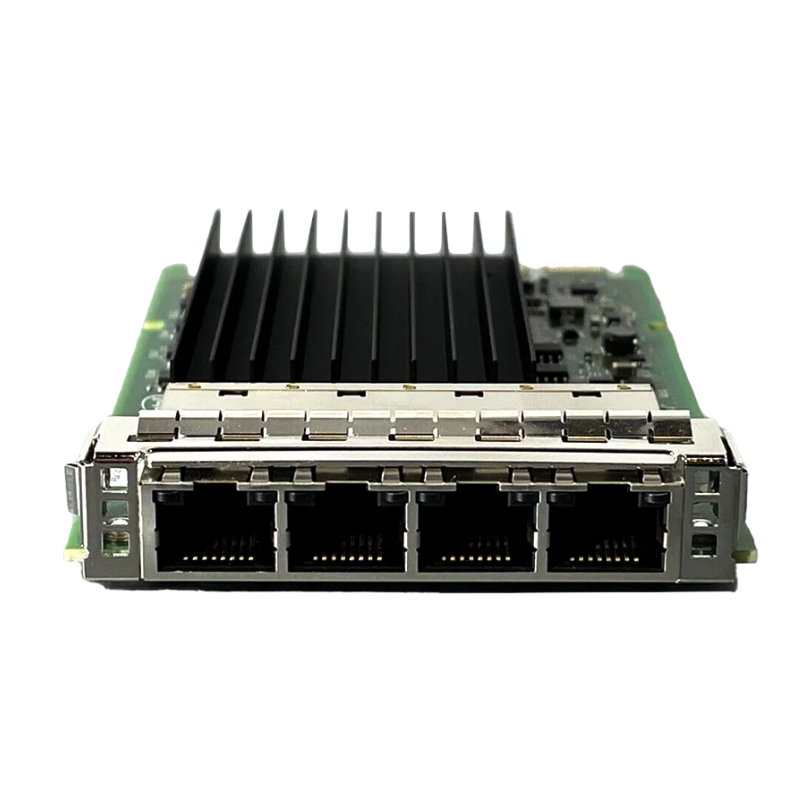

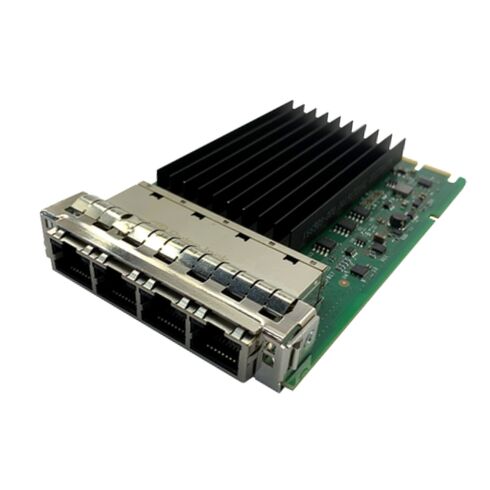

540-BFDD Dell I350T4OCPV3 Ethernet I350-t4 OCP PCI-E 4 Ports Network Adapter

Dell 540-BFDD Intel I350-T4 OCP PCIe 4-Port Ethernet Adapter

The Dell 540-BFDD Intel I350-T4 OCP PCIe Network Adapter is a reliable enterprise-grade 4-port Ethernet solution designed for stable, efficient, and cost-effective server networking. Built on the trusted Intel I350 controller, this OCP NIC 3.0 small form factor adapter delivers consistent Gigabit Ethernet performance for data centers, enterprise servers, virtualization platforms, and cloud-based infrastructures.

Product Information

• Manufacturer: Dell
• Part Number: 540-BFDD
• Product Type: Network Interface Adapter
• Controller: Intel Ethernet Controller I350
• Ports: 4 x Gigabit Ethernet
• Form Factor: OCP NIC 3.0 Small Form Factor

Supported Data Rates Per Port

• 10 Mbps Ethernet
• 100 Mbps Fast Ethernet
• 1000 Mbps (1 Gbps) Gigabit Ethernet

Key Controller Benefits

• Advanced packet processing efficiency
• Low CPU utilization
• Stable multi-port operation
• Enhanced virtualization support
• Enterprise-class reliability

PCIe Interface Specifications

• Bus Type: PCI Express 2.1 (5 GT/s)
• Bus Width: x4 Lane
• Interrupt Support: INTA, INTB, INTC, INTD, MSI, MSI-X

Operating Conditions

• Operating Temperature: 0°C to 65°C (32°F to 149°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Storage Humidity: Up to 90% non-condensing at 35°C

Power Efficiency Specifications

• Typical Power Usage (1000BASE-T): 4.63W
• Maximum Power Usage (1000BASE-T): 5.16W

Physical Dimensions

• Size: 115mm x 76mm
• Form Factor: OCP NIC 3.0 Small Form Factor

Dell 540-BFDD Intel I350-T4 OCP V3 Ethernet Adapter Overview

The Dell 540-BFDD Intel I350-T4 OCP V3 Ethernet Network Adapter is engineered as a high-efficiency, enterprise-grade networking solution designed for modern data center environments that demand stable, scalable, and secure connectivity. Built on Intel’s proven I350 controller architecture and optimized for OCP NIC 3.0 standards, this adapter provides a reliable foundation for server networking in virtualization clusters, cloud infrastructures, enterprise storage systems, and high-throughput application workloads. The quad-port configuration enhances bandwidth distribution while ensuring redundancy and load balancing across multiple network paths, making it a critical component in mission-critical computing environments.

Enterprise-Class Networking Architecture and Design

At the core of the Dell 540-BFDD network adapter lies the Intel I350 chipset, a widely trusted controller known for its stability, low latency, and efficient packet processing capabilities. Designed for OCP PCIe 4.0-compatible systems, this adapter integrates seamlessly into next-generation server platforms that require modular and scalable networking hardware. The architecture is optimized for energy efficiency while maintaining high throughput performance, ensuring reduced operational costs in large-scale deployments.

Intel I350 Controller Technology

The Intel I350 controller embedded in this adapter supports advanced networking features such as checksum offload, segmentation offload, and interrupt moderation. These capabilities reduce CPU overhead and improve system responsiveness under heavy network loads. The controller also enhances packet processing efficiency, making it ideal for virtualization environments where multiple virtual machines rely on shared network interfaces.

Hardware Offloading Capabilities

Hardware offloading mechanisms integrated into the Dell 540-BFDD allow network processing tasks to be handled directly by the adapter rather than the host CPU. This includes TCP segmentation offload and large send offload, which significantly reduce latency and improve throughput in data-intensive applications such as database replication, cloud storage synchronization, and distributed computing frameworks.

Energy Efficient Ethernet Implementation

The adapter supports Energy Efficient Ethernet (EEE), which dynamically adjusts power usage based on network traffic demand. During periods of low activity, power consumption is reduced without compromising network readiness. This feature is particularly valuable in data centers aiming to optimize energy costs while maintaining always-on connectivity.

OCP NIC 3.0 Compatibility and Modular Deployment

The Dell 540-BFDD is designed in accordance with the Open Compute Project NIC 3.0 specification, ensuring compatibility with modern modular server architectures. This design standard promotes interoperability, ease of maintenance, and simplified hardware upgrades in large-scale deployments. The OCP form factor enables tool-less installation and faster serviceability, reducing downtime in enterprise environments.

Scalability in Modern Data Centers

Scalability is a defining characteristic of OCP-based networking hardware. The Dell 540-BFDD supports flexible deployment across various server nodes, allowing organizations to expand their network capacity without redesigning infrastructure. This makes it suitable for hyperscale environments, cloud service providers, and enterprise IT departments managing dynamic workloads.

Hot-Swap and Maintenance Efficiency

In OCP-compliant systems, the adapter can be installed or replaced with minimal disruption to server operations. This hot-swap capability ensures continuous uptime, which is essential for financial services, e-commerce platforms, and real-time analytics systems where downtime can result in significant operational losses.

Quad-Port Gigabit Ethernet Performance

The Dell 540-BFDD features four independent Gigabit Ethernet ports, enabling simultaneous multi-channel data transmission. This quad-port configuration enhances network throughput and allows for advanced traffic management techniques such as link aggregation and failover protection. Each port operates independently, providing flexibility in network segmentation and redundancy design.

Load Balancing and Traffic Distribution

With multiple active ports, network traffic can be intelligently distributed to prevent congestion and optimize performance. Load balancing ensures that no single port becomes a bottleneck, improving overall system efficiency in high-demand environments such as virtual machine clusters and distributed storage systems.

Redundancy and Failover Mechanisms

The adapter supports automatic failover configurations, ensuring uninterrupted connectivity in the event of a port or cable failure. This redundancy is essential for mission-critical applications where continuous network availability is mandatory.

High Availability Networking Strategy

High availability configurations utilizing the Dell 540-BFDD ensure that network downtime is minimized through redundant path selection and real-time failover switching. This architecture is widely used in enterprise-grade disaster recovery systems and geographically distributed data centers.

Virtualization and Cloud Computing Optimization

The Dell 540-BFDD Intel I350-T4 OCP V3 adapter is optimized for virtualization environments, supporting multiple virtual machine instances with isolated and efficient network communication. Its advanced virtualization features allow it to integrate seamlessly with hypervisors such as VMware ESXi, Microsoft Hyper-V, and KVM-based systems.

Virtual Machine Device Queues (VMDq)

Virtual Machine Device Queues improve network performance by offloading packet sorting tasks from the CPU to the network adapter. This ensures that virtual machines receive data more efficiently, reducing latency and improving throughput in multi-tenant environments.

SR-IOV Support and Network Isolation

Single Root I/O Virtualization (SR-IOV) enables the adapter to create multiple virtual functions, each acting as an independent network interface. This provides improved isolation between virtual machines and enhances security in shared infrastructure environments.

Data Center Reliability and Performance Engineering

Reliability is a core attribute of the Dell 540-BFDD network adapter, making it suitable for enterprise-grade deployments where consistent uptime and predictable performance are critical. The hardware is designed to withstand continuous operation under high network loads while maintaining signal integrity and packet accuracy.

Thermal Efficiency and Heat Management

The adapter is engineered with optimized thermal characteristics to ensure stable operation in densely populated server racks. Efficient heat dissipation mechanisms reduce thermal stress and prolong hardware lifespan, contributing to lower total cost of ownership.

Signal Integrity and Error Reduction

Advanced error correction and signal optimization technologies ensure that data transmission remains accurate even under heavy network congestion. This reduces packet loss and retransmission overhead, improving overall system reliability.

Compatibility with Enterprise Server Ecosystems

The Dell 540-BFDD Intel I350-T4 adapter is compatible with a wide range of Dell PowerEdge servers and OCP-enabled infrastructure platforms. Its flexible integration capabilities allow IT administrators to deploy it across heterogeneous environments without requiring extensive configuration changes.

Operating System and Driver Support

The adapter supports major operating systems including Linux distributions, Windows Server editions, and virtualization hypervisors. Comprehensive driver support ensures smooth installation and long-term compatibility with evolving enterprise software ecosystems.

Firmware Optimization and Updates

Regular firmware updates enhance performance, security, and compatibility. These updates ensure that the adapter remains aligned with evolving network standards and enterprise security requirements.

Security Features and Network Protection

Security is integrated at multiple levels within the Dell 540-BFDD architecture. The adapter supports secure boot mechanisms, firmware integrity validation, and advanced packet filtering capabilities that help protect against unauthorized network access and malicious traffic.

Hardware-Level Security Enhancements

Hardware-based security features reduce vulnerability exposure by isolating critical networking functions from software-based threats. This ensures that network operations remain secure even in compromised environments.

Traffic Filtering and Segmentation

The adapter enables precise traffic segmentation, allowing administrators to isolate sensitive workloads from general network traffic. This improves compliance with enterprise security policies and regulatory standards.
