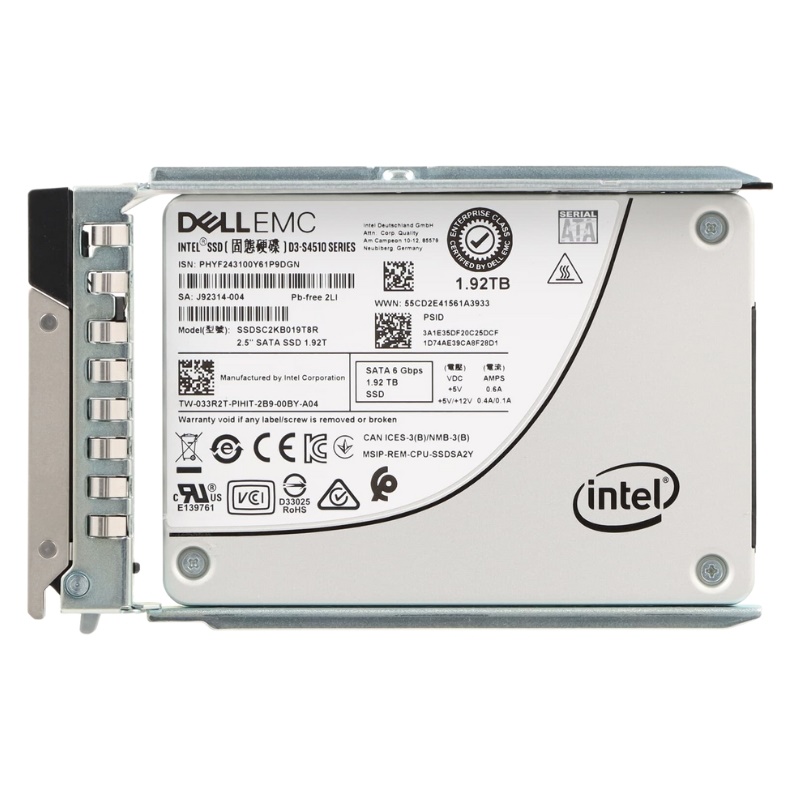

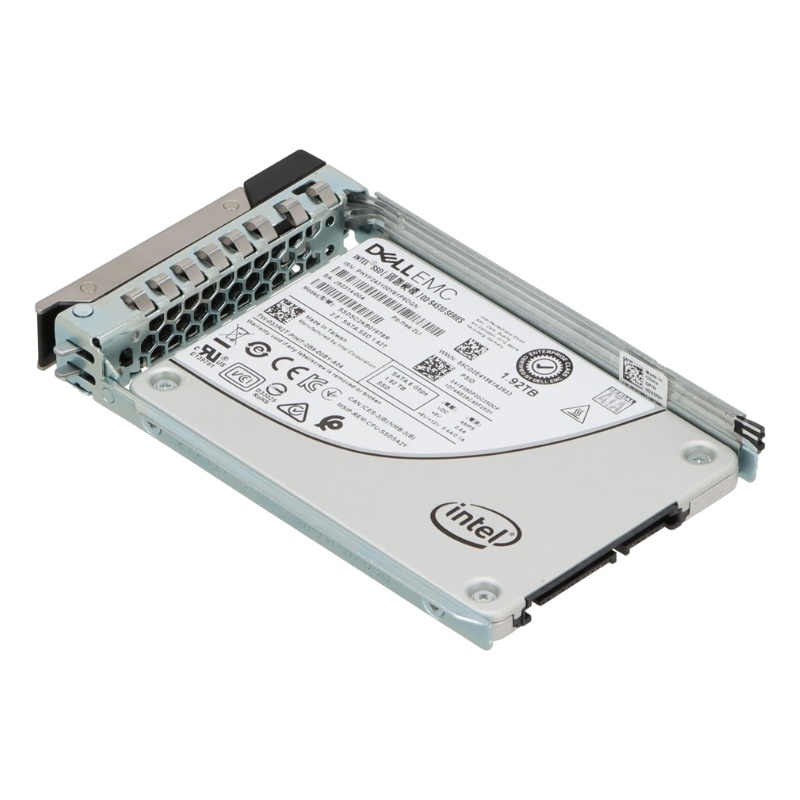

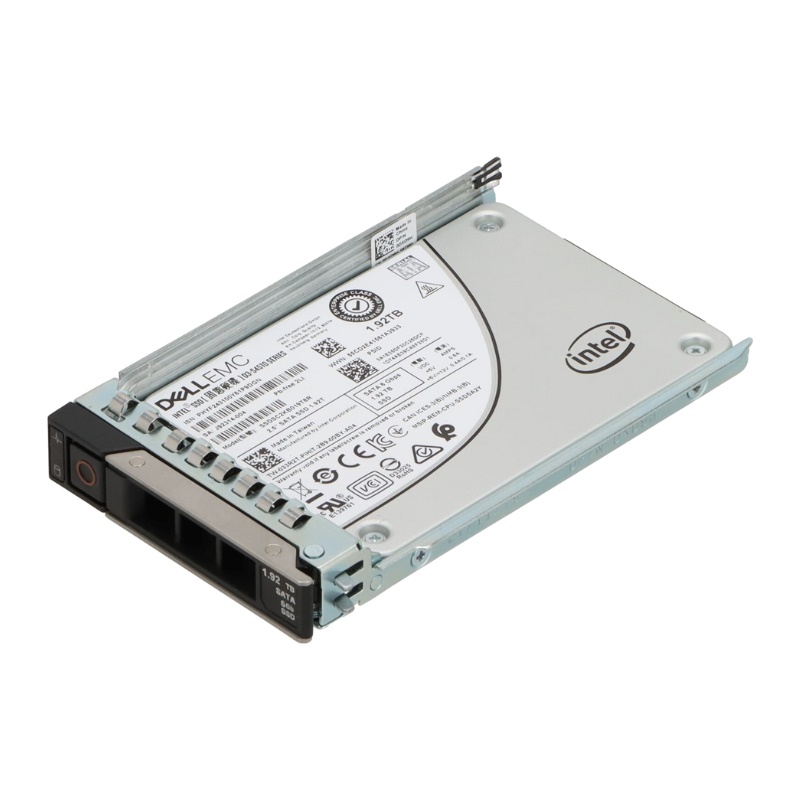

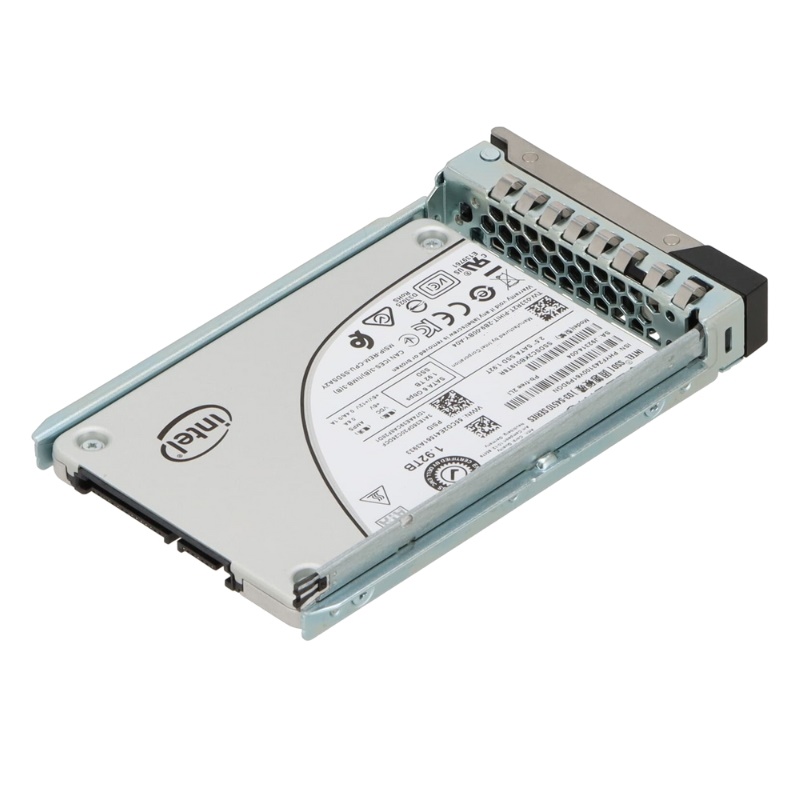

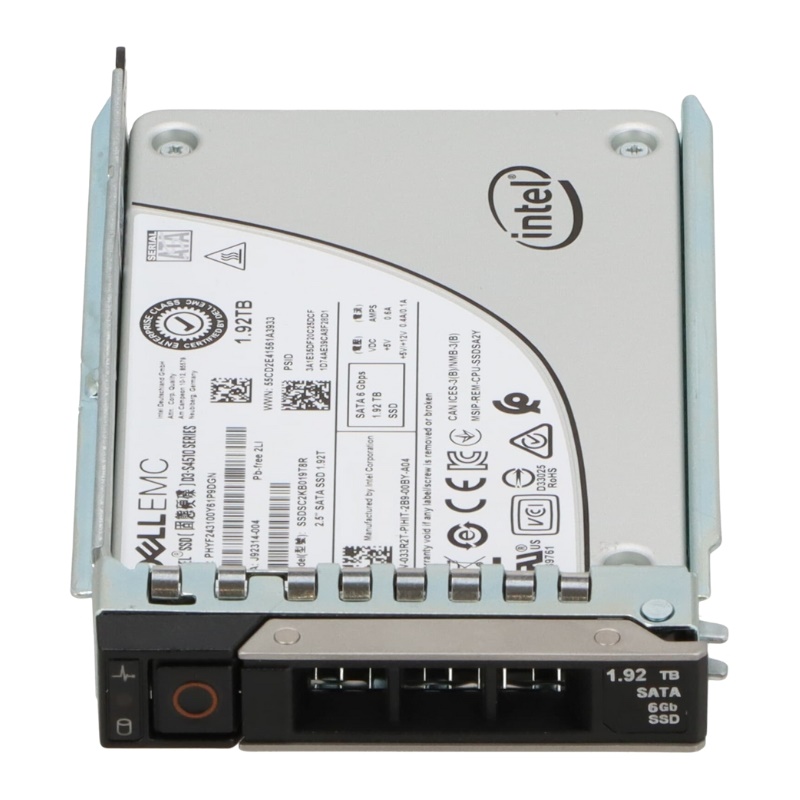

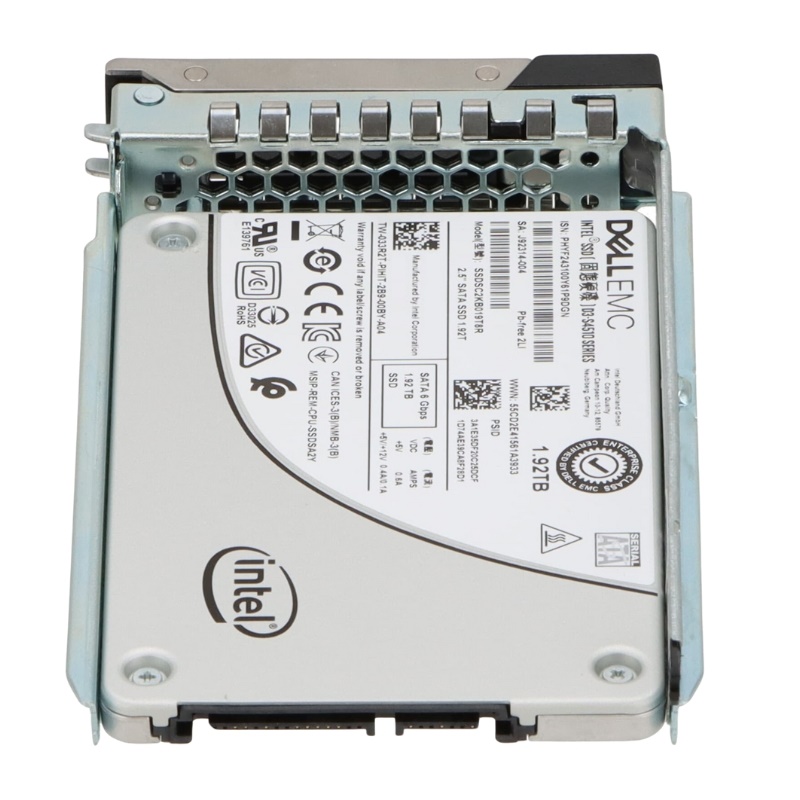

Dell KXNX5 1.92TB SATA 6GBPS Read Intensive SSD

The Dell KXNX5 1.92TB SSD is a high-performance, reliable storage solution designed for enterprise-grade servers. Featuring Read Intensive Triple Level Cell (TLC) technology and hot-swappable design, this SSD delivers impressive speed, endurance, and compatibility for modern data centers.

General Information

• Brand: Dell
• Model Number: KXNX5
• Type: Solid State Drive (SSD)
• Form Factor: 2.5-inch
• Interface: SATA 6Gbps
• Memory Type: Triple-Level Cell (TLC)
• Endurance: Read-Intensive
• Hot-Swap Capable: Yes

Technical Specifications

Storage Capacity and Performance

• Capacity: 1.92TB
• Sequential Read Speed: Up to 600 MB/s
• Sequential Write Speed: Up to 550 MB/s
• Random Read IOPS: 98,000
• Random Write IOPS: 25,000
• DWPD: 1 Drive Write Per Day

Memory and Endurance

The Dell KXNX5 utilizes TLC (Triple-Level Cell) NAND Flash for enhanced storage density while maintaining durability. Designed for read-intensive applications, it ensures consistent performance for demanding workloads.

Server Compatibility

This enterprise-grade SSD is compatible with a wide range of Dell PowerEdge servers, making it ideal for scalable storage solutions in data centers.

Compatible Dell PowerEdge Servers

• PowerEdge C6420, C6520, C6525, C6620
• PowerEdge R340, R440, R640, R650
• PowerEdge R6515, R6525, R660, R6615, R6625
• PowerEdge R740, R740xd, R7425, R750, R750xa
• PowerEdge R7515, R7525, R760, R760xs, R7615, R7625
• PowerEdge R840, R940, R940xa

Understanding the SATA SSD Advantage in Enterprise

While newer interfaces like NVMe offer blazing speeds, the SATA ecosystem remains a backbone of enterprise storage due to its ubiquity, stability, and cost-effectiveness. The Dell KXNX5 leverages the SATA III 6Gbps interface to its maximum potential, providing a robust and dependable storage tier that is ideal for a wide array of applications where extreme speed is secondary to consistent, reliable performance and high capacity.

The Enduring Role of SATA in a NVMe World

Many existing servers and storage systems are built around SATA infrastructure. Upgrading these systems to NVMe often requires a complete architectural overhaul, which is cost-prohibitive and disruptive. The Dell KXNX5 offers a seamless performance upgrade path, allowing organizations to revitalize their existing hardware investments by simply replacing legacy HDDs or lower-end SSDs with this high-capacity, high-endurance drive. It serves as a perfect capacity-optimized or performance tier in a multi-tiered storage strategy, working alongside faster NVMe drives that might be used for primary boot volumes or ultra-performance databases.

Maximizing Existing Infrastructure Investment

The beauty of the KXNX5 lies in its plug-and-play nature. There is no need for new HBAs, special cables, or revised rack layouts. It drops directly into any standard 2.5-inch hot-swap bay, making it an exceptionally efficient choice for scaling storage capacity or improving application response times in established data centers and cloud server farms.

Delving into the Core Technology: TLC NAND for Read-Intensive Use

The type of NAND flash memory used in an SSD is a primary determinant of its cost, endurance, and performance characteristics. The Dell KXNX5 utilizes Triple-Level Cell technology, a choice that strategically balances these factors for its intended workload profile.

Advanced Wear-Leveling and Over-Provisioning

The Dell KXNX5 incorporates sophisticated wear-leveling algorithms that distribute write and erase cycles evenly across all the memory cells in the drive. This prevents any single cell from wearing out prematurely, thereby extending the overall lifespan of the SSD. Combined with a significant amount of factory over-provisioning, these techniques ensure that the drive maintains consistent performance and meets its specified endurance rating throughout its operational life.

Defining the "Read-Intensive" Workload Profile

Not all applications demand the same thing from storage. A "Read-Intensive" SSD is specifically engineered for environments where the vast majority of storage operations are data reads, with writes occurring less frequently. The Dell KXNX5 is optimized to excel in this exact scenario, delivering exceptional read performance and reliability while offering a cost-effective endurance rating that matches the demands of such workloads.

Key Specifications and Performance Characteristics

The Dell KXNX5 1.92TB SSD is defined by a set of key specifications that quantify its capabilities and ensure it can meet the demands of enterprise deployment.

Form Factor and Hot-Swap Capability

This drive conforms to the 2.5-inch form factor, the industry standard for modern server and storage array bays. Its hot-swap capability is a non-negotiable feature for enterprise environments, allowing for the drive to be safely removed and replaced without powering down the entire system. This facilitates seamless maintenance, capacity expansion, and failed drive replacement, thereby maximizing system uptime and availability.

Ensuring Maximum Uptime and Serviceability

The ability to hot-swap a drive directly translates to reduced operational downtime. IT administrators can proactively replace drives or expand storage capacity during normal business hours without scheduling disruptive maintenance windows, ensuring that critical applications and services remain available to users.

Interface: SATA-6Gbps Performance

The SATA Revision 3.0 interface, with a maximum theoretical bandwidth of 6 gigabits per second, provides more than enough throughput for a vast range of enterprise applications. The Dell KXNX5 is designed to saturate this interface with high sequential read and write speeds, drastically reducing data access latency compared to mechanical hard drives and resulting in faster application load times, quicker database queries, and more responsive virtual machines.

Sequential and Random IOPS Performance

With high sequential read and write speeds, this drive is excellent for transferring large files, streaming media, and handling large-scale data backups. Equally important is its random read performance, measured in Input/Output Operations Per Second. A high random read IOPS rating means the drive can efficiently handle multiple, simultaneous small data requests, which is typical for web servers, virtual desktop infrastructure, and file servers.

Endurance and Reliability Metrics

Enterprise drives are rated for endurance in terms of Total Bytes Written or Drive Writes Per Day over the warranty period. The KXNX5, as a read-intensive model, has a DWPD rating that reflects its design purpose. This is complemented by a high Mean Time Between Failures, a statistical projection of reliability. These figures provide IT managers with the confidence to deploy the drive in production environments with predictable longevity and minimal risk of failure.

Power Loss Protection and Data Integrity

While specific features can vary, enterprise-grade SSDs like the KXNX5 often incorporate advanced data protection mechanisms. These can include power loss protection circuits that prevent data corruption in the event of a sudden power failure by providing enough stored energy to complete any pending writes from the volatile cache to the non-volatile NAND memory. This is a critical feature for maintaining data integrity.

Compatibility and Integration

The Dell KXNX5 is designed for seamless integration into a broad ecosystem of enterprise hardware, though its compatibility extends beyond a single brand.

Dell PowerEdge Server and Storage Array Compatibility

Naturally, this drive is fully tested and certified for use in a wide range of Dell PowerEdge servers and Dell EMC storage arrays such as the PowerVault ME4 Series. When used in a Dell system, it ensures optimal performance, manageability, and firmware compatibility. It can be monitored and managed through integrated tools like iDRAC and OpenManage, providing a cohesive and supported solution.

Leveraging Dell's Ecosystem for Simplified Management

Using a genuine Dell drive within a Dell system guarantees that the drive's health, temperature, and predictive failure alerts are fully visible within the server's management console. This integrated approach simplifies IT operations and provides peace of mind.

Broad Third-Party Server and Storage Compatibility

Due to its standard SATA interface and form factor, the KXNX5 is also compatible with a vast array of servers and storage systems from other manufacturers, including HPE, Cisco, Supermicro, and many others. It can be used to upgrade existing systems or build new white-box solutions, offering exceptional flexibility for IT departments and system integrators.

Ensuring Interoperability in Mixed Environments

Before deployment in a non-Dell system, it is always prudent to verify compatibility with the system vendor. However, the adherence to industry standards makes the KXNX5 a highly versatile component suitable for heterogeneous data center environments.This drive offers a substantial 1.92TB of capacity in a standard 2.5-inch hot-swappable form factor, ensuring easy integration and serviceability. Its SATA-6Gbps interface provides a proven and reliable performance uplift for a wide range of applications. The use of TLC NAND, managed by an advanced controller, makes it a cost-effective choice for read-intensive tasks without sacrificing necessary endurance. Its enterprise-grade reliability features and compatibility with major server platforms make it a dependable building block for modern IT infrastructure.

Strategic Investment for Modern Data Centers

For organizations seeking to improve application performance, increase storage capacity, and enhance the efficiency of their existing server infrastructure, the Dell KXNX5 represents a strategic and intelligent investment. It addresses the core needs of read-heavy applications directly, providing a tangible return on investment through improved user productivity, reduced latency, and maximized system uptime.
