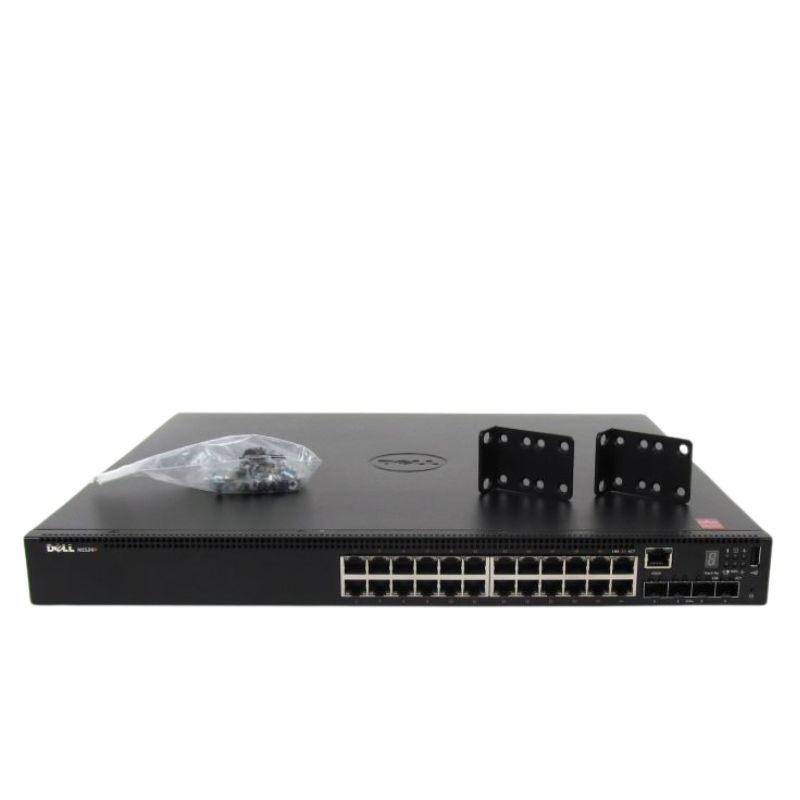

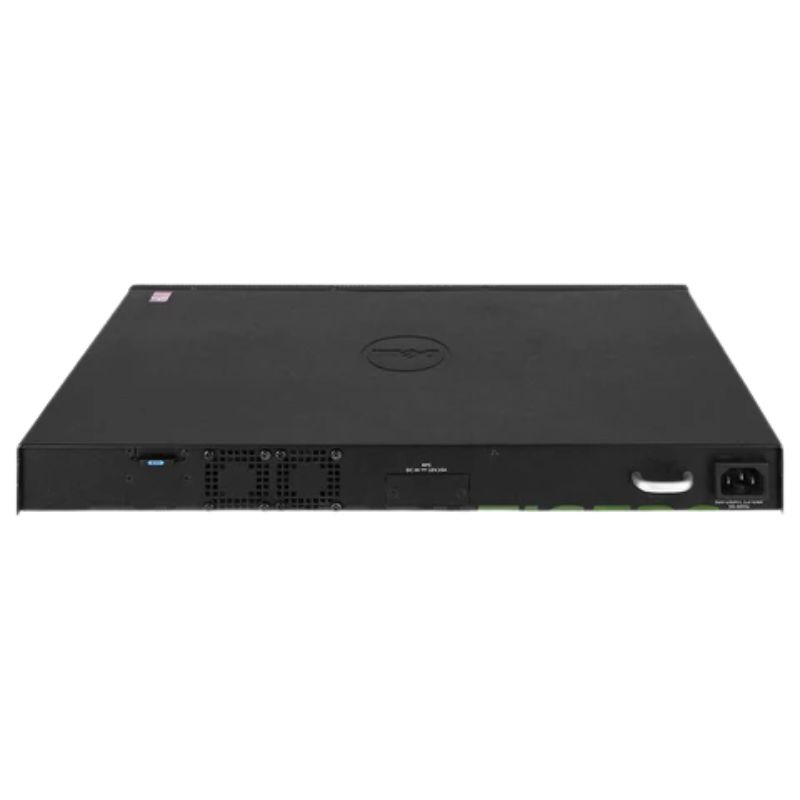

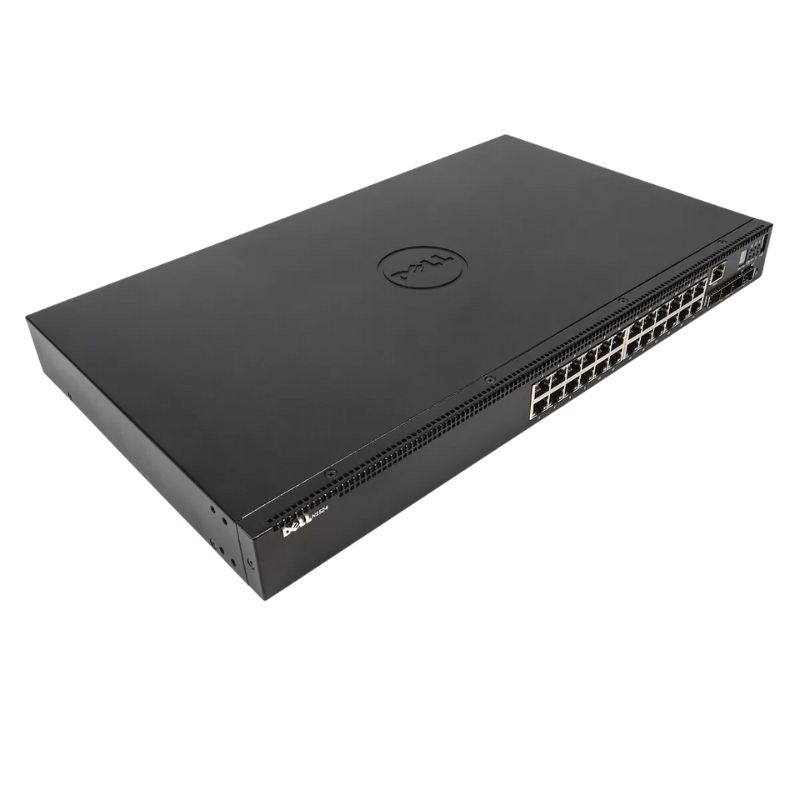

Dell N1524 24-Port 1GbE 4P SFP+ Network Switches

DELL Networking N1524 24-Port 1GbE + 4 SFP+ Managed Switch - Rack-Mountable

Core Features and Specifications

• Device Type: Managed L2+ switch with 24 ports, supporting advanced network configurations.
• Enclosure Type: 1U rack-mountable design, perfect for space-efficient data center setups.
• Subtype: Gigabit Ethernet, ensuring high-speed data transfers for demanding network environments.

Port Configuration and Performance

• Primary Ports: 24 x 10/100/1000 Gigabit Ethernet RJ-45 ports.
• Additional Ports: 4 x 10Gb SFP+ ports for high-speed uplinks and enhanced data throughput.
• Switching Fabric Bandwidth: 128 Gbps for rapid packet processing.
• Forwarding Performance: Capable of 128 Mpps (million packets per second) for efficient traffic management.

Advanced Networking and Capacity

• Virtual Interfaces (VLANs): Supports up to 512 VLANs, allowing for extensive network segmentation.
• ARP Entries: 1024 entries for IPv4 Address Resolution Protocol.
• NDP Entries: 400 Neighbor Discovery Protocol entries for IPv6 management.
• Routing Protocols: RIP-1, RIP-2, static IPv4 and IPv6 routing for both small and large networks.

Security and Remote Management

• Remote Management Protocols: Supports Telnet and TFTP for simplified remote network management.
• Encryption Algorithms: Features MD5, AES, SSL, and TLS for secure communication.
• Authentication Methods: Secure access with SSH, RADIUS, and TACACS+ integration.

Network Features and Connectivity

• Auto-Negotiation and Port Mirroring: Optimizes network performance with automatic configuration and diagnostic port mirroring.
• Storm Control: Protects against broadcast, multicast, or unicast storm interference.
• Redundant Fans: Ensures reliable cooling with fail-safe fan redundancy.
• RAM: 1GB of RAM for fast processing.
• Flash Memory: 256MB flash memory for stable performance.

Expansion and Connectivity Options

• LAN Ports: 24 x Gigabit LAN (RJ-45) for versatile device connectivity.
• High-Speed Uplinks: 4 x 10Gb SFP+ ports, perfect for high-demand data traffic.
• Management Ports: Includes 1 x serial (RS-232) RJ-45 and 1 x USB Type A for direct management access.
• Network Stack Device Ports: 2 x network stack device interfaces for improved network scalability.

Power Supply and Energy Efficiency

• Power Supply: Internal power supply unit with a total power provision of 40 watts.
• Power Consumption: Consumes 30.2 watts during normal operations, ensuring energy-efficient performance.

Ports

The Dell N1524 Network Switch is equipped with 24 ports, making it an ideal choice for businesses and organizations that require a high level of connectivity. With 24 ports available, users have the flexibility to connect multiple devices to the switch, ensuring smooth and reliable network performance.

Increased Connectivity

One of the key benefits of having 24 ports on the Dell N1524 is the increased connectivity it provides. Whether you are a small business with a handful of employees or a large organization with multiple departments, having 24 ports allows you to connect numerous devices without the need for additional switches or complicated setups.

Scalability

The 24 ports on the Dell N1524 also offer scalability, allowing you to expand your network as your business grows. As your organization expands and more devices need to be connected, you can simply add them to the available ports on the switch. This eliminates the need for investing in additional networking equipment, saving you both time and money.

Efficient Data Transfer

With 24 ports, the Dell N1524 enables efficient data transfer between connected devices. Whether you are transferring large files, streaming videos, or engaging in data-intensive activities, the abundance of ports ensures that your network can handle the workload without any bottlenecks. This results in faster and more reliable data transfer, enhancing overall productivity and user experience.

Port Type

The Dell N1524 Network Switch features 1GbE port type, which offers numerous benefits and importance for users seeking high-speed network connectivity.

High-Speed Data Transfer

The 1GbE port type on the Dell N1524 allows for high-speed data transfer between connected devices. Whether you are transferring large files or streaming high-definition videos, this port type ensures that data is transmitted quickly and efficiently. With 1 gigabit per second of bandwidth, users can experience seamless network performance, especially in demanding environments where real-time data processing and transmission are crucial.

Reduced Latency

The 1GbE port type also helps in reducing latency, which is the delay experienced while transferring data from one device to another. With lower latency, users can enjoy faster response times and improved overall network performance. This is particularly important for businesses that rely on real-time communication and require minimal delays for critical operations.

Future-Proofing

The 1GbE port type on the Dell N1524 is future-proof, ensuring compatibility with modern networking standards. As technology advances and higher network speeds become more prevalent, having a switch with 1GbE ports allows users to seamlessly upgrade their network infrastructure without the need for replacing the entire switch. This not only saves costs but also ensures that your network can handle future demands without any compatibility issues.

Additional Ports

In addition to the 24 standard ports, the Dell N1524 Network Switch also offers 4 additional ports, providing even more connectivity options for users.

Flexibility

The 4 additional ports on the Dell N1524 offer flexibility in terms of connecting different types of devices. Whether you need to connect servers, storage devices, or other networking equipment, these additional ports provide the necessary flexibility to accommodate various connectivity requirements. This allows for a versatile network setup that can adapt to different business needs.

Redundancy and Link Aggregation

The additional ports also enable redundancy and link aggregation. Redundancy ensures that if one port fails, the traffic can be automatically redirected to another port, minimizing downtime and ensuring uninterrupted network connectivity. Link aggregation allows multiple ports to be combined into a single logical connection, increasing bandwidth and providing higher network throughput. These features are particularly important for businesses that require high availability and reliability.

Network Segmentation

The 4 additional ports on the Dell N1524 also facilitate network segmentation. Network segmentation involves dividing a network into smaller subnetworks, which helps in improving security, optimizing performance, and simplifying network management. With the extra ports, users can easily create separate segments for different departments or functions within their organization, ensuring better control over network traffic and preventing potential security breaches.

Additional Port Type

The Dell N1524 Network Switch features SFP+ (Small Form-Factor Pluggable Plus) as the additional port type, offering unique benefits and importance for users seeking high-speed connectivity and flexibility.

High-Speed Fiber Connectivity

SFP+ ports on the Dell N1524 allow for high-speed fiber optic connectivity. Fiber optic cables offer significantly faster data transfer speeds compared to traditional copper cables, making them ideal for organizations that require high-bandwidth applications or have long-distance connectivity needs. With SFP+ ports, users can connect their switch to fiber optic infrastructure, enabling fast and reliable data transmission over long distances.

Interoperability

The SFP+ port type also offers interoperability with various networking equipment. SFP+ modules are widely used in the industry, allowing users to connect their Dell N1524 switch with other switches, routers, or devices that support SFP+ interfaces. This interoperability ensures seamless integration with existing network infrastructure and simplifies the process of expanding or upgrading your network.

Hot Swappable Modules

SFP+ ports on the Dell N1524 support hot swappable modules, allowing for easy installation and replacement of modules without disrupting network operations. This feature is especially useful in environments where constant uptime is crucial. Users can add or replace SFP+ modules while the switch is still operational, eliminating the need for network downtime and reducing maintenance time and costs.

In conclusion, the Dell N1524 Network Switch offers an impressive range of features and benefits, with its 24 ports providing increased connectivity and scalability. The 1GbE port type ensures high-speed data transfer and reduced latency, while the additional ports offer flexibility, redundancy, and network segmentation options. The SFP+ additional port type adds high-speed fiber connectivity, interoperability, and hot swappable module support. With these features, the Dell N1524 is a reliable and versatile choice for businesses seeking efficient and future-proof network solutions.
