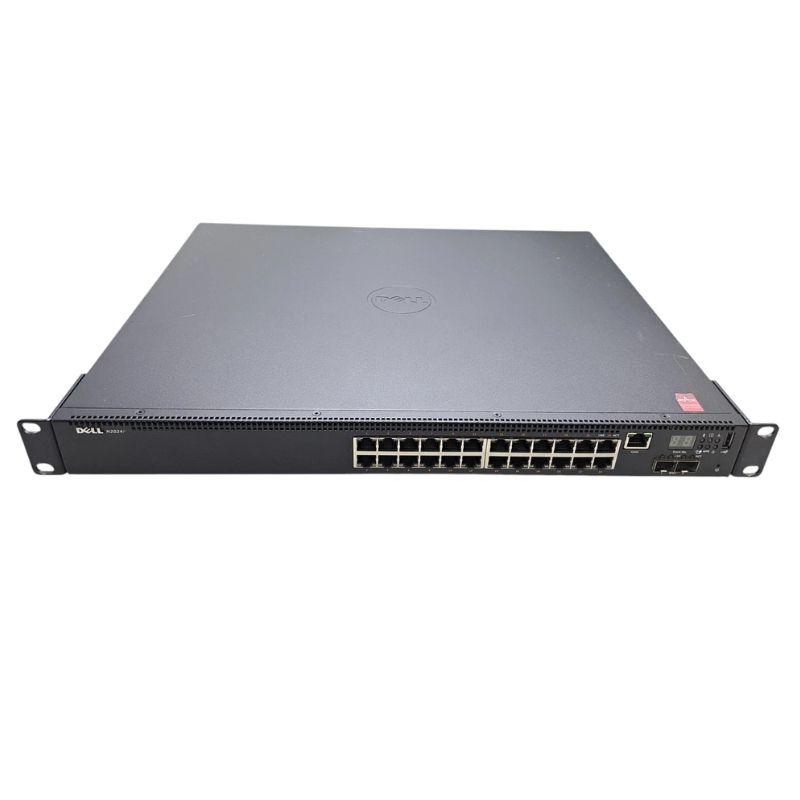

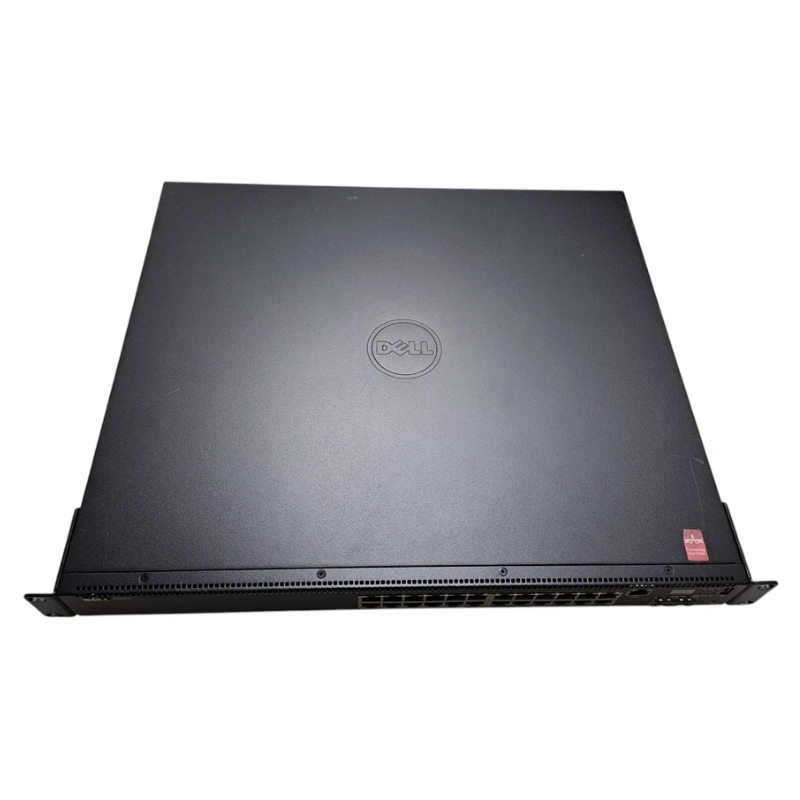

Dell N2024P 24-Port POE+ Managed L3 Network Switches

Overview of the DELL N2024P Layer 3 Switch

Product Specifications

• Manufacturer: Dell
• Part Number: N2024P
• Type: Network Switches
• Sub-Type: 24 Ports

Key Attributes

• Device Classification: 24 Ports L2+ Managed Stackable Switch

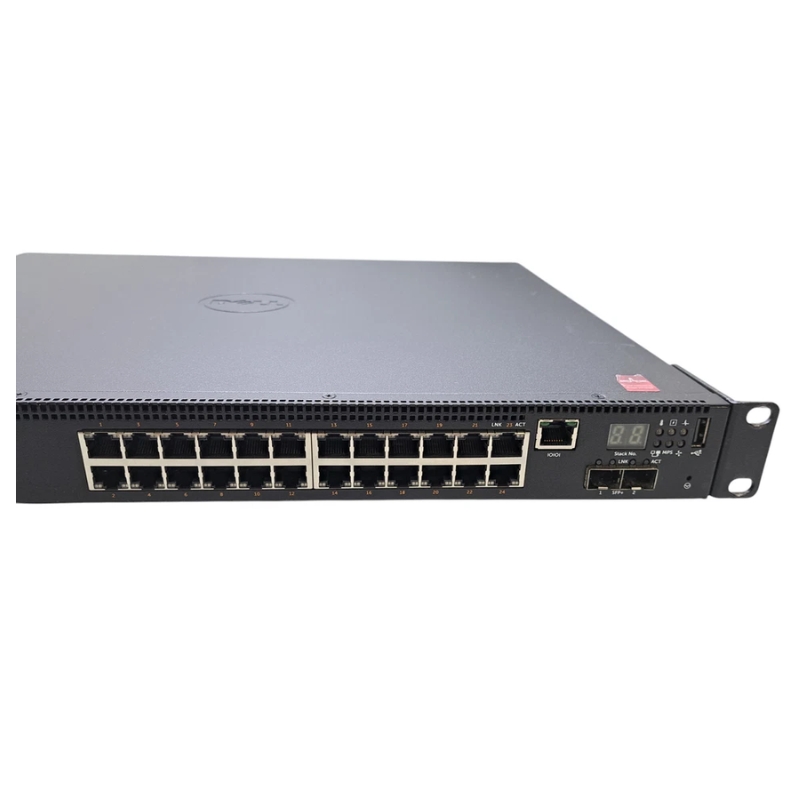

• Form Factor: Rack-mountable 1U
• Technology: Gigabit Ethernet
• Ports Available: 24 x 10/100/1000 + 2 x 10 Gigabit SFP+
• Power Over Ethernet: PoE+

Performance Metrics

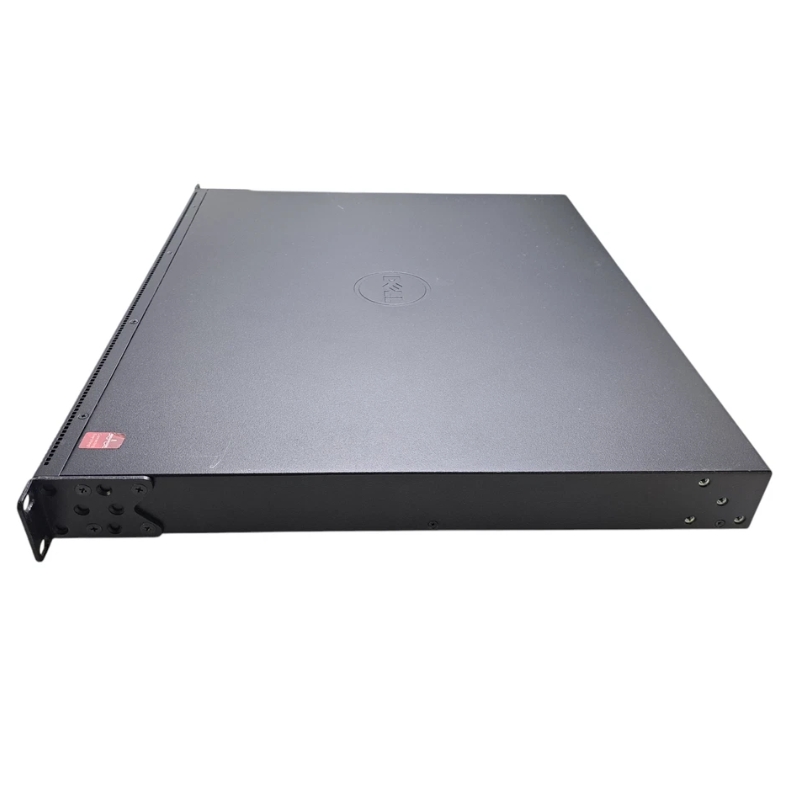

• Switching Fabric Bandwidth: 172 Gbps
• Forwarding Rate: 128 Mpps
• Stacking Bandwidth: 84 Gbps

Capacity and Limitations

• Virtual Interfaces (VLANs): 4096
• ARP Entries: 1024
• NDP Entries: 400
• Priority Queues per Port: 8
• Static IPv4 Routes: 256
• Static IPv6 Routes: 128
• Dynamic IPv4 Routes: 256
• VLAN Routing Interfaces: 256
• Access Control Lists (ACL): 100
• Maximum ACL Rules System-wide: 2048

Advanced ACL Capabilities

• Maximum Rules Per ACL: 1023
• Ingress Rules for IPv4 Interface: 1024
• Egress Rules for IPv4 Interface: 512
• Ingress Rules for IPv6 Interface: 512
• Egress Rules for IPv6 Interface: 256
• Maximum VLAN Interfaces with ACLs: 24
• Maximum Aggregation Groups: 128
• Maximum Dynamic Ports per Switch Stack: 144
• Maximum Member Ports per LAG: 8

Network Protocols and Management

• Supported Routing Protocols: RIP-1, RIP-2, Static IPv4 Routing, Static IPv6 Routing
• Remote Management Options: Telnet, TFTP
• Encryption Standards: MD5, AES, SSL, TLS
• Authentication Protocols: SSH, RADIUS, TACACS+

Additional Features

• Flow Control
• Auto-negotiation
• VLAN Support
• Port Mirroring
• DiffServ Support
• Broadcast Storm Control
• IPv6 Support
• Access Control List Support
• Front-to-Back Airflow
• Energy Efficient Ethernet
• Management Information Base (MIB)
• Dual Firmware Images
• Neighbor Discovery Protocol (NDP)
• Redundant Fans

Hardware Specifications

• RAM: 1 GB
• Flash Memory: 256 MB

Expansion and Connectivity

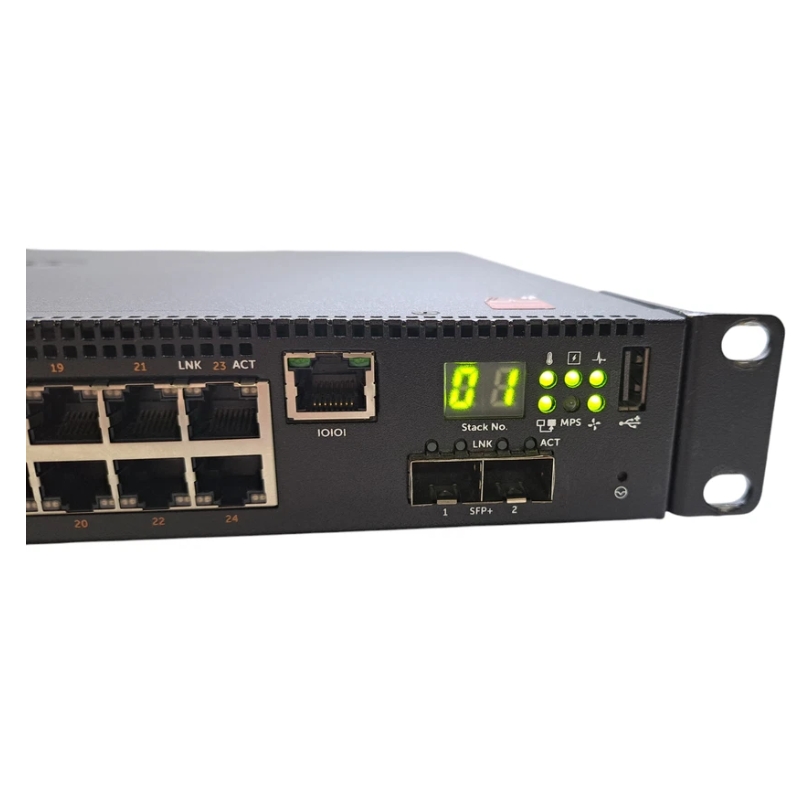

• Interfaces:
  • 24 x Gigabit LAN - RJ-45 - PoE+ - 30.8 W
  • 2 x 10 Gigabit LAN - SFP+
  • 1 x Serial (RS-232) - RJ-45 - Management
  • 1 x USB - Type A
  • 2 x Network Stack Device

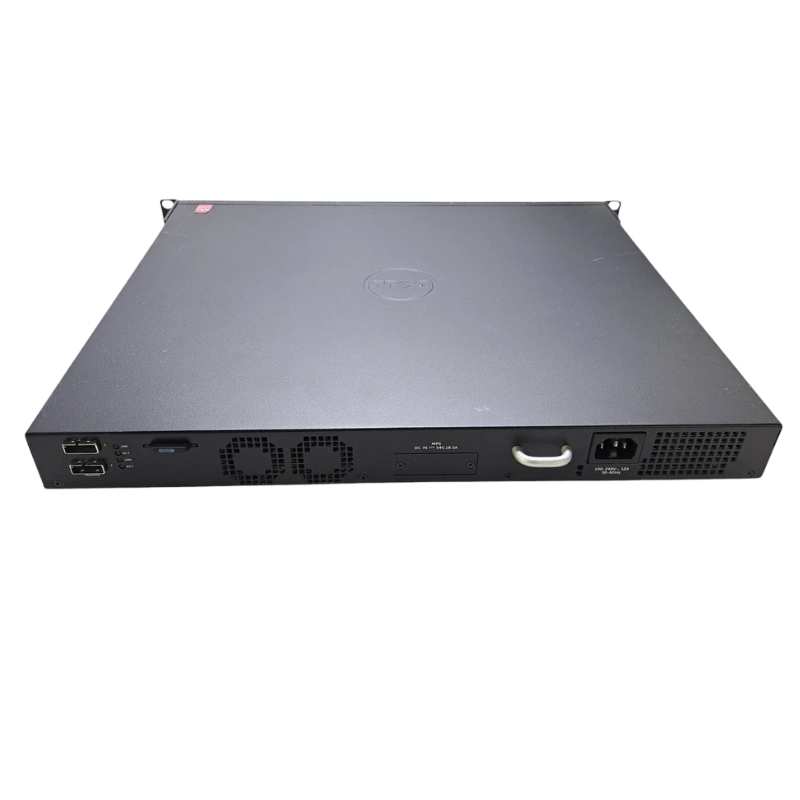

Power Specifications

• Power Device: Internal Power Supply
• Installed Quantity: 1
• Power Output: 1000 Watts
• Operational Power Consumption: 42.9 Watts
• Features: Redundant Power System (RPS) Connector

Ports

The Dell N2024P Managed L3 Network Switch is equipped with 24 ports, making it an ideal choice for small to medium-sized businesses that require a reliable and scalable network infrastructure. With 24 ports, users can connect multiple devices, such as computers, servers, printers, and IP phones, to the switch, allowing for seamless communication and data transfer within the network.

Increased Connectivity

The 24 ports of the Dell N2024P provide users with increased connectivity options. This means that businesses can easily expand their network without the need for additional switches or complex configurations. With more ports available, users can connect more devices directly to the switch, simplifying the network setup and reducing potential points of failure.

Flexibility and Scalability

The 24 ports offer flexibility and scalability to accommodate the growing needs of a business. As new devices are added to the network or existing devices require additional connections, the Dell N2024P can easily handle these requirements. The switch allows for easy expansion and future-proofing of the network infrastructure, ensuring that businesses can adapt to changing technology requirements without significant investments or disruptions.

Improved Performance

Having 24 ports on the Dell N2024P enables efficient data transfer and improves overall network performance. With more ports available, each connected device can enjoy dedicated bandwidth, reducing congestion and ensuring smooth communication between devices. This is particularly beneficial for businesses that rely heavily on data-intensive applications or require real-time communication between different departments or locations.

Enhanced Network Management

The Dell N2024P Managed L3 Network Switch offers advanced network management capabilities. With 24 ports, users have the ability to segregate their network into different VLANs (Virtual Local Area Networks), allowing for better security and management of network resources. Administrators can assign specific ports to different VLANs, ensuring that sensitive data remains isolated and only accessible to authorized users.

Network Segmentation

By leveraging the 24 ports of the Dell N2024P, businesses can segment their network based on various criteria such as departments, projects, or security levels. This allows for granular control over network access and improves overall network security. For example, the finance department can be assigned a dedicated VLAN to protect sensitive financial data from unauthorized access by other departments.

Simplified Troubleshooting

The 24 ports of the Dell N2024P make troubleshooting network issues easier and more efficient. With each device connected to a dedicated port, administrators can quickly identify and isolate problematic devices or connections. This reduces the time required to resolve network issues, minimizing downtime and improving productivity.

Advanced QoS (Quality of Service)

The Dell N2024P offers advanced Quality of Service features, which prioritize network traffic based on pre-defined rules. With 24 ports, administrators can assign specific levels of priority to different devices or applications, ensuring that critical services receive sufficient bandwidth and minimizing the impact of non-essential traffic on overall network performance.

Efficient Multimedia Streaming

With the ability to prioritize network traffic, businesses can ensure seamless multimedia streaming on their network. Whether it is video conferencing, IPTV, or multimedia presentations, the 24 ports of the Dell N2024P can prioritize these applications, reducing latency and ensuring high-quality multimedia experiences for users.

Improved VoIP Performance

The 24 ports of the Dell N2024P are especially beneficial for businesses that rely on Voice over IP (VoIP) solutions. By assigning high priority to VoIP traffic, businesses can ensure crystal-clear voice calls without any disruptions or delays. This is crucial for maintaining effective communication with clients, partners, and colleagues.

Optimized Data Transfer for Critical Applications

Certain applications, such as database servers or file servers, require fast and reliable data transfer. With 24 ports, the Dell N2024P allows businesses to allocate dedicated ports for these critical applications, ensuring efficient data transfer and minimizing potential bottlenecks. This improves overall application performance and user experience.

POE+

The Dell N2024P Managed L3 Network Switch supports Power over Ethernet Plus (POE+), providing a single port with this capability. POE+ is a technology that allows network devices to receive power and data over a single Ethernet cable, eliminating the need for separate power cables and power adapters. This feature offers several benefits and is particularly important for businesses that rely on network devices that require power.

Simplified Deployment

By supporting POE+, the Dell N2024P simplifies the deployment of network devices, such as IP phones, wireless access points, and IP cameras. These devices can be easily connected to the switch using a single Ethernet cable, eliminating the need for additional power outlets or complex wiring setups. This not only saves time during installation but also reduces the overall cost of deploying network devices.

Flexibility in Device Placement

With POE+, businesses have the flexibility to place network devices in locations where power outlets are not readily available. This is particularly useful in environments where mobility or flexibility is required, such as conference rooms or open office spaces. Users can easily move devices without worrying about power availability, improving productivity and collaboration.

Cost Savings

Implementing POE+ with the Dell N2024P can result in significant cost savings for businesses. By eliminating the need for separate power cables and adapters, businesses can reduce their overall cabling and equipment costs. Additionally, POE+ allows for more efficient power management, reducing overall power consumption and lowering utility bills.

Centralized Power Management

With POE+, the Dell N2024P enables centralized power management for connected devices. Administrators can monitor and control the power usage of each device, ensuring efficient power allocation based on device requirements. This centralized management capability simplifies device maintenance and troubleshooting, further improving network reliability.

Remote Device Reboot

POE+ also allows for remote device rebooting, saving time and resources for businesses. In the event of a network issue, administrators can remotely power cycle a device, eliminating the need for manual intervention or site visits. This reduces downtime and ensures that devices are quickly back online, minimizing the impact on business operations.

Improved Device Reliability

By providing both power and data over a single cable, POE+ eliminates potential points of failure associated with separate power sources. This improves the overall reliability of network devices and reduces the risk of downtime due to power-related issues. Businesses can rely on the Dell N2024P to deliver stable power to connected devices, ensuring uninterrupted operation.

Future-Proofing

POE+ is becoming increasingly prevalent in modern network devices. By supporting this technology, the Dell N2024P ensures that businesses are well-prepared for future network expansion or upgrades. As more devices adopt POE+, businesses can easily integrate them into their existing infrastructure without the need for additional investments in power infrastructure.

Efficient Network Design

The integration of POE+ in the Dell N2024P allows for efficient network design. With the ability to power network devices through the switch, businesses can eliminate the need for individual power sources at each device location. This simplifies cable management and reduces potential cable clutter, resulting in a cleaner and more organized network environment.

Support for Diverse Network Devices

POE+ support in the Dell N2024P ensures compatibility with a wide range of network devices that rely on this technology. Whether it is IP phones, wireless access points, or surveillance cameras, businesses can confidently connect these devices to the switch, knowing that they will receive the required power and function seamlessly within the network.

Scalability for Power-Hungry Devices

Certain network devices, such as high-end IP cameras or access points, may require higher power budgets. With POE+ support, the Dell N2024P can provide the necessary power to these devices without any issues. Businesses can confidently deploy power-hungry devices without the need for additional power infrastructure or complex power management setups.
