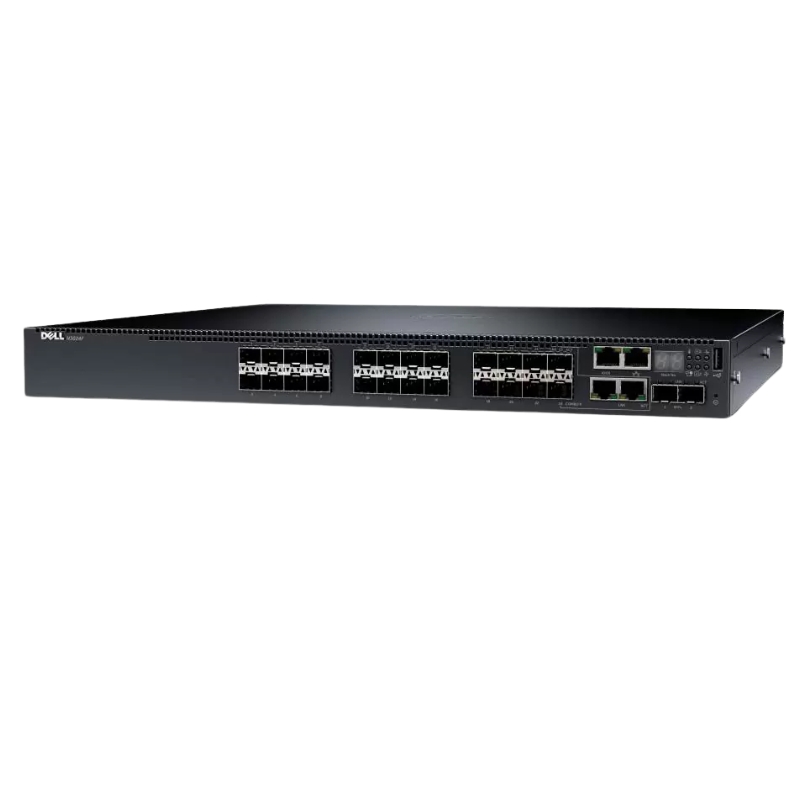

Dell N3024EF-ONF Networking Switch - Managed Rack-mountable, 24 Ports

Product Overview of the DELL N3024EF-ONF EMC Networking Switch

Device Specifications

• Device Type: Managed Layer 3 Switch with 24 Ports, Stackable
• Enclosure: Rack-mountable, 1U
• Network Type: Gigabit Ethernet

Port and Connectivity Details

Port Configuration

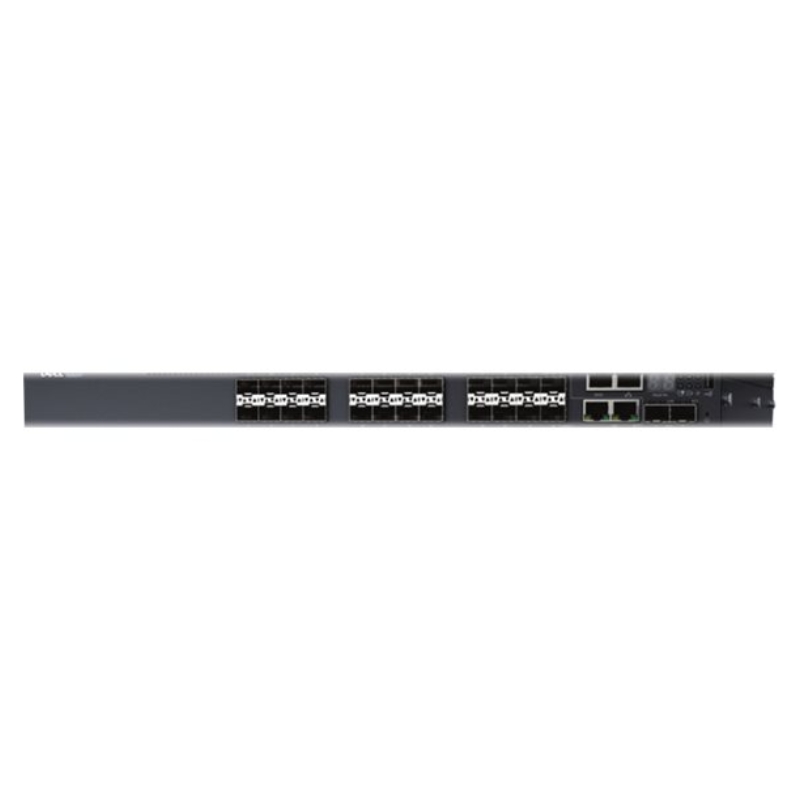

• Main Ports: 24 x Gigabit SFP
• Additional Ports: 2 x 10 Gigabit SFP+ for uplinks and 2 x Combo 1000Base-T
• Stacking Support: Supports stacking, with stacking bandwidth of 21 Gbps

Interface and Expansion

• LAN Interfaces: 24 x Gigabit LAN SFP, 2 x 10GbE SFP+, and 2 x Gigabit LAN RJ-45
• Management Interfaces: 1 x Serial (RS-232) RJ-45, 1 x USB Type-A

Performance and Capacity

Performance Metrics

• Switching Capacity: 212 Gbps switching fabric bandwidth
• Forwarding Rate: 158 Mpps for efficient packet processing

Routing and Protocol Capabilities

• Supported Protocols: OSPF, RIP, IGMP, VRRP, PIM-SM, PIM-DM, MLD, among others
• Routing Capacity: IPv4 Static Routes: 1024; IPv6 Static Routes: 1024; Dynamic IPv4: 8160; Dynamic IPv6: 4096

Advanced Networking Features

• VLAN Support: 4094 VLANs with 128 VLAN Routing Interfaces
• ACLs: System-wide max of 4096 ACL rules, with per-interface limits for IPv4/IPv6 ingress and egress rules

Capacity Metrics

• MAC Address Table: Up to 32K entries
• Multicast Entries: IPv4: 1536; IPv6: 512
• ARP/NDP Entries: ARP: 6144, NDP: 400

Management and Security

Remote Management and Security Protocols

• Management Protocols: SNMP, Telnet, HTTP, TFTP, SSH
• Encryption: MD5, AES, SSL, and TLS for secure connections
• Authentication: RADIUS, TACACS+, and SSH v2 for secure access

Supported Networking Standards

• Compliant with IEEE 802.3, 802.1D, 802.1Q, 802.1X, 802.3ad (LACP), 802.3az, and more for interoperability

Power and Environmental Specifications

Power Details

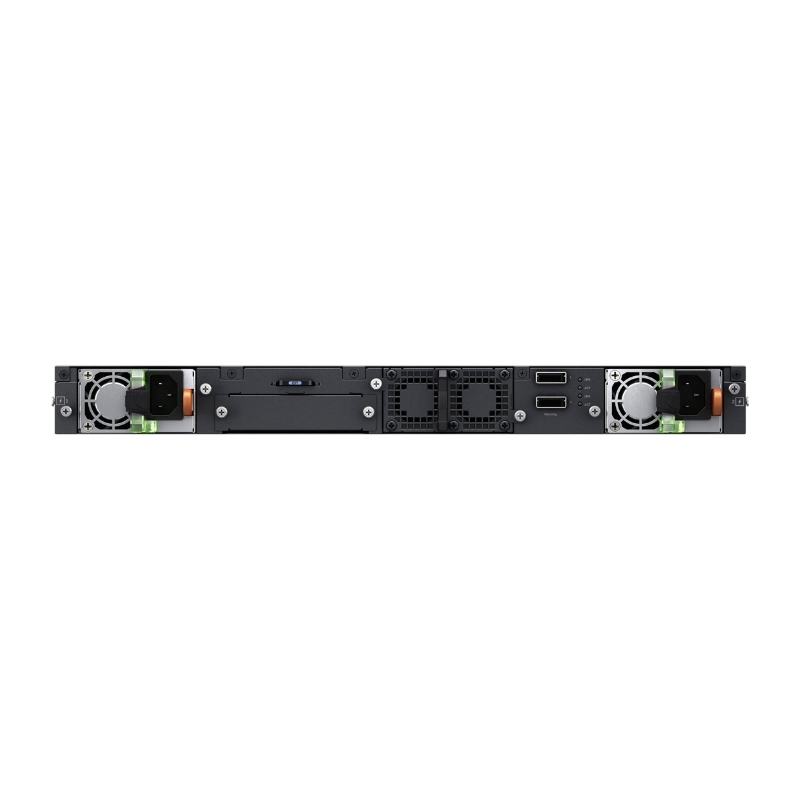

• Power Supply: Internal, hot-pluggable power supply
• Redundancy: Optional 1+1 redundancy scheme with dual PSU setup
• Power Consumption: Operational power consumption at 67.1 Watts

Environmental Features

• Energy Efficiency: Supports Energy-Efficient Ethernet
• Airflow: Front-to-back airflow with redundant fans for cooling efficiency

Dell N3024EF-ONF Emc Networking N3024ef-on - Managed Rack-mountable Switch with 24 Ports.

Managed

The Dell N3024EF-ONF Networking Switch is equipped with advanced managed features that provide users with greater control and flexibility in managing their network infrastructure. This feature-rich switch offers a wide range of benefits and is essential for businesses and organizations that require a high level of network management.

Benefits of Managed Switch

1. Enhanced Security: A managed switch provides advanced security features such as Access Control Lists (ACLs), which allow network administrators to control and restrict access to the network. This ensures that only authorized users can connect to the network and prevents unauthorized access or malicious attacks.

2. Quality of Service (QoS): With a managed switch, administrators can prioritize network traffic based on specific applications or services. This ensures that critical applications, such as voice or video conferencing, receive sufficient bandwidth and are not affected by other less important traffic.

3. VLAN Support: Virtual Local Area Networks (VLANs) allow network administrators to logically segment a physical network into multiple virtual networks. This provides enhanced security, as users in one VLAN cannot directly communicate with users in another VLAN, unless specifically allowed. VLANs also help to improve network performance by reducing broadcast traffic.

Importance of Managed Switch for Users

A managed switch is crucial for businesses and organizations that need to have control over their network infrastructure. It allows for efficient management, optimization, and troubleshooting of the network. Here are some key reasons why the managed feature of the Dell N3024EF-ONF Networking Switch is important for users:

1. Network Performance Optimization

By using the managed features of the switch, network administrators can monitor and analyze network traffic patterns, identify bottlenecks, and optimize the network for better performance. They can also prioritize critical applications, ensuring that they receive the necessary bandwidth and reducing latency issues.

2. Enhanced Security

Managed switches offer advanced security features that help protect the network from unauthorized access, malware, and other threats. Administrators can configure access control lists, port security, and other security measures to ensure that only authorized devices and users can connect to the network.

3. Improved Troubleshooting

When network issues arise, a managed switch provides comprehensive tools for troubleshooting and diagnostics. Administrators can monitor network traffic in real-time, identify problematic devices or ports, and take appropriate actions to resolve the issues quickly.

Rack-mountable

The Dell N3024EF-ONF Networking Switch is designed to be rack-mountable, making it a perfect choice for businesses and organizations that require efficient space utilization and easy installation. This feature offers several benefits and is highly important for users looking for a compact and organized networking setup.

Benefits of Rack-mountable Switch

1. Space Efficiency: Rack-mountable switches are designed to be installed in standard server racks or cabinets, allowing for efficient utilization of vertical space. This is particularly beneficial for data centers or server rooms where space is limited. By mounting the switch in a rack, valuable floor space can be saved and used for other equipment.

2. Easy Installation: Rack-mountable switches are specifically designed for easy installation in standard racks or cabinets. They typically come with mounting brackets or rails that simplify the installation process. This makes it convenient for network administrators to set up and deploy the switch quickly without the need for additional hardware or complex configurations.

3. Organization and Accessibility: By mounting the switch in a rack, network cables can be neatly organized and managed, reducing clutter and improving airflow within the rack. This not only improves the aesthetics of the network setup but also enhances the overall cooling efficiency, leading to better performance and reliability of the switch.

Importance of Rack-mountable Switch for Users

The rack-mountable feature of the Dell N3024EF-ONF Networking Switch offers significant advantages for users who value space efficiency, convenience, and organization in their network infrastructure. Here are some reasons why this feature is important:

1. Space Optimization

By mounting the switch in a rack, users can optimize their available space and make the most out of their server rooms or data centers. This is particularly important for businesses that have limited space but need to accommodate multiple networking devices.

2. Simplified Installation

The rack-mountable design of the switch simplifies the installation process, allowing network administrators to quickly set up the switch without any additional hardware or complex configurations. This saves time and effort during the initial deployment and makes it easier to scale up or reconfigure the network in the future.

3. Improved Maintenance and Troubleshooting

With a rack-mounted switch, maintenance tasks such as cable management, firmware updates, or hardware replacements become easier. Network administrators can access and manage the switch from a central location, eliminating the need for manual intervention at each switch location. This streamlines maintenance processes and reduces downtime during troubleshooting.

Port Count

The Dell N3024EF-ONF Networking Switch features 24 ports, making it an ideal choice for small to medium-sized businesses that require a sufficient number of ports to connect various devices and expand their network. The port count is a critical consideration for users who need to accommodate multiple devices and ensure seamless connectivity.

Benefits of 24 Port Switch

1. Device Connectivity: The 24 port count of the switch allows users to connect a wide range of devices, including computers, servers, printers, IP phones, access points, and other network-enabled equipment. This ensures that all devices can be seamlessly integrated into the network without the need for additional switches or complex configurations.

2. Scalability: The 24 port count provides room for future expansion and scalability. As businesses grow and require more network-connected devices, having additional ports available on the switch allows for easy integration without the need for purchasing and configuring additional switches.

3. Flexibility: With 24 ports, users have the flexibility to allocate ports as needed for different purposes. They can create separate VLANs or subnets, assign dedicated ports for critical devices, or configure trunk ports for interconnecting switches. This flexibility allows for efficient network management and optimization.

Importance of 24 Port Switch for Users

The 24 port count of the Dell N3024EF-ONF Networking Switch is highly important for users who require a sufficient number of ports to connect multiple devices and ensure seamless connectivity throughout their network infrastructure. Here are some key reasons why this feature is essential:

1. Simplified Network Infrastructure

Having 24 ports eliminates the need for additional switches or complex configurations to accommodate multiple devices. This simplifies the network infrastructure and reduces potential points of failure, making it easier to manage and troubleshoot the network.

2. Future-Proofing

The 24 port count provides room for future expansion and scalability. Users can easily integrate new devices into their network without having to invest in additional switches or undertake complicated reconfigurations.

3. Efficient Resource Allocation

The 24 ports allow users to allocate resources effectively. They can assign dedicated ports for critical devices or services, ensuring that they receive the necessary bandwidth and minimizing any potential bottlenecks. This results in improved network performance and user experience.

In conclusion, the managed feature of the Dell N3024EF-ONF Networking Switch provides enhanced security, quality of service, and VLAN support. The rack-mountable feature offers space efficiency, easy installation, and improved organization. The 24 port count ensures device connectivity, scalability, and flexibility. These features are crucial for users looking for a reliable and efficient networking switch that meets their specific requirements.
