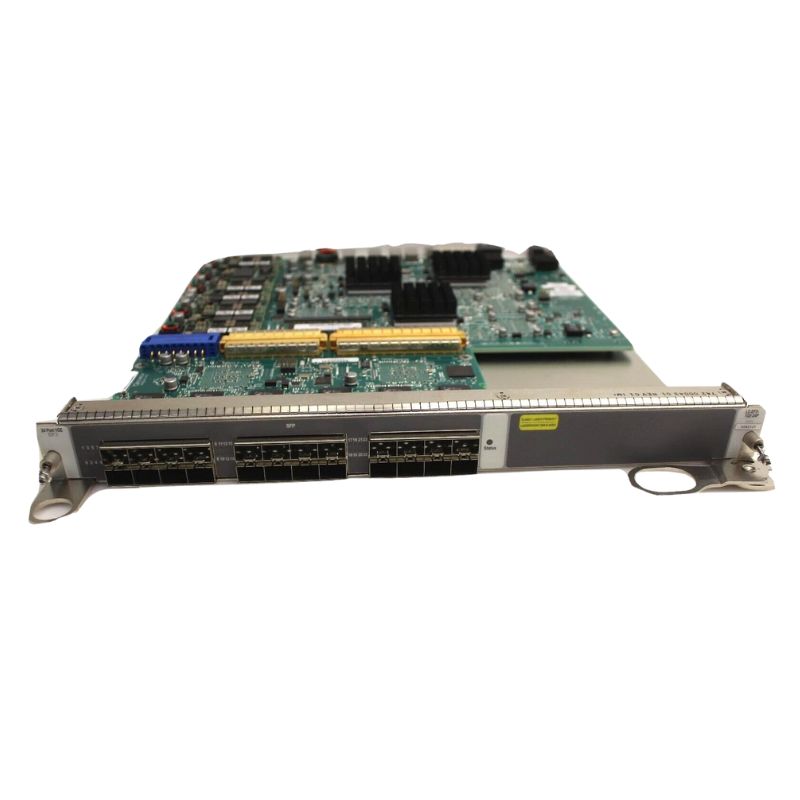

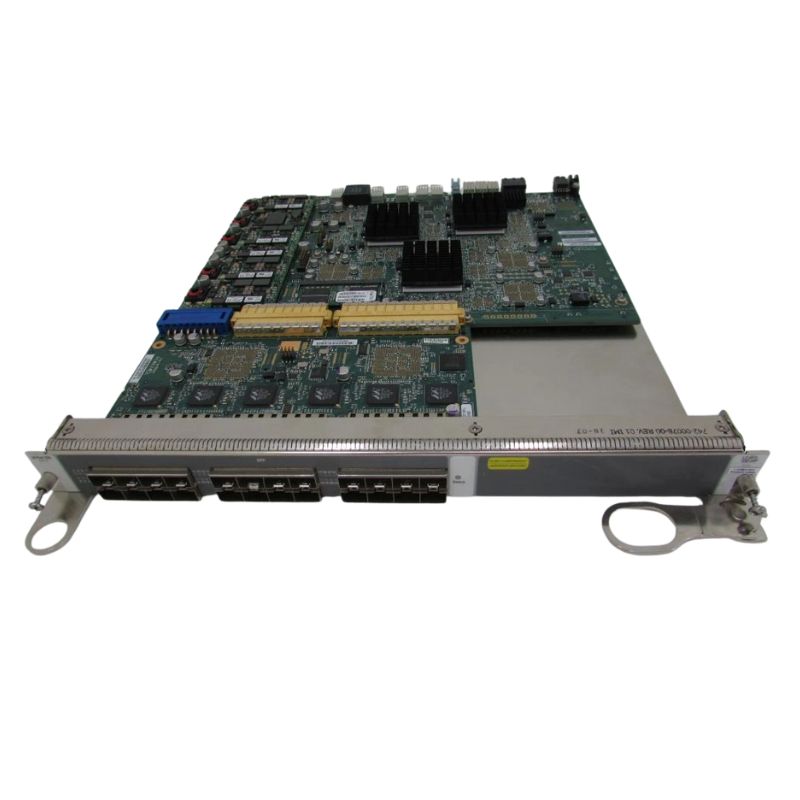

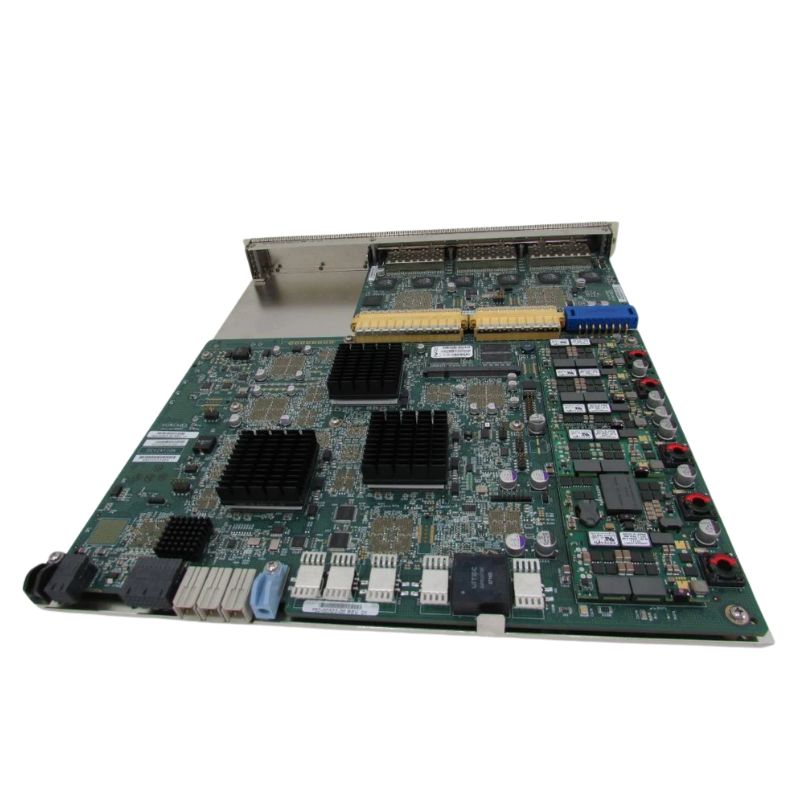

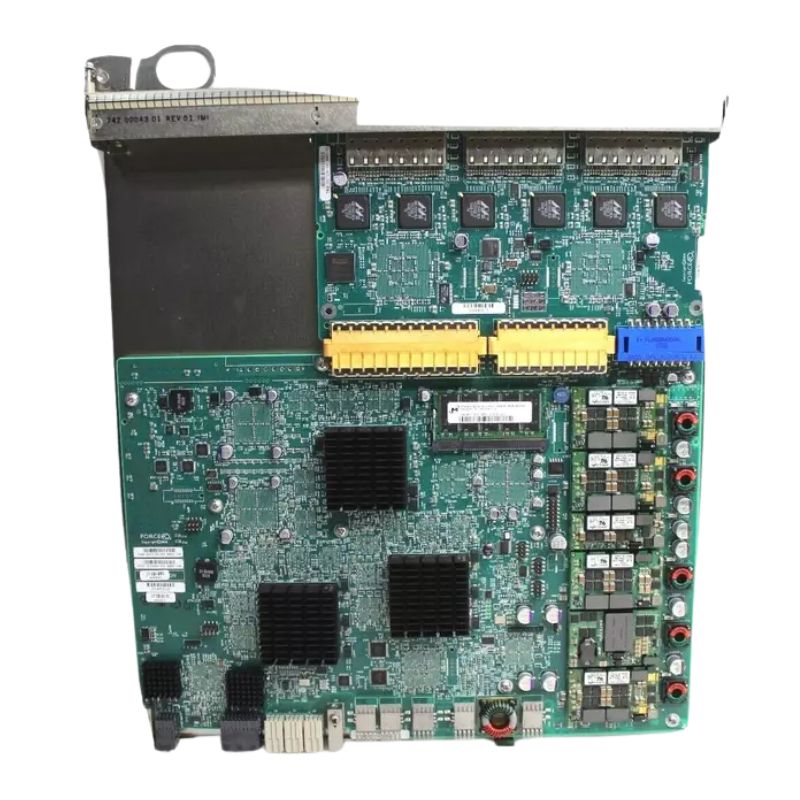

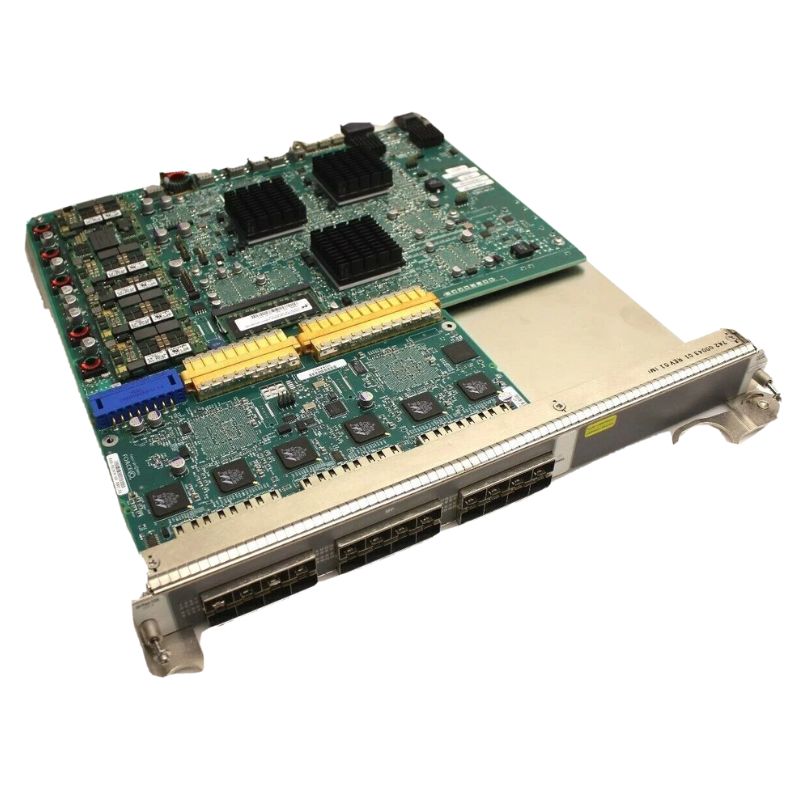

Dell NH2K3 Force10 Networks 24-Port SFP Gigabit Ethernet Line Card

Overview of Dell NH2K3 Expansion Module

Key Specifications

• Manufacturer: Dell
• Part Number / SKU: NH2K3
• Device Type: Expansion Module

Technical Details

Port Configuration

• Total Ports: 24
• Form Factor: Internal

Networking Features

• Data Link Protocol: Gigabit Ethernet
• Data Transfer Rate: 1Gbps

Expansion and Connectivity

Port Type

• Port Type: SFP (Small Form-factor Pluggable)

Device Compatibility

The Dell NH2K3 expansion module is designed to seamlessly integrate with compatible Dell systems, providing flexible network expansion through its SFP ports. This makes it an ideal solution for growing network infrastructures that require high-speed connectivity and efficient data transfer.

Detailed Overview of Dell NH2K3 Force10 Networks 24-Port SFP Gigabit Ethernet Line Card

Introduction to Dell NH2K3 Force10 Networks Line Card

The Dell NH2K3 Force10 Networks 24-Port SFP Gigabit Ethernet Line Card is an advanced networking component designed to enhance the flexibility and scalability of enterprise network infrastructures. As a critical part of the Dell networking portfolio, the NH2K3 line card offers superior performance and reliability, making it an essential choice for businesses looking to expand their network's capability with high-speed, efficient data transfer.

Key Features and Specifications of the Dell NH2K3

• Manufacturer: Dell
• Part Number / SKU: NH2K3
• Device Type: Expansion Module (Line Card)
• Total Number of Ports: 24 Gigabit Ethernet Ports
• Port Type: Small Form-factor Pluggable (SFP)
• Data Transfer Rate: 1 Gbps (Gigabit Ethernet)
• Form Factor: Internal (Designed for compatibility with compatible Dell systems)
• Compatibility: Designed to work seamlessly with Dell Force10 networking switches

Detailed Technical Specifications

Port Configuration

The Dell NH2K3 line card is equipped with 24 SFP ports that support Gigabit Ethernet speeds. These ports provide reliable, high-speed connectivity for network devices, facilitating efficient data transmission across the network. The line card’s SFP ports offer flexibility in terms of fiber or copper connections, depending on the specific SFP module used, making it a versatile option for a range of networking applications.

Data Transfer Rate and Protocol

The Dell NH2K3 supports a data transfer rate of 1 Gbps per port, which ensures smooth data flow even under heavy network traffic conditions. This speed makes the NH2K3 ideal for organizations that need a high-performance solution for their network's backbone, especially when handling large volumes of data in real time.

Form Factor and Design

The Dell NH2K3 line card is designed as an internal expansion module, which means it fits directly into compatible Dell Force10 network switches. Its compact design ensures that it does not occupy excessive space, allowing for efficient use of rack space in data centers and server rooms. Additionally, the internal form factor provides ease of installation, helping network administrators minimize downtime during hardware upgrades.

Networking Advantages of the Dell NH2K3 Line Card

Scalability

One of the major benefits of the Dell NH2K3 line card is its scalability. With 24 SFP Gigabit Ethernet ports, it allows businesses to expand their networks as needed. Whether you're adding additional servers, switches, or storage devices, this line card provides the ports and performance required to handle increased network demand without compromising speed or reliability.

High Availability and Reliability

The Dell NH2K3 is designed with high availability in mind, ensuring that businesses can maintain continuous operations without disruptions. Its robust engineering, combined with the reliability of Gigabit Ethernet, makes it ideal for environments where network uptime is critical. This line card supports fault tolerance mechanisms, such as link aggregation and load balancing, which help ensure that the network remains operational even if a single port or link experiences issues.

Flexible Connectivity Options

The use of SFP ports offers great flexibility in terms of connectivity. Network administrators can choose from a wide variety of SFP modules, such as 1000BASE-SX, 1000BASE-LX, and 1000BASE-T, to meet their specific network requirements. This modular approach enables businesses to tailor their network architecture based on distance, budget, and performance needs. Whether it's a short-distance fiber optic connection or a longer-distance network, the Dell NH2K3 can accommodate various SFP modules to provide optimal connectivity.

Compatibility with Dell Networking Solutions

The Dell NH2K3 line card is specifically engineered to work seamlessly with Dell Force10 series switches, making it an ideal choice for businesses that have already invested in Dell networking hardware. By integrating this line card into existing Force10 switches, organizations can expand their networks while maintaining consistency in terms of performance and compatibility.

Force10 Networking Solutions Overview

The Dell Force10 series of networking switches are known for their high performance and reliability. By combining the Force10 switches with the NH2K3 line card, businesses can create a robust and scalable network architecture capable of handling data-intensive applications, such as video conferencing, cloud computing, and large-scale file sharing. The integration of the NH2K3 line card into the Force10 series allows for high-bandwidth and low-latency communication, ensuring optimal network performance for critical applications.

Seamless Integration with Dell Networking Tools

In addition to hardware compatibility, the Dell NH2K3 integrates seamlessly with Dell’s suite of networking management tools. These tools, such as Dell OpenManage Network Manager and Dell Force10 network management software, allow network administrators to monitor, configure, and optimize their networks with ease. With these tools, businesses can ensure that their networks are operating efficiently and securely, reducing the risk of downtime and performance degradation.

Benefits of Using the Dell NH2K3 Line Card in Your Network

Enhanced Performance

One of the primary benefits of the Dell NH2K3 line card is its ability to significantly enhance the overall performance of a network. With 24 Gigabit Ethernet ports and support for a variety of SFP modules, it enables faster and more reliable data transfer across your entire network. This improvement in performance is especially beneficial for applications that require high-speed data communication, such as cloud-based services and virtualized environments.

Cost-Effective Network Expansion

As businesses grow, so do their network requirements. The Dell NH2K3 line card offers a cost-effective way to expand your network’s capabilities without needing to replace existing hardware. Its modular nature means that businesses can add additional SFP modules as needed, providing a flexible solution to network expansion without excessive upfront costs.

Future-Proofing Your Network

The Dell NH2K3 is designed to support the evolving needs of modern networks. By using SFP ports, which are widely adopted in the networking industry, this line card provides businesses with the ability to future-proof their network infrastructure. As network demands increase and new technologies emerge, the flexibility of the NH2K3 ensures that it can accommodate future upgrades without requiring a complete network overhaul.

Installation and Deployment of the Dell NH2K3 Line Card

Easy Installation Process

Installing the Dell NH2K3 line card is a straightforward process that can be performed by network administrators with minimal downtime. The card is designed to fit directly into compatible Force10 switches, and its internal form factor ensures that it can be easily integrated into the existing network architecture. Once installed, the line card can be configured using Dell’s network management software, making the setup process seamless and efficient.

Deployment in Various Network Environments

The Dell NH2K3 is versatile enough to be deployed in a wide range of network environments. Whether you're operating in a small to medium-sized business (SMB) environment or a large enterprise network, this line card offers the scalability and performance required to meet the unique needs of your organization. Its robust design and high-speed connectivity make it an ideal choice for both traditional data centers and more dynamic, cloud-based environments.

Support and Warranty for Dell NH2K3 Line Card

Comprehensive Support Options

Dell provides comprehensive support for its NH2K3 line card, ensuring that businesses have access to expert assistance if any issues arise during installation or operation. Support options include phone, email, and online resources, giving network administrators the flexibility to choose the most convenient method for receiving assistance.

Warranty Coverage

Like all Dell networking hardware, the NH2K3 line card is covered by a standard warranty that protects against manufacturing defects and hardware failures. Depending on the specific warranty plan chosen, businesses may also have access to advanced exchange services and extended support periods, providing additional peace of mind and reducing the risk of network downtime.

Summary of Dell NH2K3 Line Card Advantages

• 24 Gigabit Ethernet SFP ports for high-speed, reliable network connectivity
• Internal form factor for easy installation into compatible Force10 switches
• Scalable, cost-effective solution for expanding network infrastructure
• Supports various SFP
