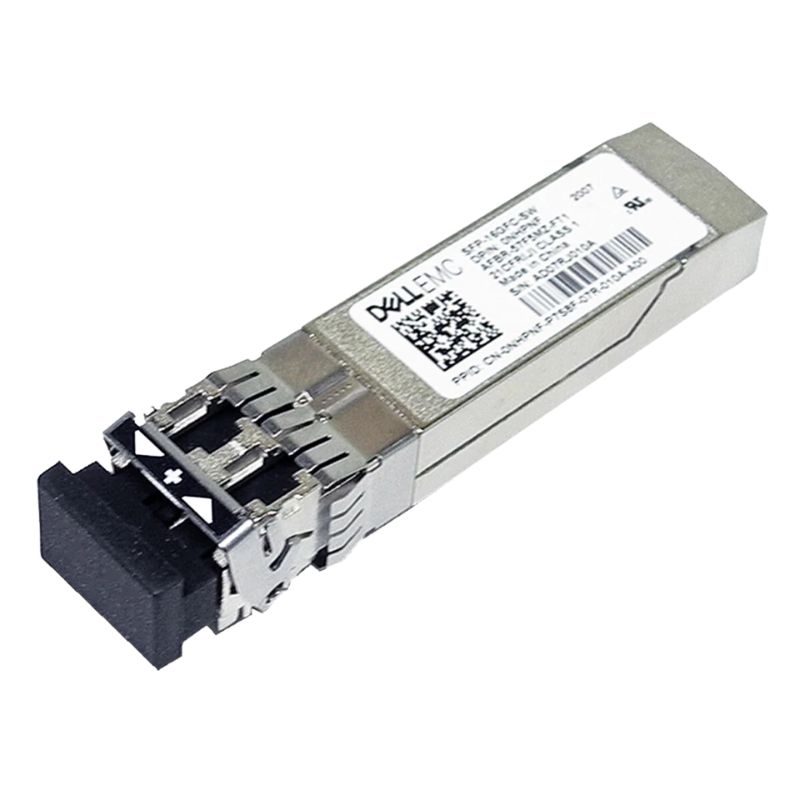

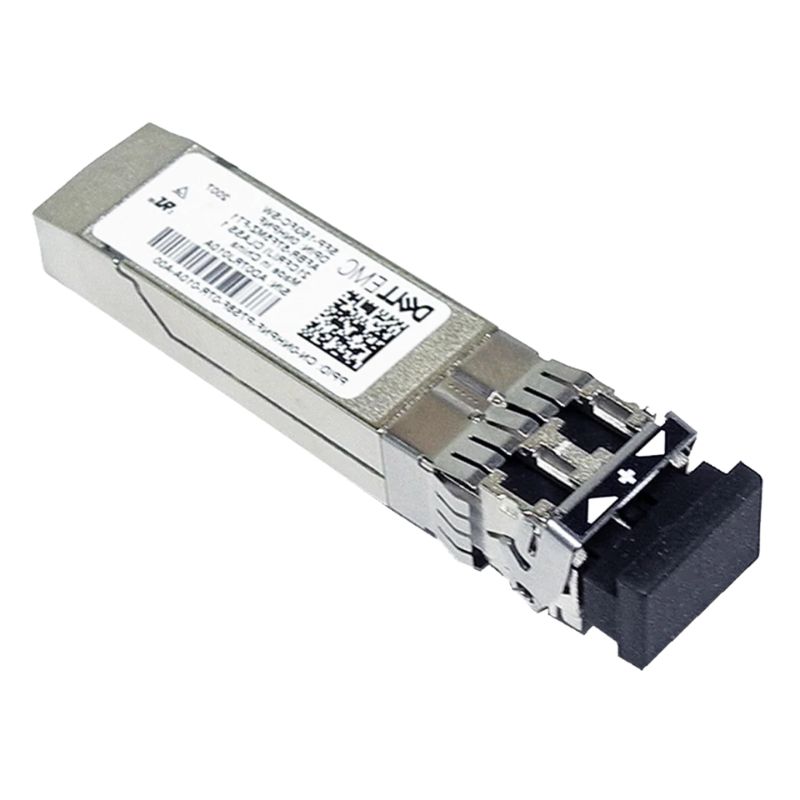

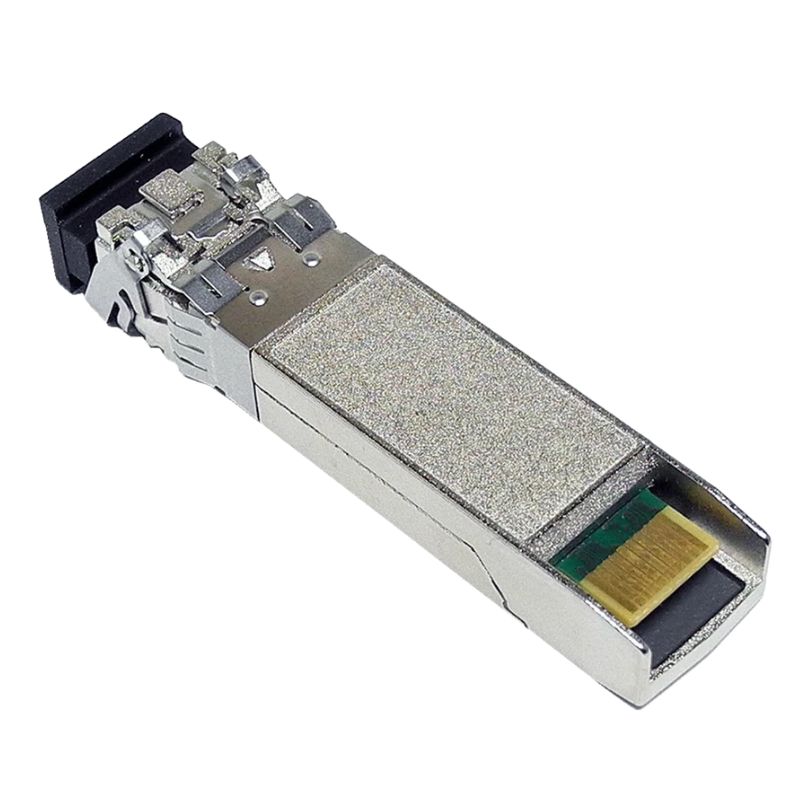

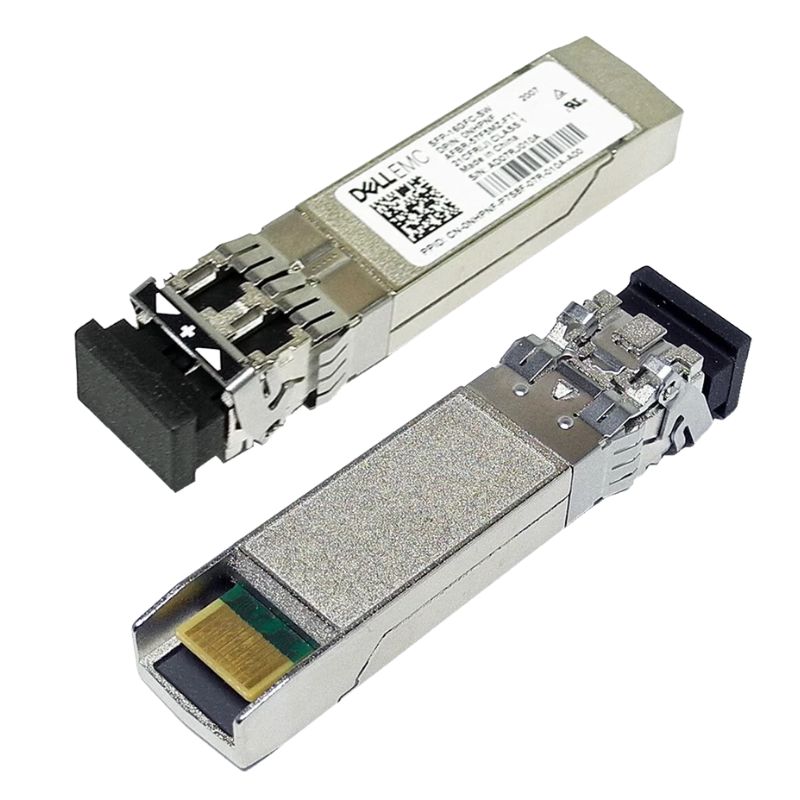

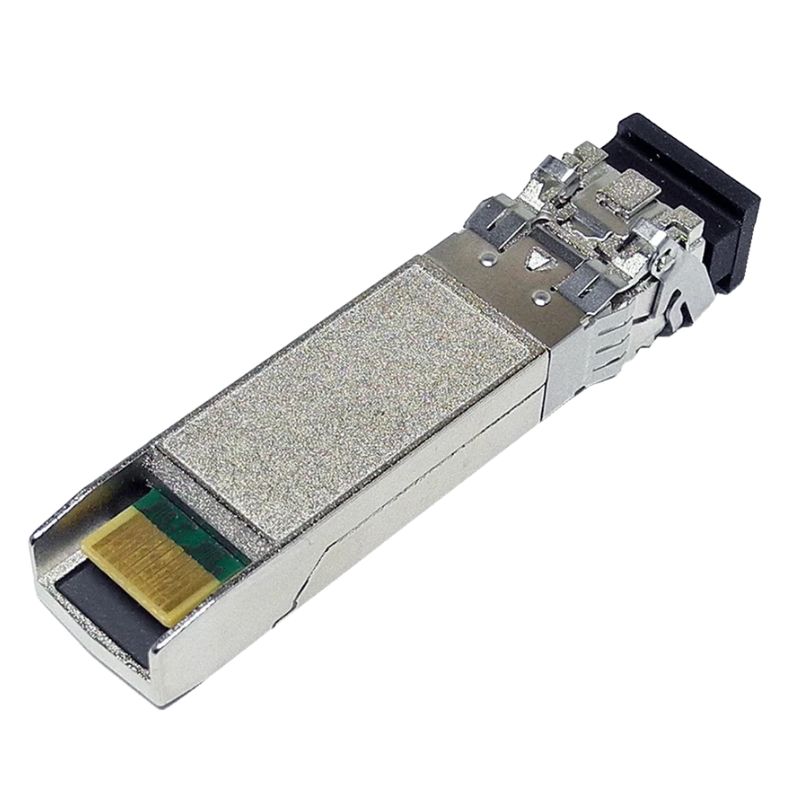

NKX77 Dell 16GB SFP+ Transceiver

Dell NKX77 16GB SFP+ Short-Wavelength Transceiver Overview

The Dell NKX77 16GB SFP+ FC Short-Wavelength Transceiver is engineered to deliver high-speed, low-latency Fibre Channel connectivity for modern data center storage infrastructures. Designed for seamless compatibility with enterprise-grade Fibre Channel switches and host bus adapters, this 16Gb FC SFP+ module supports short-wavelength optical transmission over multimode fiber, making it an ideal solution for storage area networks that demand consistent throughput, reliability, and scalability. As organizations continue to virtualize workloads and consolidate storage resources, dependable 16Gb Fibre Channel optics play a critical role in maintaining high-performance communication between servers and storage arrays.

High-Speed 16Gb Fibre Channel Performance

The 16Gb Fibre Channel standard represents a significant advancement in storage networking, offering improved bandwidth efficiency and reduced latency compared to previous generations. The Dell NKX77 SFP+ transceiver is optimized to operate at 14.025 Gbps, supporting 16G FC links while maintaining backward compatibility with 8G and 4G Fibre Channel environments. This flexibility ensures smooth integration into existing infrastructures without requiring a complete hardware overhaul.

With increasing data volumes generated by enterprise applications, databases, virtualization platforms, and analytics workloads, the demand for faster and more stable storage networking is higher than ever. A 16Gb FC SFP+ module such as the Dell NKX77 enables high-speed data transmission between servers and storage devices, minimizing bottlenecks and ensuring that mission-critical applications maintain optimal responsiveness.

Short-Wavelength Optical Technology

The short-wavelength design of the Dell NKX77 transceiver utilizes 850nm laser technology, optimized for multimode fiber cabling. This configuration supports reliable data transmission over OM3 and OM4 fiber, providing distances typically up to 100 meters on OM3 and up to 125 meters on OM4, depending on the environment and infrastructure quality. Short-wave optics are widely deployed within data centers where switches, directors, and storage arrays are located in close proximity.

Short-wavelength SFP+ modules are preferred in rack-to-rack and intra-data center connections because they offer a cost-effective and energy-efficient method of delivering high-speed Fibre Channel connectivity. The Dell NKX77 ensures signal integrity and minimal bit error rates, contributing to consistent storage performance across the network fabric.

Compatibility with Enterprise Storage Infrastructure

The Dell NKX77 16GB SFP+ FC transceiver is designed for interoperability with Dell Fibre Channel switches, storage arrays, and compatible third-party networking equipment that supports standard 16Gb SFP+ interfaces. Its hot-pluggable design allows IT administrators to install or replace the module without powering down the host system, minimizing downtime and maintaining operational continuity.

Integration with Dell PowerEdge Servers

When deployed within Dell PowerEdge servers equipped with Fibre Channel host bus adapters, the NKX77 SFP+ module enables high-performance SAN connectivity. This is particularly important in virtualized environments where multiple virtual machines rely on shared storage resources. The reliable throughput of 16Gb FC links ensures smooth data exchange between compute and storage layers.

Support for Dell Storage Arrays

Organizations utilizing Dell storage platforms such as PowerVault, Unity, or enterprise SAN arrays benefit from the optimized compatibility of the Dell NKX77 transceiver. By ensuring certified interoperability, businesses can maintain consistent firmware alignment and reduce the risk of connectivity issues often associated with non-qualified optical modules.

Optimized for Data Center Efficiency

Energy efficiency and thermal performance are critical considerations in modern data centers. The Dell NKX77 16Gb FC SFP+ module is engineered to operate within defined power consumption parameters, helping reduce overall energy usage in dense networking environments. Its compact SFP+ form factor allows high port density on Fibre Channel switches, enabling organizations to scale storage networks without expanding physical infrastructure.

Hot-Pluggable SFP+ Form Factor

The small form-factor pluggable plus design offers flexibility and ease of deployment. IT teams can quickly add, replace, or upgrade transceivers as network requirements evolve. The hot-swappable capability ensures that maintenance and expansion tasks can be completed with minimal disruption to active workloads.

Enhanced Port Density for SAN Fabrics

High-density Fibre Channel switches equipped with multiple SFP+ ports benefit from compact optical modules like the Dell NKX77. This design supports large-scale SAN fabrics where numerous server and storage connections must coexist within limited rack space. Efficient port utilization enables enterprises to maximize their networking investments while maintaining optimal airflow and cable management.

Reliability and Signal Integrity

Enterprise storage networks require stable and error-free data transmission. The Dell NKX77 16GB SFP+ FC Short-Wavelength Transceiver is manufactured to stringent quality standards to ensure dependable operation in demanding environments. With advanced digital diagnostics monitoring, administrators can track performance metrics such as optical output power, temperature, and voltage in real time.

Digital Diagnostic Monitoring Capabilities

Digital diagnostics provide valuable insight into the operational health of the transceiver. By monitoring parameters continuously, IT teams can proactively address potential issues before they impact production workloads. This capability contributes to improved uptime and reduces the likelihood of unexpected SAN disruptions.

Low Bit Error Rate for Critical Applications

Storage networks supporting transactional databases, enterprise resource planning systems, and virtualization clusters require minimal transmission errors. The Dell NKX77 SFP+ module is designed to maintain a low bit error rate, preserving data integrity during high-speed transfers. Reliable optical signaling ensures consistent communication between switches and storage controllers.

Use Cases in Enterprise SAN Environments

The Dell NKX77 16Gb FC SFP+ transceiver is ideally suited for a wide range of enterprise storage networking scenarios. From small business SAN deployments to large-scale data center fabrics, this optical module provides the performance and compatibility required for modern workloads.

Virtualized Data Centers

Virtualization platforms such as VMware and Hyper-V rely heavily on shared storage systems. High-throughput Fibre Channel connectivity ensures that multiple virtual machines can access storage simultaneously without performance degradation. The Dell NKX77 facilitates stable and high-speed connections that support dynamic virtual machine migration and high-availability configurations.

Database and Transaction Processing Systems

High-performance databases demand consistent, low-latency storage connectivity. A 16Gb Fibre Channel SFP+ transceiver ensures that transactional data flows smoothly between application servers and storage arrays. The reliability of the Dell NKX77 contributes to faster query processing and improved user experiences.

Backup and Disaster Recovery Infrastructure

Backup operations often involve transferring large volumes of data across the SAN. The bandwidth provided by 16Gb Fibre Channel technology reduces backup windows and accelerates replication processes. Deploying Dell-qualified optics like the NKX77 helps ensure dependable connectivity during critical data protection operations.

Key Details and Standards Compliance

The Dell NKX77 16GB SFP+ FC Short-Wavelength Transceiver adheres to industry-standard Fibre Channel protocols and SFP+ Multi-Source Agreement specifications. Compliance with these standards guarantees interoperability across certified devices and ensures consistent performance in heterogeneous networking environments.

Transmission Distance and Fiber Support

Optimized for multimode fiber, the Dell NKX77 supports OM3 and OM4 cabling infrastructures commonly deployed in data centers. Proper fiber selection and cable management practices contribute to achieving maximum supported distances and optimal signal strength.
