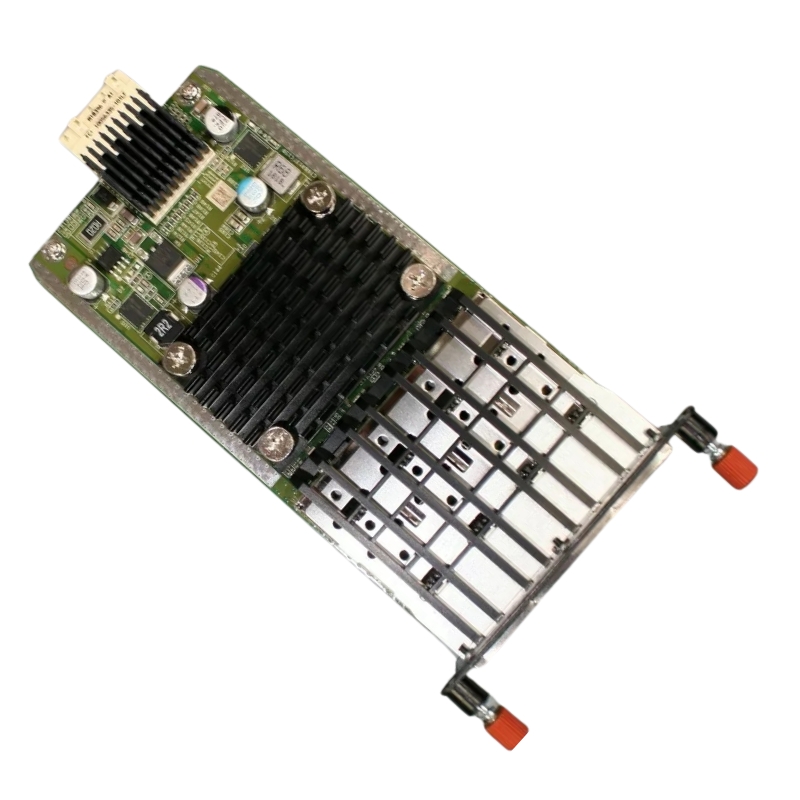

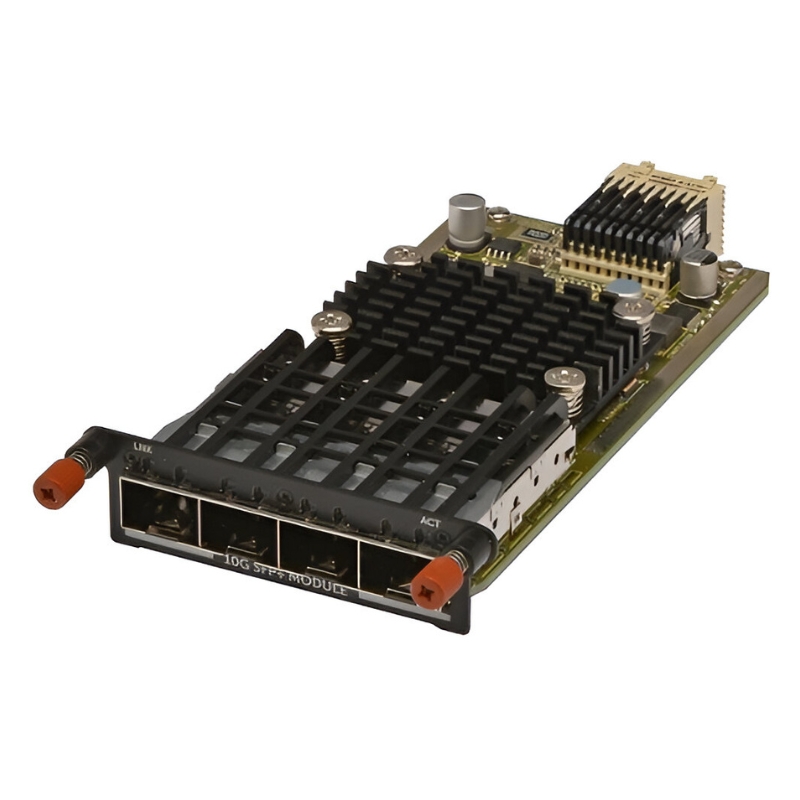

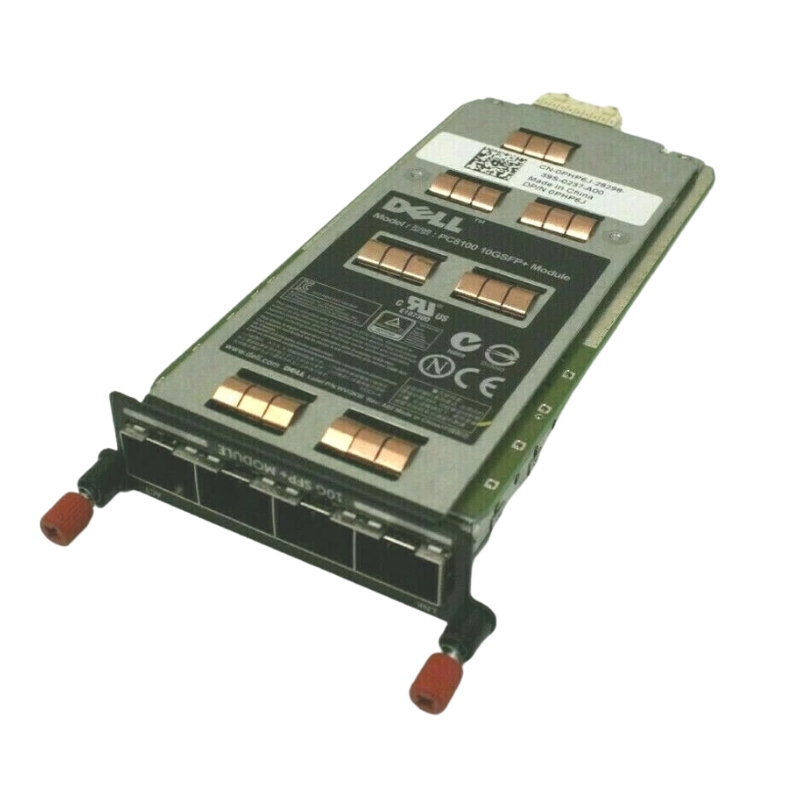

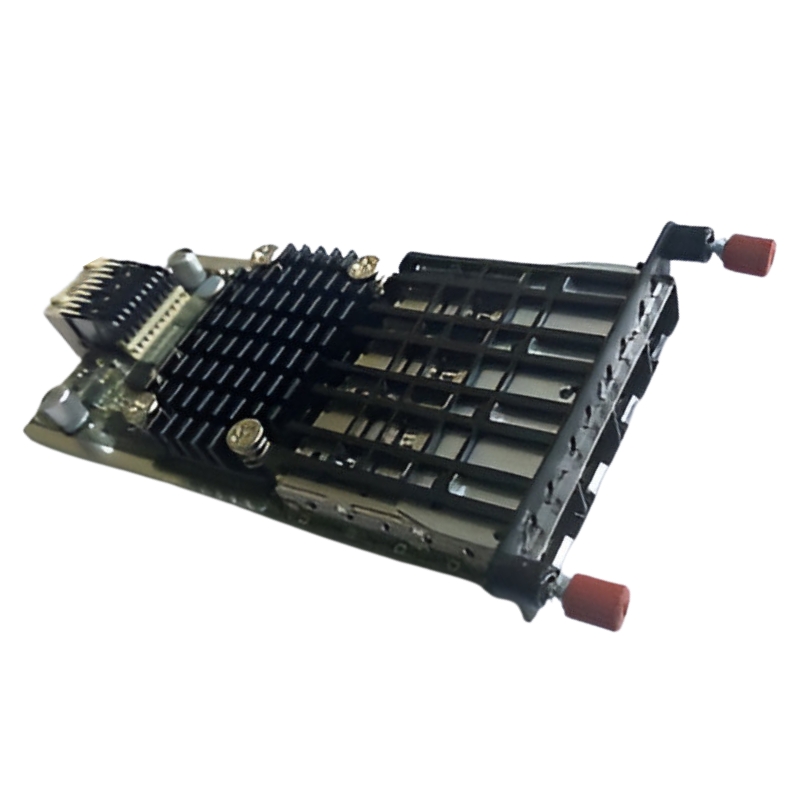

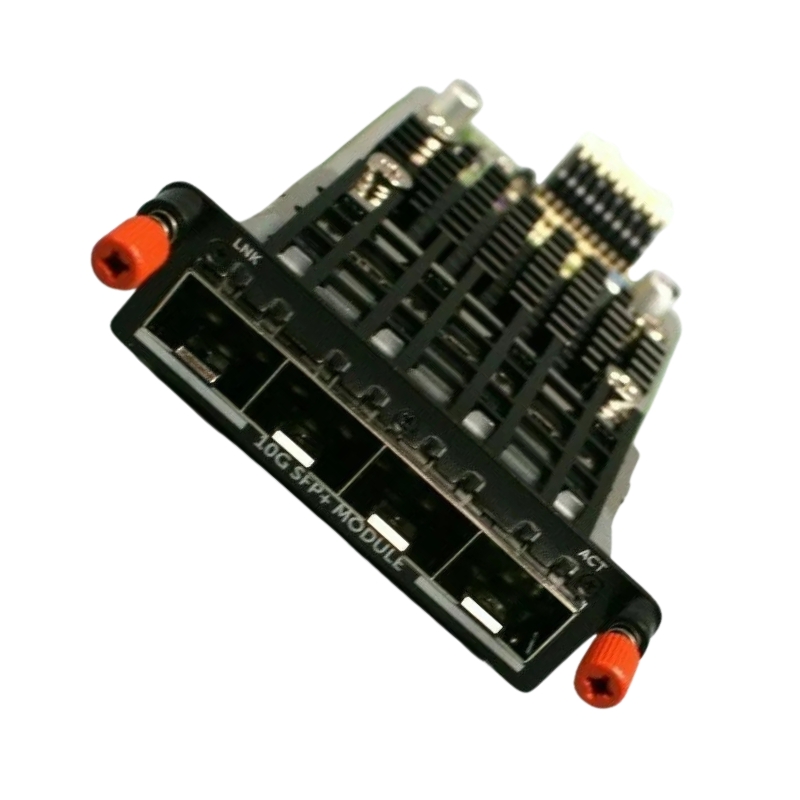

WVGKW Dell Powerconnect 81XX with N40XX SFP+ Expansion Module

Dell WVGKW PowerConnect 81XX SFP+ Expansion Module

High-Performance Network Expansion Solution

The Dell WVGKW PowerConnect 81XX Expansion Module is a high-speed networking upgrade component designed to enhance switch performance and scalability. Built for enterprise-grade environments, it delivers reliable 10 Gigabit Ethernet connectivity through SFP+ interfaces, making it an ideal choice for data-intensive operations.

Manufacturer & Part Information

• Brand: Dell
• Model / SKU: WVGKW
• Category: Network Expansion Module
• Module Type: 4-Port SFP+ Expansion Unit

Technical Specifications

Core Hardware Features

Performance Capabilities

• Form Factor: Plug-in expansion module
• Ports: 4 x 10 Gigabit SFP+
• Data Link Protocol: 10 Gigabit Ethernet (10GbE)
• Hot Swap Support: Yes, supports live replacement without downtime

Connectivity Interfaces

• 4 x 10Gb Ethernet SFP+ ports
• Designed for high-speed fiber uplinks and backbone connectivity

Compatibility Information

Supported Dell Networking Platforms

Optimized Device Integration

• Dell Force10 MXL Blade Switches
• Dell Networking C7008 Series
• Dell Networking N4032 and N4032F models
• Dell Networking N4064 and N4064F models
• Dell Networking N4000 Series switches

Verified Compatibility List

• Dell Networking N4064
• Dell Networking N4064F
• Dell Networking N4032F
• Full N4000 Series integration support

Deployment Benefits

Dell WVGKW Expansion Module

Network Efficiency Improvements

• Enhances overall switching throughput
• Reduces network congestion with high-speed uplinks
• Supports scalable infrastructure growth

Operational Flexibility

• Hot-swappable design minimizes downtime
• Easy plug-and-play installation process
• Ideal for enterprise and data center environments

Use Cases and Applications

Enterprise Networking Environments

• Data center backbone connectivity
• High-speed server aggregation
• Core-to-distribution layer uplinks
• Cloud infrastructure networking expansion

Dell WVGKW Networking N40XX SFP+ Expansion Module

The Dell WVGKW PowerConnect 81XX with Networking N40XX SFP+ Expansion Module category represents a specialized segment of enterprise-grade networking hardware designed to extend the functionality, scalability, and high-speed connectivity capabilities of Dell PowerConnect and Dell Networking switch ecosystems. This category focuses on modular expansion solutions that enhance backbone throughput, optimize uplink performance, and support high-density fiber connectivity in modern data center and enterprise switching environments. Within this category, administrators and network architects can integrate SFP+ expansion modules to increase port availability, improve bandwidth aggregation, and ensure seamless interoperability across high-performance switching fabrics.

Built to serve growing enterprise workloads, virtualization clusters, and cloud-driven infrastructure, these expansion modules are engineered to support demanding network traffic patterns while maintaining stability and low latency. The integration of SFP+ interfaces allows for flexible optical or direct-attach copper connectivity, making this category highly suitable for data centers, enterprise distribution layers, and core switching deployments.

Enterprise Networking Architecture and Expansion Capabilities

Scalable Modular Switching Infrastructure

The Dell PowerConnect 81XX series and Networking N40XX series are designed with modular scalability in mind, allowing organizations to expand their switching capabilities without replacing entire hardware systems. The inclusion of SFP+ expansion modules such as those in the WVGKW category enables seamless bandwidth upgrades, particularly in environments requiring 10 Gigabit Ethernet uplinks or aggregation links.

This modular approach significantly reduces infrastructure costs while maintaining future-proof network design principles. Instead of deploying entirely new switches, IT teams can install expansion modules that integrate directly into existing chassis-based systems, ensuring continuity of operations and reduced downtime.

Key Architectural Benefits

The architecture behind these expansion modules focuses on high availability, redundancy, and flexible port configuration. These benefits are essential in enterprise environments where uninterrupted connectivity is critical for business operations.

High Availability Integration

High availability is achieved through redundant uplink paths and failover mechanisms supported by the underlying switch architecture. Expansion modules enhance these capabilities by increasing the number of available high-speed interfaces.

Flexible Port Density

Port density flexibility allows organizations to adapt their network design based on workload requirements. Whether used in aggregation layers or core switching environments, SFP+ expansion modules provide the necessary scalability.

Technical Role of SFP+ Expansion Modules in Modern Networks

10 Gigabit Ethernet Performance Enhancement

SFP+ expansion modules are central to enabling 10 Gigabit Ethernet connectivity across enterprise switching environments. The Dell WVGKW-compatible modules enhance the ability of PowerConnect and N40XX systems to handle high-throughput applications such as virtualization, cloud storage replication, and large-scale data transfers.

By integrating fiber or direct-attach copper (DAC) transceivers, these modules support a wide range of deployment scenarios. This includes short-range intra-rack connections, inter-switch stacking, and long-distance fiber uplinks between data center racks or buildings.

Bandwidth Optimization Strategies

Bandwidth optimization is a core requirement in modern enterprise networking. These expansion modules allow for link aggregation (LACP), load balancing, and traffic segmentation to ensure efficient utilization of available network resources.

Link Aggregation Control Protocol (LACP)

LACP enables multiple SFP+ interfaces to be combined into a single logical channel, increasing throughput while providing redundancy in case of link failure. This is especially useful in high-demand environments such as virtualization clusters and storage networks.

Traffic Segmentation and VLAN Support

SFP+ expansion modules work in conjunction with VLAN architectures to segment traffic effectively. This improves security, reduces broadcast domains, and enhances overall network efficiency.

Hardware Design and Engineering Excellence

Robust Industrial-Grade Construction

The Dell WVGKW PowerConnect 81XX and Networking N40XX expansion modules are designed with enterprise reliability in mind. Built using industrial-grade components, these modules are engineered to withstand continuous operation in data center environments where uptime is a critical requirement.

Thermal efficiency, power optimization, and physical durability are key aspects of their design. These modules are typically hot-swappable, allowing administrators to install or replace them without shutting down the entire system.

Thermal Management Systems

Efficient thermal dissipation ensures that high-density networking components operate within safe temperature thresholds. Advanced airflow designs within compatible Dell switch chassis support consistent cooling across all installed modules.

Heat Dissipation Efficiency

The integration of passive cooling designs and chassis-level airflow optimization reduces overheating risks, ensuring long-term stability even under heavy traffic loads.

Power Efficiency Optimization

Energy-efficient operation is a key design consideration. These modules are engineered to consume minimal power while delivering maximum throughput, aligning with modern green data center initiatives.

Deployment Scenarios and Use Cases

Enterprise Data Centers

In enterprise data centers, the Dell WVGKW expansion modules are widely used to enhance core and aggregation layer switching capabilities. They enable seamless scaling of network infrastructure as organizations grow their compute and storage resources.

Cloud Infrastructure Environments

Cloud service environments rely heavily on high-speed interconnectivity between compute nodes, storage arrays, and virtualization hosts. SFP+ expansion modules ensure that these environments maintain low latency and high throughput.

Virtualization and Hyper-Converged Systems

Virtualized infrastructures demand consistent and predictable network performance. These modules support high-density VM environments by ensuring stable 10GbE connectivity across clustered nodes.

Campus Network Deployments

In large campus environments such as universities, corporate offices, and research facilities, these expansion modules enable backbone connectivity between buildings and departments. Their scalability makes them ideal for evolving network topologies.

Inter-Building Connectivity

Fiber-based SFP+ connections provide reliable long-distance communication between geographically separated network segments, ensuring seamless data exchange across campus infrastructures.

Edge-to-Core Integration

These modules facilitate efficient communication between edge switches and core switching infrastructure, reducing latency and improving overall network performance.

Compatibility with Dell Networking Ecosystem

Integration with PowerConnect 81XX Series

The PowerConnect 81XX series is designed to support high-performance modular expansion, and the WVGKW SFP+ modules integrate seamlessly into this ecosystem. This ensures consistent performance and simplified management through Dell’s unified network interface systems.

Networking N40XX Series Support

The Networking N40XX series benefits from enhanced uplink capabilities when paired with SFP+ expansion modules. This allows organizations to extend the lifespan and functionality of existing switching hardware.

Unified Management Interface

Dell networking devices typically offer centralized management features, allowing administrators to configure, monitor, and optimize expansion modules from a single interface.

Firmware and Software Compatibility

Proper firmware synchronization ensures that expansion modules operate efficiently within the broader switch architecture, reducing compatibility issues and improving system stability.
