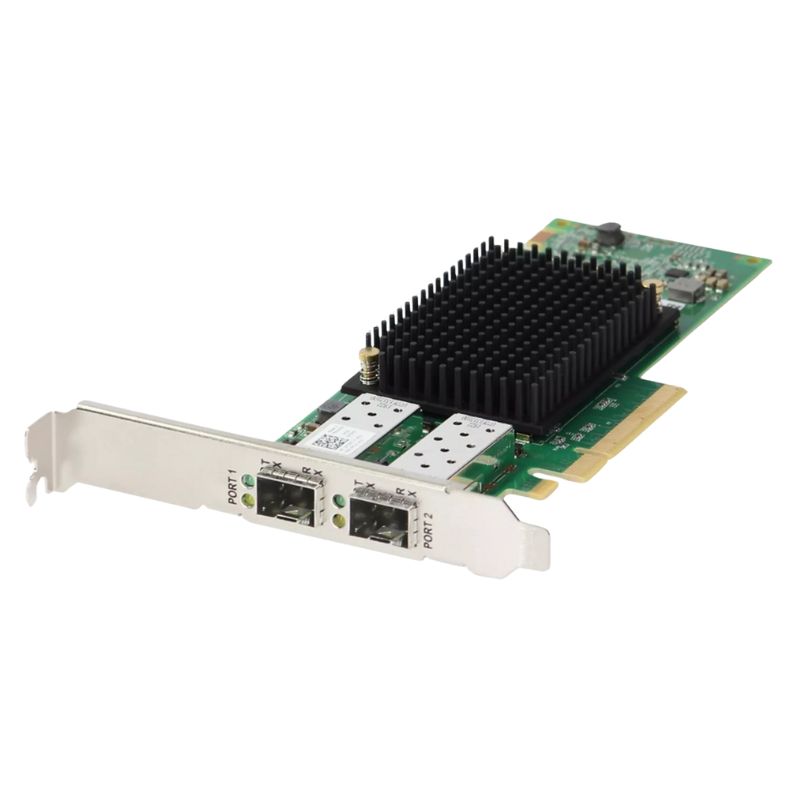

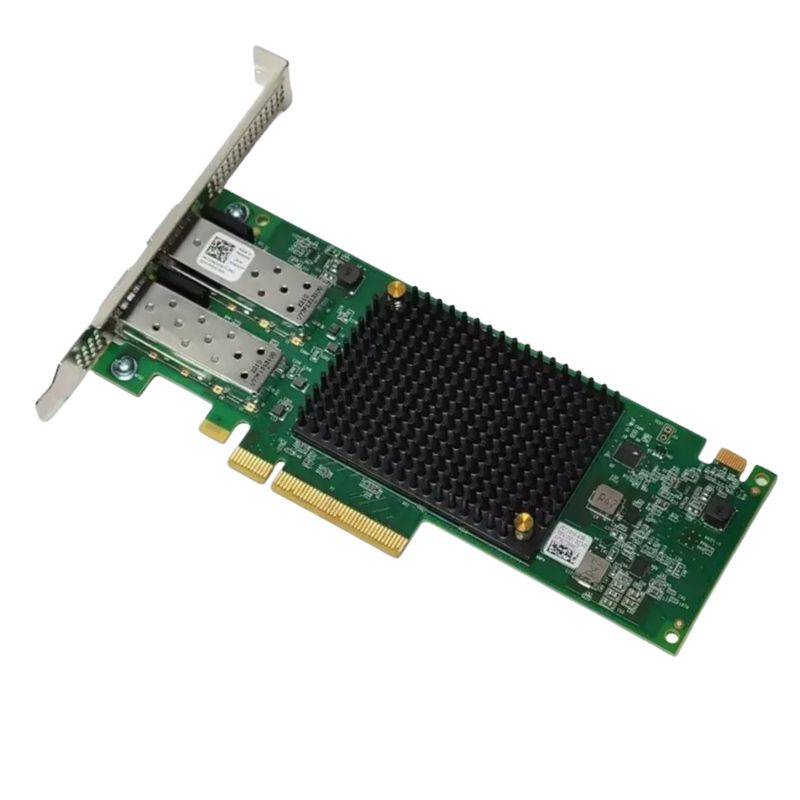

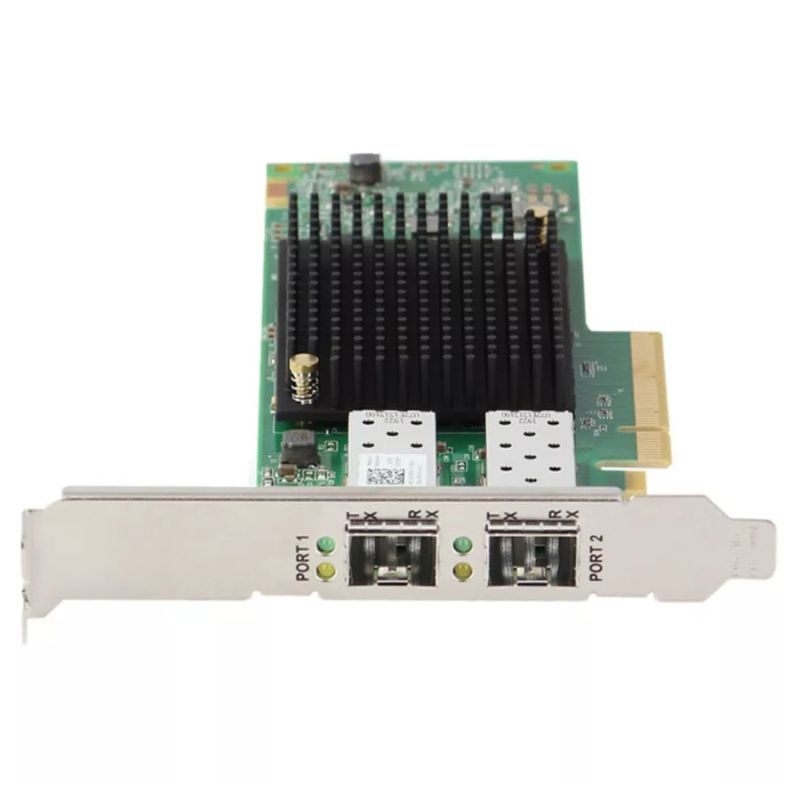

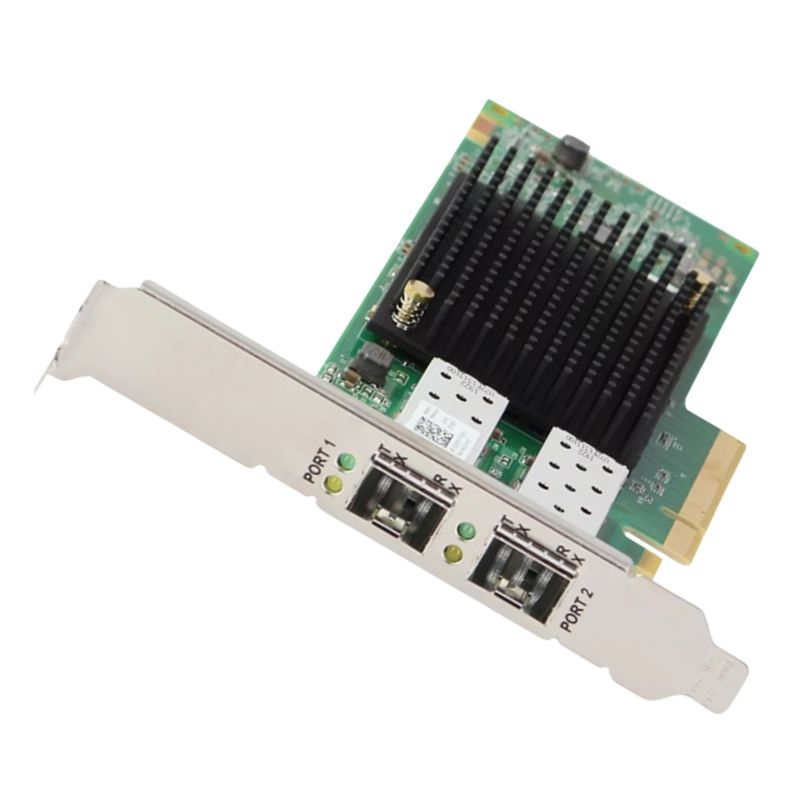

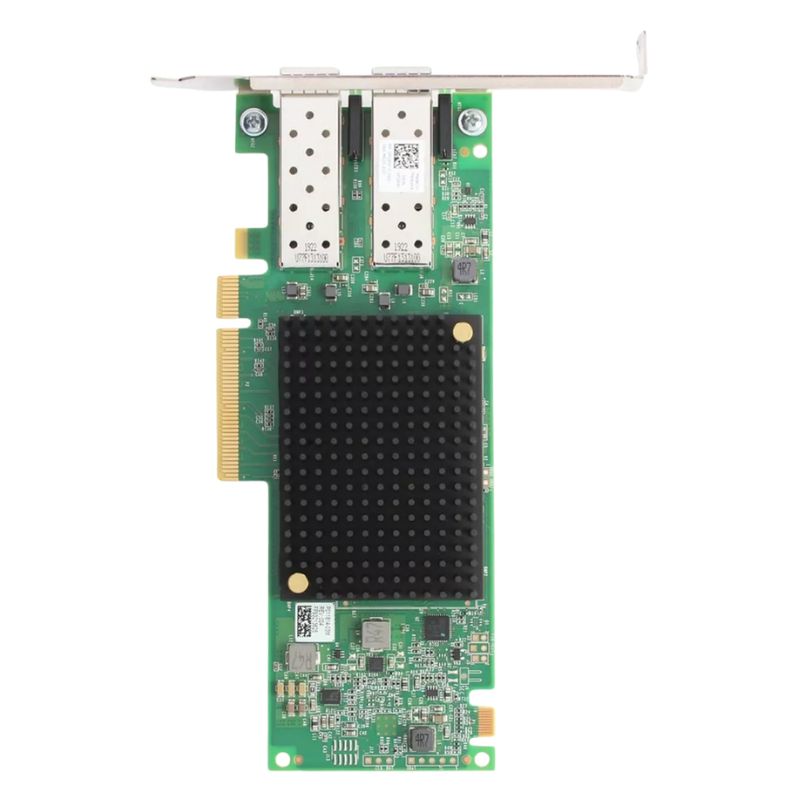

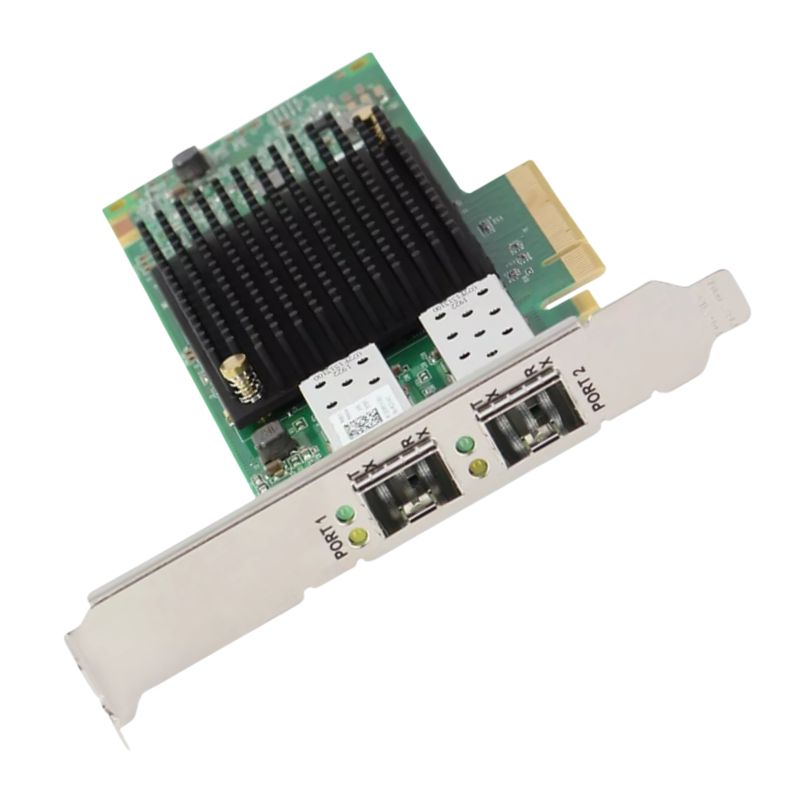

Dell PPGK2 Emulex 2 Port 64GFC SFP+ Host Bus Adapter.

PPGK2
Hover on image to enlarge

Brief Overview of PPGK2

Dell PPGK2 2 Port 64GFC Emulex Short Wave Optical LC SFP+ Host Bus Adapter. New (System) Pull with 1 Year Warranty

QR Code of Dell PPGK2 Emulex 2 Port 64GFC SFP+ Host Bus Adapter.
$2,176.20
$1,612.00
You save: $564.20 (26%)
Ask a question
Price in points: 1612 points
+
Quote
SKU/MPNPPGK2Availability✅ In StockProcessing TimeUsually ships same day ManufacturerDell Manufacturer Warranty1 Year Warranty Original Brand Product/Item ConditionNew (System) Pull ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Overview of the Dell PPGK2 Host Bus Adapter

General Information

  • Brand: Dell
  • Part Number: PPGK2
  • Product Type: Host Bus Adapter

Compact Design

  • Short, low-profile PCIe card measuring 167.64mm x 68.91mm (6.60 x 2.71 inches).

High-Performance Ports

  • Equipped with two high-speed ports.
  • Supports ECD cables ranging from 0.5m to 100m on 50/125 μm OM4 and OM5 MMF at 64GFC/32GFC.
  • Compatibility with single-mode fiber for up to 10 km when using Emulex-approved longwave transceivers.

Advanced Compatibility

Operating System Support

  • Supports major operating systems, including Microsoft Windows, Oracle Linux (with UEK), Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere, and OpenEuler.
  • Additional support from OEMs and partners.

Hardware Environment

  • Compatible with AMD and Intel x64/x86 architectures, ARMv8 64-bit, and PowerPC systems.

Networking and Standards

Industry Standards Compliance

  • Adheres to numerous standards, including FC-DA, FC-FS, FC-GS-7, FC-NVMe, and SPC-4, ensuring wide applicability.

Optical Data Rates

  • Automatically detects rates including 64GFC (28.9 Gbaud PAM4), 32GFC (28.05 Gbaud NRZ), and 16GFC (14.025 Gbaud NRZ).

Environmental Durability

Temperature and Humidity Tolerance

  • Operating temperature range: 0°C to 55°C.
  • Storage temperature range: -20°C to 85°C (-4°F to 185°F).
  • Humidity: 5% to 95% non-condensing.

Regulatory Certifications

  • Meets international certifications, including CE Mark, UKCA Mark, FCC Class A, and more.
  • Compliant with global RoHS standards.

Optimized Performance

Host Bus Type

  • Utilizes PCIe Gen4 x8 for enhanced connectivity and speed.

I/O Controller

  • Features the advanced XE601 controller for seamless operations.

Enhanced Applications

Support for Modern Technologies

  • Ideal for high-performance storage solutions like NVMe all-flash arrays.
  • Enhances storage area networks (SANs) with low latency and improved throughput.

Scalability for Growing Enterprises

  • Designed for servers with hundreds of processor cores to handle large-scale applications.

Dell PPGK2 2 Port 64GFC Emulex Short Wave Optical LC SFP+ Host Bus Adapter Overview

The Dell PPGK2 2 Port 64GFC Emulex Short Wave Optical LC SFP+ Host Bus Adapter (HBA) is an advanced connectivity solution tailored for high-performance storage networks. Its cutting-edge features enable robust, high-speed data transfers, making it an indispensable component for enterprise-level storage area networks (SANs). This host bus adapter supports scalable architectures, meeting the rigorous demands of data centers and cloud infrastructures.

Key Features and Specifications

Equipped with state-of-the-art technology, the Dell PPGK2 offers an unparalleled combination of speed, reliability, and efficiency. Below is an in-depth look at its standout features:

High-Speed Connectivity

  • 64GFC Speed: Ensures fast and reliable data transmission rates, ideal for resource-intensive applications.
  • Dual Port Design: Provides redundancy and enhanced throughput for uninterrupted operations.

Optical Interface

  • Short Wave Optical Connectivity: Optimized for intra-data center environments, supporting connections over short distances with superior performance.
  • LC SFP+ Modules: Ensure efficient and cost-effective connections for fiber optic networks.

Compatibility

  • Broad OS Support: Compatible with major operating systems like Windows, Linux, and VMware.
  • Seamless Integration: Designed to integrate smoothly into Dell servers and storage systems.

Benefits of the Dell PPGK2 Host Bus Adapter

Organizations leveraging the Dell PPGK2 HBA gain numerous operational advantages, which contribute to enhanced productivity and reduced downtime. Some key benefits include:

Enhanced Performance

The high-speed connectivity of the Dell PPGK2 ensures minimal latency and maximum throughput, making it ideal for environments running demanding applications such as database management, virtualization, and high-performance computing (HPC).

Improved Scalability

With dual-port functionality and advanced configuration capabilities, this HBA supports growing data center requirements. Its scalability allows businesses to adapt their infrastructure to evolving workload demands efficiently.

Energy Efficiency

The Dell PPGK2 utilizes power-saving technologies, reducing overall energy consumption without compromising performance, which is critical for eco-conscious enterprises.

Applications of the Dell PPGK2 in Storage Networks

The Dell PPGK2 2 Port 64GFC HBA serves a variety of enterprise-level applications. Its versatility ensures compatibility with modern IT environments and SAN architectures.

Data Center Integration

This HBA is designed for seamless deployment in data centers, where its high-speed performance and low latency capabilities are essential for managing complex workloads.

Virtualization Environments

With support for VMware and other hypervisors, the Dell PPGK2 facilitates efficient resource allocation and management in virtualized environments. It supports multiple virtual machines with minimal performance degradation.

Database and Analytics

The high throughput of this adapter ensures smooth operations for data-intensive applications, including database management systems (DBMS) and big data analytics tools.

Cloud Storage Solutions

Cloud infrastructures benefit significantly from the reliability and speed offered by the Dell PPGK2. It enhances connectivity between cloud servers and storage nodes, ensuring seamless data transfer and accessibility.

Technical Details of the Dell PPGK2 Host Bus Adapter

Understanding the technical specifications of the Dell PPGK2 is crucial for IT professionals tasked with infrastructure planning and deployment. Below are the core technical details:

Interface and Protocol Support

  • Fiber Channel Protocol: Supports 64GFC standards for reliable and high-speed data transmission.
  • Dual Ports: Allows simultaneous connections, ensuring maximum efficiency and failover protection.

Form Factor and Build

  • Low-Profile Design: Fits easily into compact server bays, optimizing space utilization.
  • Durable Build: Engineered for long-term reliability in demanding environments.

Advanced Features

  • Error Correction: Ensures data integrity during transmission with advanced error-detection and correction protocols.
  • Dynamic Load Balancing: Optimizes data flow to prevent bottlenecks and improve network efficiency.

Maintenance and Support for the Dell PPGK2 HBA

Proper maintenance and reliable support are essential to ensure the longevity and performance of the Dell PPGK2 HBA.

Firmware Updates

Regular firmware updates from Dell ensure that the HBA remains compatible with the latest technologies and security protocols. IT administrators can easily apply these updates using Dell’s management tools.

Diagnostic Tools

Built-in diagnostic capabilities enable quick identification and resolution of issues, minimizing downtime and enhancing reliability.

Proactive Monitoring

IT teams can leverage proactive monitoring features to track performance metrics and address potential issues before they impact operations.

Technical Support

Dell offers comprehensive technical support for the PPGK2, including troubleshooting assistance, warranty services, and access to a dedicated support team.

Future-Proof Investment

As storage demands grow, the Dell PPGK2’s ability to support evolving technologies ensures it remains a valuable asset for years to come. Its compatibility with emerging protocols and data center architectures makes it a future-proof investment.

Optimized Total Cost of Ownership

The energy efficiency and robust performance of the Dell PPGK2 contribute to a lower total cost of ownership (TCO), making it a cost-effective solution for enterprises of all sizes.
