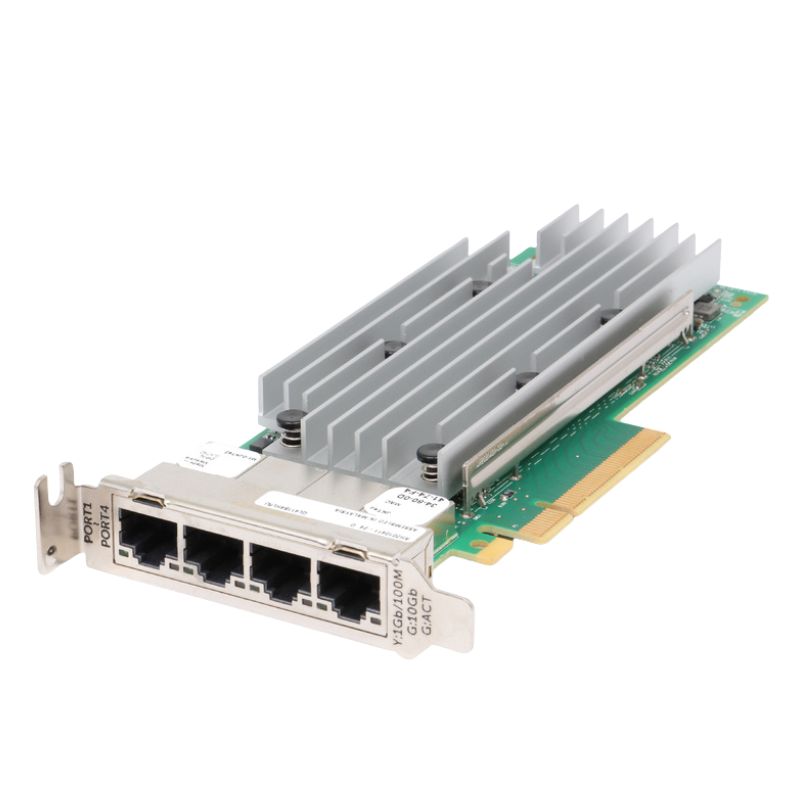

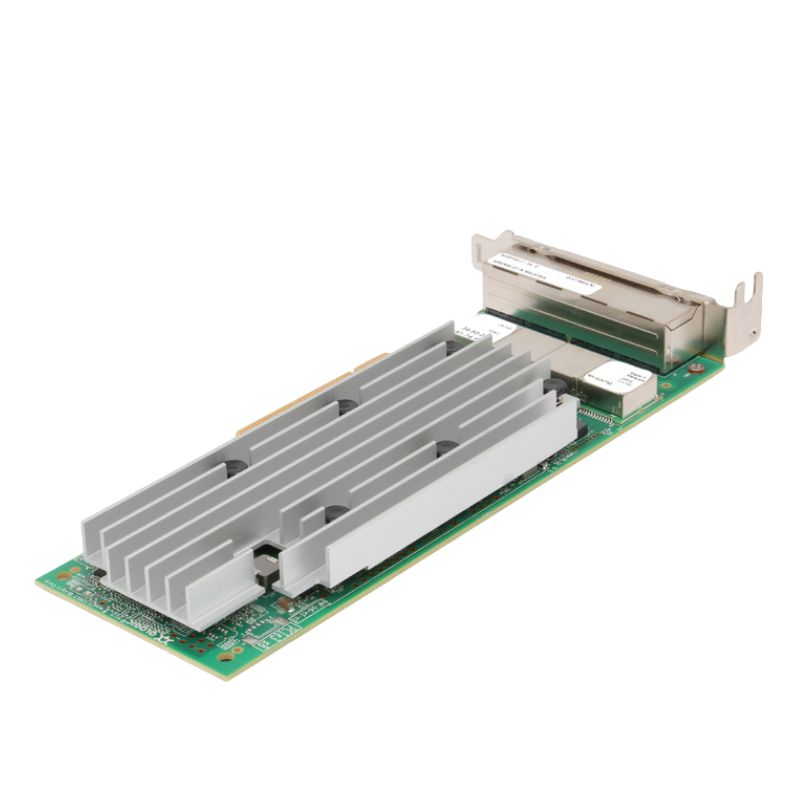

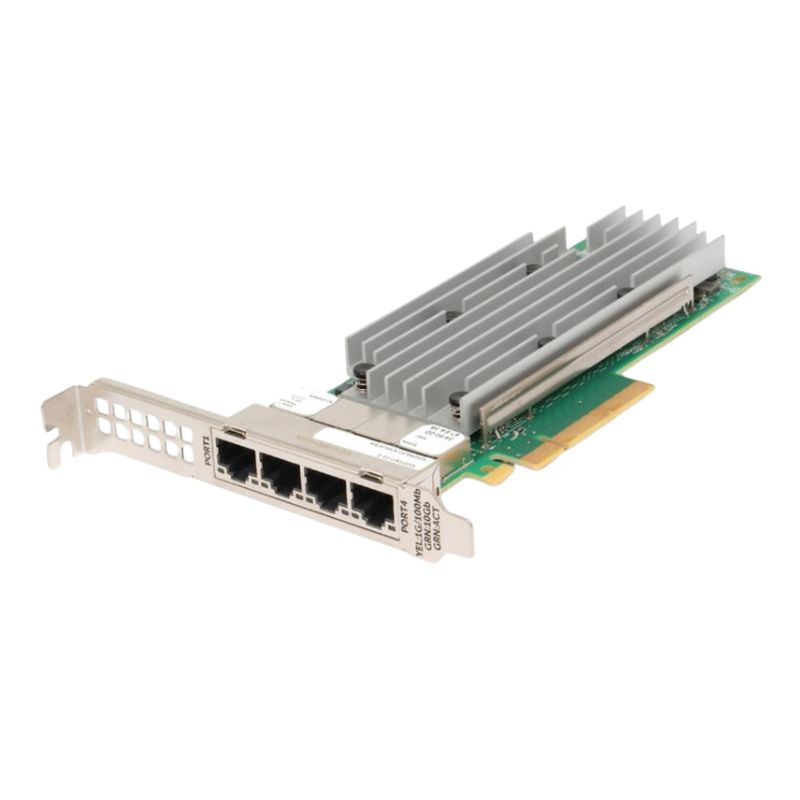

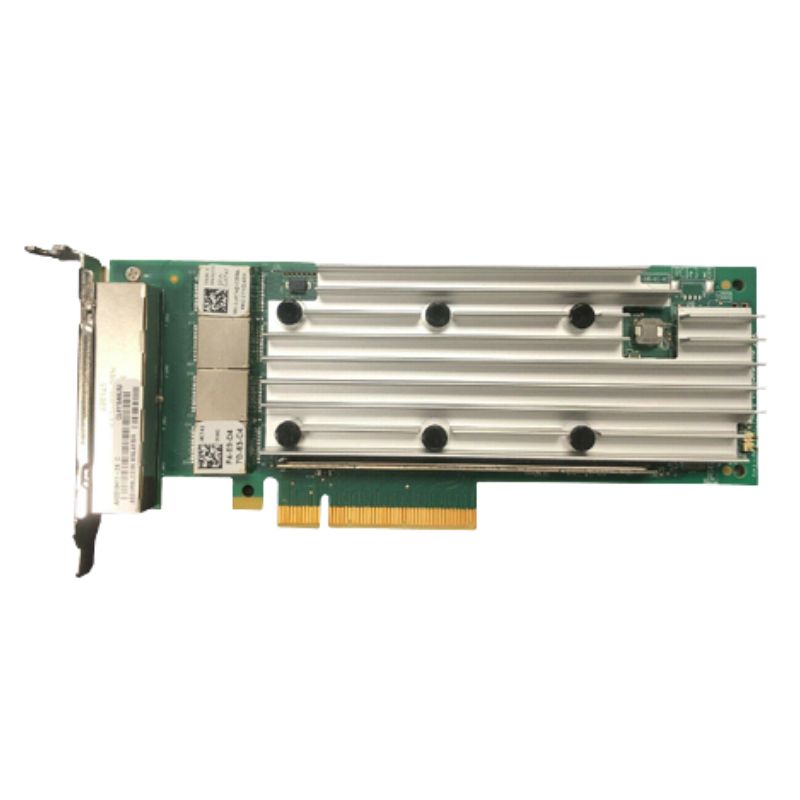

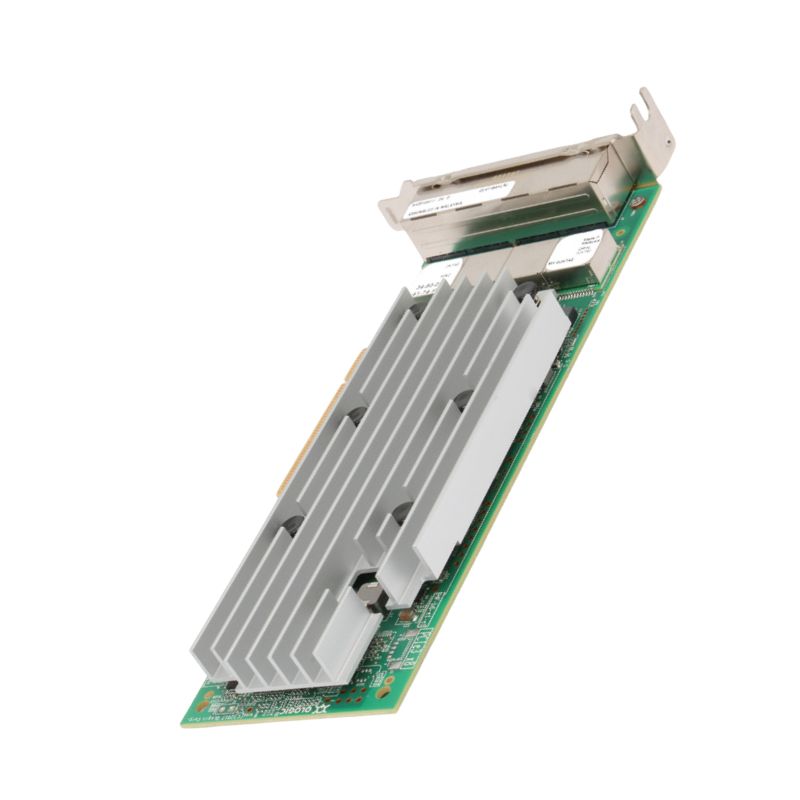

540-BCHC Dell QL41164HLRJ RJ-45 10Gbps PCI-E 4-Port Network Adapter

Dell 540-BCHC 10GbE 4-Ports PCI-E Network Adapter Overview

High-Performance Enterprise Networking Solution

The Dell 540-BCHC network interface card is a powerful 10 Gigabit Ethernet adapter engineered for enterprise-grade workloads. Built with QLogic QL41164HLRJ technology, it delivers ultra-fast wired connectivity, making it ideal for data centers, virtualization environments, and high-throughput server infrastructures.

Core Product Highlights

• Manufacturer: Dell
• Part Number / SKU: 540-BCHC
• Product Category: Network Interface Card (NIC)
• Port Configuration: Quad-port (4 Ports)
• Interface Standard: PCI Express (PCIe)

Technical Specifications and Performance

Connectivity and Interface

• Bus Interface: PCI Express for high-speed data handling
• Network Technology: Wired Ethernet connection
• Cabling Standard: 10GBASE-T Ethernet

Speed and Data Transmission

• Data Transfer Rate: Up to 10 Gbps per port
• Protocol Support: 10 Gigabit Ethernet networking standard
• Total Ports: 4 independent high-speed Ethernet channels

Advanced Networking Capabilities

This adapter is designed to handle heavy workloads with stable throughput and low latency, making it suitable for virtualization clusters, cloud computing systems, and enterprise storage networks.

System Compatibility and Supported Servers

Optimized for Dell EMC PowerEdge Series

• PowerEdge C6420
• PowerEdge R440, R540
• PowerEdge R640, R650
• PowerEdge R740, R740xd, R740xd2
• PowerEdge R7415, R7425
• PowerEdge R750, R750xa
• PowerEdge R840
• PowerEdge R940, R940xa

Storage System Compatibility

• Dell EMC Powervault Nx3240
• Dell EMC Storage Nx3240 series integration support

Dell 540-BCHC 10Gbps 4-Port Network Adapter

The Dell 540-BCHC QLogic QL41164HLRJ RJ-45 10Gbps PCI-E 4-Port Network Adapter represents a high-performance networking solution engineered for modern enterprise infrastructures, data centers, virtualization environments, and cloud computing deployments. Built on advanced QLogic networking technology and integrated within Dell’s enterprise hardware ecosystem, this adapter delivers exceptional throughput, low latency communication, and reliable multi-port connectivity designed to support demanding workloads. As organizations increasingly rely on high-bandwidth applications such as virtualization clusters, big data processing, storage replication, and real-time analytics, the need for scalable and stable network interface solutions becomes critical. This adapter addresses those requirements with a robust 4-port RJ-45 10GbE configuration, offering both flexibility and performance optimization for mission-critical systems.

Core Architecture and Design of QLogic QL41164HLRJ Network Adapter

Advanced QLogic Controller Technology

At the heart of the Dell 540-BCHC network adapter lies the QLogic QL41164HLRJ controller architecture, which is designed to optimize packet processing efficiency while reducing CPU overhead. The controller is engineered to handle high-volume data transfers with intelligent offloading capabilities, ensuring that server resources remain available for application-level tasks rather than being consumed by networking operations. This architecture supports multi-queue processing, enabling parallel handling of network traffic streams and improving overall system responsiveness in multi-threaded environments.

PCI Express Interface Integration

The adapter utilizes a PCI Express (PCI-E) interface, which provides a high-speed data pathway between the network card and the server motherboard. This ensures that the 10Gbps per port capability is fully utilized without bottlenecking at the system bus level. The PCI-E architecture also enhances scalability, allowing the adapter to function efficiently in enterprise servers where multiple high-throughput devices operate simultaneously. The optimized lane distribution ensures stable performance under sustained workloads such as virtualization clusters and database replication systems.

RJ-45 Copper Connectivity for 10GbE Networks

One of the key advantages of the Dell 540-BCHC adapter is its RJ-45 copper interface support, which allows organizations to leverage existing Cat6a or Cat7 cabling infrastructure while upgrading to 10GbE speeds. This eliminates the need for expensive fiber upgrades in many environments, making it a cost-effective solution for network scaling. The RJ-45 ports are engineered for signal integrity and reduced crosstalk, ensuring stable performance even in dense rack environments where multiple cables are routed closely together.

Performance Capabilities of Dell 540-BCHC 10Gbps Network Adapter

High Throughput and Low Latency Processing

The Dell 540-BCHC network adapter is optimized for high throughput environments where consistent data flow is essential. Each of its four 10Gbps ports operates independently, allowing aggregated bandwidth potential that significantly enhances server networking capacity. Low latency packet processing ensures minimal delay in data transmission, which is particularly important for latency-sensitive applications such as financial trading platforms, real-time analytics engines, and high-performance computing clusters.

Multi-Port Load Balancing and Aggregation

With four independent RJ-45 ports, the adapter supports advanced load balancing techniques and link aggregation protocols such as LACP. This allows administrators to combine multiple network interfaces into a single logical channel, improving redundancy and increasing total available bandwidth. In enterprise environments, this feature ensures uninterrupted network service even if one port experiences degradation or failure, enhancing overall system resilience.

Hardware Offloading Features

To reduce CPU utilization and improve system efficiency, the adapter includes hardware-based offloading capabilities such as TCP/IP segmentation offload (TSO), large send offload (LSO), and checksum offloading. These features allow the network adapter to handle repetitive processing tasks directly, freeing system resources for application workloads. This is especially beneficial in virtualized environments where multiple virtual machines share the same physical hardware.

Enterprise Use Cases for Dell 540-BCHC QLogic Network Adapter

Data Center Networking Infrastructure

In modern data centers, the demand for high-speed, reliable, and scalable network connectivity is continuously increasing. The Dell 540-BCHC adapter is designed to meet these demands by providing 10GbE connectivity across multiple ports, enabling efficient communication between servers, storage arrays, and virtualization clusters. Its robust architecture supports heavy workloads such as cloud hosting, SaaS platforms, and large-scale distributed applications.

Virtualization and Cloud Computing Environments

Virtualization platforms such as VMware ESXi, Microsoft Hyper-V, and KVM require stable and high-bandwidth network interfaces to manage virtual machine traffic effectively. The Dell 540-BCHC adapter enhances virtual machine performance by supporting SR-IOV (Single Root Input/Output Virtualization), allowing direct assignment of network resources to virtual instances. This reduces latency and improves throughput in cloud computing environments where multiple tenants share physical infrastructure.

High-Performance Computing (HPC) Systems

High-performance computing systems depend on rapid data exchange between compute nodes. The adapter’s 10Gbps per port capability ensures that data-intensive simulations, scientific computations, and machine learning workloads can operate without network-induced bottlenecks. The multi-port configuration further enables parallel data streams, improving cluster efficiency and computation speed.

Storage Networking and iSCSI Optimization

In storage-centric environments, the adapter plays a critical role in iSCSI SAN connectivity and NAS systems. Its ability to handle large data transfers with minimal latency ensures that storage replication, backup operations, and real-time data synchronization occur efficiently. This makes it suitable for enterprise backup solutions, disaster recovery systems, and hybrid storage architectures.

Technical Specifications and Functional Capabilities

Network Speed and Bandwidth

Each port on the Dell 540-BCHC QLogic QL41164HLRJ adapter supports up to 10Gbps Ethernet speed, providing a total potential aggregated bandwidth of up to 40Gbps across four ports. This ensures seamless handling of simultaneous network operations, reducing congestion and improving overall system performance in high-demand environments.

Supported Network Standards

The adapter supports multiple Ethernet standards, including backward compatibility with 1GbE and 100Mbps networks. This ensures smooth integration into existing infrastructure without requiring immediate full-scale upgrades. It also supports advanced networking protocols that enhance data integrity and transmission efficiency.

Power Efficiency and Thermal Management

Designed with energy efficiency in mind, the adapter incorporates power optimization features that reduce energy consumption during low network utilization periods. Advanced thermal design ensures that the adapter maintains optimal operating temperatures even under sustained high-load conditions, reducing the risk of performance throttling or hardware failure.
