HJ3FX Dell Ql41232 2 Port 10/25gb Mezzanine Adapter

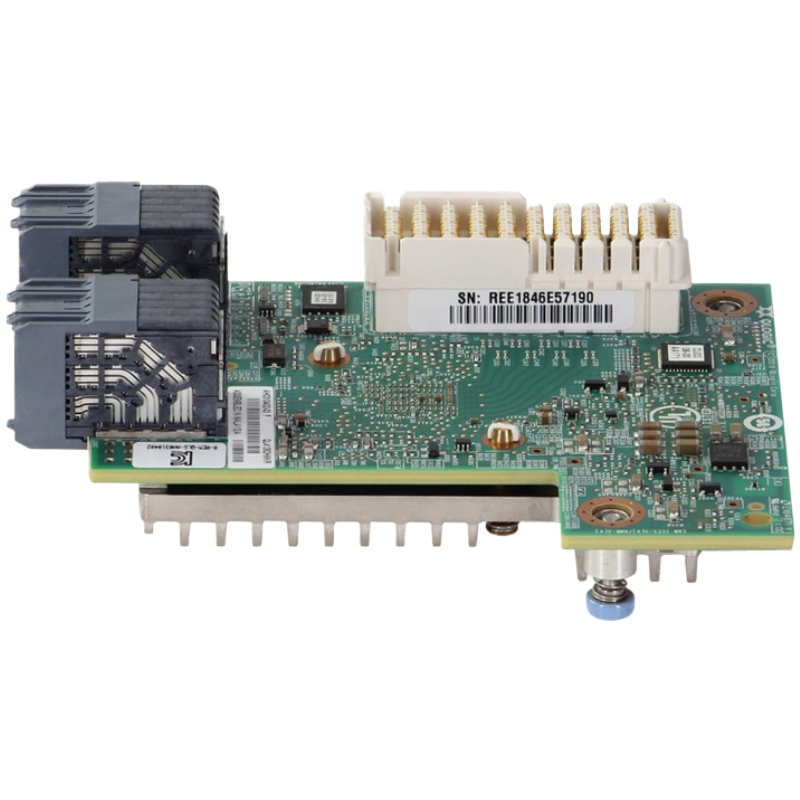

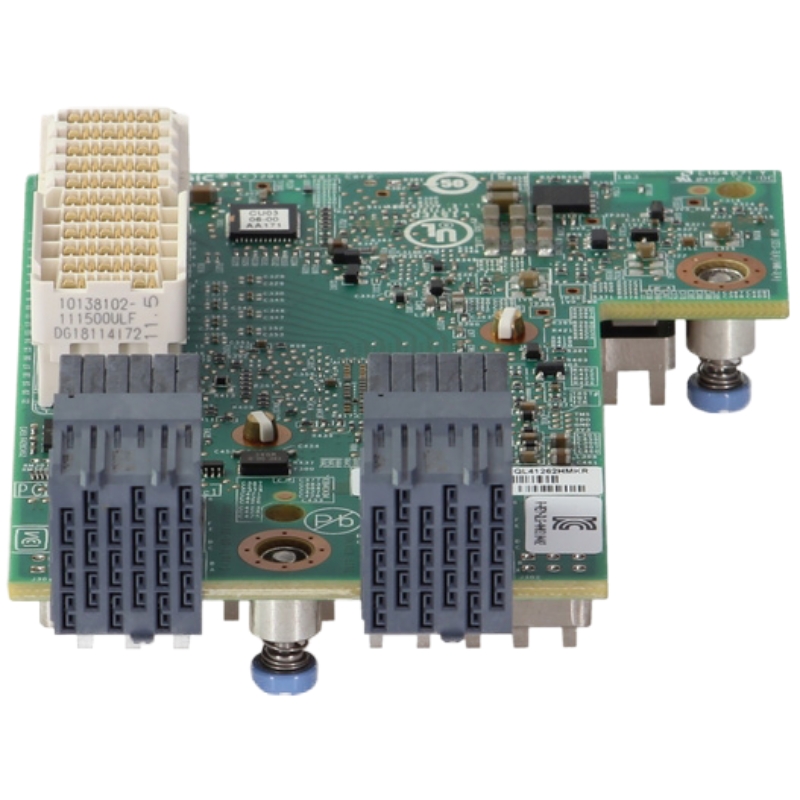

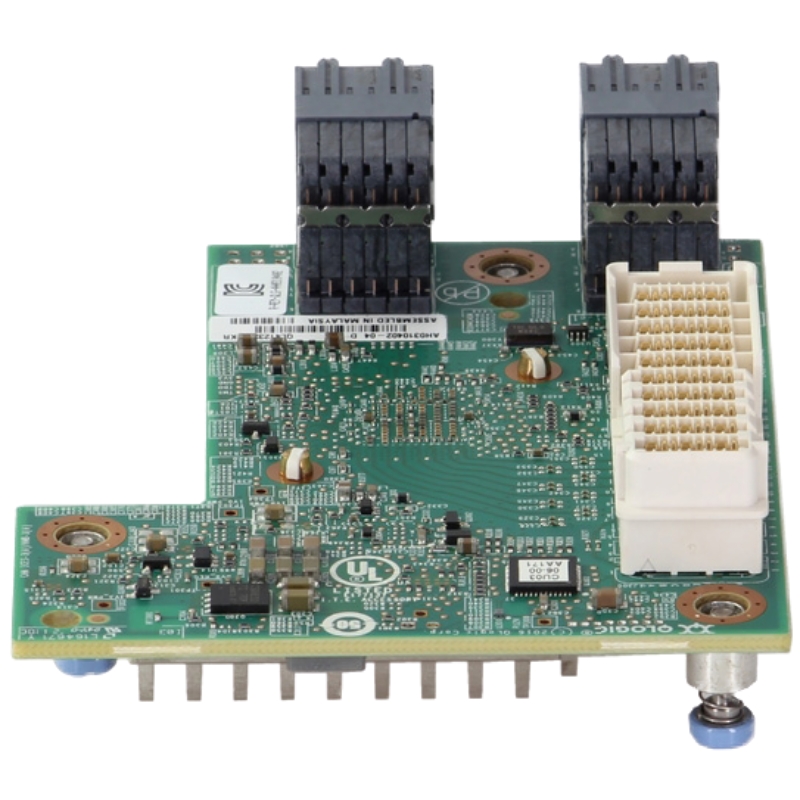

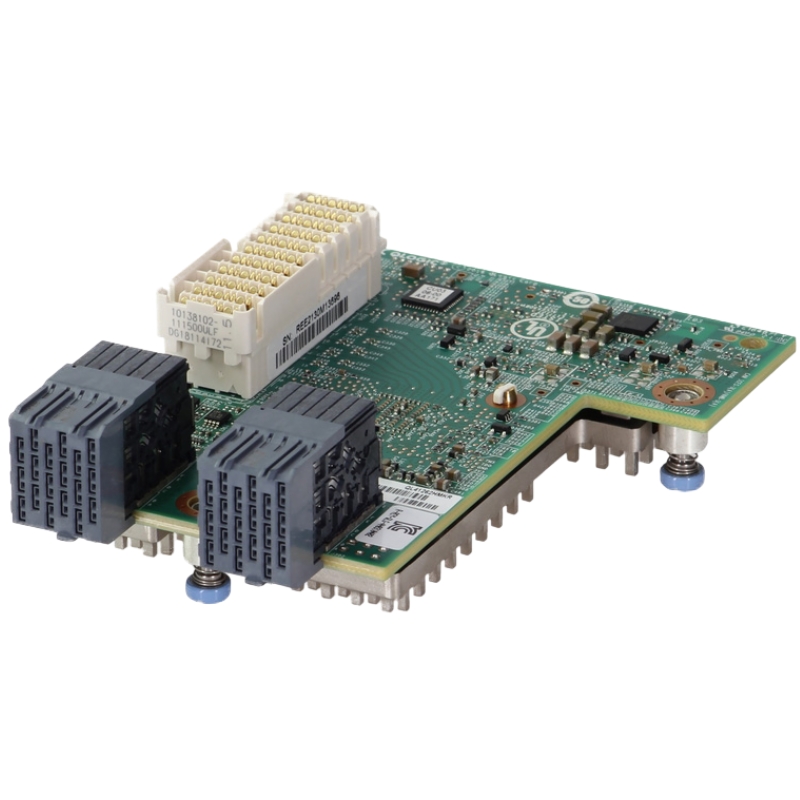

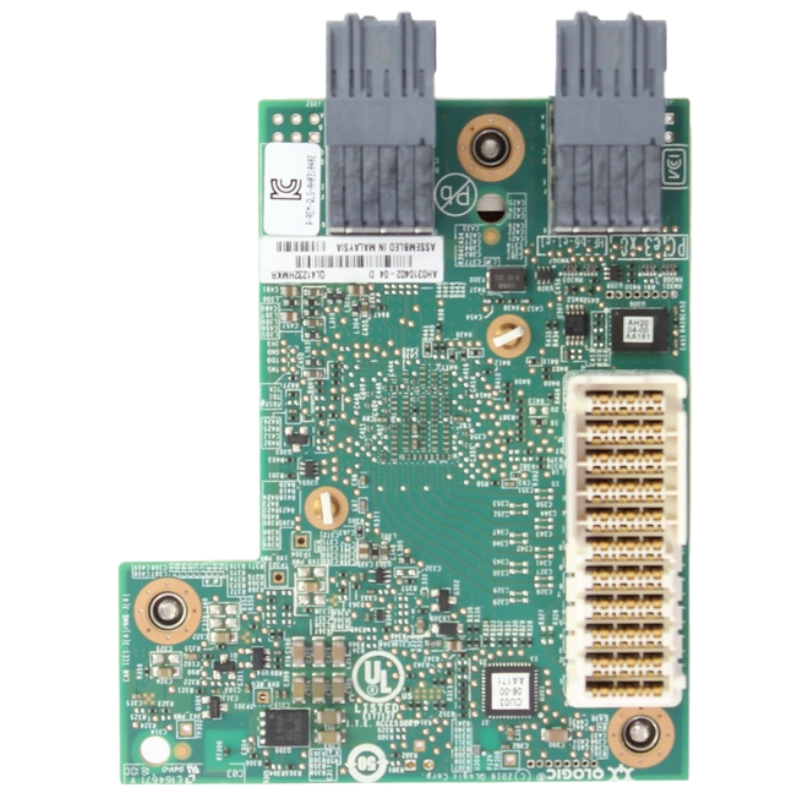

Dell HJ3FX QLogic QL41232 2-Port 10/25Gb Mezzanine Adapter

The Dell HJ3FX QLogic QL41232 2-Port 10/25Gb Mezzanine Adapter is a high-speed converged network adapter (CNA) engineered for Dell PowerEdge blade server environments. Designed for modern data centers, it delivers flexible 10GbE and 25GbE connectivity with low latency, high throughput, and efficient internal fabric integration.

General Information

• Manufacturer: Dell
• Part Number: HJ3FX
• Product Type: Network Adapter
• Form Factor: Mezzanine Card

Port Configuration

• Total Ports: 2 independent network interfaces
• Data Rate: 10GbE / 25GbE auto-negotiation support
• Maximum Throughput: Up to 25 Gbps per port
• Full-duplex bi-directional communication support
• Low-latency packet processing for enterprise workloads

Architecture & Hardware Design

• QLogic FastLinQ 41232 / QL41232 controller processor
• PCI Express 3.0 x8 high-speed bus interface
• Mezzanine form factor for blade server integration
• No external PCIe bracket (internal chassis installation)

Flexible Ethernet-Based Communication

• Native Ethernet protocol support
• Seamless 10GbE and 25GbE switching compatibility
• Optimized for virtualized and cloud environments
• High-efficiency data packet routing

Blade Server Integration Architecture

• Internal routing through blade chassis backplane
• Fabric A / Fabric B module mapping support
• Optimized for modular enterprise blade systems
• Reduced cable dependency for cleaner infrastructure design

Server Compatibility

• Dell EMC PowerEdge MX740c compute sled
• Dell EMC PowerEdge MX750c compute sled
• Dell EMC PowerEdge MX840c compute sled
• Optimized for MX-Series modular blade chassis environments

Performance Optimization & Efficiency

• Dynamic 10/25GbE auto-sensing capability
• Optimized throughput for virtualized workloads
• Reduced CPU overhead with hardware acceleration
• Stable performance under heavy enterprise traffic

Deployment Scenarios

• Enterprise blade server networking infrastructure
• Cloud computing and virtualization platforms
• High-performance computing (HPC) environments
• Data center convergence (compute + storage + network)
• Large-scale enterprise application hosting

Summary Highlights

• Built for high-density blade server environments
• Supports flexible 10GbE and 25GbE networking
• Optimized for modern data center workloads
• Delivers low-latency and high-throughput performance

Overview of Dell HJ3FX QLogic QL41232 2 Port Adapter

The HJ3FX QLogic QL41232 2 Port 10/25Gb Mezzanine Adapter represents a high-performance server networking solution engineered for modern data center environments that demand scalable bandwidth, low latency communication, and flexible virtualization capabilities. Designed for blade server architectures, this mezzanine adapter integrates seamlessly into Dell PowerEdge blade systems, enabling organizations to enhance network throughput without occupying traditional PCIe expansion slots. Built on advanced silicon and leveraging the robust capabilities of networking technology, this adapter is tailored for enterprises seeking next-generation Ethernet performance.

As data centers evolve toward hybrid cloud infrastructures and software-defined networking, the demand for dual-port 10/25GbE connectivity has increased significantly. This adapter addresses that requirement by delivering scalable throughput that supports both legacy 10GbE environments and high-density 25GbE deployments. Its mezzanine form factor ensures compact integration while maintaining enterprise-grade reliability and thermal efficiency.

Core Design Philosophy

The design philosophy behind the Dell HJ3FX QL41232 mezzanine adapter centers on performance density, power efficiency, and operational flexibility. It is optimized for blade servers where space constraints require compact yet powerful networking components. By integrating directly into the server’s mezzanine slot, it eliminates the need for external cabling complexity and reduces latency between compute and network layers.

This adapter is widely used in virtualization clusters, cloud hosting environments, enterprise application servers, and high-frequency transaction systems. It is particularly valuable in workloads that require consistent packet processing efficiency, such as distributed databases, virtual desktop infrastructures, and containerized microservices architectures.

Dual-Port 10/25GbE Connectivity Structure

At the core of the adapter is its dual-port architecture, enabling simultaneous 10GbE and 25GbE operations depending on infrastructure configuration. This dual capability ensures backward compatibility while allowing seamless upgrades to higher-speed networking environments. Each port operates independently, supporting load balancing and redundancy configurations that enhance overall system reliability.

Bandwidth Scaling and Throughput Optimization

The adapter’s architecture is designed to dynamically handle bandwidth scaling without requiring hardware replacement. In environments transitioning from 10GbE to 25GbE, the adapter provides a smooth migration path, ensuring that existing network investments remain protected while enabling future expansion.

Blade Server Integration

The mezzanine design of the Dell HJ3FX QL41232 adapter is specifically engineered for blade server ecosystems. Unlike standard PCIe network cards, mezzanine adapters install directly onto the server motherboard or expansion tray, significantly reducing physical footprint while improving airflow management and thermal performance.

Space Optimization in Data Center Environments

Data centers often face strict limitations in rack space and thermal density. The mezzanine form factor allows administrators to maximize compute density without sacrificing networking capability. This makes it ideal for high-density blade chassis where multiple servers operate within a single enclosure.

Thermal Efficiency and Airflow Management

Efficient thermal design is critical for maintaining long-term system stability. The adapter’s compact architecture ensures minimal airflow obstruction within blade chassis systems. This contributes to lower cooling costs and improved hardware longevity.

Advanced Virtualization and Network Offload Capabilities

Modern data centers rely heavily on virtualization technologies such as hypervisors and container orchestration platforms. The Dell HJ3FX QL41232 adapter supports advanced virtualization offload features that improve network efficiency in virtualized environments.

SR-IOV and Virtual Function Support

Single Root I/O Virtualization (SR-IOV) enables the adapter to create multiple virtual network interfaces from a single physical port. This allows virtual machines to directly access network resources without excessive hypervisor intervention, reducing latency and improving throughput.

Hypervisor Optimization

By offloading network processing tasks from the hypervisor, the adapter enhances system scalability and reduces CPU contention. This is particularly beneficial in environments running VMware, Hyper-V, or KVM-based infrastructures.

Container Networking Acceleration

Containerized applications benefit from reduced network overhead, ensuring consistent performance across microservices architectures. The adapter supports modern container networking interfaces that streamline communication between distributed workloads.

Enterprise Reliability and Redundancy Features

Reliability is a key factor in enterprise networking infrastructure, and the Dell HJ3FX QL41232 adapter is engineered with redundancy and fault tolerance in mind. Its dual-port configuration allows failover mechanisms that ensure continuous network availability even in the event of port or link failure.

Link Aggregation and Load Balancing

The adapter supports link aggregation techniques that combine multiple physical connections into a single logical channel. This enhances throughput and provides redundancy, ensuring uninterrupted network service in mission-critical environments.

Failover Protection Mechanisms

In case of network disruptions, the adapter automatically reroutes traffic through the secondary port. This minimizes downtime and ensures that enterprise applications remain accessible during hardware or network anomalies.

Performance Optimization for Modern Workloads

The Dell HJ3FX QL41232 mezzanine adapter is optimized for a wide range of enterprise workloads, including cloud computing, big data analytics, and high-performance computing environments. Its architecture is designed to reduce latency while maximizing throughput consistency under heavy traffic conditions.

Low Latency Communication Design

Latency reduction is achieved through hardware acceleration and optimized packet forwarding pathways. This is critical for financial trading platforms, real-time analytics systems, and distributed computing environments where microsecond-level delays can impact performance outcomes.

CPU Offloading Techniques

By offloading network processing tasks from the CPU, the adapter enables servers to allocate more resources to compute-intensive applications. This leads to improved system efficiency and better workload distribution across server clusters.

Scalability and Future-Proof Networking Infrastructure

One of the defining characteristics of the Dell HJ3FX QL41232 adapter is its scalability. It is designed to support evolving network infrastructures that transition toward higher bandwidth requirements without necessitating complete hardware replacement.

Migration from 10GbE to 25GbE Environments

Organizations upgrading their data centers can deploy this adapter in existing 10GbE environments while preparing for future 25GbE expansion. This dual compatibility reduces capital expenditure and simplifies long-term infrastructure planning.

Cloud and Hybrid Data Center Compatibility

The adapter integrates seamlessly into cloud-based and hybrid infrastructures, supporting distributed workloads across multiple environments. This ensures consistent performance regardless of deployment architecture.

Security and Data Integrity Enhancements

Security is a critical component of enterprise networking, and the Dell HJ3FX QL41232 adapter includes hardware-level features that enhance data integrity and protect against network-based vulnerabilities.

Hardware-Based Security Acceleration

The adapter supports encryption offloading, which reduces the burden on system CPUs while maintaining secure data transmission across network channels.

Operational Efficiency in Enterprise Data Centers

Operational efficiency is enhanced through simplified deployment, reduced maintenance overhead, and streamlined network management capabilities. The mezzanine design ensures that installation and replacement procedures are efficient and do not require extensive system downtime.

Reduced Maintenance Complexity

Fewer external components and cables mean fewer points of failure, resulting in lower maintenance requirements and improved system uptime.

Centralized Network Management Compatibility

The adapter is compatible with enterprise network management tools that allow centralized monitoring and configuration of network interfaces across large server deployments.
