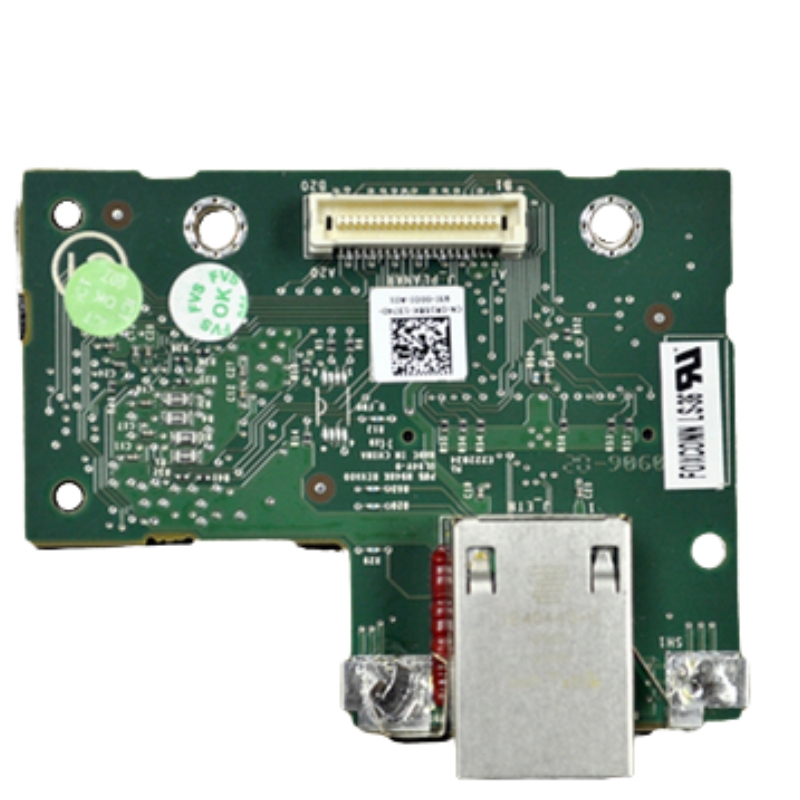

Dell R168K iDRAC6 Enterprise Remote Access Adapter Card

R168K Dell iDRAC6 Enterprise Remote Access Card for PowerEdge R610/R710

The Dell R168K iDRAC6 Enterprise remote access card is a critical component in enterprise IT environments where system management, reliability, and efficiency are paramount. Designed to integrate with Dell’s PowerEdge R610 and R710 servers, this remote access card empowers administrators with comprehensive control and monitoring capabilities—independent of the server’s operating system or power state.

Comprehensive Remote Management Capabilities

The iDRAC6 Enterprise card significantly enhances out-of-band management functionality, allowing IT professionals to remotely access the server’s BIOS, power it on or off, monitor hardware health, and perform firmware upgrades—all from a centralized location. This is particularly useful in data centers and remote office environments where physical access to servers is limited or delayed.

Virtual Console & Virtual Media Support

One of the standout features of the R168K iDRAC6 Enterprise card is the Virtual Console capability, which provides a fully interactive remote graphical console. IT administrators can view the screen in real-time during boot sequences, configure BIOS settings, or troubleshoot OS-level issues. The Virtual Media feature complements this by allowing the remote mounting of ISO images or physical drives from a local workstation, effectively streamlining installations and maintenance workflows.

Benefits of Virtual Console

• Access BIOS remotely without additional software
• Real-time monitoring during system POST and OS boot
• Complete control during troubleshooting or upgrades

Virtual Media Advantages

• Mount local ISO files as remote boot media
• Eliminates need for physical access to CD/DVD drives
• Streamlines OS installations and diagnostics

Hardware Monitoring and Diagnostics

With the R168K iDRAC6 Enterprise module, system administrators can monitor the health of various hardware components in real-time. Sensors for temperature, voltage, fan speeds, and power supplies are continuously logged. Alerts and warnings can be configured to notify IT personnel in the event of anomalies, reducing downtime and avoiding hardware failures before they become critical.

Key Monitoring Capabilities

• Temperature sensors for CPU, memory, and chassis
• Voltage regulation monitoring
• Fan performance and RPM tracking
• Power supply diagnostics and redundancy status

Security and Authentication Features

Security is fundamental in any remote management solution. The R168K card offers robust authentication features such as LDAP, Microsoft Active Directory integration, and role-based access control (RBAC). HTTPS encryption is standard, ensuring secure browser-based access over networks. The card also supports firmware-level password protection, tamper alerts, and audit logs to prevent unauthorized access or configuration changes.

Security Mechanisms

• SSL encryption for secure web interface sessions
• User and group-based access roles
• Directory services support (LDAP, AD)
• Audit logs for accountability and traceability

Dedicated Management Port

Unlike the basic iDRAC6 Express, the Enterprise version includes a dedicated Ethernet management port. This means that management traffic is separated from data traffic, improving both security and network performance. The dedicated port facilitates more consistent and reliable remote access without interrupting data center workloads.

Advantages of a Dedicated Port

• Improved network segmentation and security
• Better bandwidth allocation for remote management
• Fewer chances of IP conflicts with production NICs

Compatibility with Dell PowerEdge R610 and R710 Servers

The R168K iDRAC6 Enterprise card is specifically engineered for use with Dell’s PowerEdge R610 and R710 servers. These 11th generation servers are workhorses in enterprise environments and benefit immensely from the advanced management features provided by the iDRAC6 Enterprise module.

Seamless Hardware Integration

Installation is plug-and-play, requiring minimal configuration. Once the card is installed into its dedicated slot on the motherboard, it becomes immediately available during the server boot sequence. Firmware updates for both the iDRAC and BIOS can be easily managed through Dell’s Lifecycle Controller or remotely via the web-based GUI.

Firmware and BIOS Management

• Update iDRAC firmware remotely
• Rollback capabilities for firmware stability
• Schedule updates during non-peak hours

Web Interface & CLI Access

The R168K iDRAC6 Enterprise provides both GUI-based and command-line interface (CLI) access, giving administrators flexibility based on their preferred workflows. The web interface offers intuitive navigation and graphical data, while the CLI can be accessed via SSH for script-based or automated management tasks.

Management Options

• HTTP/HTTPS browser-based GUI
• SSH-based command-line interface
• SNMP and WS-Man protocol support
• RACADM scripting tool integration

Use Cases in Enterprise Environments

The R168K iDRAC6 Enterprise is widely adopted in industries such as finance, healthcare, government, and education, where IT infrastructure uptime and rapid responsiveness are critical. It helps minimize on-site technician requirements and supports lights-out data center operations.

Common Deployment Scenarios

• Edge computing and remote branch management
• Disaster recovery and failover sites
• University research lab server clusters
• HIPAA-compliant healthcare IT environments

Installation and Configuration Overview

Installing the R168K card is straightforward. It typically involves seating the card into the iDRAC slot on the PowerEdge server’s motherboard, ensuring it is firmly connected, then configuring BIOS settings to enable the card. Once installed, configuration can proceed using the Lifecycle Controller or directly through the iDRAC web GUI.

Step-by-Step Installation

1. Power off the server and unplug it from power.
2. Open the chassis and locate the iDRAC slot.
3. Insert the R168K card firmly into place.
4. Reconnect power and boot the server.
5. Access Lifecycle Controller (F10) for initial configuration.
6. Update firmware and assign static IP to the management port.

Maintenance and Firmware Updates

Maintaining the R168K iDRAC6 Enterprise card involves periodic firmware checks, account audits, and ensuring compatibility with evolving network security protocols. Dell regularly provides updates that fix bugs and enhance functionality, which can be downloaded and applied directly from the Dell website or via the iDRAC GUI.

Firmware Management Tools

• Dell Lifecycle Controller
• Dell Repository Manager
• OpenManage Essentials
• RACADM CLI for scripting updates

Product Identification and Part Number

The official Dell part number for the iDRAC6 Enterprise card compatible with R610 and R710 is R168K. When sourcing this module for procurement or upgrade projects, it is critical to match the part number to ensure proper compatibility and avoid counterfeits or incompatible revisions.

Alternate Identifiers and Model Tags

• Manufacturer Part Number: R168K
• Model: iDRAC6 Enterprise
• Compatible Servers: Dell PowerEdge R610, R710

Procurement Tips and Refurbished Market

As the Dell PowerEdge R610 and R710 have reached EOL (end of life), sourcing the R168K iDRAC6 Enterprise card may involve purchasing from third-party refurbishers or authorized resellers. Ensure the product is tested and comes with warranty support. Consider bulk buying for consistency across server racks in mid-size deployments.

Checklist for Buyers

• Ensure authenticity and Dell labeling
• Verify reseller reputation and reviews
• Request firmware version confirmation
• Check return policy and warranty coverage
