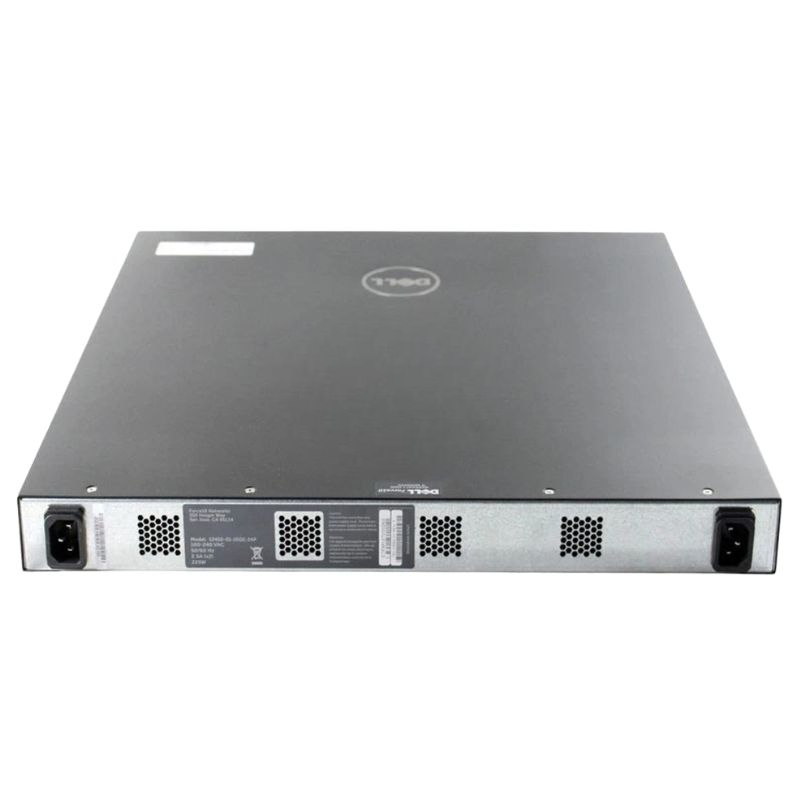

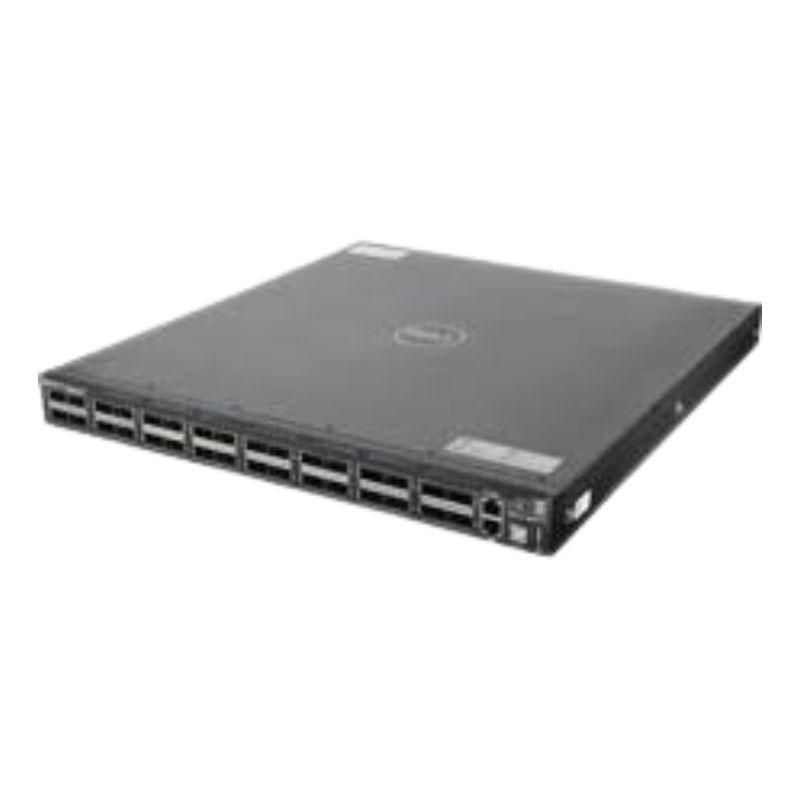

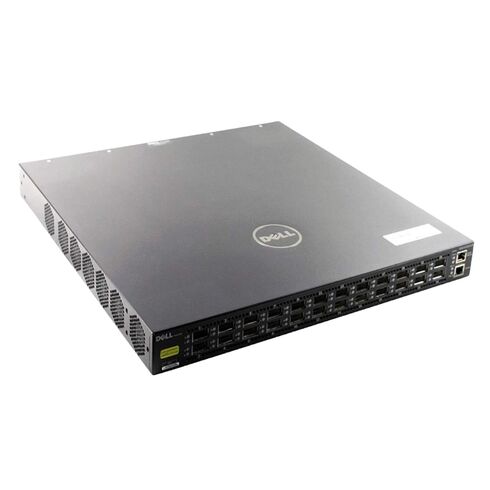

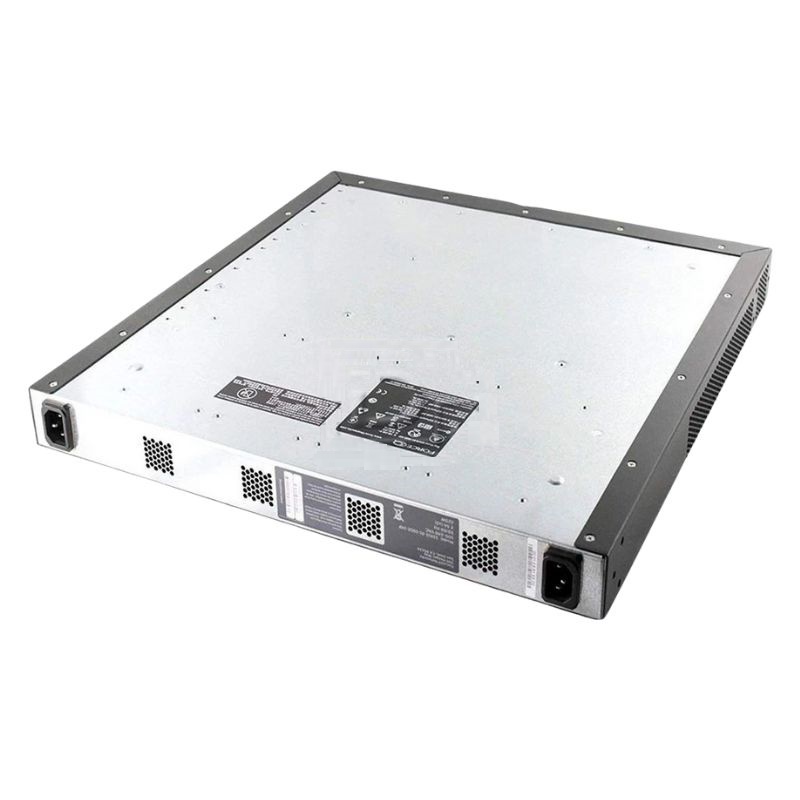

Dell S2410-01-10GE-24P 24Ports 10GBPS Switch With 24 XFP Ports

Product Specifications

Physical Characteristics

• 24 Line-rate 10 Gigabit Ethernet (10 Gbe) XFP Ports
• 1 RJ45 Console/Management Port with RS232 Signaling
• 1 RJ45 Ethernet Management Port
• Dimensions: 1 RU, 1.73" H x 17" W x 16.73" D (4.4 cm H x 43.2 cm W x 42.5 cm D)
• Weight: 14.3 lbs (6.5 kg)
• ISO 7779 A-weighted Sound Pressure Level: 61.5 dBA at 73.4°F (23°C)
• Power Supply: 100–240 VAC, 50/60 Hz
• Maximum Power Consumption: 225 W
• Maximum Thermal Output: 426 BTU/h
• Maximum Current Draw: 2.05 A at 100/120 VAC, 1.025 A at 200/240 VAC
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Operating Humidity: 10% to 90% RH, non-condensing
• Non-operating Storage Temperature: –4°F to 158°F (–20°C to 70°C)
• Storage Humidity: 10% to 95% RH, non-condensing

Reliability

• Mean Time Between Failures (MTBF): 240,105 Hours

Redundancy Features

• Link Aggregation
• Built-in Power Redundancy

Performance Metrics

• Layer 2 MAC Addresses: 16,000
• Switching Fabric Capacity: 480 Gbps (360 Mpps)
• Link Aggregation: 12 Links Per Group, 12 Groups Per Switch
• Queues Per Port: 4
• VLANs: 1024 VLANs with 4096 Tag Value Support
• Line-rate Layer 2 Switching: Supports All Protocols, Including IPv4 and IPv6
• Switching Latency: 300 ns (CX4 Ports), 700 ns (XFP Ports)

IEEE Compliance Standards

• 802.1D Bridging, Spanning Tree Protocol (STP)
• 802.1P Layer 2 Prioritization
• 802.1Q VLAN Tagging, Double VLAN Tagging
• 802.1S Multiple Spanning Tree Protocol (MSTP)
• 802.1W Rapid Spanning Tree Protocol (RSTP)
• 802.3AC Frame Extensions for VLAN Tagging
• 802.3AD Link Aggregation with LACP
• 802.3AE 10 Gigabit Ethernet (10GBASE-X)
• 802.3AK 10 Gigabit Ethernet (10GBASE-CX4)
• 802.3X Flow Control
• Maximum Transmission Unit (MTU): 10,240 Bytes

Network Management Capabilities

• 1155 SMIV1
• 1157 SNMPv1
• 1212 Concise MIB Definitions
• 1215 SNMP Traps
• 1905 SNMPv2
• 1907 SNMP MIB
• 1493 Bridges MIB
• 2096 IP Forwarding Table MIB
• 2233 Interfaces MIB
• 2570 SNMPv3
• 2576 Coexistence Between SNMPv1/v2/v3
• 2578 SMIV2
• 2665 Ethernet-like Interfaces MIB
• 2865 RADIUS
• Draft-grant-tacacs-02 TACACS+

ROHS Compliance

• All S-series Components Meet EU ROHS Standards

XFP Support

• Compatible with Various DELL Force10 XFP Modules: SR, LR, ER, ZR, DWDM, and CX4
• Note: On the S2410P Switch, the CX4 Module Overlaps with Adjacent Ports
• XFP Modules Sold Separately

Ports

The Dell S2410-01-10GE-24P Switch is equipped with 24 ports, making it an ideal choice for businesses and organizations that require a high-performance network switch with multiple connection options. These ports provide users with the ability to connect a variety of devices, such as computers, servers, printers, and IP phones, to the network.

Increased Connectivity

The 24 ports on the Dell S2410-01-10GE-24P Switch allow for increased connectivity within a network. With more ports available, users can easily connect multiple devices without the need for additional switches or hubs. This ensures a streamlined and efficient network setup, reducing clutter and simplifying cable management.

Flexibility

Having 24 ports provides users with the flexibility to connect different types of devices to the network. Whether it's a desktop computer, a wireless access point, or a security camera, this switch offers enough ports to accommodate various networking needs. The versatility of the Dell S2410-01-10GE-24P Switch makes it an excellent choice for businesses that require adaptability in their network infrastructure.

Scalability

With 24 ports, the Dell S2410-01-10GE-24P Switch is designed to support future growth and expansion. As businesses evolve and add more devices to their network, having ample port availability ensures that they can easily scale up without hindering performance. This scalability feature makes the switch a cost-effective investment as it eliminates the need for frequent upgrades or replacements to accommodate growing network demands.

Port Type

The Dell S2410-01-10GE-24P Switch features XFP (10 Gigabit Small Form Factor Pluggable) ports, which offer high-speed connectivity and advanced networking capabilities. These ports are designed to handle the increasing bandwidth requirements of modern networks, providing users with a reliable and efficient network infrastructure.

High-Speed Data Transfer

The XFP ports on the Dell S2410-01-10GE-24P Switch support data transfer rates of up to 10 gigabits per second (Gbps). This high-speed connectivity is crucial for businesses that deal with large data transfers, such as multimedia streaming, file sharing, and video conferencing. With XFP ports, users can experience smooth and uninterrupted data transmission, ensuring optimal network performance.

Future-Proofing

By featuring XFP ports, the Dell S2410-01-10GE-24P Switch is future-proofed to handle upcoming advancements in network technology. As the demand for higher bandwidth continues to grow, this switch provides users with the capability to adapt and support faster network speeds. Future-proofing ensures that businesses can stay ahead of technological advancements without the need for frequent hardware upgrades.

Compatibility

Having XFP ports allows the Dell S2410-01-10GE-24P Switch to integrate seamlessly with other networking equipment that supports the same port type. This compatibility enables users to build a cohesive network infrastructure by connecting devices from different manufacturers. The ability to mix and match equipment while maintaining high-speed connectivity simplifies network expansion and reduces compatibility issues.

Speed

The Dell S2410-01-10GE-24P Switch operates at a blazing-fast speed of 10 gigabits per second (Gbps). This level of speed is essential for businesses that require instant data transfer and real-time communication within their network.

Efficient Data Transfer

With a speed of 10 Gbps, the Dell S2410-01-10GE-24P Switch ensures fast and efficient data transfer between connected devices. Whether it's transferring large files or streaming high-definition multimedia content, users can experience minimal latency and quick response times. This speed is particularly beneficial for businesses that rely on time-sensitive applications or require rapid data exchange for their daily operations.

Increased Productivity

The high-speed capabilities of the Dell S2410-01-10GE-24P Switch contribute to increased productivity within an organization. With faster data transfer rates, employees can access and share files more quickly, improving collaboration and workflow efficiency. Real-time communication applications, such as video conferencing and VoIP, also benefit from the switch's speed, enabling seamless and uninterrupted conversations.

Future-Readiness

By operating at 10 Gbps, the Dell S2410-01-10GE-24P Switch is future-ready for the increasing demands of network-intensive applications. As technology advances and network requirements evolve, this switch can handle higher bandwidth needs without compromising performance. Future-readiness allows businesses to invest in a switch that will continue to meet their network demands for years to come.

Layer

The Dell S2410-01-10GE-24P Switch operates at Layer 2 of the OSI (Open Systems Interconnection) model. This layer focuses on data link functions and provides essential network services, making it an important feature of the switch for users.

Efficient Data Transmission

Operating at Layer 2 allows the Dell S2410-01-10GE-24P Switch to efficiently transmit data packets within a network. Layer 2 switches use MAC (Media Access Control) addresses to forward data, ensuring that packets are delivered to the correct destination device. This efficient data transmission minimizes network congestion and improves overall network performance.

Enhanced Network Security

Layer 2 switches offer enhanced network security features, such as VLAN (Virtual Local Area Network) support and MAC address filtering. VLANs allow for logical network segmentation, isolating sensitive data or specific user groups from the rest of the network. MAC address filtering ensures that only authorized devices can connect to the network, preventing unauthorized access and potential security breaches. The Layer 2 functionality of the Dell S2410-01-10GE-24P Switch contributes to a secure network environment.

Simplified Network Management

The Layer 2 capabilities of the Dell S2410-01-10GE-24P Switch simplify network management by providing a stable and predictable network environment. Layer 2 switches are easy to configure and manage, making them suitable for small to medium-sized businesses that may not have dedicated IT staff. The switch's Layer 2 functionality allows users to monitor and control network traffic effectively, ensuring smooth operations and minimizing downtime.
