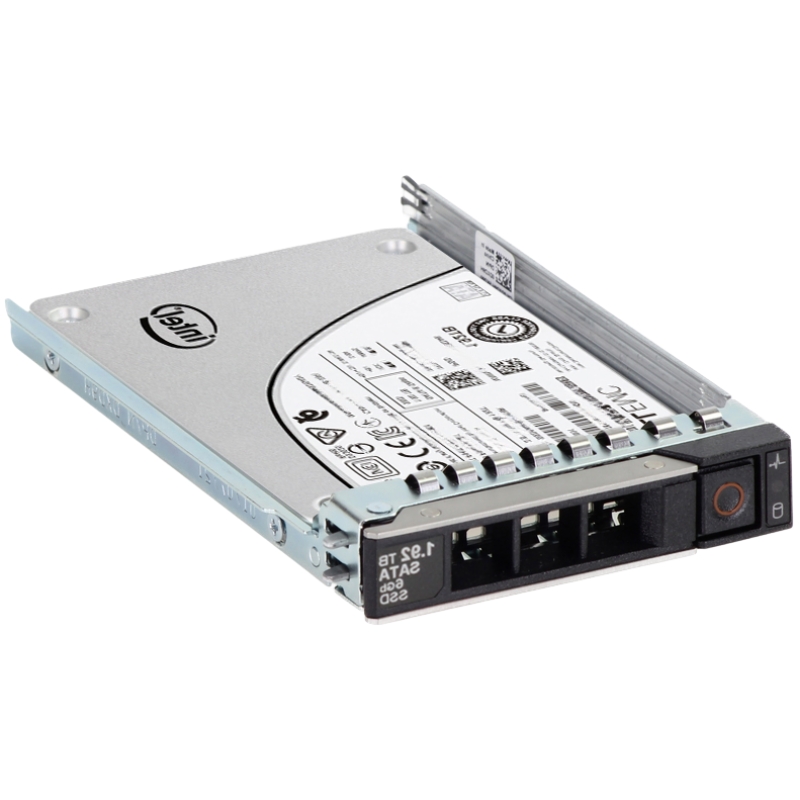

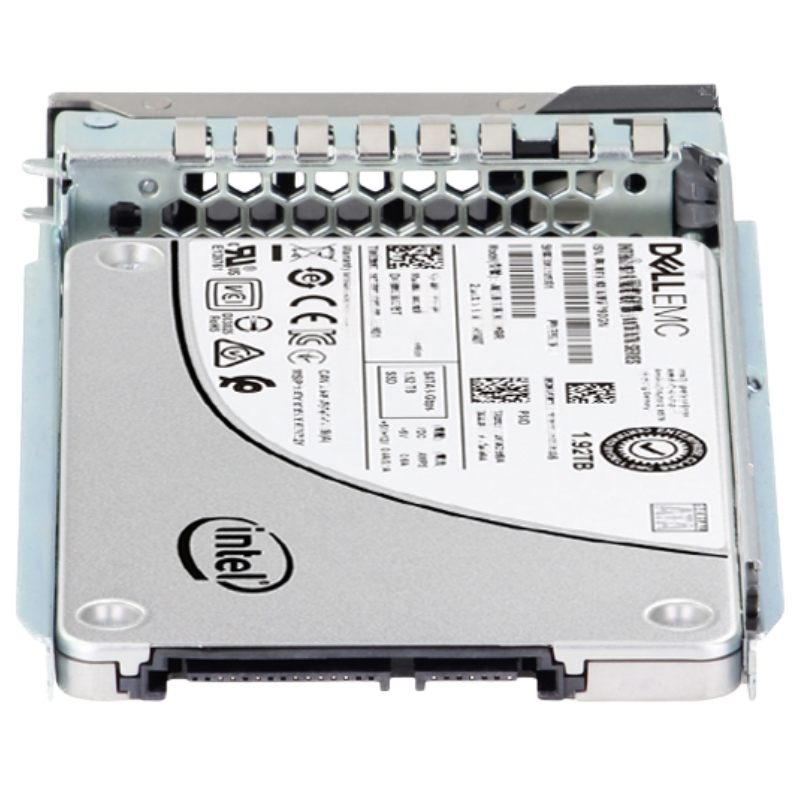

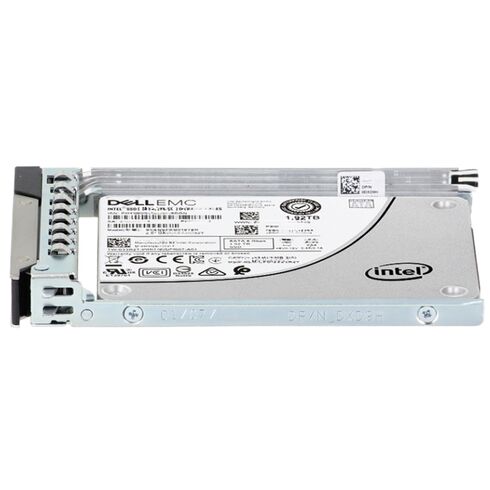

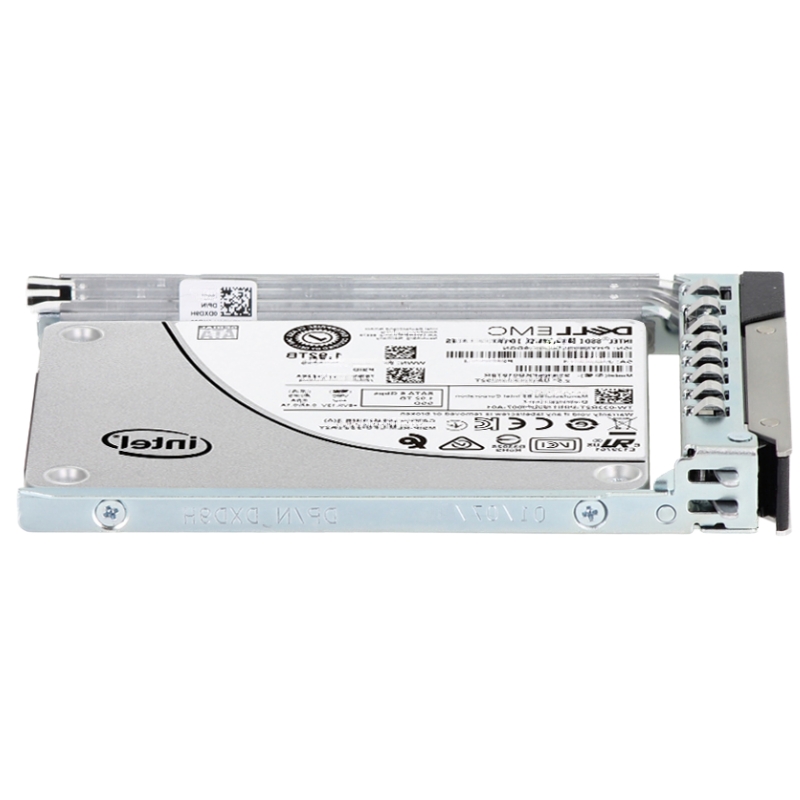

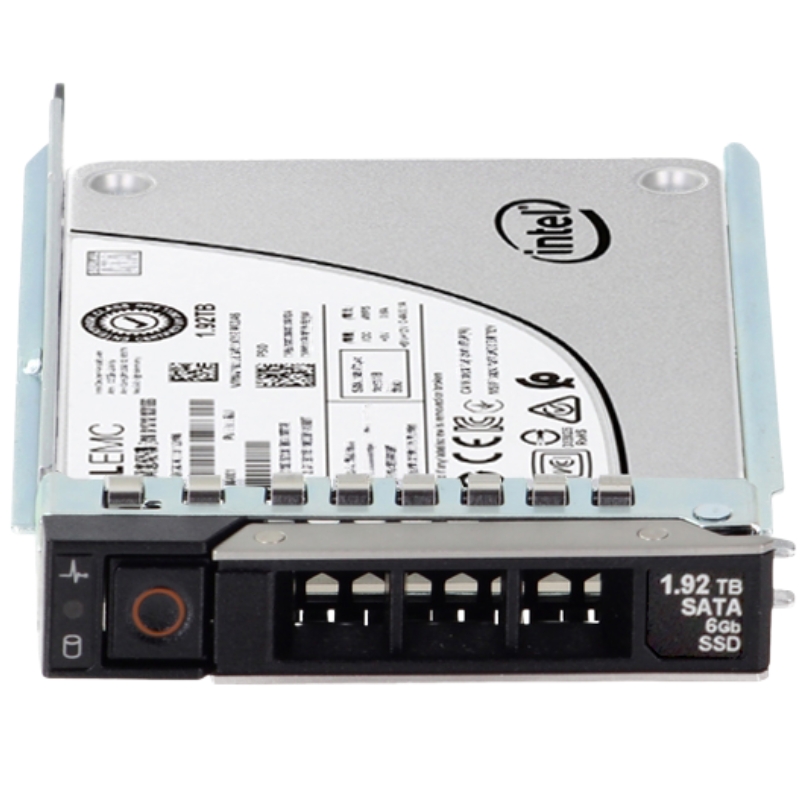

1CD54 Dell SSD 1.92 TB SATA 6GBPS Read Intensivetlc Server Solid State Drive

DELL 1.92TB Read Intensive TLC SATA SSD with Hybrid Carrier

The DELL 1.92TB Read Intensive 1DWPD TLC SATA-6Gbps 2.5-inch Hot-Plug SSD delivers exceptional performance, reliability, and compatibility for enterprise-grade storage needs. Designed specifically for Dell PowerEdge servers, this SSD offers an ideal combination of speed, endurance, and affordability for demanding read-intensive applications.

Technical Specifications

• Manufacturer: DELL
• Model Number: 1CD54
• DELL Part Number: 400-ATNW
• Storage Capacity: 1.92TB
• Interface Type: SATA-6Gbps
• NAND Flash Memory: TLC (Triple-Level Cell)
• Endurance Rating: Read Intensive (1 DWPD)
• Form Factor: 2.5-inch SSD in 3.5-inch hot-plug LFF hybrid carrier
• Sequential Read Speed: Up to 600 MB/s
• Sequential Write Speed: Up to 550 MB/s
• Random Read IOPS: Up to 98,000
• Random Write IOPS: Up to 25,000
• Operating Temperature: 0°C to 70°C
• MTBF (Mean Time Between Failures): 2,000,000 hours
• Power Consumption (Active): 5.5W (typical)
• Power Consumption (Idle): 2.5W
• Shock Resistance: 1500G @ 0.5ms
• Vibration Resistance: 2.17G, 7–800Hz
• Certifications: DELL Certified, RoHS Compliant, CE, FCC

Key Product Features

• Storage Capacity: 1.92TB for high-volume data requirements.
• Interface: SATA 6Gbps for fast data transfers.
• NAND Flash Type: TLC (Triple-Level Cell) for cost-effective high capacity.
• Endurance: Read Intensive with 1DWPD (Drive Writes Per Day).
• Form Factor: 2.5-inch SSD mounted in a 3.5-inch hot-plug LFF hybrid carrier.
• DELL Certified: Guaranteed compatibility with PowerEdge servers.

Performance Specifications

• Sequential Read: Up to 600 MB/s
• Sequential Write: Up to 550 MB/s
• Random Read IOPS: Up to 98,000
• Random Write IOPS: Up to 25,000

Advanced Features

• Optimized for read-heavy workloads.
• Low power consumption for reduced operating costs.
• Hot-plug design for minimal downtime during replacement.
• Hybrid carrier integration for seamless installation.

Compatibility and Integration

Server Compatibility

• Dell PowerEdge R720
• Dell PowerEdge R720xd
• Dell PowerEdge R730
• Dell PowerEdge R730xd
• Dell PowerEdge R740
• Dell PowerEdge R740xd
• Dell PowerEdge T620
• Dell PowerEdge T630
• Dell PowerEdge T640
• Dell PowerEdge M620 (with storage sled)
• Dell PowerEdge M630 (with storage sled)

Interface Compatibility

• SATA 6Gbps (SATA III)
• Backward compatible with SATA 3Gbps (SATA II)
• Backward compatible with SATA 1.5Gbps (SATA I)

Backplane Compatibility

• Dell 2.5" SAS/SATA backplanes
• Dell 2.5" hot-swap drive bays
• Dell 2.5" fixed drive bays

Technical Benefits

• Cost-effective storage solution for read-heavy applications.
• Reduced latency for faster access to critical data.
• Durable design optimized for high-demand enterprise use cases.

Use Cases

The DELL 1.92TB Read Intensive TLC SATA SSD is ideal for scenarios such as:

• Database servers requiring high read performance.
• Virtualization environments with frequent data access.
• Enterprise storage arrays demanding reliable SSD performance.
• High-availability systems where uptime is critical.

Optimizing Your Data Center

Integrating this Dell-certified SSD into your PowerEdge server infrastructure enhances data processing speeds, improves storage efficiency, and provides a dependable foundation for mission-critical workloads. Its hybrid carrier design ensures compatibility and convenience, reducing integration costs while maximizing performance benefits.

High-Performance Storage Solutions

The 1CD54 Dell SSD 1.92 TB SATA 6Gbps Read Intensive TLC Server Solid State Drive belongs to an advanced category of enterprise storage solutions designed to meet the rigorous demands of modern IT infrastructures. Built for reliability, high-speed performance, and scalability, these SSDs deliver superior efficiency for servers, databases, and cloud environments. They are tailored for environments requiring large volumes of read-intensive workloads, ensuring consistent performance and extended longevity.

Key Features of Dell 1CD54 SSDs

• Capacity: 1.92 TB high-capacity SSD designed for large-scale storage needs.
• Interface: SATA III 6Gbps, ensuring compatibility with a wide range of enterprise servers.
• Read-Intensive TLC Technology: Optimized for read-heavy workloads, ensuring high performance and endurance.
• Form Factor: 2.5-inch drive, allowing easy integration into server chassis and storage arrays.
• Low Latency: Significantly reduces data retrieval times compared to traditional HDDs.

Advanced Reliability Features

Dell’s 1CD54 SSDs incorporate robust reliability measures to ensure continuous operation in mission-critical environments:

• Error Correction Code (ECC): Corrects errors to maintain data integrity.
• Power Loss Protection: Prevents data corruption during unexpected power outages.
• Wear Leveling: Distributes data evenly across NAND cells to extend lifespan.
• SMART Monitoring: Tracks drive health and performance for proactive maintenance.

Benefits of Dell 1CD54 SSD in Server Environments

The Dell 1CD54 SSD delivers a range of advantages for enterprise IT operations:

• Enhanced Speed: Substantially reduces application load times and accelerates data retrieval.
• Improved Server Efficiency: Allows more workloads to run concurrently with reduced latency.
• Lower Power Consumption: Compared to mechanical drives, SSDs consume less energy, lowering operational costs.
• Durability and Longevity: TLC technology with high endurance ensures sustained performance over years.
• Quiet Operation: No moving parts mean silent performance and lower risk of mechanical failure.

Performance Optimization in Data Centers

Integrating 1CD54 Dell SSDs into server environments enables IT teams to:

• Enhance database transaction speeds.
• Reduce latency in cloud services.
• Improve efficiency in virtualization and containerized environments.
• Enable faster boot and application load times.

Use Cases for Dell 1CD54 SSD

Enterprise Servers

Perfect for high-demand enterprise servers that require consistent read performance, such as those running:

• ERP applications
• CRM systems
• Data warehouses

Database Management

The drive’s high read throughput is ideal for database query workloads, supporting rapid access to large datasets without bottlenecks.

Virtualization

Enables faster provisioning of virtual machines (VMs) and improves response times in hypervisor environments.

Content Delivery

Enhances performance in content delivery networks (CDNs) by ensuring quick retrieval of cached content, improving end-user experiences.

Installation and Compatibility

The Dell 1CD54 SSD is engineered for straightforward installation in server systems:

• Form Factor: 2.5-inch SATA interface ensures compatibility with most enterprise server chassis.
• Hot-Swap Capability: Many Dell server models support hot-swapping, allowing drive replacement without shutting down the system.
• Compatibility: Supports Dell PowerEdge servers and other enterprise-grade platforms with SATA 6Gbps support.

Integration with Dell Server Ecosystem

1CD54 SSDs integrate seamlessly into Dell’s broader server and storage ecosystem, enabling unified management and performance monitoring via Dell’s OpenManage tools.

Maintenance and Reliability Considerations

Maintaining SSD health is critical for ensuring consistent performance and maximizing lifespan:

• Regular Firmware Updates: Ensure optimal performance and compatibility.
• Drive Health Monitoring: Use Dell OpenManage or SMART tools to track endurance and detect anomalies.
• Data Backup Strategies: Regular backups ensure data safety despite rare SSD failures.

Durability Metrics

The endurance of Dell 1CD54 SSDs is measured in Drive Writes Per Day (DWPD). For read-intensive workloads, this model offers:

• DWPD: Up to 3
• MTBF: 2 million hours
• TBW (Terabytes Written): Over 2,000 TB

Ensuring Longevity

To maximize lifespan:

• Avoid filling the SSD above 80% capacity for optimal performance.
• Enable over-provisioning if supported by the system.
• Monitor workload patterns to ensure read-intensive usage remains optimal
