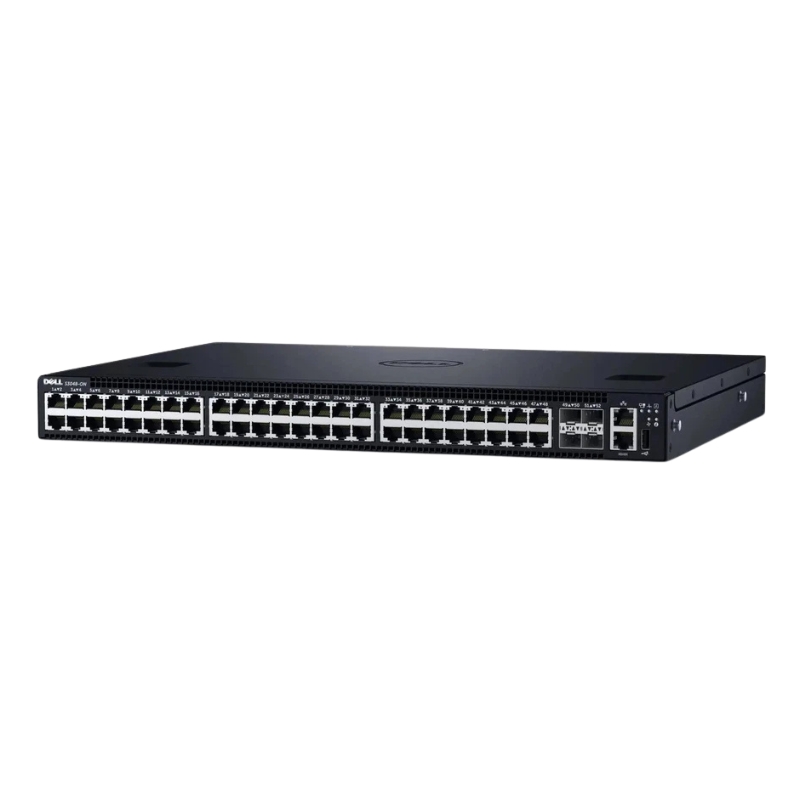

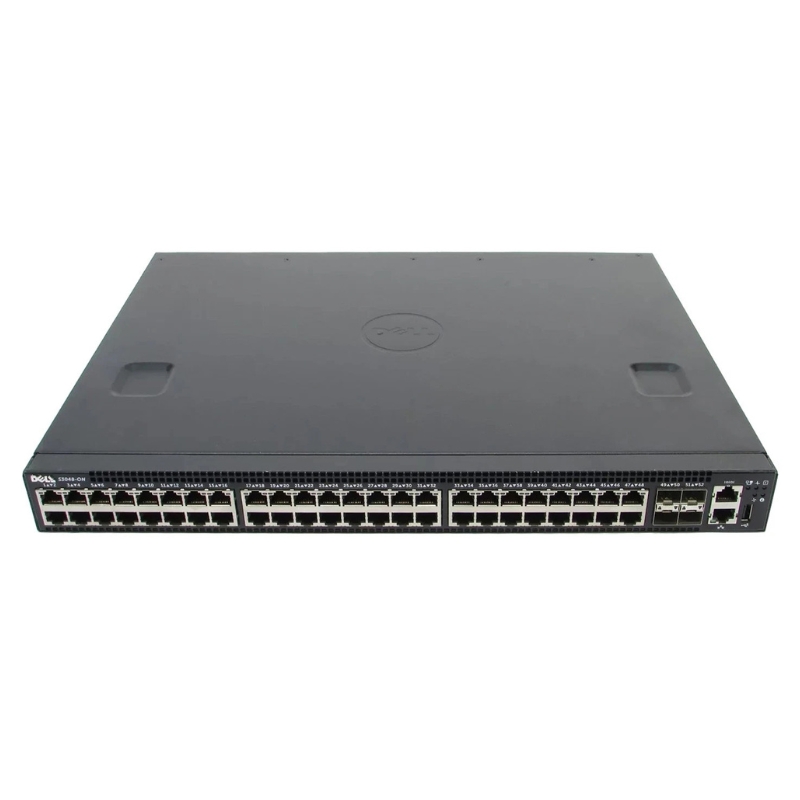

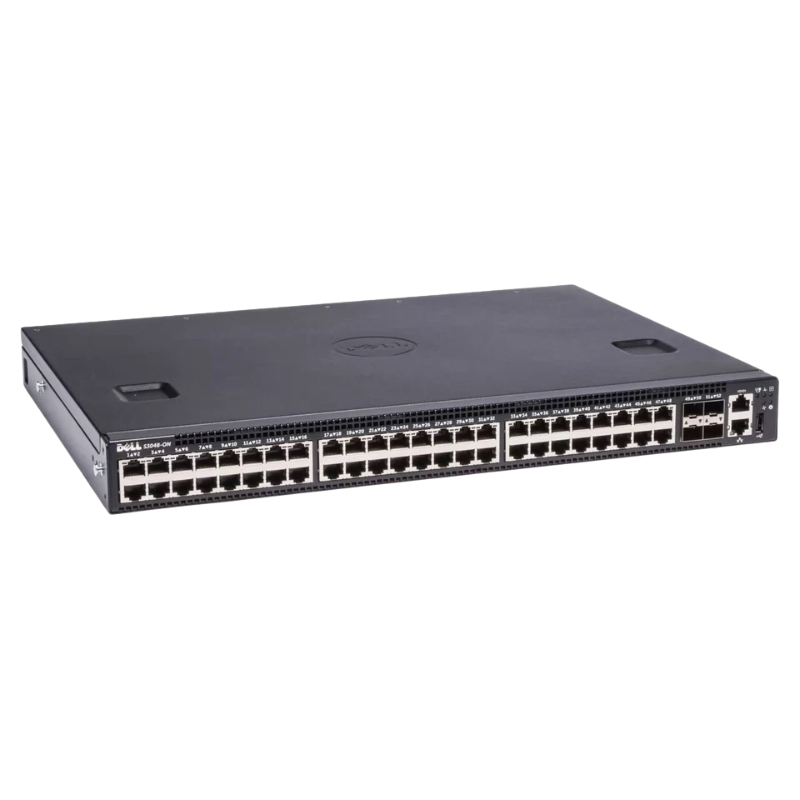

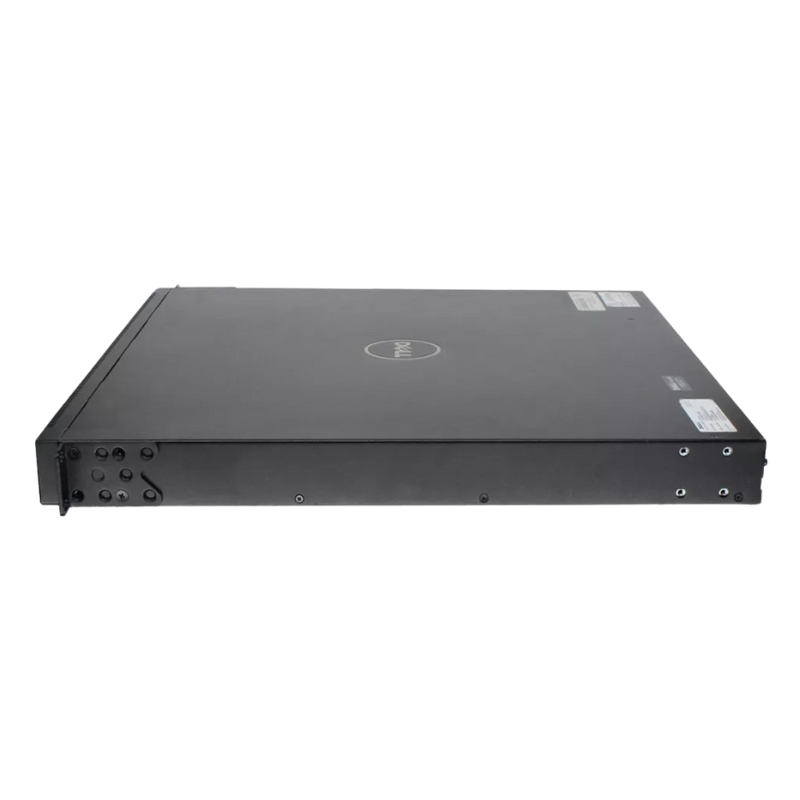

Dell TWR5D Network Switch, 48X 1GBE, 4x SFP+ 10GBE Ports, 1X Power Supply

Overview of the TWR5D Networking Switch

Key Specifications

• Manufacturer: Dell
• Model: TWR5D
• Type: Networking Device
• Sub-Type: 48-Port Switch
• Device Category: Managed Layer 3 Switch, Stackable
• Form Factor: Rack-Mountable 1U

Port Configuration

Ethernet Ports

• 48 x 10/100/1000 Mbps Ports
• 4 x 10 Gigabit SFP+ Ports

Performance Metrics

Switching Capacity

• Switching Fabric Bandwidth: 260 Gbps
• Forwarding Performance: 131 Mpps
• Latency:
  • 1000BASE-T: 3.7 µs
  • SFP+: 1.8 µs

Capacity Specifications

• MAC Address Capacity: 80,000 Entries
• IPv4 Routes: 16,000
• IPv6 Routes: 8,000
• Links per Group: 16
• Groups per Stack: 128
• Queues per Port: 8
• VLAN Support: 4,000
• MSTP Instances: 64
• VRF-Lite Instances: 64
• IPv4 Hosts: 40,000
• IPv6 Hosts: 8,000
• Multicast Entries (IPv4): 8,000

Routing Capabilities

• Supported Protocols: VRRP, OSPFv2, IGMPv3, MSDP

Remote Management Features

• Protocols Supported: SNMP v1, v2, v3, RMON (1, 2, 3, 9)

Functional Features

• Flow Control
• Spanning Tree Protocol (STP) Support
• Rapid Spanning Tree Protocol (RSTP) Support
• Multiple Spanning Tree Protocol (MSTP) Support
• Per-VLAN Spanning Tree Plus (PVST+)
• LACP Support
• LLDP Support
• SNMP Traps
• Dynamic VLAN Support (GVRP)

Compliance and Standards

• IEEE 802.3u
• IEEE 802.3z
• IEEE 802.1d
• IEEE 802.1q
• IEEE 802.3ab
• IEEE 802.1p
• IEEE 802.3x
• IEEE 802.3ad (LACP)
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.3ae
• IEEE 802.3ac
• IEEE 802.1s
• IEEE 802.1ab (LLDP)

Power Specifications

• Power Input: AC 120/230 V (50/60 Hz)
• Redundant Power Supply: Optional

Number Of Ports: 52

Enhanced Connectivity and Scalability

The Dell TWR5D Network Switch is a powerful networking solution that boasts an impressive 52 ports. This extensive number of ports offers enhanced connectivity and scalability for businesses of all sizes. Whether you're a small startup or a large enterprise, having 52 ports at your disposal allows you to connect multiple devices and expand your network as your business grows.

Seamless Device Integration

With 52 ports, the Dell TWR5D Network Switch provides seamless integration for all your networking devices. Whether you need to connect computers, printers, servers, or other peripherals, this switch has more than enough ports to accommodate your needs. This eliminates the need for additional switches or complex network configurations, simplifying your setup and saving you valuable time and resources.

Efficient Network Management

Having 52 ports not only enhances connectivity but also facilitates efficient network management. With each port serving as a connection point, you can easily organize and manage your network devices. This makes it simpler to identify and troubleshoot any issues that may arise, ensuring smooth operation and minimizing downtime. Whether you're a network administrator or a small business owner, this level of control and visibility can greatly enhance your network management capabilities.

Future-Proofing Your Network

Investing in a network switch with 52 ports is a forward-thinking decision that future-proofs your network infrastructure. As technology continues to advance, the demand for more connected devices will only increase. By choosing the Dell TWR5D Network Switch with its ample number of ports, you can confidently accommodate future growth without the need for costly upgrades or replacements.

Scalability for Growing Businesses

For growing businesses, scalability is crucial. The Dell TWR5D Network Switch's 52 ports provide the flexibility to add new devices and expand your network as your business expands. This scalability ensures that you won't outgrow your network infrastructure, allowing you to focus on your core business objectives without worrying about network limitations.

Streamlined Data Transfer

With 52 ports, the Dell TWR5D Network Switch enables streamlined data transfer across your network. Each port provides a dedicated connection, ensuring optimal data transmission speeds and reducing latency. This is particularly beneficial for bandwidth-intensive applications such as video conferencing, data backups, and file transfers. By leveraging the power of 52 ports, you can effectively support the demanding data needs of your business.

Improved Network Performance

The Dell TWR5D Network Switch's 52 ports contribute to improved network performance. With more ports available, network congestion is minimized, leading to faster and more reliable connections. This is especially important in environments where multiple users are simultaneously accessing network resources or engaging in data-intensive activities. By investing in a switch with ample ports, you can provide a seamless and efficient network experience for all users.

Port Types: 1GBE, SFP+ 10GBE

Flexibility in Network Connectivity

The Dell TWR5D Network Switch offers a versatile range of port types, including 1GBE and SFP+ 10GBE. This diverse selection allows for flexible network connectivity options to suit various devices and applications. Whether you need to connect traditional Ethernet devices or high-performance servers, this switch has you covered.

Compatibility with Existing Infrastructure

The inclusion of 1GBE ports in the Dell TWR5D Network Switch ensures compatibility with your existing network infrastructure. Many devices, such as computers and printers, still rely on standard Ethernet connections. By providing 1GBE ports, this switch seamlessly integrates with your current setup, enabling you to leverage your investments in these devices without the need for additional adapters or converters.

High-Speed Performance for Demanding Applications

In addition to 1GBE ports, the Dell TWR5D Network Switch also features SFP+ 10GBE ports. These ports offer high-speed connectivity that is ideal for demanding applications and server-to-server communication. Whether you're running data-intensive workloads, virtualization environments, or high-performance storage solutions, the SFP+ 10GBE ports ensure that your network can handle the increased data demands without compromising on speed or performance.

Future-Proofing with SFP+ 10GBE

The inclusion of SFP+ 10GBE ports in the Dell TWR5D Network Switch future-proofs your network infrastructure. As technology evolves and network speeds continue to increase, having 10GBE ports ensures that your switch can support future bandwidth requirements. This scalability allows you to seamlessly transition to higher network speeds when needed, without the need for costly infrastructure upgrades.

Increasing Bandwidth Capacity

With 1GBE and SFP+ 10GBE ports, the Dell TWR5D Network Switch provides increased bandwidth capacity for your network. This allows for faster data transfer rates and improved overall network performance. Whether you're transferring large files, streaming high-definition content, or engaging in real-time collaboration, the combination of different port types ensures that your network can handle the demands of modern business applications.

Optimized Performance for Specialized Devices

The availability of both 1GBE and SFP+ 10GBE ports caters to specialized devices that require specific connectivity options. Certain servers, storage systems, or network appliances may rely on higher-speed connections to deliver optimal performance. With the Dell TWR5D Network Switch, you have the flexibility to connect these devices directly to the switch using the appropriate port type, ensuring that they can operate at their full potential.

Improved Network Efficiency

The combination of 1GBE and SFP+ 10GBE ports in the Dell TWR5D Network Switch contributes to improved network efficiency. By leveraging the appropriate port type for each device, you can ensure that bandwidth is allocated efficiently. This prevents bottlenecks and maximizes overall network performance. Whether you have a mix of traditional Ethernet devices or high-performance servers, this switch provides the versatility needed to optimize your network infrastructure.

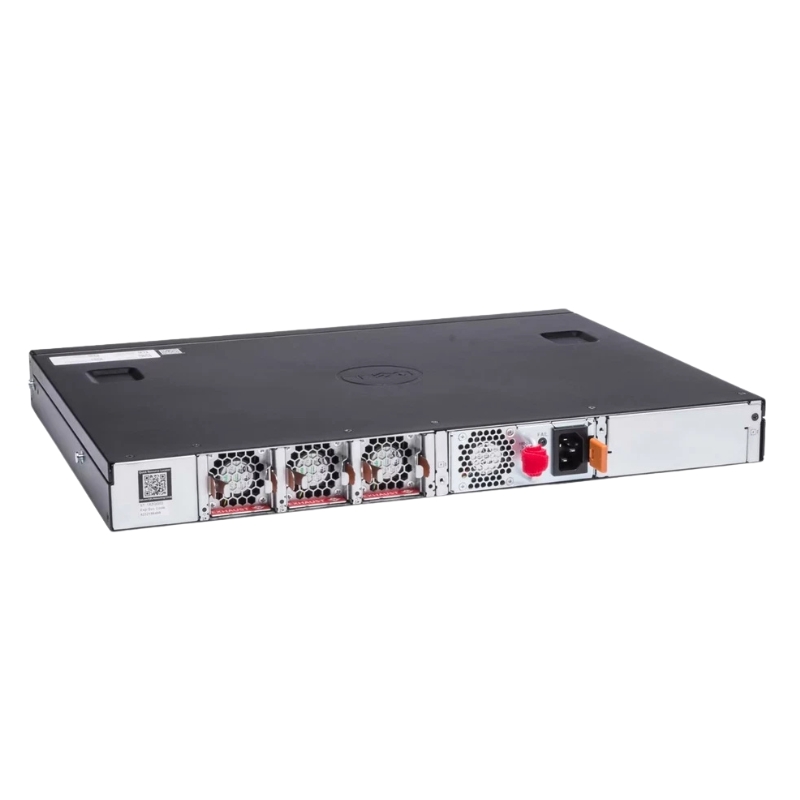

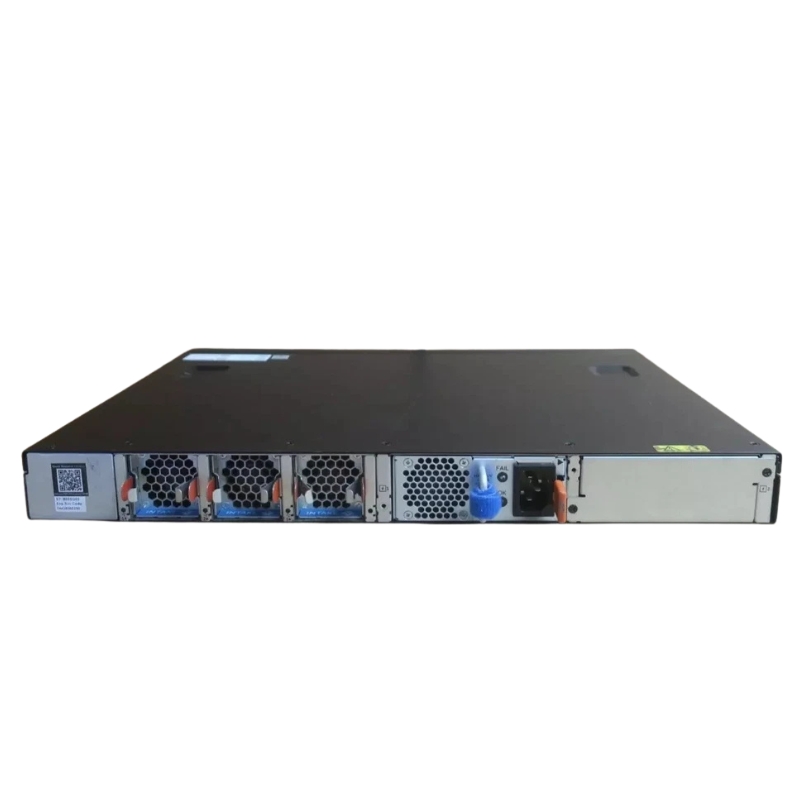

Power Supply: 1

Reliable Power Delivery

The Dell TWR5D Network Switch is equipped with a single power supply, ensuring reliable power delivery for your network infrastructure. A stable power supply is essential for maintaining uninterrupted network connectivity and preventing potential data loss or downtime.

Redundancy and Failover Protection

While a single power supply may seem like a limitation, the Dell TWR5D Network Switch incorporates redundancy and failover protection to mitigate any potential risks. In the event of a power supply failure, the switch seamlessly switches to an alternative power source, preventing disruptions to your network operations. This built-in redundancy ensures that your network remains operational even during unforeseen circumstances.

Simplified Power Management

With a single power supply, the Dell TWR5D Network Switch simplifies power management. You only need to focus on maintaining and monitoring one power source, reducing complexity and minimizing the chances of human error. This streamlined approach allows you to allocate your resources more efficiently, freeing up valuable time for other critical tasks.

Cost-Effective Solution

A single power supply in the Dell TWR5D Network Switch translates to a cost-effective solution. By eliminating the need for redundant power supplies, you can save on equipment costs and reduce energy consumption. This is particularly beneficial for small to medium-sized businesses with budget constraints but still require reliable network infrastructure.

Enhanced Power Efficiency

The Dell TWR5D Network Switch's single power supply contributes to enhanced power efficiency. With a dedicated power source, the switch can optimize its energy usage, resulting in lower power consumption and reduced operational costs. This eco-friendly approach aligns with sustainability initiatives and helps minimize your organization's environmental footprint.

Streamlined Troubleshooting

Having a single power supply simplifies troubleshooting processes. In the event of a power-related issue, you can easily locate the source of the problem and take appropriate action. This reduces the complexity of power-related diagnostics, allowing for quicker resolution and minimizing network downtime.

Easy Installation and Maintenance

A single power supply makes the installation and maintenance of the Dell TWR5D Network Switch hassle-free. You only need to connect one power source, reducing the time and effort required for setup. Additionally, when it comes to maintenance or replacement, dealing with a single power supply is much more straightforward compared to managing multiple redundant units.

In conclusion, the Dell TWR5D Network Switch offers an impressive number of ports, with 52 ports providing enhanced connectivity, scalability, and efficient network management. The inclusion of 1GBE and SFP+ 10GBE ports ensures flexibility in network connectivity, compatibility with existing infrastructure, and high-speed performance for demanding applications. With a single power supply, this switch delivers reliable power delivery, redundancy protection, simplified management, cost-effectiveness, enhanced power efficiency, streamlined troubleshooting, and easy installation and maintenance. Whether you're a small business or a large enterprise, the Dell TWR5D Network Switch provides the features and capabilities necessary to support your growing network infrastructure.
