Product Details for LPE35002 32GB Dual Port PCIe Gen4 x8
General Product Information
- Manufacturer: Dell
- Part Number: VMX26
Key Features & Highlights
- Supports dual ports with PCI Express Gen4 x8 connectivity
- Optimized for various optical data rates ranging from 28.05 Gb/s to 8.5 Gb/s
- Compatible with multiple operating systems and hardware environments
- Precision-engineered for performance with advanced transceiver support
Technical Specifications
General Specifications
- Generation: Gen 7 (64/32 GFC)
- Host Bus Interface: PCIe Gen4 x8
- Ports: 2
Optical & Cable Specifications
- Supported Cable Lengths:
- 0.5m to 100m at 64 GFC/32 GFC using 50/125 µm OM4 MMF
- 0.5m to 100m at 64 GFC/32 GFC using 50/125 µm OM5 MMF
- 0.5m to 70m at 64 GFC/32 GFC using 50/125 µm OM3 MMF
- 10 km at 32 GFC/16 GFC using 9/125 µm single-mode fiber with Emulex-approved longwave transceivers
- Optical Data Rates:
- 28.05 Gb/s (3200 MB/s)
- 14.025 Gb/s (1600 MB/s)
- 8.5 Gb/s (800 MB/s)
- Optics: Short Wave Lasers with LC-type connectors
Hardware Environment Support
- Intel X64, Intel X86, and PowerPC compatibility supported
- Integrated with I/O Controller Xe601 for enhanced performance
Environmental Operating Conditions
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -20°C to 85°C (-4°F to 185°F)
- Operating Humidity: 5% to 95%, non-condensing
Supported Operating Systems
- Microsoft Windows
- Oracle Linux
- Oracle Linux with Unbreakable Enterprise Kernel (UEK)
- Oracle Solaris
- Red Hat Enterprise Linux
- SUSE® Linux Enterprise Server
- VMware vSphere
- Additional support through OEMs and partners available
Physical Dimensions
Card Size & Weight Information
- Dimensions: 167.64 mm x 68.91 mm (6.60” x 2.71”)

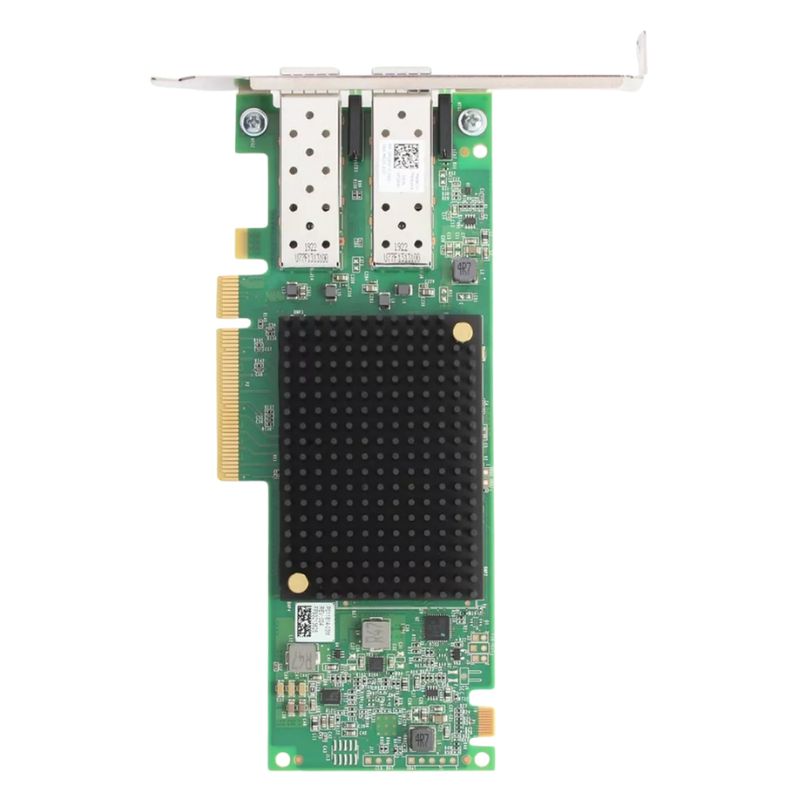

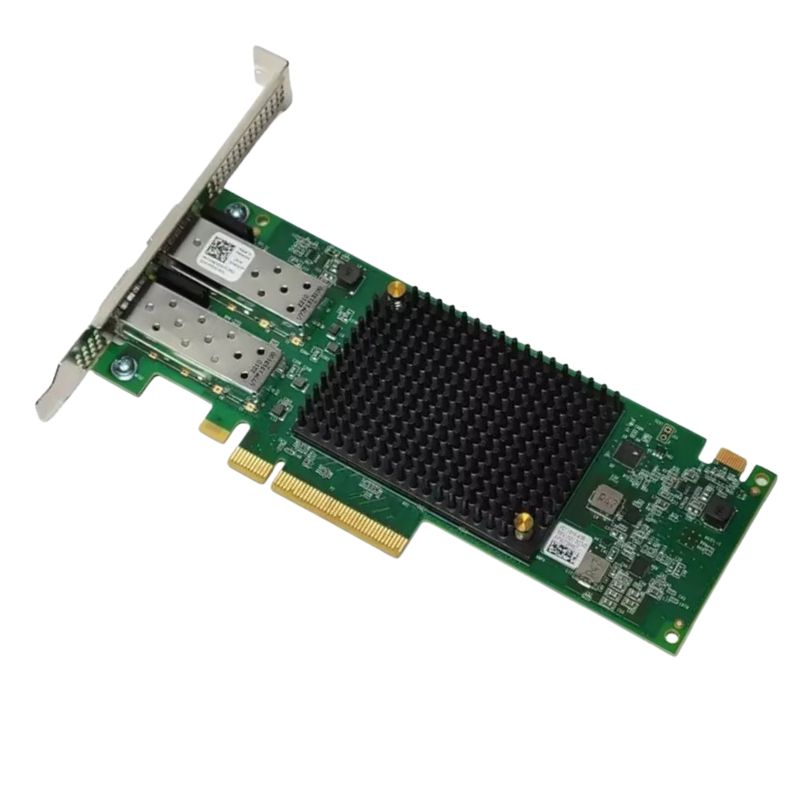

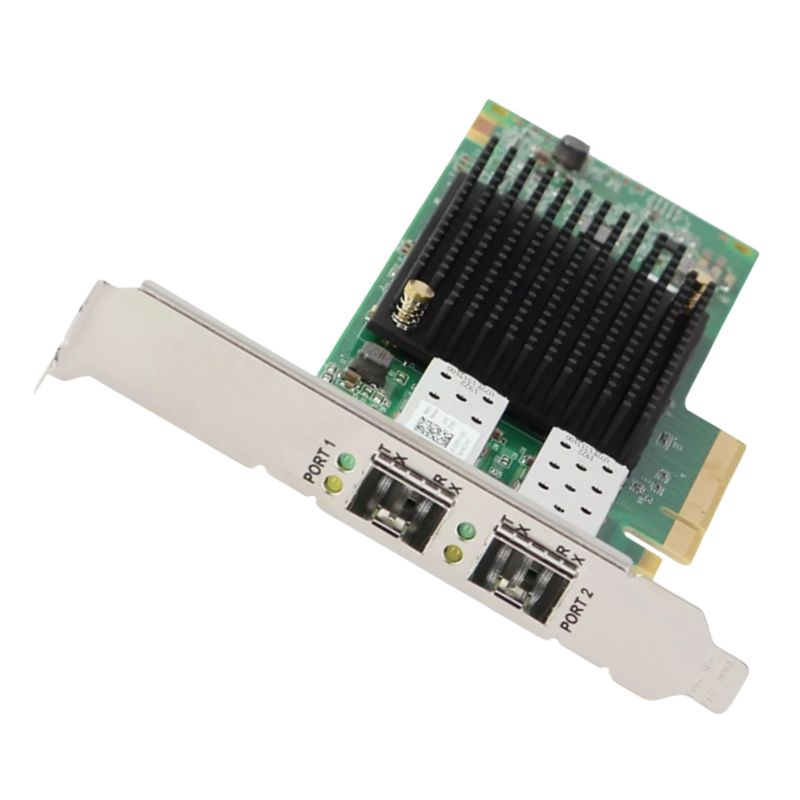

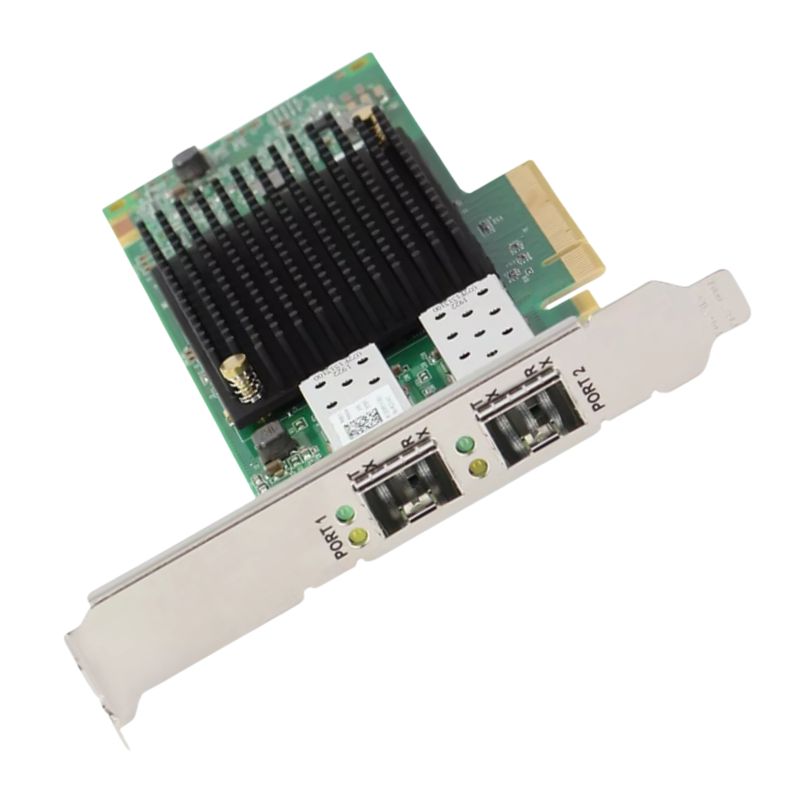

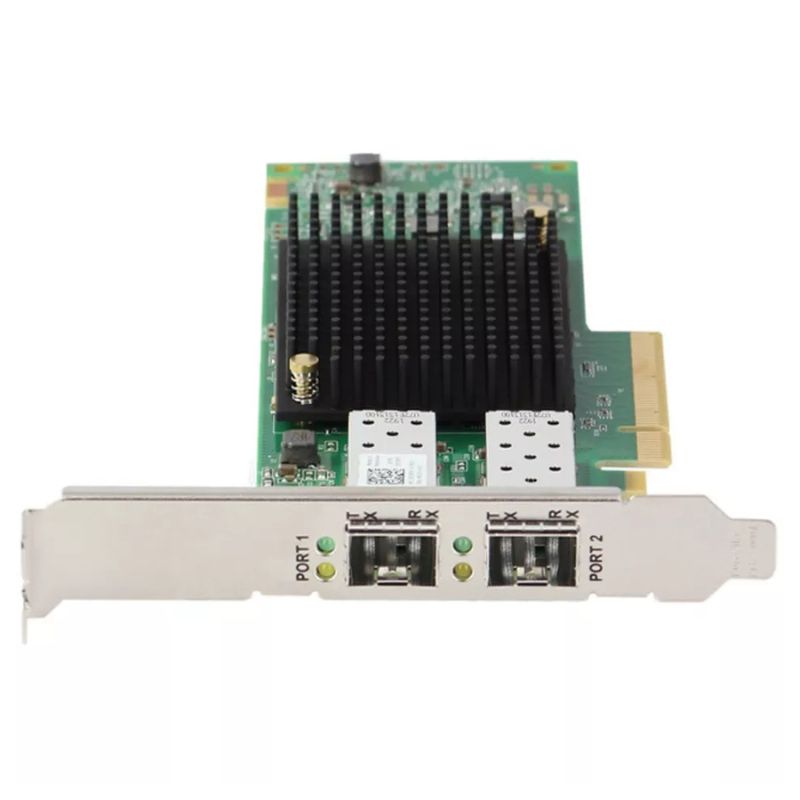

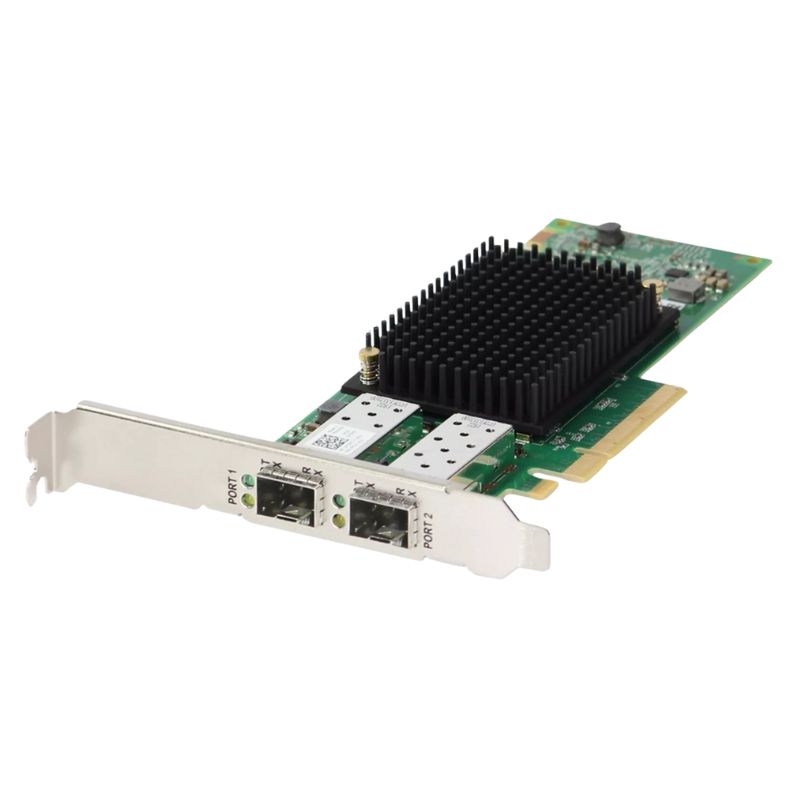

Dell VMX26 LPE35002 32GB Dual Port PCIe x8 FC
The Dell VMX26 LPE35002 32GB Dual Port PCIe x8 FC Host Bus Adapter is an advanced and reliable solution designed for high-performance Fibre Channel connectivity. Built for speed, scalability, and reliability, this adapter provides organizations with seamless and efficient communication between servers, storage, and networks. The dual-port 32GB Fibre Channel adapter offers enhanced connectivity, increased bandwidth, and robust support for demanding IT environments.
Features of the Dell VMX26 LPE35002 32GB Dual Port PCIe x8 FC Host Bus Adapter
The Dell VMX26 LPE35002 32GB Dual Port PCIe x8 FC Host Bus Adapter comes equipped with a wide array of features tailored to ensure fast, stable, and reliable Fibre Channel connections. Designed to support critical business applications and enterprise workloads, it offers optimal performance and connectivity options. Some of the key features include:
- 32GB Dual Port Bandwidth: The 32GB dual ports ensure high-speed communication, allowing efficient data transfers with minimal latency.
- PCIe x8 Interface: The PCI Express x8 interface allows seamless integration with servers, ensuring compatibility with modern enterprise server hardware.
- Reliable Fibre Channel Protocol: Utilizes Fibre Channel technology to streamline connectivity for storage area networks (SANs) and ensure high availability for critical applications.
- Advanced Error Recovery: Includes built-in error recovery mechanisms to improve system stability and maintain data integrity.
- Low Latency Transfers: Optimized for low latency to provide instantaneous data movement across connected networks.
Compatibility with Enterprise Storage Environments
The Dell VMX26 LPE35002 is built to integrate seamlessly with enterprise storage solutions. Supporting a variety of storage arrays and SANs, this FC Host Bus Adapter is fully compatible with both Dell EMC and other industry-leading storage platforms. With dual ports and 32GB performance capabilities, users can enjoy reliable connections across vast networks of storage systems, ensuring data is always accessible and quickly retrievable when required.
Easy PCIe x8 Installation
The PCI Express x8 interface is designed for easy integration, minimizing installation complexity while maximizing performance. With this interface, the Dell VMX26 LPE35002 can be installed into servers equipped with PCIe x8 slots. This ensures seamless compatibility with a variety of Dell and third-party servers, enhancing server performance while providing strong Fibre Channel connectivity options.
Applications of Dell VMX26 LPE35002 32GB Dual Port PCIe x8 FC Host Bus Adapter
The Dell VMX26 LPE35002's advanced Fibre Channel capabilities make it ideal for a range of use cases within enterprise environments. It caters to the needs of industries requiring high-speed data transfers, secure connectivity, and efficient server-to-storage communication. Here are some of the common applications:
- Storage Area Networking (SAN): Designed to connect servers with storage arrays through Fibre Channel networks, providing efficient and low-latency access to data.
- Data Center Expansion: Supports the increased demand for storage, scalability, and server upgrades by connecting multiple servers with Fibre Channel switches and storage arrays.
- Disaster Recovery Solutions: Ensures real-time access to replicated data in disaster recovery scenarios by integrating servers with SAN storage solutions.
- Backup & Archiving: Provides secure and reliable connectivity for storage and backup solutions, streamlining recovery point objectives (RPO) and ensuring data integrity.
- High-Performance Database Access: Optimized for database-driven workloads that demand consistent and quick access to large datasets.
Optimized for Virtualized Data Centers
With organizations transitioning toward virtualization and software-defined infrastructure, the Dell VMX26 LPE35002 is an ideal choice for virtualized environments. Designed for VMware, Hyper-V, and other virtualized infrastructures, this Fibre Channel adapter ensures low-latency communication for virtualized storage environments while providing performance levels that support numerous virtual machines simultaneously.
Enterprise-Class Data Management and Storage
The Dell VMX26 LPE35002 integrates with enterprise-class storage solutions, allowing organizations to manage critical data securely. Through its high-speed 32GB Fibre Channel connections, this adapter improves access to vital data while ensuring redundancy, reliability, and scalability. Whether for a multi-cloud storage solution or on-premise SAN implementation, this adapter offers the flexibility needed for modern IT environments.
Benefits of Using the Dell VMX26 LPE35002 32GB Dual Port PCIe x8 FC Host Bus Adapter
Adopting the Dell VMX26 LPE35002 offers numerous benefits for IT administrators and organizations, particularly in large-scale enterprise environments. Here are the most notable advantages:
1. High-Speed Connectivity
With 32GB dual ports running over Fibre Channel technology, the Dell VMX26 provides high-speed, low-latency connectivity between servers, storage arrays, and networks. This ensures rapid data movement with little downtime.
2. Scalability for Growing Data Needs
The dual port design allows IT teams to scale Fibre Channel network performance as business demands grow. Whether organizations are expanding servers, storage arrays, or SANs, the Dell VMX26 is designed to scale effortlessly without requiring significant reconfigurations.
3. Reliability and Redundancy
With dual ports and advanced error recovery technology, this adapter ensures system uptime even during connectivity disruptions. It reduces the risk of failures by providing fault tolerance to maintain business-critical applications without downtime.
4. Efficient Server Utilization
The PCIe x8 interface and compatibility with modern server hardware ensure that servers can be utilized efficiently, connecting seamlessly to Fibre Channel SANs with optimal bandwidth and reliability. This allows IT administrators to get the most out of their server infrastructure.
5. Optimized Power Usage
Fibre Channel adapters like the Dell VMX26 are built with power efficiency in mind. This minimizes overhead on server power supplies, reduces cooling costs, and supports green IT initiatives without sacrificing performance.
Installation and Setup
The Dell VMX26 LPE35002's design prioritizes simplicity without compromising on performance. The PCIe x8 form factor allows for easy installation into compatible servers. Here’s how organizations can integrate this powerful adapter into their data center environments:
Step 1: Verify Server Compatibility
Before installation, ensure the target server has an available PCIe x8 slot and supports the Fibre Channel standards required by the Dell VMX26 LPE35002 adapter.
Step 2: Install the Adapter into the PCIe x8 Slot
Insert the Dell VMX26 LPE35002 adapter into the PCIe x8 slot and secure it properly. Connect necessary power supplies, if required, to ensure the adapter has consistent power during operation.
Step 3: Connect the Adapter to the Fibre Channel Network
Using the appropriate Fibre Channel cables, connect the dual ports to your SAN infrastructure, switches, or storage arrays to establish connectivity.
Step 4: Configure the Adapter for Optimal Performance
Leverage Dell's configuration tools and utilities to optimize the settings of the adapter, ensuring low latency, maximum throughput, and seamless compatibility with existing IT assets.
