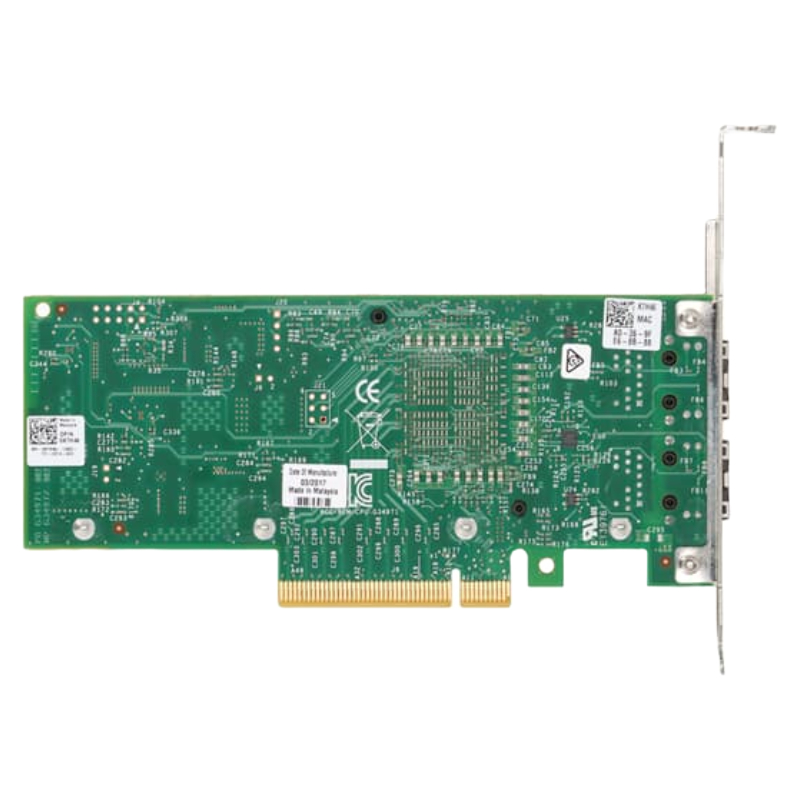

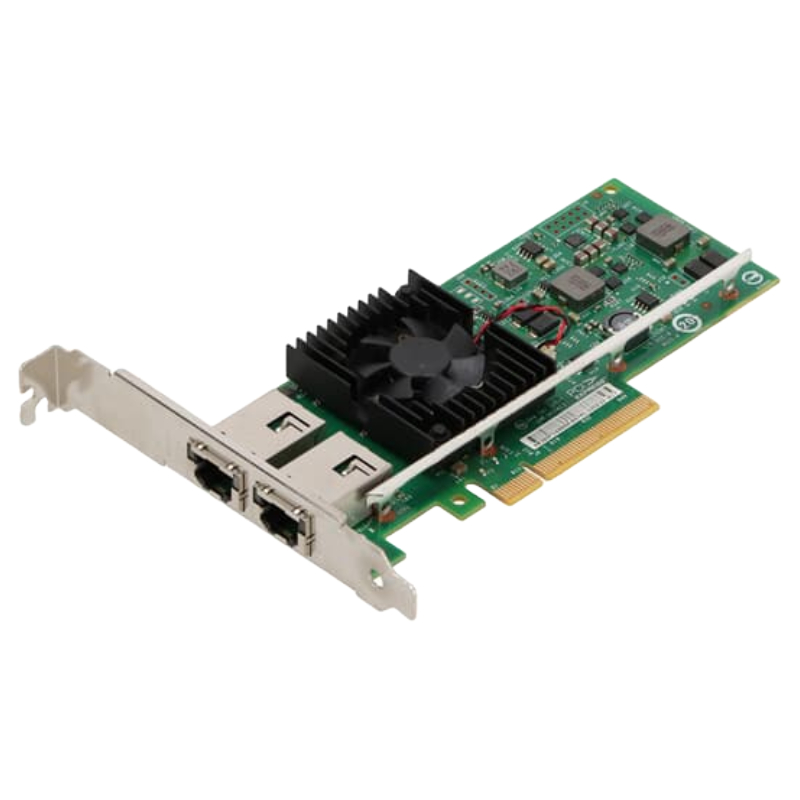

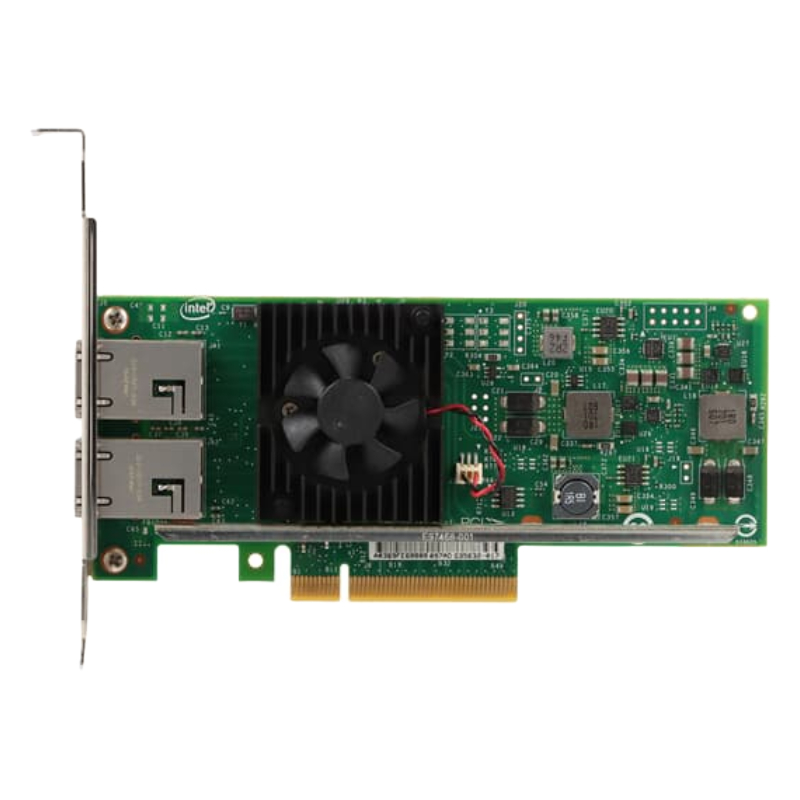

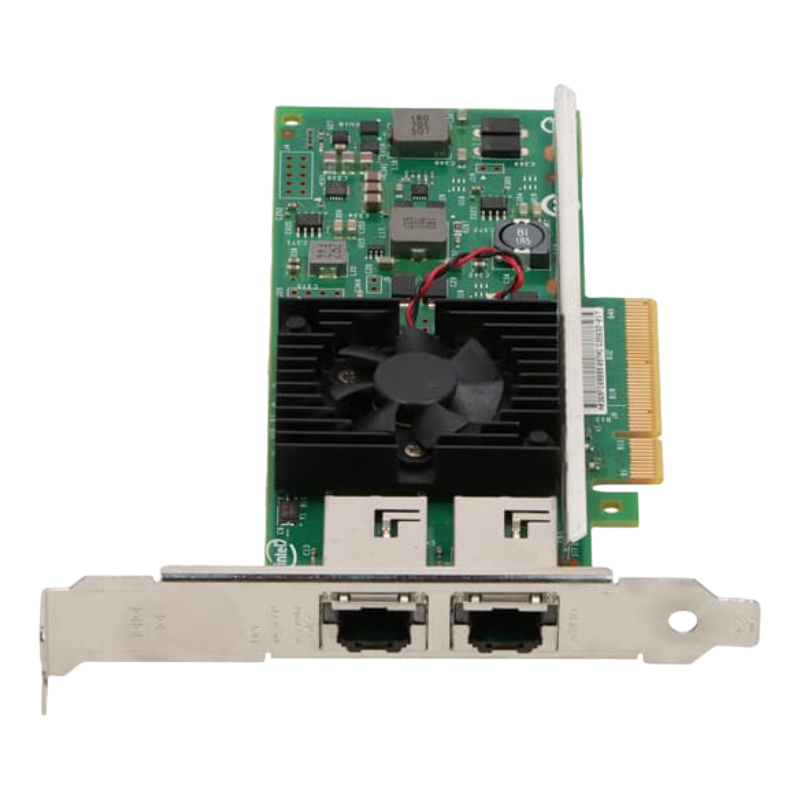

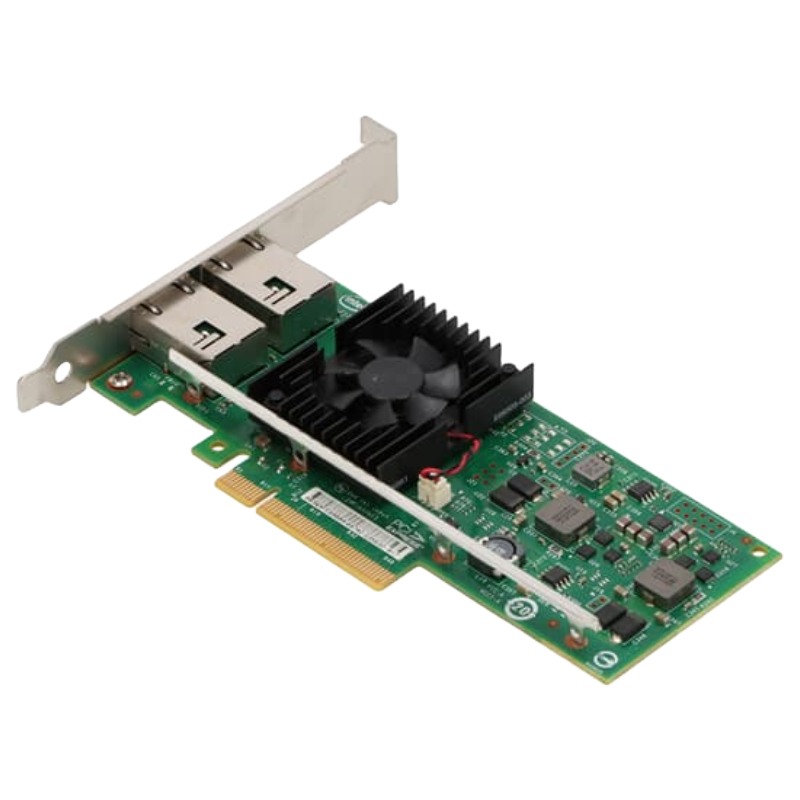

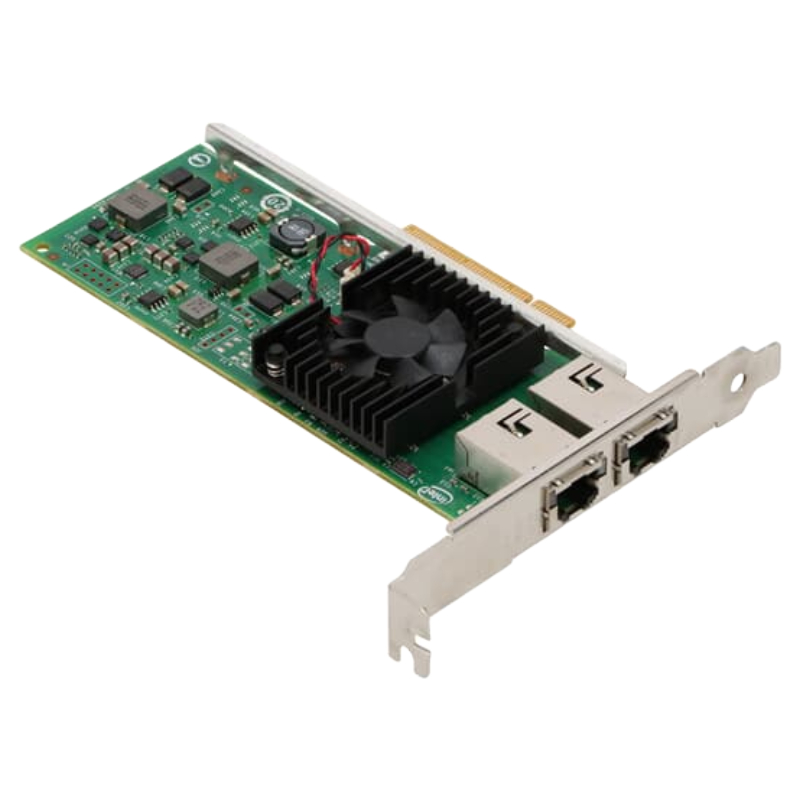

540-BBCC Dell X540-t2 2-Port 10GB 10gbase-t Network Adapter

The Dell 540-BBCC X540-t2 Network Adapter is equipped with 2 ports, making it an excellent choice for users who require multiple connections for their networking needs. These ports provide users with the flexibility to connect to multiple devices simultaneously, allowing for efficient data transfer and improved overall network performance.

General Specifications

• Manufacturer: Dell
• Part Number: 540-BBCC
• Product Type: Converged Network Adapter

Technical Specifications

• Card Type: Plug-in module
• Slot Compatibility: PCI Express 2.0 x8
• Revision Standard: PCIe 2.0 compliant
• Connection Mode: Wired
• Cable Standard: Ethernet 10GBase‑T
• Supported Protocol: 10 Gigabit Ethernet
• Maximum Throughput: 10 Gbps

Expansion & Interfaces

• Available Ports: Dual RJ‑45 connectors
• Interface Type: 2 × Ethernet 10GBase‑T
• Slot Requirement: One PCI Express 2.0 x8

Performance Highlights

Data Transmission

• Speed: 10 Gigabits per second
• Protocol Support: High‑bandwidth Ethernet standards

Reliability & Standards

• Optimized for enterprise workloads
• Stable wired connectivity for data‑intensive applications

Use Case Scenarios

• Ideal for server environments requiring fast throughput
• Supports virtualization and storage networking
• Compatible with modern enterprise infrastructures

Dell 540-BBCC Intel 10GB Converged Network Adapter

The Dell 540-BBCC Intel X540-T2 2-Port 10Gb 10GBASE-T Converged Network Adapter represents a high-performance, enterprise-grade networking solution designed to deliver reliable, scalable, and efficient data transmission across modern IT infrastructures. Built on the robust Intel X540 controller architecture, this adapter integrates dual 10 Gigabit Ethernet ports that support 10GBASE-T connectivity, enabling seamless high-speed communication over standard twisted-pair copper cabling. This makes it an ideal choice for data centers, virtualization environments, cloud deployments, and enterprise server clusters requiring consistent throughput and low latency performance.

The adapter is engineered to support converged networking capabilities, allowing organizations to consolidate multiple network traffic types including data, storage, and management traffic onto a single hardware platform.

Intel X540 Controller-Based Architecture

Advanced Silicon Integration for Enterprise Networking

At the core of the Dell 540-BBCC adapter is the Intel X540 Ethernet controller, a proven chipset designed to deliver deterministic performance under heavy workloads. The controller integrates multiple offload technologies, reducing CPU utilization and allowing server processors to focus on application-level tasks rather than network packet processing. This architecture is particularly beneficial in virtualized environments where network I/O demands are high and unpredictable.

Dual-Port 10GBASE-T Connectivity

The dual RJ-45 ports on the adapter support 10GBASE-T standard connectivity, enabling transmission speeds of up to 10 gigabits per second per port over Cat6a or Cat7 cabling. This provides backward compatibility with existing Ethernet infrastructure while enabling gradual upgrades from 1GbE to 10GbE networks. The flexibility of copper-based connectivity reduces deployment costs and simplifies cable management in dense rack environments.

PCI Express Interface Optimization

The Dell 540-BBCC utilizes a PCI Express interface designed to maximize data throughput between the adapter and the host system. The PCIe architecture ensures low-latency communication, high bandwidth allocation, and efficient queuing mechanisms for network traffic. This ensures that even under sustained high-load conditions, the adapter maintains stable and predictable performance across both ports.

Converged Network Adapter Capabilities and Use Cases

Unified Networking for Data, Storage

As a converged network adapter (CNA), the Dell 540-BBCC is engineered to handle multiple types of network traffic simultaneously. It supports data networking, storage networking such as iSCSI, and virtualization traffic within a single interface. This convergence reduces the need for multiple network interface cards, simplifying infrastructure design and improving resource utilization.

Enterprise Virtualization Environments

In virtualized server environments powered by platforms such as VMware, Microsoft Hyper-V, and KVM, the adapter provides essential support for virtual machine mobility and high-throughput data exchange. Its support for multiple virtual queues ensures efficient load distribution across virtual machines, improving performance isolation and reducing bottlenecks in multi-tenant environments.

Cloud Computing Infrastructure Deployment

Cloud service providers and private cloud infrastructures benefit significantly from the scalability and reliability of the Dell 540-BBCC adapter. The ability to handle high-density workloads and large-scale data transfers makes it suitable for distributed computing environments, microservices architectures, and containerized applications.

Performance Optimization

TCP/IP Offload Engine (TOE)

The adapter incorporates advanced offload engines that reduce the processing burden on host CPUs. The TCP/IP offload engine handles segmentation, checksum calculations, and packet assembly tasks directly on the network card. This significantly improves system performance by freeing CPU cycles for compute-intensive workloads.

Large Send Offload and Receive Side Scaling

Large Send Offload (LSO) and Receive Side Scaling (RSS) are supported to optimize network performance under heavy traffic conditions. LSO enables the system to transmit large packets efficiently, while RSS distributes incoming traffic across multiple processor cores, ensuring balanced workload distribution and improved scalability.

Interrupt Moderation and Adaptive Load Balancing

The adapter features interrupt moderation technology that reduces CPU overhead caused by excessive network interrupts. Adaptive load balancing ensures that traffic is evenly distributed across both ports, enhancing redundancy and maximizing available bandwidth utilization in dual-port configurations.

Network Reliability and Redundancy Features

Failover and Link Aggregation Support

The Dell 540-BBCC supports link aggregation technologies such as IEEE 802.3ad, enabling the combination of both ports into a single logical interface for increased bandwidth and redundancy. In the event of a port failure, traffic is automatically rerouted to the remaining active port, ensuring uninterrupted network connectivity.

High Availability Networking for Critical Systems

In mission-critical environments, high availability is essential. This adapter supports advanced failover mechanisms that ensure continuous operation even in the presence of hardware or link failures. This is particularly important in financial systems, healthcare infrastructures, and large-scale enterprise databases where downtime is unacceptable.

Error Detection

Built-in error detection mechanisms ensure data integrity during transmission. The adapter continuously monitors packet flow and corrects or retransmits corrupted packets, maintaining reliable communication between servers, storage systems, and network switches.

Data Center Applications and Enterprise Workloads

High-Density Data Center Networking

In modern data centers, high-density rack configurations require compact yet powerful networking solutions. The Dell 540-BBCC adapter provides high throughput while minimizing physical space requirements, making it ideal for blade servers and rack-mounted systems.

Storage Over IP (iSCSI) Acceleration

The adapter enhances storage performance by accelerating iSCSI traffic over Ethernet networks. This allows organizations to deploy cost-effective storage solutions without sacrificing performance or scalability.

Big Data and Analytics Processing

Big data environments require high-speed data ingestion and transfer capabilities. The dual-port 10GbE architecture ensures that large datasets can be transmitted efficiently between storage clusters and compute nodes, reducing processing delays and improving analytics performance.

Security Features and Network Protection

Hardware-Level Security Enhancements

The adapter incorporates hardware-based security features that help protect against network-based attacks and unauthorized access. These features include secure boot mechanisms and firmware integrity verification to ensure trusted operation within enterprise environments.

Traffic Isolation and Segmentation

Network segmentation capabilities allow administrators to isolate different types of traffic, improving security and reducing the risk of data breaches. This is especially important in multi-tenant cloud environments where workload isolation is required.

Secure Virtualization Networking

In virtualized environments, secure virtual machine communication is essential. The adapter supports virtual switching and isolation technologies that ensure secure communication between virtual instances without exposing sensitive data to other tenants.

Energy Efficiency

Low Power Consumption Architecture

The Intel X540-based design emphasizes energy efficiency, reducing overall power consumption while maintaining high throughput performance. This makes the adapter suitable for large-scale deployments where power efficiency directly impacts operational costs.

Thermal Optimization for Continuous Operation

Advanced thermal management ensures stable operation even under sustained heavy workloads. The adapter is engineered to maintain optimal temperature levels, preventing overheating and ensuring long-term reliability in dense server environments.

Support for Expanding Network Demands

As enterprise workloads continue to grow, scalable networking infrastructure becomes essential. The Dell 540-BBCC adapter provides a foundation for scalable 10GbE deployments, allowing organizations to expand bandwidth without replacing core hardware components.

Integration with Modern IT Architectures

The adapter is fully compatible with modern IT architectures including hybrid cloud, software-defined networking (SDN), and hyper-converged infrastructure (HCI). Its flexibility ensures long-term usability in evolving enterprise environments.

Backward Compatibility and Upgrade Path

Backward compatibility with lower-speed Ethernet networks ensures a smooth upgrade path for organizations transitioning from 1GbE to 10GbE environments. This reduces migration costs and minimizes disruption during infrastructure upgrades.
