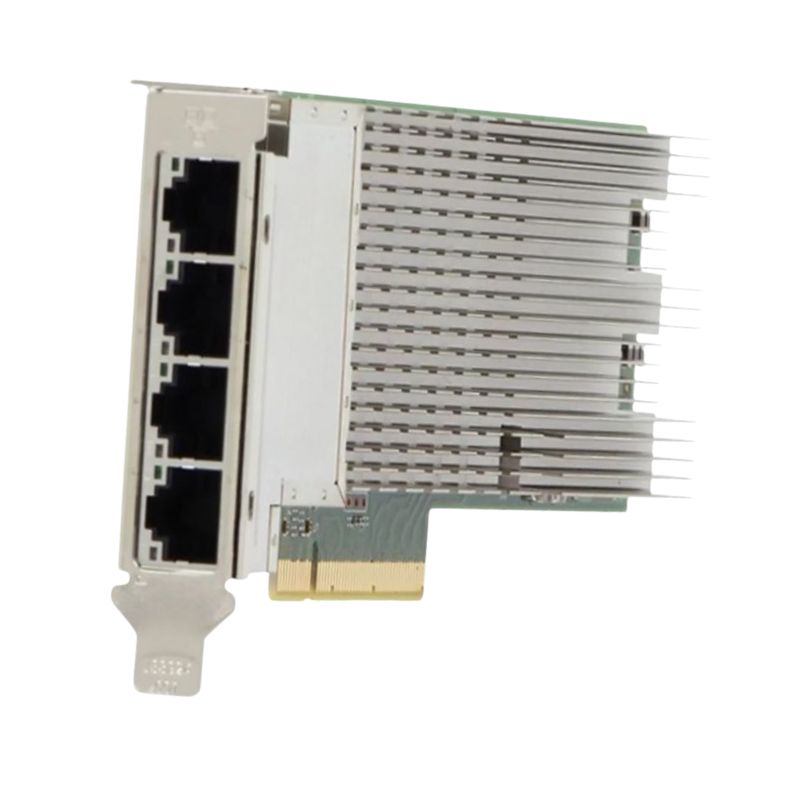

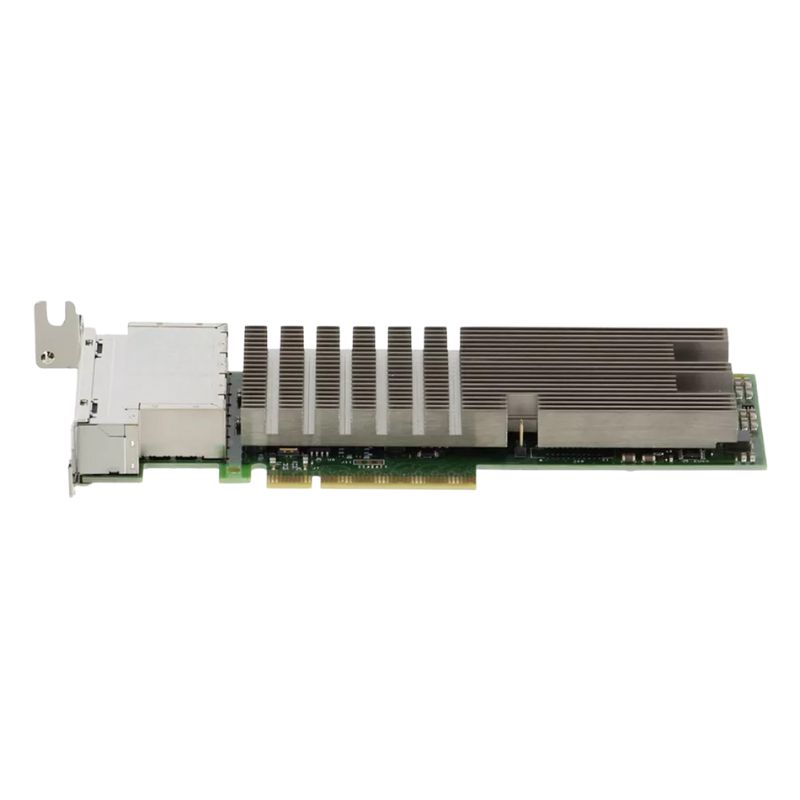

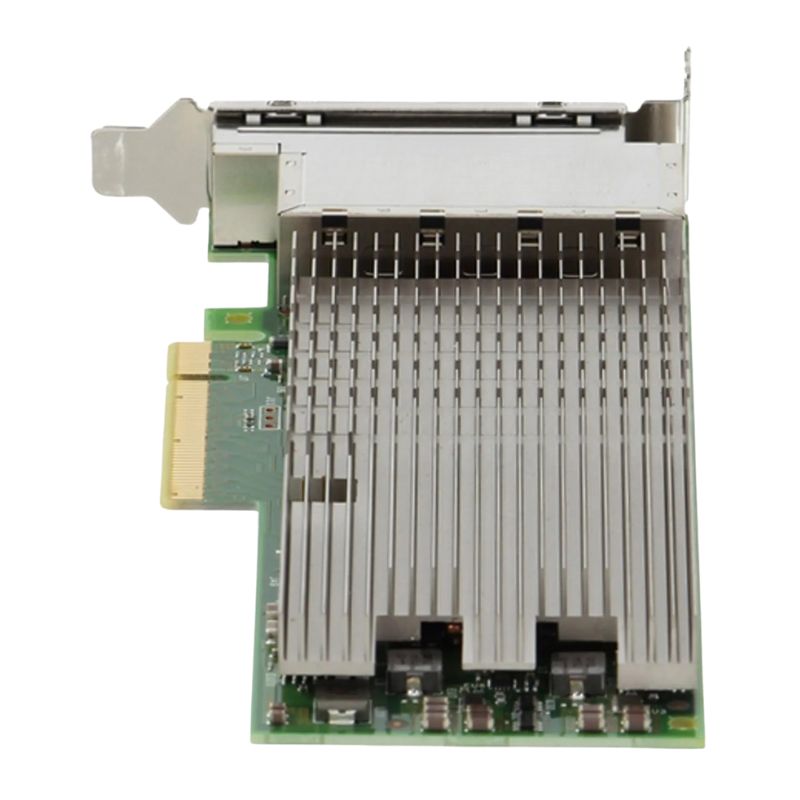

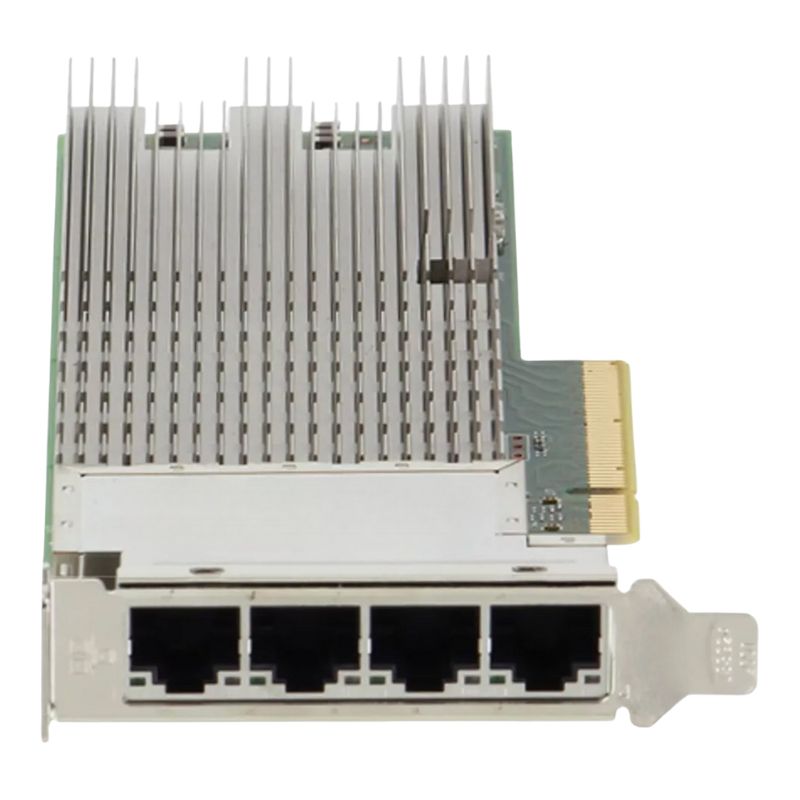

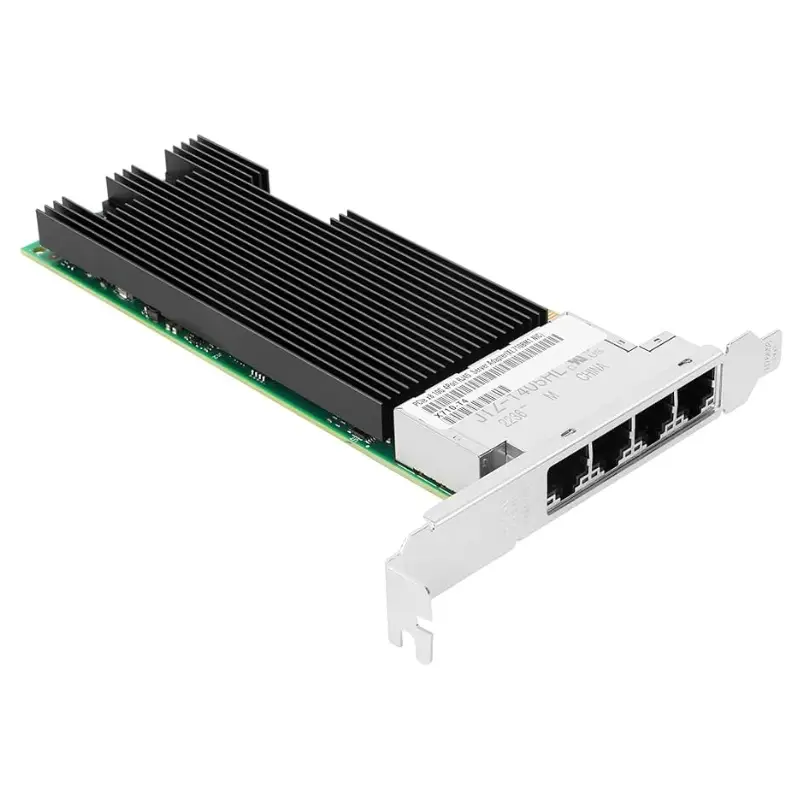

540-BBVO Dell X710-T4 RJ-45 10GBPS PCI-E 4 Ports Converged Network Adapters

Dell 540-BBVO Intel X710-T4 10GbE Network Adapter Overview

High-Performance 4-Port Converged Networking Solution

The Dell 540-BBVO Intel X710-T4 is a powerful converged network adapter designed to deliver ultra-fast 10 Gigabit Ethernet connectivity across four RJ-45 ports. Built for enterprise-grade environments, it enhances server performance, virtualization efficiency, and data throughput in demanding workloads.

Key Product Highlights

• Manufacturer: Dell
• Part Number / SKU: 540-BBVO
• Device Type: Converged Network Adapter
• Interface Configuration: Quad-Port (4 x RJ-45 Ethernet)
• Speed Capability: Up to 10 Gbps per port

Advanced Technical Specifications

Bus Interface and Connectivity

• PCI Express 3.0 x8 interface for high-bandwidth communication
• Supports seamless integration into modern server architectures

Network Performance and Protocol Support

• Supports 10GbE, Gigabit Ethernet, and 100Mb Ethernet standards
• Data transfer rate: up to 10 Gigabits per second
• Jumbo frame support up to 9728 bytes for optimized throughput
• VLAN tagging capability supporting up to 4096 VLAN IDs

Industry Standards Compliance

• IEEE 802.3 for Ethernet networking
• IEEE 802.1Q VLAN tagging standard
• IEEE 802.1p for traffic prioritization
• IEEE 802.3ad (LACP) for link aggregation
• IEEE 802.1AS for time synchronization
• IEEE 802.1Qbg for virtualization support

Operating System Compatibility

Supported Platforms

• Microsoft Windows Server 2008 R2 (64-bit)
• Microsoft Windows Server 2012 and 2012 R2 (64-bit)
• Microsoft Windows Server 2016 (64-bit)
• Linux Kernel 2.6, 3.x, 4.x series
• Red Hat Enterprise Linux 6.8 and 7.3 (64-bit)
• SUSE Linux Enterprise Server 11 SP4 and 12 SP1
• VMware ESXi 5.5 and 6.0
• FreeBSD 11

Design, Form Factor & Physical Dimensions

Compact Enterprise Build

• Form factor optimized for server PCIe slots
• Durable construction for continuous enterprise workloads

Physical Size

• Length: 6.6 inches
• Width: 2.7 inches

Enterprise Use Cases and Deployment Benefits

Ideal Applications

• Data center virtualization environments
• High-performance cloud infrastructure
• Enterprise server networking expansion
• Storage and database-intensive workloads

Performance Advantages

• Improved network throughput for mission-critical systems
• Reduced latency for high-demand applications
• Efficient traffic management using advanced IEEE protocols
• Enhanced scalability with multi-port architecture

Dell 540-BBVO 10Gbps PCI-E 4-Port Converged Network Adapter

The Dell 540-BBVO Intel X710-T4 RJ-45 10Gbps PCI-E 4-Port Converged Network Adapter represents a high-performance networking solution designed for enterprise-grade servers, data centers, virtualization environments, and cloud infrastructure deployments. Built around Intel’s advanced X710 controller architecture, this category of converged network adapters delivers reliable multi-port 10 Gigabit Ethernet connectivity over RJ-45 copper interfaces, enabling organizations to achieve high bandwidth, low latency, and efficient data throughput across mission-critical workloads. The combination of PCI Express interface technology and quad-port design ensures scalable network performance while maintaining compatibility with modern Dell PowerEdge server platforms and enterprise networking environments.

This category is widely recognized for its ability to consolidate networking, storage, and data traffic into a single adapter architecture, reducing hardware overhead while improving overall server efficiency. The Dell 540-BBVO Intel X710-T4 adapter is particularly suitable for environments requiring virtualization, software-defined networking, and high-density server deployments where consistent throughput and reliability are essential.

Advanced Converged Network Adapter Architecture

Converged Network Adapters (CNAs) such as the Dell 540-BBVO integrate multiple networking functionalities into a unified hardware solution. This includes traditional Ethernet communication alongside support for offloading capabilities that reduce CPU utilization. The Intel X710 chipset at the core of this adapter enables hardware acceleration for tasks such as TCP/IP offloading, virtualization packet processing, and advanced queue management.

Intel X710 Controller Technology

The Intel X710 series is engineered for high-performance networking workloads, offering support for multiple virtualization technologies and optimized packet processing pipelines. It supports advanced features such as Virtual Machine Device Queues (VMDq), Single Root I/O Virtualization (SR-IOV), and Data Plane Development Kit (DPDK) acceleration. These technologies collectively reduce latency and improve packet throughput across virtualized and bare-metal environments.

By leveraging Intel’s silicon-level optimization, the adapter ensures minimal packet loss, efficient load balancing, and enhanced traffic segmentation, making it ideal for cloud data centers and enterprise virtualization clusters.

PCI Express Interface Integration

The PCI-E interface used in this adapter provides a high-bandwidth communication channel between the network adapter and the server motherboard. This ensures that the full potential of the four 10GbE ports can be utilized without bottlenecks. The PCI Express architecture supports scalable lane configurations, allowing efficient data transfer rates that match the demands of modern enterprise workloads such as database replication, virtualization clustering, and real-time analytics.

RJ-45 10GbE Copper Connectivity

Unlike fiber-based network adapters, the Dell 540-BBVO Intel X710-T4 utilizes RJ-45 copper interfaces, enabling the use of standard Ethernet cabling such as Cat6a or Cat7. This significantly reduces deployment costs while maintaining high-speed 10Gbps connectivity per port. RJ-45 compatibility ensures seamless integration into existing LAN infrastructures without requiring extensive upgrades to fiber optic systems.

Key Features of Dell 540-BBVO Intel X710-T4 Adapter Category

This category of converged network adapters includes a range of enterprise-grade features designed to enhance scalability, performance, and reliability. The quad-port configuration allows multiple network connections from a single adapter, improving redundancy and load balancing capabilities. Each port operates independently at 10Gbps, enabling aggregated throughput that meets the demands of modern high-performance computing environments.

Multi-Port Network Aggregation

The four independent RJ-45 ports provide flexible configuration options, including link aggregation (LACP), failover redundancy, and segmented traffic handling. This allows IT administrators to design resilient network topologies that maintain uptime even in the event of port or cable failure.

Hardware Offloading Capabilities

The Intel X710 chipset offloads CPU-intensive networking tasks such as checksum calculations, segmentation offloading (TSO/LRO), and interrupt moderation. By shifting these tasks to dedicated hardware, server CPUs are freed to handle application-level workloads, improving overall system efficiency.

Virtualization Optimization

Designed for virtualized environments, the adapter supports SR-IOV and VMDq technologies, enabling direct hardware access for virtual machines. This reduces hypervisor overhead and enhances VM-to-network performance, which is critical in cloud computing and multi-tenant environments.

Energy Efficiency and Thermal Management

Energy-efficient design principles are integrated into the adapter’s architecture, ensuring reduced power consumption even under heavy workloads. Advanced thermal control mechanisms maintain optimal operating temperatures, extending hardware lifespan and improving system stability in high-density server racks.

Enterprise Use Cases and Deployment Scenarios

The Dell 540-BBVO Intel X710-T4 adapter category is widely deployed across enterprise environments that require robust and scalable networking infrastructure. Its versatility allows it to be used in multiple scenarios, ranging from virtualization clusters to high-performance storage networks.

Data Center Networking

In data center environments, the adapter supports high-speed interconnectivity between servers, storage arrays, and network switches. Its 10GbE capability ensures fast data movement across distributed systems, enabling efficient load balancing and reduced latency in mission-critical applications.

Cloud Computing Infrastructure

Cloud service providers benefit from the adapter’s virtualization features, which allow efficient resource allocation across multiple tenants. The ability to handle large volumes of concurrent network traffic makes it ideal for cloud-native applications, containerized workloads, and microservices architectures.

High-Performance Computing (HPC)

HPC environments require ultra-low latency and high throughput networking. The Dell 540-BBVO adapter ensures fast inter-node communication, enabling faster computation cycles in scientific simulations, financial modeling, and AI training workloads.

Enterprise Virtualization Platforms

Virtualization platforms such as VMware, Hyper-V, and KVM benefit significantly from SR-IOV and VMDq capabilities. These features allow direct assignment of network resources to virtual machines, reducing bottlenecks and improving VM density per host server.

Performance Optimization Capabilities

Performance optimization is a core aspect of the Dell 540-BBVO Intel X710-T4 category. The adapter is designed to handle high packet volumes while minimizing CPU overhead and maximizing throughput efficiency.

Load Balancing and Traffic Distribution

The quad-port architecture enables intelligent traffic distribution across multiple network paths. This reduces congestion and ensures consistent bandwidth availability for applications requiring stable connectivity.

Low Latency Packet Processing

Advanced packet processing pipelines reduce latency by minimizing software intervention. This is essential for latency-sensitive applications such as VoIP, real-time analytics, and financial trading systems.

Interrupt Moderation and Queue Management

Efficient interrupt moderation reduces CPU interruptions caused by network traffic, allowing smoother system performance under heavy load conditions. Multi-queue support ensures balanced processing across multiple CPU cores.

Compatibility with Dell Server Ecosystem

The Dell 540-BBVO Intel X710-T4 adapter is engineered for seamless compatibility with Dell PowerEdge servers and enterprise-grade hardware platforms. It integrates smoothly with server BIOS configurations, firmware updates, and Dell OpenManage systems for centralized monitoring and management.

Server Integration

The adapter is compatible with a wide range of Dell rack and tower servers, ensuring flexibility in deployment across different infrastructure designs. It supports plug-and-play installation with proper driver support across major operating systems.

Operating System Support

Support extends across Windows Server editions, Linux distributions, and virtualization hypervisors. This ensures broad deployment flexibility in heterogeneous IT environments.
