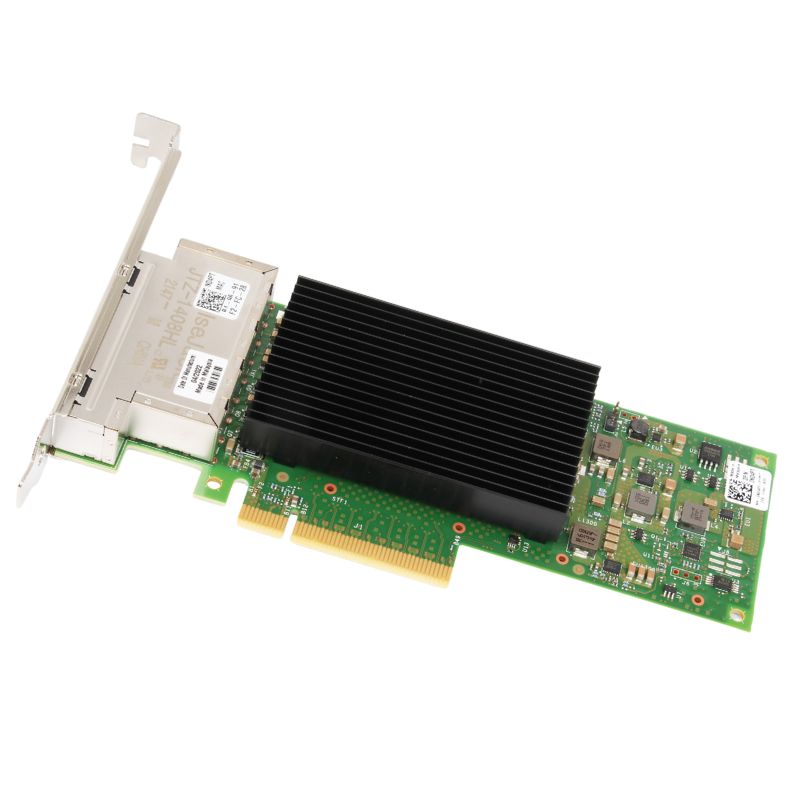

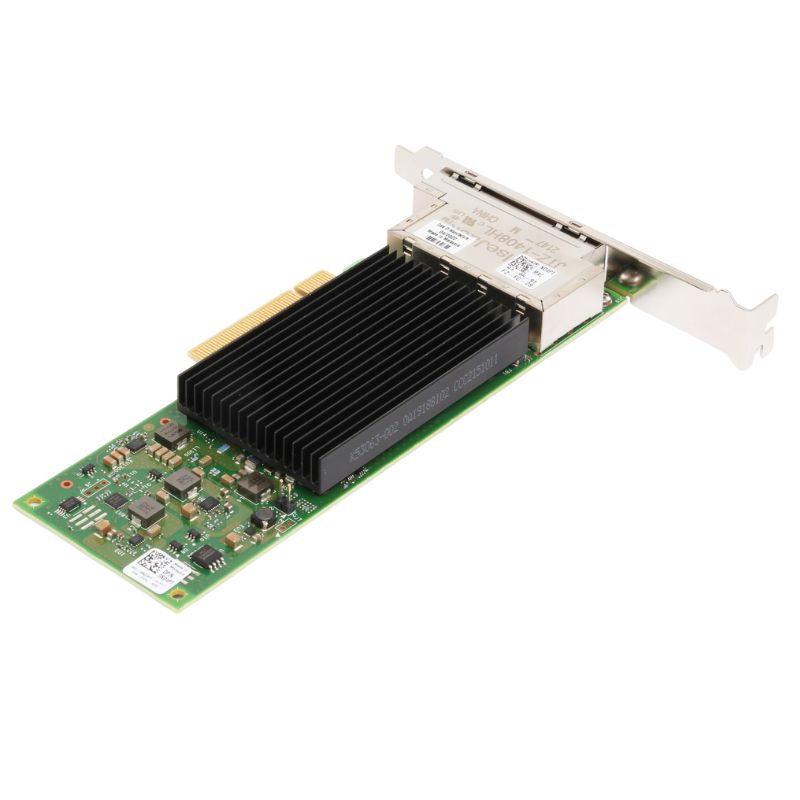

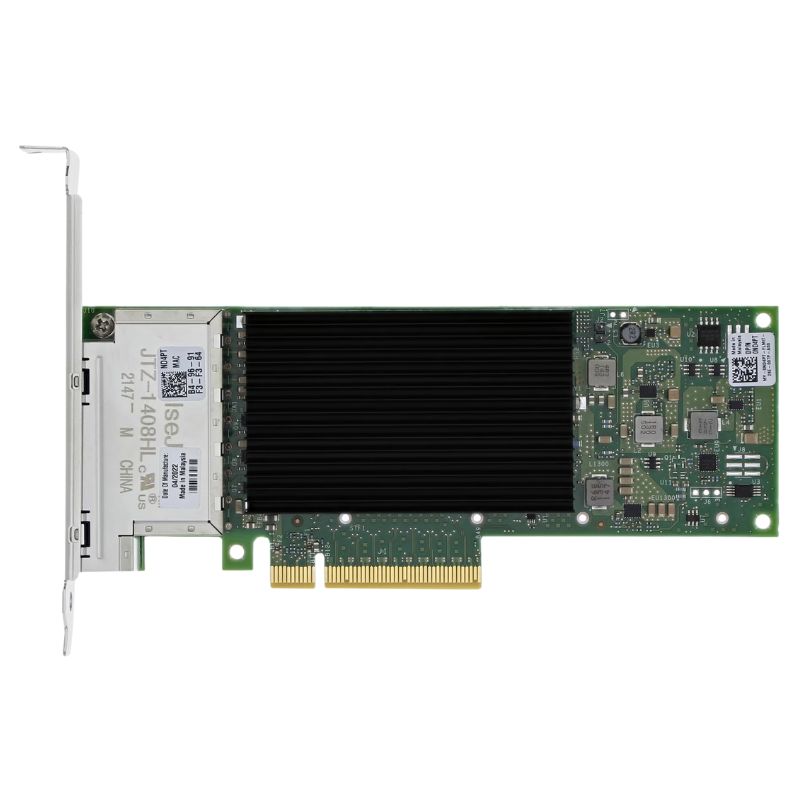

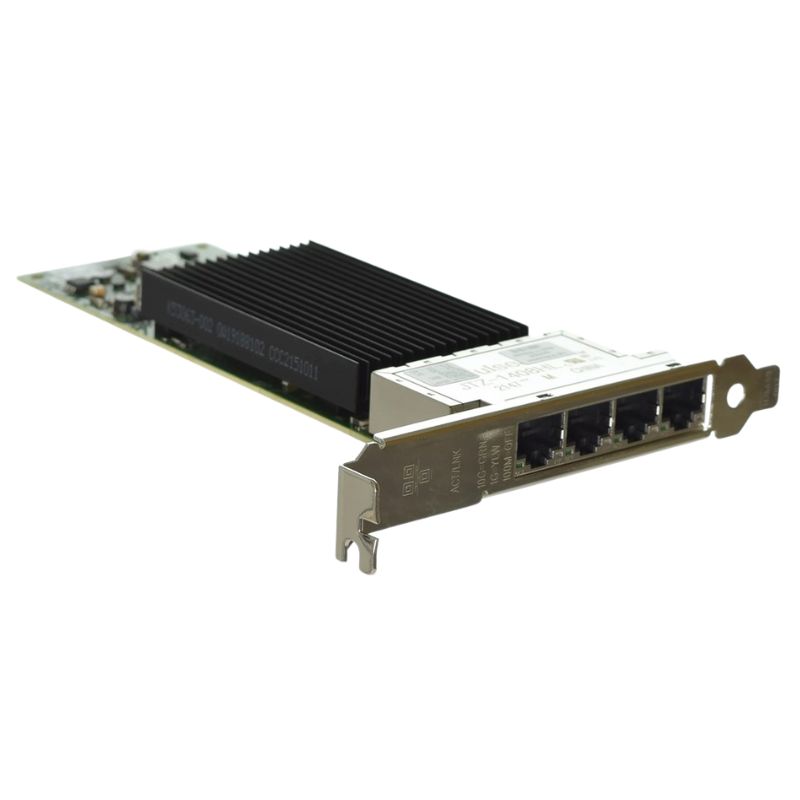

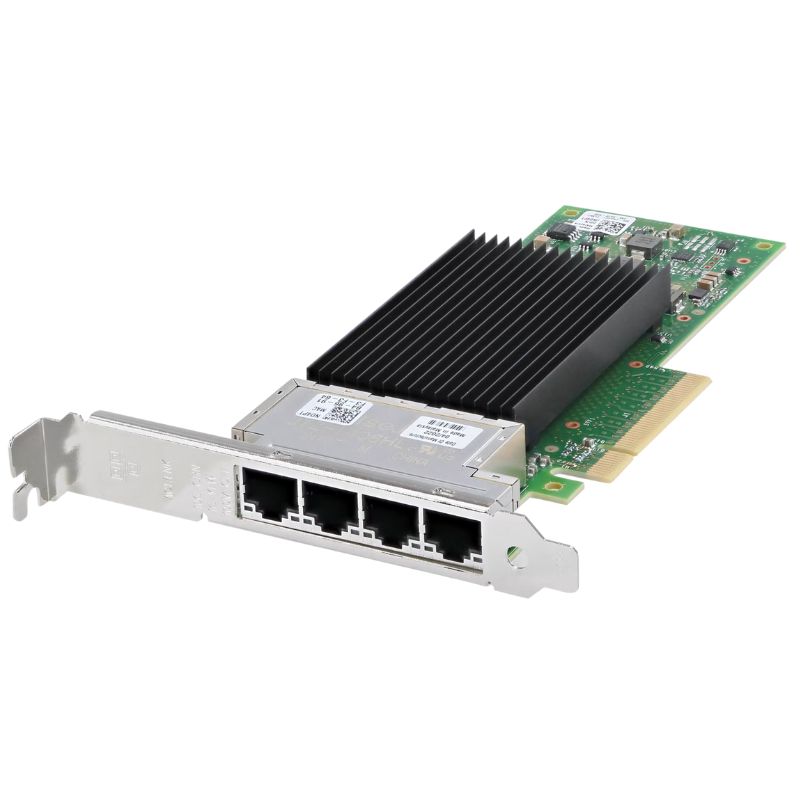

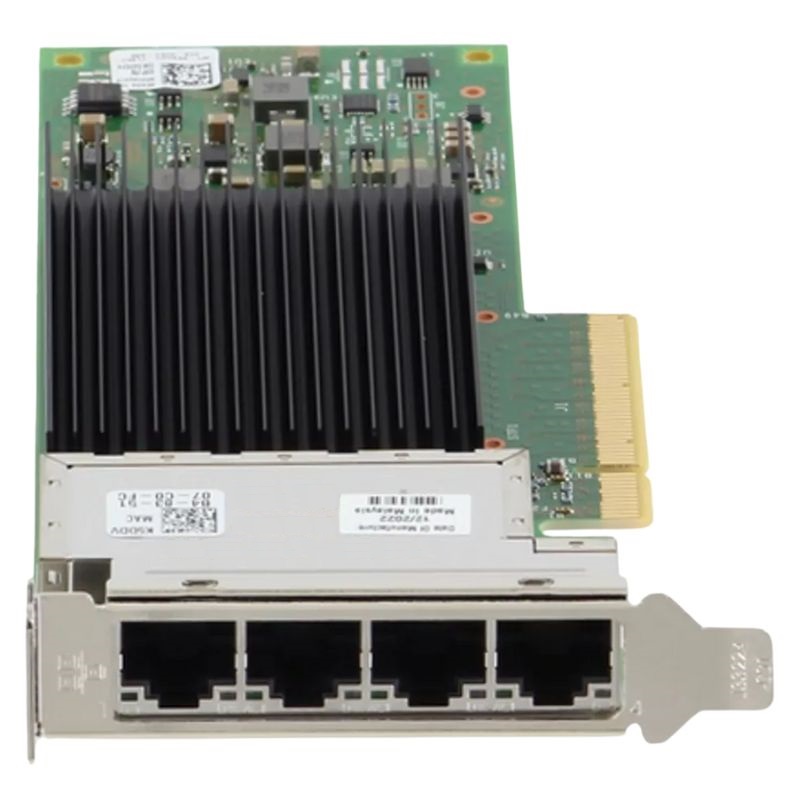

540-BCSF Dell X710-T4L 4 Port 10GbE Base-T PCI-E Network Adapter

Dell 540-BCSF Intel X710-T4L 4-Port 10GbE Base-T PCIe Adapter

The Dell 540-BCSF Intel X710-T4L is a high-performance enterprise network interface card (NIC) designed to deliver ultra-fast multi-gigabit connectivity for modern data centers, virtualization environments, and high-demand server infrastructures. Featuring four RJ-45 ports with support for speeds up to 10GbE, this advanced PCIe network adapter enhances scalability, improves bandwidth efficiency, and ensures reliable wired networking performance for mission-critical workloads.

General Information

• Manufacturer: Dell
• Part Number: 540-BCSF
• Product Type: Network Interface Card (NIC)
• Model: Intel X710-T4L
• Ports: 4 x RJ-45 Ethernet Ports
• Maximum Speed: Up to 10Gbps per port

Multi-Speed Ethernet Support

• 100 Mbps Fast Ethernet
• 1 Gigabit Ethernet (1GbE)
• 2.5 Gigabit Ethernet
• 5 Gigabit Ethernet
• 10 Gigabit Ethernet (10GbE)

PCIe 3.0 Advantages

• High bandwidth for multi-port data traffic
• Reduced latency in network communication
• Improved virtualization performance
• Stable and efficient data transfer
• Optimized for modern server architectures

Network Interface

• 4 x 1/2.5/5/10GBASE-T RJ-45 ports
• Wired connectivity technology
• Auto-negotiation across multiple speeds

Benefits of Multi-Port Architecture

• Improved network redundancy
• Enhanced traffic distribution
• Higher aggregate bandwidth
• Better workload balancing

Supported Protocols

• iSCSI (Internet Small Computer Systems Interface)
• NFS (Network File System)
• Fast Ethernet Protocols
• Gigabit Ethernet Standards
• 10 Gigabit Ethernet Protocols

Virtualization Enhancements

• Virtual Machine Device Queues (VMDq)
• Virtualization Technology for Connectivity (VT-c)
• Data Direct I/O Technology (DDIO)
• Flexible Port Partitioning (FPP)
• Intelligent Offloads

Performance Optimization Benefits

• Reduced CPU utilization
• Improved VM network performance
• Lower latency communication
• Efficient packet processing

High-Speed Performance Advantages

• Fast data synchronization across servers
• Reduced network congestion
• Improved application responsiveness
• Efficient handling of large data workloads

Supported Data Protocols

• Fast Ethernet (100 Mbps)
• Gigabit Ethernet (1 Gbps)
• 2.5 Gigabit Ethernet
• 5 Gigabit Ethernet
• 10 Gigabit Ethernet

Dell 540-BCSF 4 Port 10GbE Base-T PCI-E Adapter Overview

The Dell 540-BCSF Intel X710-T4L 4 Port 10GbE Base-T PCI-E Network Adapter is a high-performance enterprise networking solution engineered for modern data centers, virtualization environments, cloud infrastructures, and high-throughput server architectures. Designed with Intel’s advanced Ethernet controller architecture, this adapter delivers four independent 10 Gigabit Ethernet Base-T ports, enabling scalable connectivity, enhanced bandwidth aggregation, and improved workload balancing across multiple network interfaces. Its PCI Express interface ensures compatibility with a wide range of Dell PowerEdge servers and enterprise-grade computing systems, making it a critical component for organizations seeking reliable and efficient network expansion.

Enterprise-Class Network Performance Architecture

At the core of the Dell 540-BCSF adapter lies Intel’s X710 series controller technology, which is optimized for multi-port, high-density networking workloads. The architecture is designed to minimize latency while maximizing throughput, ensuring stable and consistent packet delivery even under heavy data traffic conditions. The four 10GbE Base-T ports provide aggregated bandwidth capabilities that significantly enhance server-to-switch communication efficiency. This makes the adapter ideal for virtualization clusters, storage networking, and large-scale database systems where uninterrupted data flow is essential.

High-Speed Data Transfer Capabilities

The adapter supports full-duplex communication across all four ports, allowing simultaneous send and receive operations at 10Gbps per port. This results in a combined potential throughput of up to 40Gbps under optimal configurations. The Base-T interface ensures backward compatibility with existing RJ45 Ethernet infrastructure while still delivering high-speed performance over standard copper cabling. This balance between performance and compatibility makes it a cost-effective upgrade path for enterprises transitioning from 1GbE or 2.5GbE networks.

Optimized Packet Processing Efficiency

Advanced offloading capabilities built into the Intel X710 controller reduce CPU overhead by handling tasks such as TCP segmentation, checksum calculations, and interrupt moderation directly on the adapter. This frees up server processing resources, allowing CPUs to focus on application-level workloads rather than network management tasks. The result is improved system efficiency, reduced latency, and better overall server performance in demanding enterprise environments.

Multi-Port Design for Scalable Networking

The four-port configuration of the Dell 540-BCSF network adapter provides exceptional flexibility for network design and architecture. Administrators can configure each port independently or aggregate them using link aggregation protocols to increase bandwidth and redundancy. This multi-port design is particularly useful in environments where high availability and fault tolerance are critical, such as virtualization clusters, storage replication networks, and mission-critical application hosting.

Traffic Distribution

With multiple active ports, network traffic can be intelligently distributed across available links to prevent congestion and optimize performance. This ensures that no single port becomes a bottleneck, even during peak traffic periods. Load balancing also enhances reliability by rerouting traffic automatically in the event of a port failure, maintaining uninterrupted connectivity for critical applications.

Redundancy and Failover Protection

The adapter supports failover configurations that automatically switch network traffic to operational ports if one or more connections fail. This redundancy is essential for enterprise environments where downtime can result in significant operational and financial impact. By providing seamless failover capabilities, the Dell 540-BCSF ensures continuous network availability and business continuity.

PCI Express Interface Integration

The Dell 540-BCSF Intel X710-T4L adapter utilizes a high-speed PCI Express interface, ensuring rapid communication between the network controller and the host system. This interface is designed to support high-bandwidth data exchange, reducing bottlenecks between the CPU, memory, and network subsystems. It is compatible with a wide range of PCIe slots found in modern Dell servers, making installation straightforward and deployment flexible across multiple hardware platforms.

Efficient Hardware Integration

The PCIe-based design ensures minimal latency and maximum throughput by providing a direct pathway between the network adapter and system resources. This direct integration reduces overhead and enhances responsiveness in real-time applications, including financial trading systems, cloud orchestration platforms, and high-performance computing clusters.

Compatibility with Enterprise Server Platforms

The adapter is optimized for Dell PowerEdge servers and is validated for compatibility with enterprise operating systems and virtualization platforms. This ensures seamless deployment in mixed IT environments where stability, interoperability, and performance consistency are essential requirements.

Advanced Intel X710 Controller

The Intel X710 controller embedded within the Dell 540-BCSF network adapter represents a significant advancement in Ethernet controller design. It incorporates hardware-based acceleration features that improve packet processing efficiency, reduce latency, and support advanced networking protocols required in modern enterprise infrastructures.

Hardware Offloading and Acceleration

The controller supports a wide range of offloading capabilities that reduce CPU utilization and improve overall system efficiency. These include stateless offloads, virtualization offloads, and intelligent interrupt handling mechanisms. By shifting processing tasks to dedicated hardware, the system can maintain high performance even under heavy network loads.

Virtualization Optimization Features

Designed with virtualization in mind, the adapter supports SR-IOV technology, enabling multiple virtual machines to share a single physical network interface with near-native performance. This is particularly beneficial in cloud environments where resource consolidation and efficient hardware utilization are critical objectives.

Network Reliability and Stability Engineering

Reliability is a core design principle of the Dell 540-BCSF Intel X710-T4L adapter. It is engineered to deliver stable performance in continuous operation environments where network uptime is critical. Advanced error correction mechanisms, thermal management optimization, and robust hardware design contribute to long-term operational stability.

Thermal Efficiency and Heat Management

The adapter is designed to operate efficiently under high workloads while maintaining optimal thermal conditions. Heat dissipation is managed through advanced chipset design and efficient power usage, ensuring consistent performance even in densely populated server racks.

High-Density Server Environments

In high-density server environments, where multiple workloads run simultaneously on shared infrastructure, the adapter provides the necessary bandwidth and reliability to ensure smooth performance. Its multi-port configuration allows efficient segmentation of traffic across different workloads and services.

Cloud Service Optimization

Cloud environments benefit significantly from the adapter’s ability to handle dynamic and fluctuating workloads. Its virtualization features and high-speed connectivity ensure that cloud services remain responsive and scalable under varying demand conditions.

Scalability and Future-Ready Networking

As enterprise networks continue to evolve, scalability becomes a key requirement. The Dell 540-BCSF Intel X710-T4L adapter is designed with future expansion in mind, supporting higher workloads and integration with next-generation networking technologies. Its architecture ensures compatibility with evolving infrastructure standards while maintaining backward compatibility with existing systems.

Support for Infrastructure Growth

Organizations can scale their network infrastructure without replacing existing systems, thanks to the adapter’s flexible architecture. This reduces upgrade costs and ensures smooth transitions as network demands increase over time.

Investment Protection in Enterprise IT

By offering long-term compatibility and strong performance scalability, the adapter protects IT investments and reduces the need for frequent hardware replacements. This makes it a strategic choice for organizations planning long-term infrastructure development.
