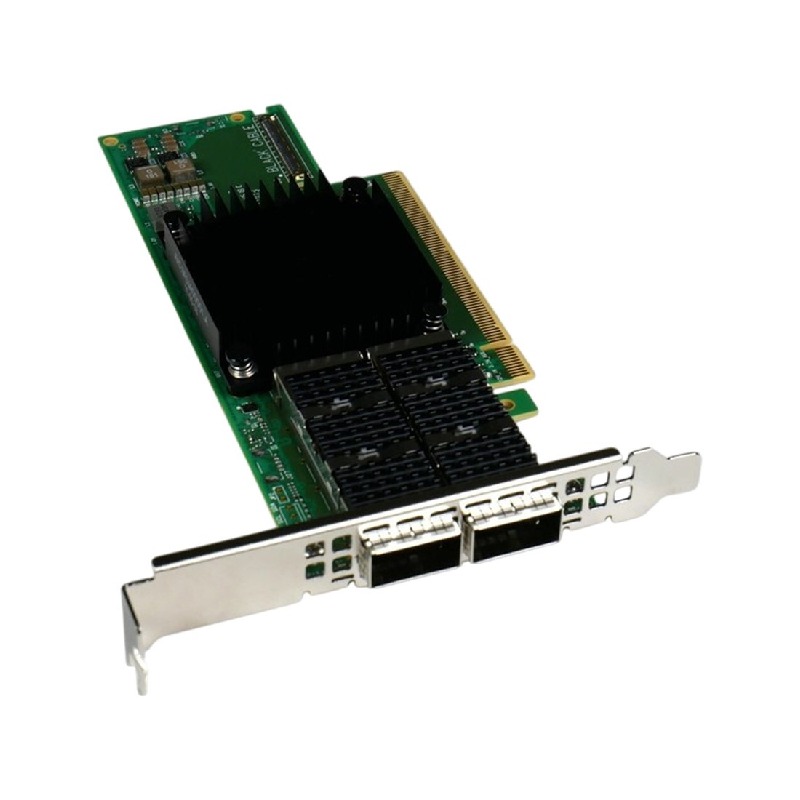

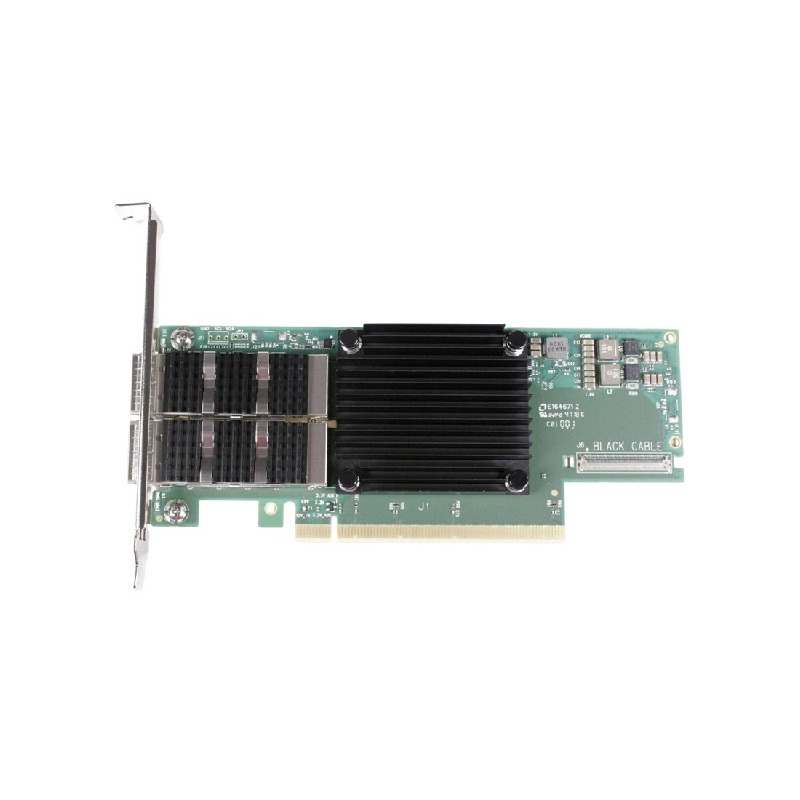

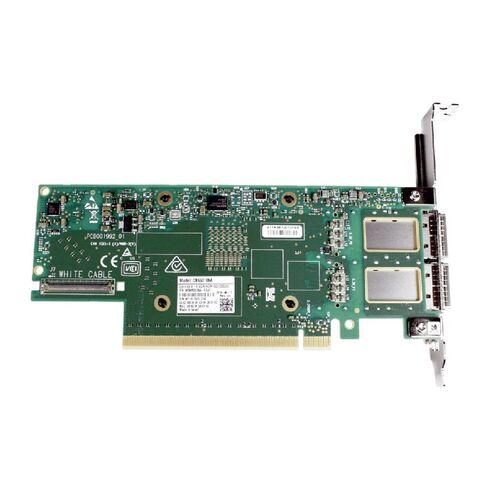

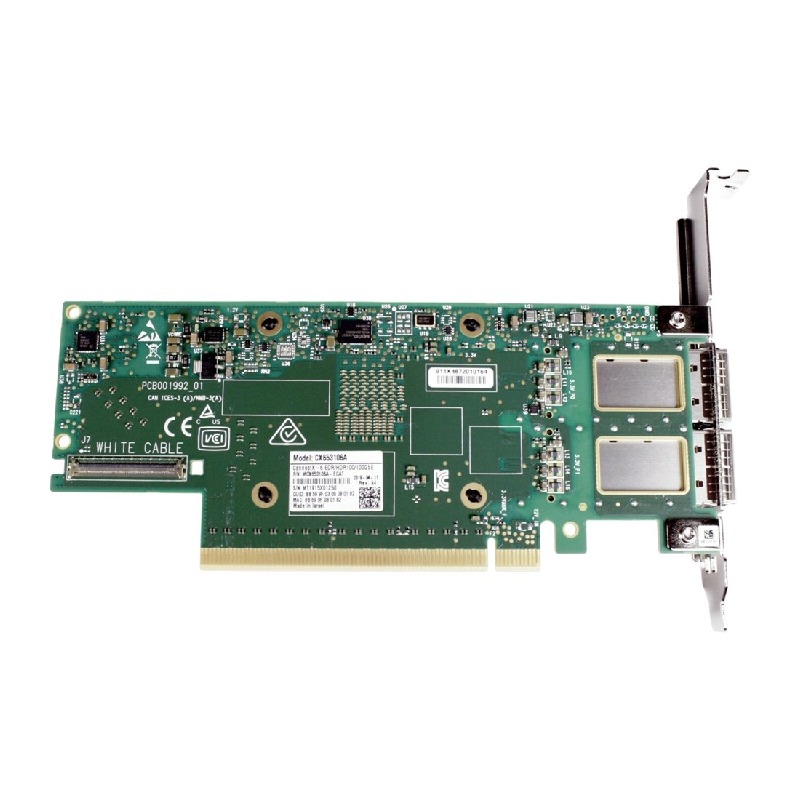

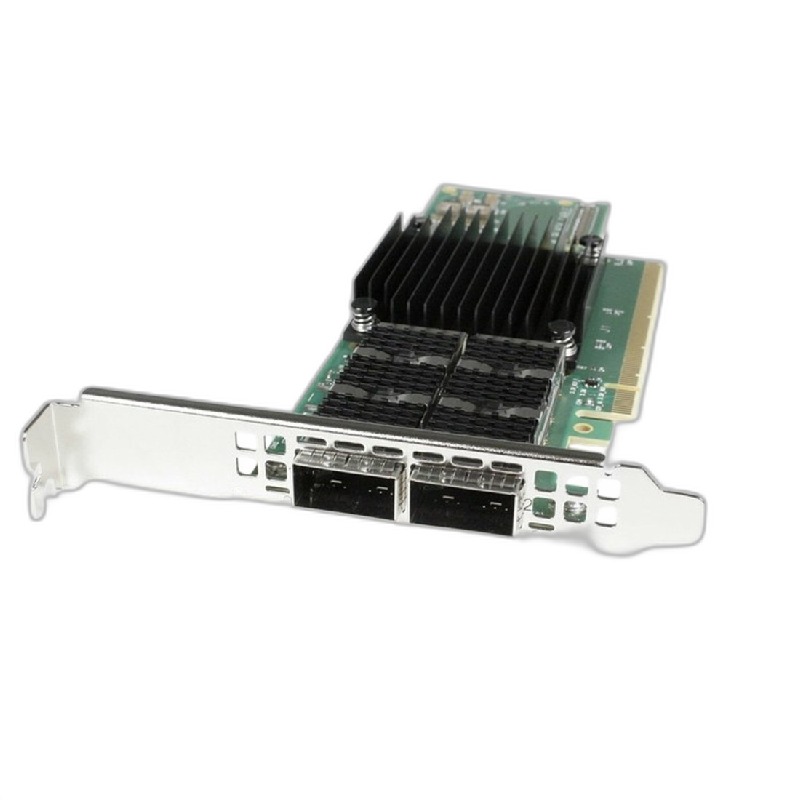

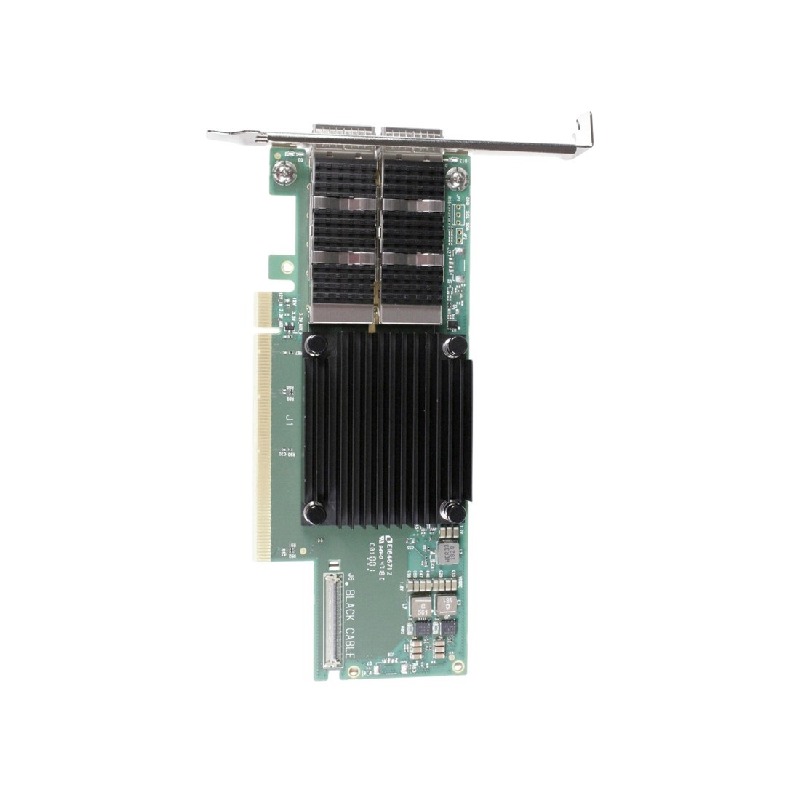

XDKNY Dell Mellanox MCX653106A-ECAT ConnectX-6 100GbE Dual-Port

Overview of Dell XDKNY Mellanox Adapter Card

The Dell XDKNY Mellanox ConnectX-6 VPI adapter delivers ultra-fast connectivity for data-intensive workloads, combining 100GbE and HDR100/EDR InfiniBand support in a single dual-port QSFP56 card. Engineered for both PCIe 3.0 and 4.0 x16 interfaces, this full-height bracket card enables next-level network performance with minimal latency and maximum throughput.

Product Information

• Brand: Dell
• Part Number: XDKNY
• Drive Type: Network Adapter

Bandwidth and Message Handling

• Up to 200Gb/s throughput per port
• Maximum aggregated bandwidth of 200Gb/s
• Over 215 million messages per second
• Advanced sub-nanosecond packet precision for time-sensitive applications

Security and Storage Features

• Hardware-based XTS-AES block-level encryption
• FIPS-compliant cryptographic capabilities
• Checksum offloads for efficient storage operations
• Support for both 50G PAM4 and 25G NRZ SerDes ports

Standards and Compliance

• RoHS-compliant materials
• ODCC-ready for data center standardization
• Backward-compatible with previous ConnectX adapters

Performance Advantages

• Low CPU utilization for compute-intensive applications
• Accelerated message processing for virtualized environments
• Supports network function virtualization (NFV) and service chaining
• Mellanox Host Chaining technology for efficient rack utilization

Flexible Networking and I/O Consolidation

• Flexible pipeline for custom network flows
• Enhanced service chaining capabilities
• Optimized for multi-platform deployments: x86, Power, ARM, GPU, FPGA
• Reduced cabling and rack space requirements

Enterprise-Ready Infrastructure

• High-performance fabric for compute and storage nodes
• Seamless integration into virtualized and hybrid cloud environments
• Advanced telemetry and monitoring support
• Reliable, low-latency interconnect for critical applications

Benefits

• Consolidates multiple I/O channels into a single adapter
• Reduces operational complexity in large-scale deployments
• Enhances energy efficiency with advanced hardware acceleration
• Optimized for high-density rack designs and scalable topologies

 Compatible ProLiant Server Series

• BL Series: BL420c, BL460c, BL465c, BL660c (Gen8/Gen9)
• DL Series: DL20, DL60, DL80, DL120, DL160, DL180, DL320e, DL360, DL380, DL560, DL580
• ML Series: ML110, ML150, ML310e, ML350 variants
• SL Series: SL230s, SL250s, SL270s
• XL Series: XL170r, XL190r, XL220a, XL230a, XL250a

Details of Dell XDKNY Mellanox Adapter Card

The Dell XDKNY Mellanox MCX653106A-ECAT ConnectX-6 VPI Adapter Card represents a pinnacle in high-performance networking technology, designed to meet the demanding requirements of modern data centers, HPC clusters, cloud infrastructure, and enterprise IT environments. This dual-port QSFP56 network interface card provides support for both HDR100/EDR InfiniBand and 100GbE Ethernet, making it an exceptionally versatile solution for organizations that require seamless integration of storage, compute, and network resources. Its PCIe 3.0/4.0 x16 interface ensures high throughput and low latency, while the full-height bracket design allows compatibility with standard server chassis.

Architecture

The ConnectX-6 architecture underpins the MCX653106A-ECAT adapter, delivering intelligent processing capabilities that accelerate network performance and optimize data traffic. Mellanox's Virtual Protocol Interconnect (VPI) technology enables a single adapter to operate either as an InfiniBand or Ethernet interface, providing data centers with unmatched flexibility in network deployment strategies. This dual-mode operation allows organizations to consolidate networking infrastructure, reduce hardware costs, and streamline management.

High-Performance InfiniBand Connectivity

InfiniBand support in the MCX653106A-ECAT ensures ultra-low latency communication between nodes in high-performance computing (HPC) clusters, AI/ML training environments, and scientific simulations. HDR100 and EDR standards facilitate high-speed interconnects capable of handling massive parallel workloads, enabling efficient data transfers for compute-intensive applications. The hardware offload capabilities inherent in the ConnectX-6 architecture reduce CPU overhead, ensuring that processing power is available for core computational tasks.

100GbE Ethernet Flexibility

In addition to InfiniBand, the adapter provides 100GbE dual-port Ethernet connectivity. This makes it suitable for cloud computing, virtualization platforms, enterprise storage networks, and data-intensive analytics applications. The dual-mode functionality allows seamless integration into existing Ethernet-based infrastructure without sacrificing performance, while maintaining compatibility with emerging 100GbE networking standards.

Interface and Form Factor

The Dell XDKNY ConnectX-6 VPI card features a PCIe 3.0/4.0 x16 interface, providing high-speed data transfer and full compatibility with modern server motherboards. The PCIe 4.0 support ensures future-proofing, allowing the adapter to deliver maximum throughput and leverage next-generation server technologies. The full-height bracket design ensures installation flexibility across enterprise servers, accommodating both high-density blade servers and full-size rack servers.

Optimized Throughput and Latency Reduction

Leveraging the advanced PCIe interface, the ConnectX-6 adapter minimizes bottlenecks, offering high bandwidth and low latency communication essential for demanding workloads. Applications that benefit from low-latency connections include database clustering, high-frequency trading, AI inference, and scientific computation, where even microseconds of delay can impact performance outcomes. By efficiently managing network traffic and accelerating data processing, the adapter helps ensure predictable, high-performance network behavior.

Seamless Server Integration

The full-height bracket design guarantees compatibility with a wide range of server chassis and expansion slots. This form factor ensures secure installation while maintaining proper airflow for thermal efficiency, which is critical in densely populated server environments. Enterprises can deploy multiple adapters across servers without compromising cooling or workspace requirements, enabling scalable high-speed networks.

Enterprise-Grade Reliability and Data Center Scalability

Reliability and scalability are key attributes of the Dell XDKNY MCX653106A-ECAT ConnectX-6 VPI Adapter. Built for enterprise-grade applications, the card ensures continuous operation under heavy workloads and high network traffic conditions. It supports advanced redundancy features, fault-tolerant configurations, and network failover mechanisms, reducing the risk of downtime in mission-critical environments.

High Availability and Redundant Configurations

The dual-port design allows for redundant network paths, enabling uninterrupted communication even during maintenance or unexpected hardware failures. Network administrators can implement link aggregation, failover, and load balancing strategies to maximize uptime and ensure consistent service delivery for enterprise applications, cloud workloads, and HPC operations.

Scalability for Modern Data Centers

Modern data centers require networking solutions that can scale horizontally as workloads grow. The ConnectX-6 architecture supports large-scale clusters, cloud environments, and virtualized infrastructures by providing consistent performance at increasing node counts. Organizations can expand network connectivity without replacing existing hardware, optimizing both capital expenditures and operational efficiency.

Advanced Networking Features and Offload Capabilities

The Dell XDKNY ConnectX-6 adapter includes a comprehensive suite of networking features designed to improve application performance and reduce computational overhead. These capabilities include RDMA over Converged Ethernet (RoCE), stateless offloads, and hardware acceleration for transport and protocol processing. By offloading networking tasks from the CPU, the adapter frees system resources for application workloads, improving overall server efficiency.

RDMA and Zero-Copy Networking

Remote Direct Memory Access (RDMA) is a critical feature for high-performance applications that require low-latency, high-throughput data transfers. The MCX653106A-ECAT supports both RoCE and InfiniBand RDMA protocols, enabling zero-copy networking and direct memory-to-memory data movement between nodes. This reduces CPU utilization, lowers latency, and accelerates performance for distributed applications such as AI training, big data analytics, and high-speed storage replication.

Stateless Offloads and Hardware Acceleration

The adapter’s stateless offload capabilities include TCP, UDP, and IP checksum offloading, segmentation offloading, and protocol processing. These features reduce CPU load, improve packet processing efficiency, and ensure predictable network performance under heavy traffic conditions. By handling networking tasks at the hardware level, the ConnectX-6 card delivers consistent throughput for latency-sensitive workloads and bandwidth-intensive applications.

Cloud, Virtualization and High-Performance Computing Optimization

The Dell XDKNY ConnectX-6 VPI adapter is optimized for cloud computing platforms, virtualization environments, and high-performance computing applications. Its VPI technology allows administrators to dynamically switch between Ethernet and InfiniBand, enabling flexible deployment across multi-tenant environments, private and public cloud networks, and HPC clusters. Virtualization offload technologies such as Single Root I/O Virtualization (SR-IOV) and Virtual Function (VF) support allow virtual machines to access network resources directly, reducing overhead and improving overall performance.

Private and Public Cloud Deployment

Cloud service providers benefit from the dual-mode connectivity of the MCX653106A-ECAT adapter, which enables seamless integration into Ethernet-based or InfiniBand-based infrastructures. The adapter supports multi-tenant isolation, high-speed VM migration, and efficient network resource allocation, which are critical for maintaining performance consistency across cloud instances.

Virtual Machine and Hypervisor Performance

High-density virtualized environments place heavy demands on network interfaces. The ConnectX-6 adapter supports advanced virtualization features that allow multiple virtual machines to share physical network interfaces efficiently. Hardware-assisted networking acceleration ensures low-latency communication, predictable throughput, and reduced CPU utilization, which is essential for enterprise workloads and containerized applications.

Security, Reliability, and Enterprise Management

Security and manageability are integral to the Dell XDKNY MCX653106A-ECAT design. The adapter includes support for secure firmware updates, trusted execution environments, and encryption protocols to safeguard data in transit. Enterprise-grade reliability is achieved through rigorous testing, high-quality components, and robust design standards, ensuring long-term operational stability in mission-critical environments.

Enhanced Security Features

The adapter supports encryption offload for IPsec, TLS, and other secure protocols, enabling high-performance, encrypted communication without impacting server CPU performance. This is particularly important for financial institutions, healthcare systems, and government applications where data confidentiality is essential.

Manageability and Monitoring Tools

Enterprise administrators can leverage comprehensive management and monitoring tools provided by Mellanox and Dell. Features include remote diagnostics, network traffic monitoring, firmware management, and performance tuning capabilities. These tools help maintain optimal network performance, streamline troubleshooting, and facilitate proactive management of network resources.

Storage Networking

The Dell XDKNY ConnectX-6 VPI adapter excels in storage networking scenarios, supporting high-speed block and file storage traffic. The dual-port QSFP56 interfaces allow simultaneous connections for storage replication, backup, and distributed file system access. In high-performance computing clusters, the adapter ensures low-latency communication and high throughput between compute nodes, accelerating simulation workloads, AI model training, and scientific research computations.
