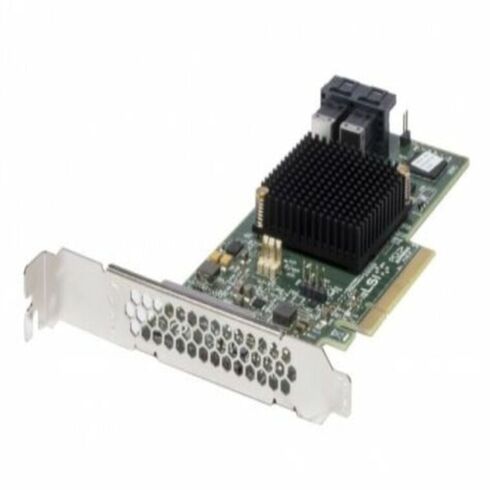

Dell Y8JXC SAS 12GB 8Ports SATA RAID Controller
- — Free Ground Shipping
- — Min. 6-month Replacement Warranty
- — Genuine/Authentic Products
- — Easy Return and Exchange
- — Different Payment Methods
- — Best Price
- — We Guarantee Price Matching
- — Tax-Exempt Facilities
- — 24/7 Live Chat, Phone Support
- — Visa, MasterCard, Discover, and Amex
- — JCB, Diners Club, UnionPay
- — PayPal, ACH/Wire Transfer
- — Apple Pay, Amazon Pay, Google Pay
- — Buy Now, Pay Later - Affirm, Afterpay
- — GOV/EDU/Institutions PO's Accepted
- — Invoices
- — Deliver Anywhere
- — Express Delivery in the USA and Worldwide
- — Ship to -APO -FPO
- — For USA - Free Ground Shipping
- — Worldwide - from $30
Product Specifications
General Details
- Brand: Dell
- Part Number: Y8JXC
- Physical Dimensions: 2.6" x 6.0"
Connectivity
- Connector Type: Two, x4, SFF-8643 Mini-SAS HD Horizontal Connectors
- Host Bus: 8-lane, 5 GT/s PCI Express 3.0 Compliant
- Data Transfer Rate: Up to 12 Gb/s per port
RAID Capabilities
Supported RAID Levels
- RAID 0, 1, 5, 10, 50
- Non-RAID (JBOD Mode)
Maximum Supported Physical Devices
- Non-RAID (JBOD Mode): 64
- RAID 0: 32 per volume
- RAID 1: 2 per volume plus hot spare
- RAID 5: 32 per volume
- RAID 10: 32 per volume
- RAID 50: 32 per volume
Advanced RAID Features
- Online Capacity Expansion (OCE) and RAID Level Migration (RLM)
- Auto-resume functionality after power interruptions
- Drive roaming and hot plug support
- Patrol Read for media scanning and repair
- Fast initialization for array setup
- Hot spare support with up to 8 drives
Management Tools
Integrated Management Suite
- MegaRAID Storage Manager™ with domain admin login
- StorCLI (command-line interface)
- BIOS Configuration Utility (Ctrl-R)
- UEFI Human Interface Infrastructure (HII)
Data Protection
- SafeStore encryption for SED drives
- Consistency checks for virtual disks
- Support for >2TB logical drives
- SMART monitoring and error recovery support
- Soft bad block management
Environmental and Power Characteristics
Operating Conditions
- Operating Temperature: 0°C to 70°C
- Storage Temperature: -45°C to 105°C
- Humidity: 5% to 90% non-condensing
Power Specifications
- Voltage: +12V ±8%
- Power Consumption: 13.0 W (normal), 19.04 W (max)
- PCI Modes: Bus Master DMA
Additional Features
LED Indicators
- Internal activity/fault indication per x4 port
- Heartbeat signals for status monitoring
Reliability
- MTBF: Over 2,800,000 hours
Operating System Compatibility
- Supports a wide range of OS including Windows Server 2012, Linux, VMware, and more
The Dell XMWW4 Perc H840 SAS SATA RAID Controller
The Dell XMWW4 Perc H840 is a high-performance RAID controller designed to optimize data storage and management for enterprise-grade systems. Featuring a robust 4GB NV cache, this controller ensures efficient data caching, significantly enhancing system performance and reliability. With support for both SAS (Serial Attached SCSI) and SATA (Serial ATA) drives, it delivers versatile storage solutions for various business needs.
Key Features of the Dell XMWW4 Perc H840
The Dell XMWW4 Perc H840 is packed with features to meet the demands of modern data-intensive environments:
- 4GB Non-Volatile Cache: The onboard 4GB NV cache ensures data integrity and accelerated read/write operations, even during power outages.
- Support for SAS and SATA Drives: Compatibility with both drive types allows flexibility in storage configurations, supporting a mix of high-performance SAS drives and cost-effective SATA drives.
- Full-Height Form Factor: The full-height design is ideal for enterprise-grade server environments requiring robust RAID solutions.
- Advanced RAID Levels: Offers support for RAID levels 0, 1, 5, 6, 10, 50, and 60, ensuring redundancy and optimized performance.
Enhanced System Performance
The 4GB NV cache plays a vital role in enhancing the system's overall speed and performance. By reducing latency and accelerating data transfer rates, this RAID controller enables businesses to meet their application demands effectively.
Reliable Data Protection
With support for advanced RAID configurations, the Dell XMWW4 Perc H840 ensures data redundancy and fault tolerance. This feature minimizes the risk of data loss, providing peace of mind for mission-critical applications.
Flexible Storage Options
The compatibility with both SAS and SATA drives allows businesses to customize their storage environments based on performance and budget requirements. SAS drives offer high-speed data access, while SATA drives provide cost-efficient bulk storage solutions.
Compatibility and Integration
The Dell XMWW4 Perc H840 seamlessly integrates with Dell servers and other enterprise-grade hardware. This ensures effortless deployment and compatibility across various system architectures.
Ease of Management
With Dell's user-friendly management tools, administrators can configure and monitor the RAID controller efficiently. This simplifies operations and minimizes downtime, ensuring consistent performance.
Applications and Use Cases
The Dell XMWW4 Perc H840 RAID controller is suitable for a wide range of applications, including:
Enterprise Data Centers
Designed to handle the rigorous demands of enterprise environments, this RAID controller ensures high availability and reliability for critical data operations. Its advanced caching and RAID support make it ideal for data centers managing large-scale storage.
Virtualized Environments
In virtualized setups, the Dell XMWW4 Perc H840 provides the speed and stability required for running multiple virtual machines. Its caching capabilities help reduce bottlenecks, ensuring smooth performance even under heavy workloads.
Cloud Storage Solutions
For cloud service providers, the ability to balance performance and cost is crucial. The Dell XMWW4 Perc H840 offers the flexibility to optimize storage infrastructure while maintaining high data throughput.
Database Management
High-speed data access and fault tolerance make this RAID controller an excellent choice for database servers. It ensures reliable data handling, crucial for transaction-heavy environments.
Backup and Recovery Systems
Incorporating the Dell XMWW4 Perc H840 into backup systems ensures faster data restoration and secure storage, minimizing downtime in case of failures.
Video Editing and Content Creation
Creative professionals can benefit from the high-speed data access and large storage capabilities of this RAID controller. It supports seamless editing and rendering of high-resolution video projects.
Research and Analytics
For organizations involved in big data analysis or scientific research, the Dell XMWW4 Perc H840 facilitates rapid data processing and secure storage of large datasets.
Comparing the Dell XMWW4 Perc H840 with Other RAID Controllers
When evaluating RAID controllers, it's essential to compare key factors such as performance, cache size, and compatibility. The Dell XMWW4 Perc H840 stands out for its superior 4GB NV cache and advanced RAID capabilities, making it a preferred choice for demanding enterprise environments.
Advantages Over Entry-Level Controllers
Entry-level RAID controllers often lack the robust caching and advanced RAID configurations offered by the Dell XMWW4 Perc H840. This makes the Dell XMWW4 ideal for businesses requiring high-speed, reliable storage solutions.
Performance Comparison
Compared to mid-range RAID controllers, the Dell XMWW4 Perc H840 delivers higher data throughput and enhanced system reliability, thanks to its advanced NV cache and PCIe 3.0 interface.
Cost-Effectiveness
While premium RAID controllers may offer similar features, the Dell XMWW4 Perc H840 strikes a balance between cost and performance, making it an excellent investment for businesses of all sizes.
Maintenance and Support
Regular maintenance and support are crucial to maximizing the lifespan and efficiency of the Dell XMWW4 Perc H840. Dell provides comprehensive documentation and support services to help businesses manage their RAID controllers effectively.
Firmware Updates
Keeping the firmware updated ensures optimal performance and compatibility with the latest hardware and software technologies.
Diagnostic Tools
Dell offers diagnostic tools that allow administrators to monitor the health and performance of the RAID controller, facilitating proactive maintenance.
Replacement and Warranty
The Dell XMWW4 Perc H840 comes with a robust warranty policy, ensuring prompt replacement or repair in case of hardware issues.
Third-Party Support
For extended support, businesses can rely on certified third-party vendors for maintenance and upgrades, ensuring continuous system availability.
