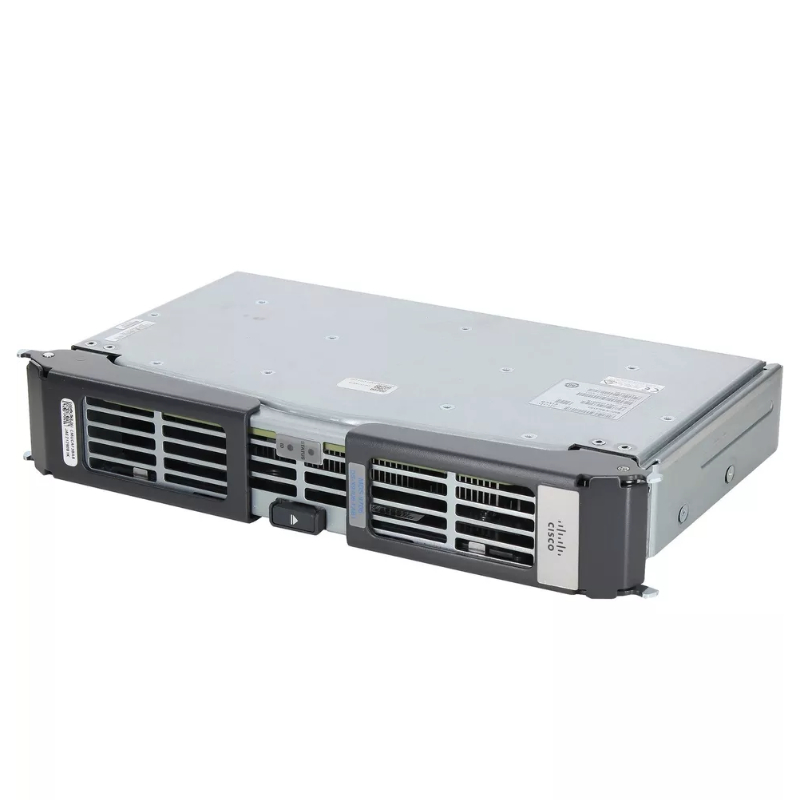

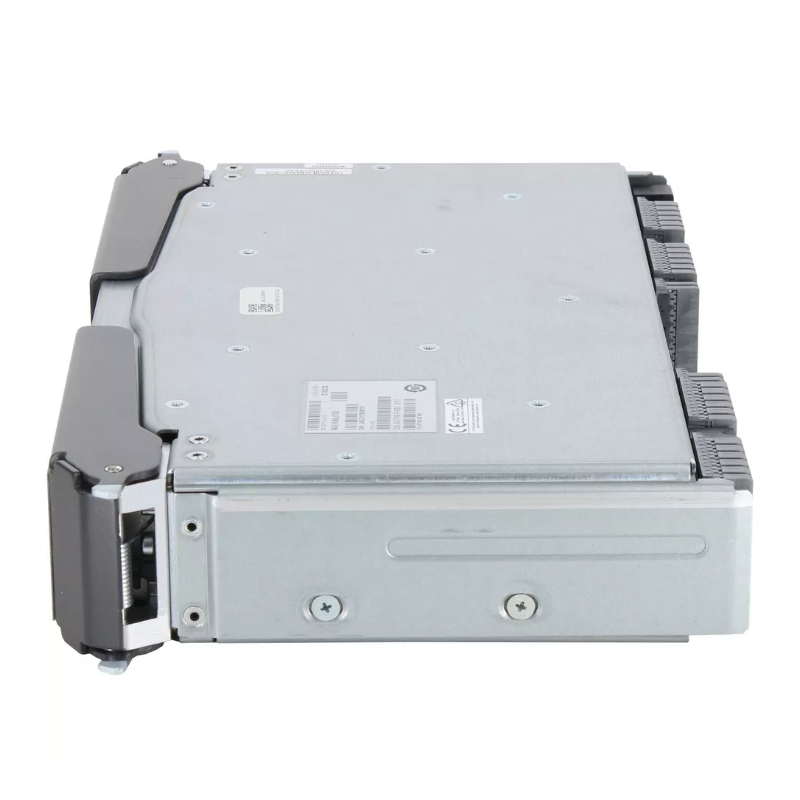

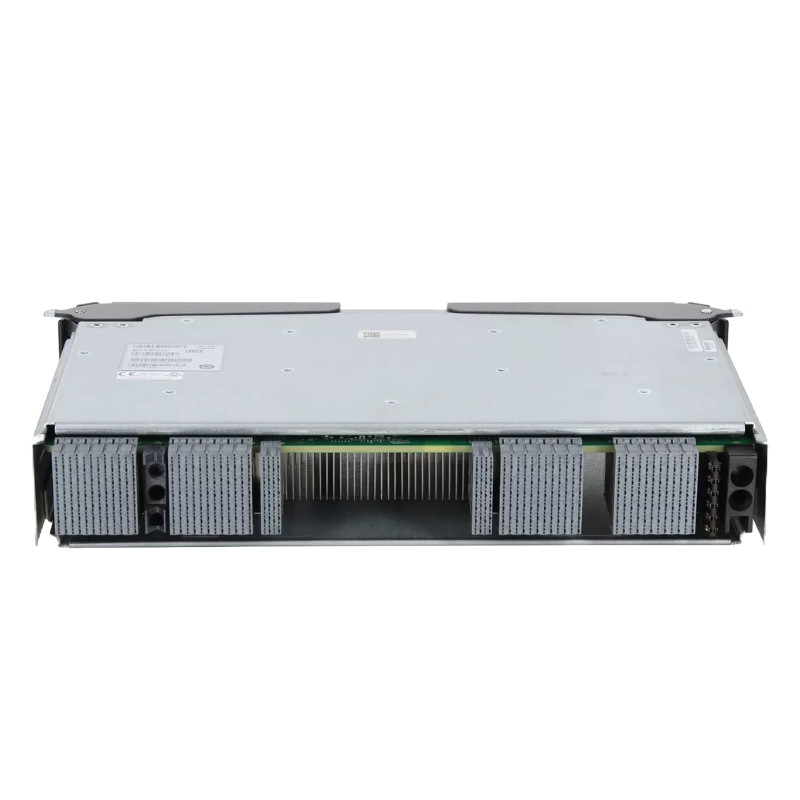

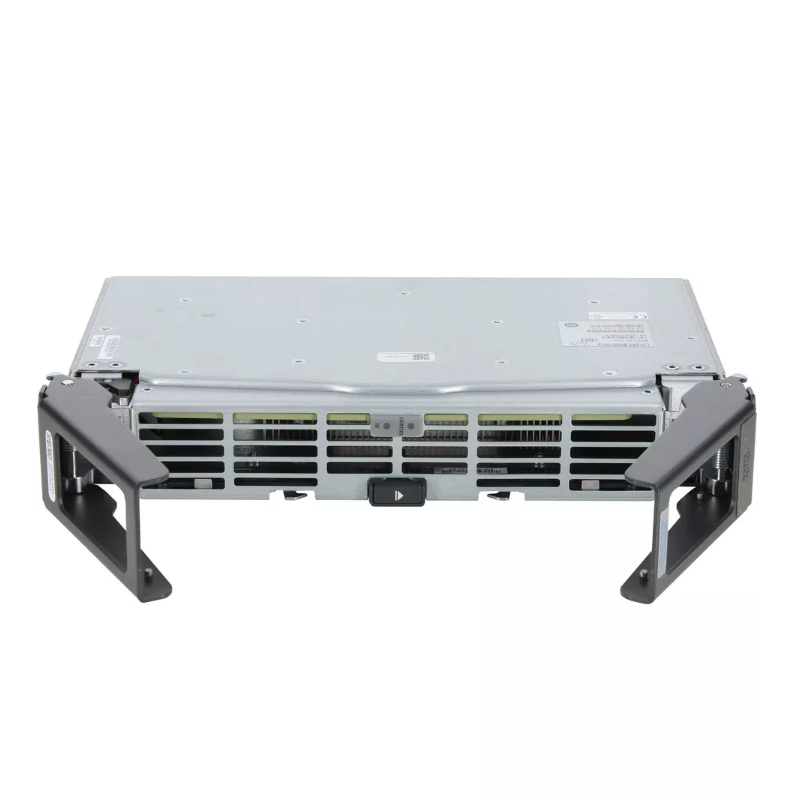

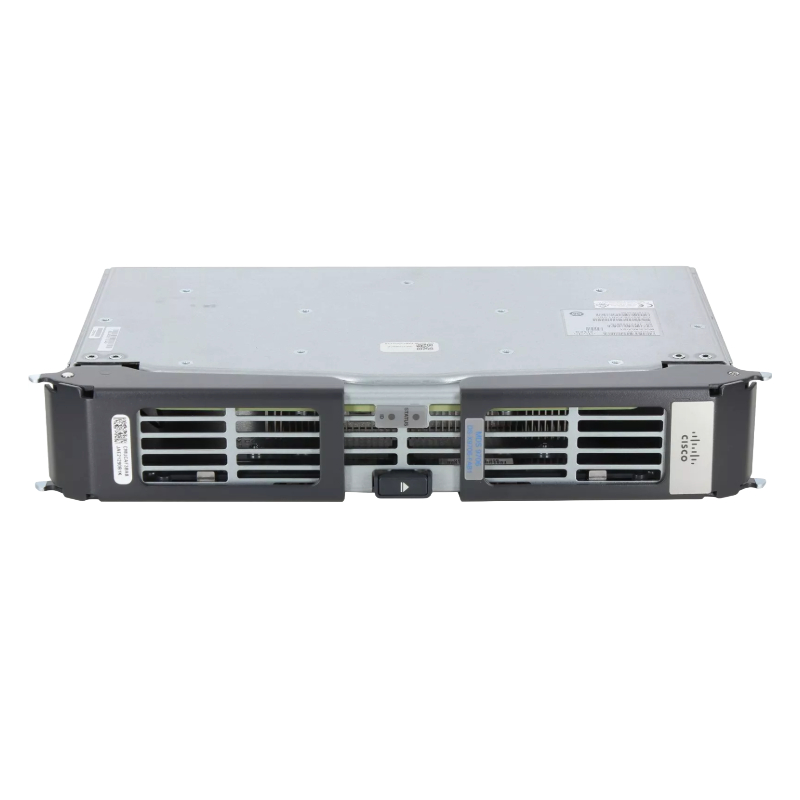

Cisco DS-X9706-FAB1 Switch Fabri Module MDS 9706

Product Overview

The DS-X9706-FAB1 is an advanced Switch Fabric Module crafted by Cisco. It is engineered for high-performance network management within the Cisco MDS 9706 series.

Product Specifications

• Part Number: DS-X9706-FAB1
• Brand: Cisco
• Module Type: Switch Fabric Module

Media and Performance Features

• Supported Media Type: Optical Fiber

Compatibility Information

• Compatible With: CISCO MDS 9706 Multilayer Director SAN Switch

Physical Design

• Form Factor: Plug-in Module

Technical Details

• Usage: Designed specifically for high-speed switching fabric applications

Key Benefits

• Enhances network switching capabilities with reliable and efficient performance.
• Compatible with a range of CISCO’s advanced SAN switches for versatile use.
• Supports high-speed optical fiber connections for optimal data transfer rates.

Part Number: DS-X9706-FAB1

The Cisco MDS 9706 Switch is a cutting-edge networking solution designed to meet the demands of modern data centers. As part of the Cisco MDS 9700 Series, this switch provides exceptional performance, scalability, and reliability. One of the key features that sets the Cisco MDS 9706 Switch apart is its Part Number: DS-X9706-FAB1.

Importance of Part Number

The Part Number: DS-X9706-FAB1 is a critical component of the Cisco MDS 9706 Switch. It serves as the switching fabric module, responsible for enabling high-speed connectivity between various line cards and modules within the switch. This module acts as the backbone of the switch, facilitating seamless communication and data transfer throughout the network infrastructure.

Performance and Scalability

The DS-X9706-FAB1 offers impressive performance capabilities, ensuring that data flows smoothly and efficiently within the switch. With a high-speed switching capacity of up to 48 Tbps, it can handle heavy workloads and demanding applications without compromising on speed or reliability. This ensures that users can experience minimal latency and maximize their network's overall performance.

Furthermore, the Part Number: DS-X9706-FAB1 enables exceptional scalability. It supports up to six line card slots, allowing users to expand their network as their business grows. This flexibility is vital for organizations that anticipate future growth or require a scalable solution to accommodate changing business needs. With the DS-X9706-FAB1, users can easily add or remove line cards to adapt their network infrastructure to meet evolving requirements.

Redundancy and High Availability

Ensuring network uptime and minimizing downtime is crucial for any business. The Cisco MDS 9706 Switch, with its DS-X9706-FAB1 module, offers advanced redundancy and high availability features. The switch supports hot-swappable modules, allowing for seamless replacement and upgrades without interrupting the network operation.

Moreover, the DS-X9706-FAB1 supports Cisco's patented Cisco Virtual Output Queue (VOQ) technology. This technology ensures fair and efficient access to the switch's fabric resources, preventing congestion and enhancing overall network performance. By utilizing VOQ, the DS-X9706-FAB1 maximizes throughput and minimizes packet loss, providing a highly reliable and resilient networking solution.

Advanced Traffic Management

The Part Number: DS-X9706-FAB1 incorporates advanced traffic management features that enable efficient handling of diverse data traffic. It supports quality of service (QoS) mechanisms, allowing administrators to prioritize critical applications and ensure optimal performance for mission-critical services. With QoS capabilities, organizations can allocate network resources based on specific application requirements, ensuring that bandwidth is allocated appropriately.

Additionally, the DS-X9706-FAB1 supports advanced traffic engineering features such as Virtual Output Queuing (VOQ), Dynamic Port Grouping (DPG), and Virtual SANs (VSANs). These features contribute to improved network performance, reduced latency, and enhanced control over traffic flow within the network infrastructure.

Simplified Management and Monitoring

Efficient management and monitoring are essential for maintaining a stable and secure network environment. The Cisco MDS 9706 Switch with its DS-X9706-FAB1 module offers comprehensive management capabilities through Cisco Data Center Network Manager (DCNM). This centralized management platform allows administrators to configure, monitor, and troubleshoot the switch from a single interface.

Furthermore, the DS-X9706-FAB1 incorporates advanced diagnostics capabilities, providing real-time visibility into the switch's performance and health. Administrators can proactively monitor key parameters such as temperature, power consumption, and fan speed, ensuring optimal functioning of the switch and identifying potential issues before they impact network operations.

Future-Proof Investment

Investing in network infrastructure requires careful consideration of long-term benefits and future scalability. The Part Number: DS-X9706-FAB1 ensures that organizations can future-proof their network investments. With its high-speed switching capacity, scalability options, and advanced features, the Cisco MDS 9706 Switch equipped with DS-X9706-FAB1 can accommodate the ever-increasing demands of data centers.

By choosing the Cisco MDS 9706 Switch with DS-X9706-FAB1, organizations can enjoy a robust and reliable networking solution that will support their business growth and evolving needs for years to come. This investment in a high-performance switch ensures a solid foundation for building a resilient and scalable network infrastructure.

Conclusion

The Part Number: DS-X9706-FAB1 is a vital component of the Cisco MDS 9706 Switch, providing exceptional performance, scalability, and reliability. Its high-speed switching capacity, advanced traffic management features, and simplified management capabilities make it an ideal choice for modern data centers. By investing in the Cisco MDS 9706 Switch with DS-X9706-FAB1, organizations can ensure a future-proof networking solution that meets their current and future requirements.
