DS2278-SR7U2100PRW Zebra Cordless Handheld Area Imager Kit

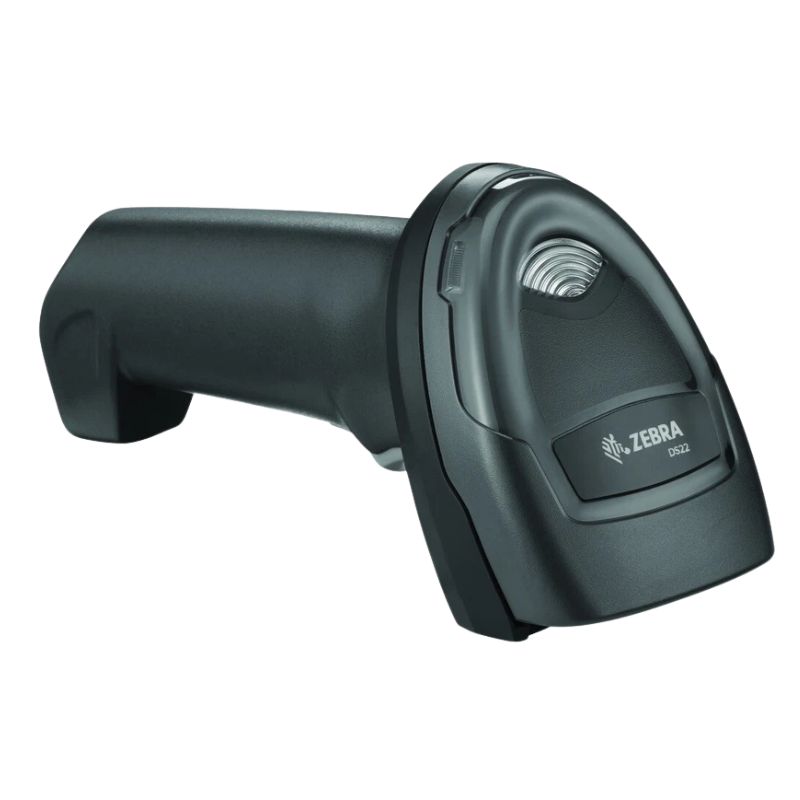

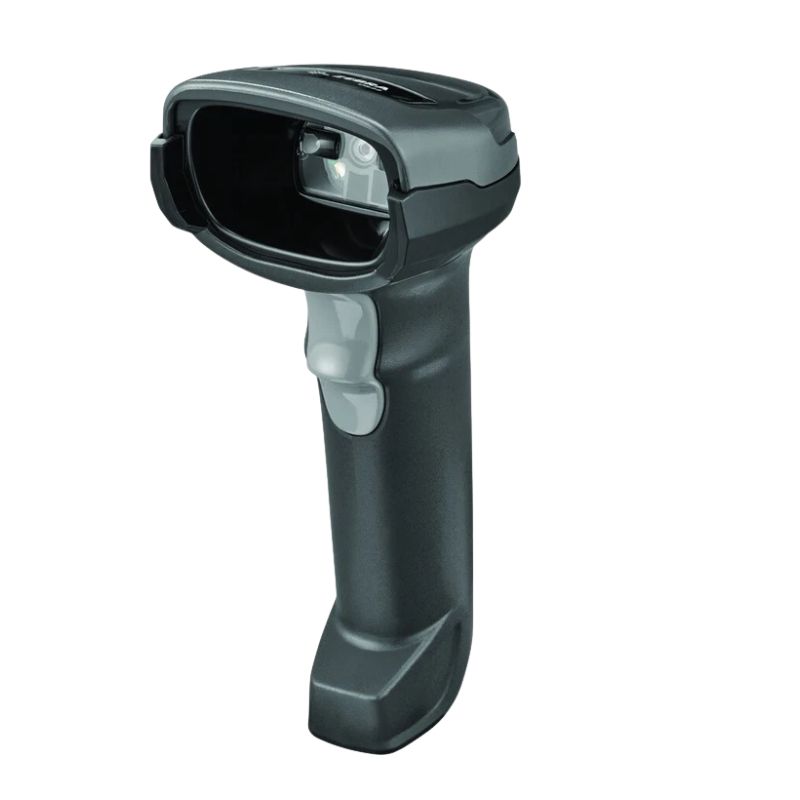

Zebra DS2278-SR7U2100PRW Cordless Handheld Scanner

Reliable Wireless Area Imager for Modern Data Capture

The Zebra DS2278-SR7U2100PRW cordless handheld scanner is engineered for efficient and accurate barcode scanning across retail, logistics, and enterprise environments. Built with advanced imaging technology, it ensures fast capture of both 1D and 2D barcodes while maintaining strong wireless performance and user-friendly operation.

Key Product Identification

• Manufacturer: Zebra
• Part Number / SKU: DS2278-SR7U2100PRW
• Product Category: Security Devices
• Device Type: Cordless Barcode Scanner (Area Imager Kit)

Advanced Technical Specifications

Design & Build Quality

• Elegant Twilight Black finish for professional environments
• Compact dimensions: 6.9 in. H x 2.6 in. W x 3.5 in. D
• Lightweight construction: only 7.5 oz for comfortable extended use

Connectivity & Host Integration

• Supports multiple host interfaces for flexible deployment
• USB, RS232, Keyboard Wedge compatibility
• TGCS (IBM) 46XX over RS485 support for legacy systems
• Compatible with more than 90 international keyboard layouts

Wireless Communication Capabilities

• Bluetooth Version 4.0 with BLE support
• Class 2 wireless range up to 33 ft (10 meters)
• Profiles supported: Serial Port and HID

Imaging & Scanning Performance

• 640 x 480 pixel image sensor for precise decoding
• Field of View: 32.8° horizontal x 24.8° vertical (nominal)
• Fast and accurate omnidirectional scanning capability

1D Barcode Decoding Support

• Code 39, Code 128, Code 93
• Codabar / NW7, Code 11
• MSI Plessey, UPC/EAN formats
• I 2 of 5, Korean 3 of 5
• GS1 DataBar, Base 32 (Italian Pharma)

2D Barcode Decoding Support

• PDF417 and Composite Codes
• Aztec, DataMatrix, MaxiCode
• QR Code and Micro QR
• TLC-39, Han Xin symbologies
• Postal barcode formats

User Experience & Indicators

• Direct decode indicator for instant scan confirmation
• Dual LED system including rear-facing indicators
• Adjustable beeper tone and volume settings

Power & Battery Performance

• High-capacity 2400 mAh Li-Ion rechargeable battery
• Optimized for extended operational usage in busy environments

Durability & Environmental Resistance

• Engineered to withstand multiple 5 ft. (1.5 m) drops onto concrete
• Rugged build suitable for retail, warehouse, and industrial use

Zebra DS2278-SR7U2100PRW Cordless Barcode Scanner

The Zebra DS2278-SR7U2100PRW Cordless Handheld Standard Range Area Imager Kit belongs to the highly efficient DS2200 Series of 1D/2D barcode scanners designed for modern retail, light industrial, and point-of-sale (POS) environments. Built for flexibility, accuracy, and seamless wireless operation, this imager kit delivers reliable barcode capture performance across a wide range of business workflows where speed and precision are critical.

Engineered with Zebra’s intelligent imaging technology, the DS2278-SR7U2100PRW supports both 1D linear barcodes and 2D matrix codes such as QR, DataMatrix, and PDF417, making it ideal for evolving digital transaction systems. Its cordless Bluetooth connectivity enhances mobility, allowing users to scan items freely without being tethered to a workstation.

Core Technology Behind DS2278-SR7U2100PRW

PRZM Intelligent Imaging Technology

The scanner incorporates Zebra’s PRZM Intelligent Imaging technology, which enhances decoding performance on poorly printed or damaged barcodes. This ensures first-time capture accuracy, reducing delays at checkout counters and improving workflow efficiency in fast-paced environments.

2D Area Imager System

Unlike traditional laser scanners, this device uses a 2D area imager that captures an entire barcode image at once. This allows omnidirectional scanning, meaning users do not need to align the barcode precisely with the scanner, improving usability and reducing training time for new operators.

Standard Range Scanning Capability

The standard range configuration of the DS2278-SR7U2100PRW is optimized for typical retail and inventory scanning distances. It can efficiently capture barcodes from close proximity up to moderate distances, making it suitable for POS counters, warehouse shelving, and handheld inventory tasks.

Wireless Performance and Connectivity

Bluetooth Cordless Operation

The DS2278-SR7U2100PRW operates using Bluetooth wireless technology, offering a stable connection to POS systems, tablets, and computers. This cordless design enhances mobility and reduces cable clutter, especially in busy retail environments where space efficiency is essential.

Scan-to-Connect Pairing

One of the standout features is Zebra’s Scan-to-Connect functionality, which enables quick pairing with compatible devices using a simple barcode scan. This eliminates complex setup procedures and ensures rapid deployment in large-scale environments.

Extended Operating Range

The wireless connection typically supports up to 10 meters (depending on environmental conditions), allowing operators to move freely around workstations without losing connectivity or scanning performance.

Battery and Power Efficiency

Long-Lasting Lithium-Ion Battery

This scanner is powered by a high-capacity 2400 mAh lithium-ion battery designed for extended daily use. It supports up to a full shift of continuous scanning, ensuring minimal interruptions in high-volume operations.

Fast Charging System

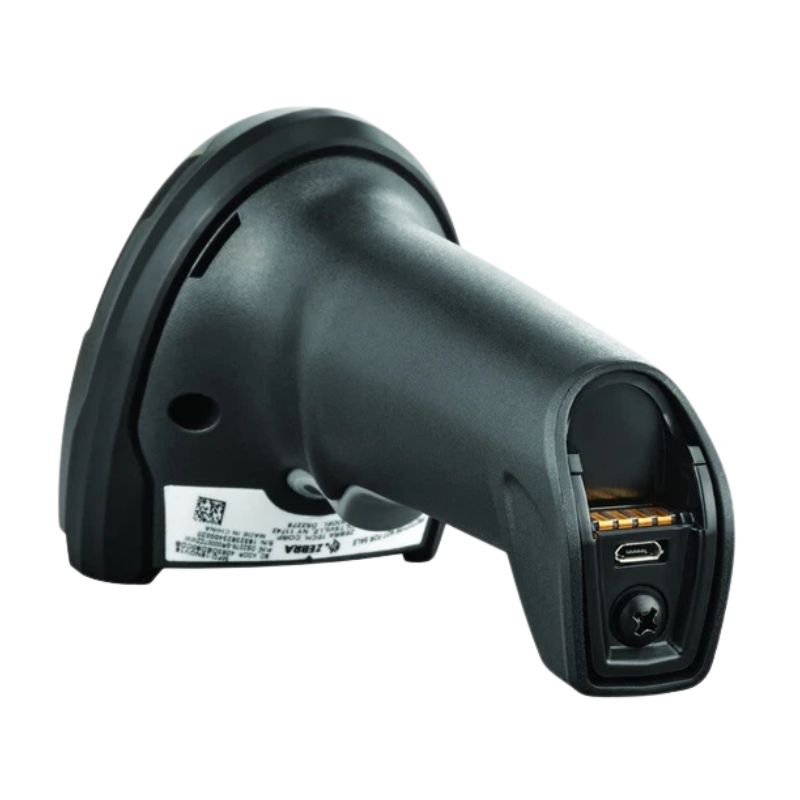

The DS2278 can be charged using either a USB cable or a presentation cradle. USB charging is ideal for quick top-ups, while the cradle provides continuous charging and enables hands-free scanning functionality.

Energy Optimization Features

The device intelligently manages power consumption to extend battery life, reducing the need for frequent replacements and lowering total cost of ownership for businesses.

Design and Ergonomics

Lightweight Handheld Form Factor

The scanner is designed with ergonomic handling in mind, featuring a lightweight build that reduces operator fatigue during long scanning sessions. Its pistol-grip style enhances comfort and control during repetitive use.

Durable Construction

Built to withstand everyday operational demands, the DS2278-SR7U2100PRW includes a rugged housing that resists minor drops and impacts commonly encountered in retail and warehouse environments.

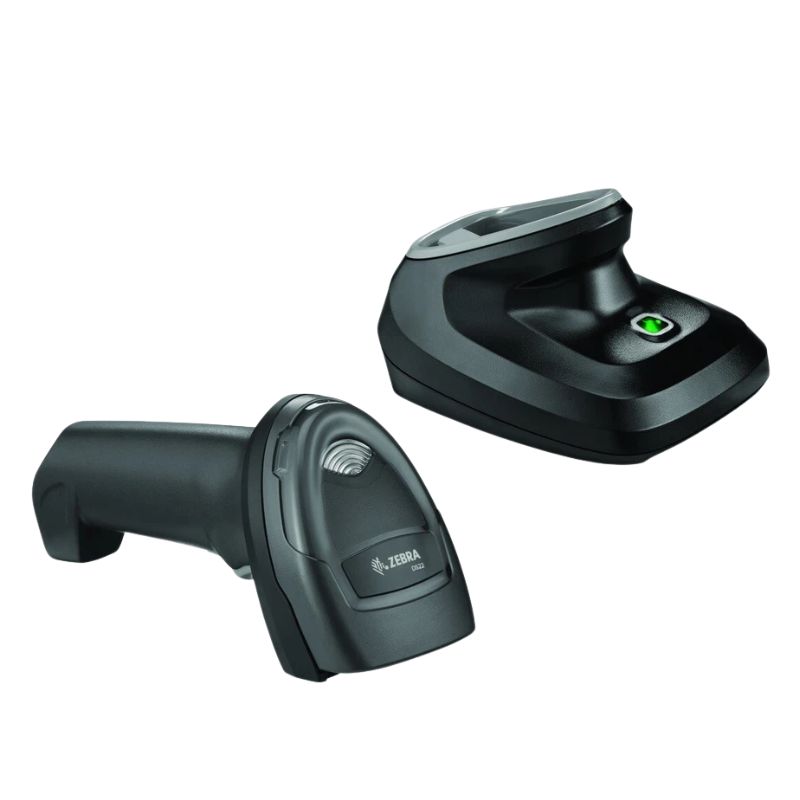

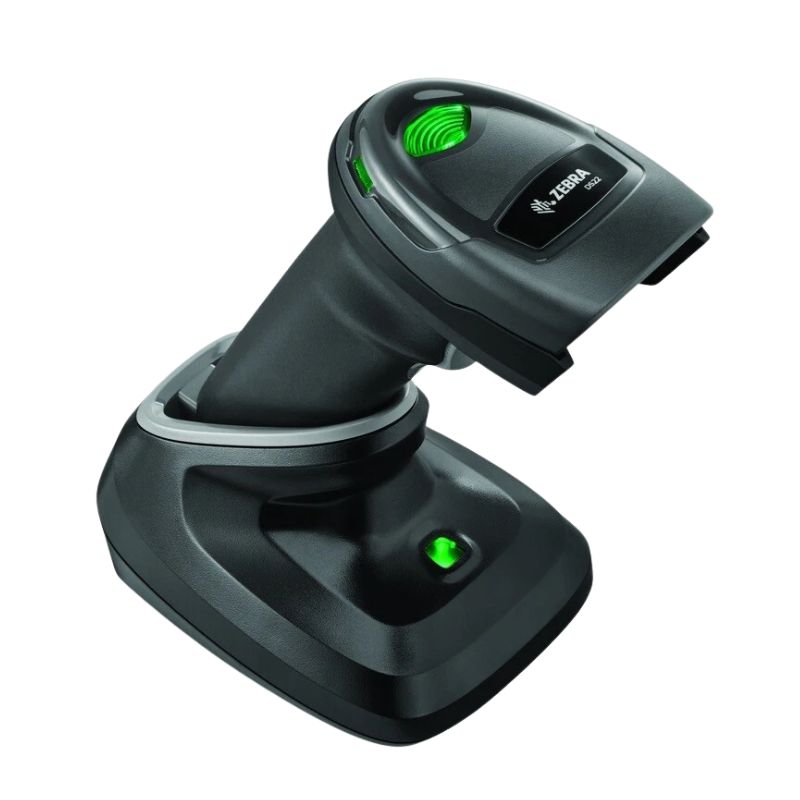

Presentation Cradle Support

The included presentation cradle allows users to switch seamlessly between handheld and hands-free scanning modes. When placed in the cradle, the device automatically transitions to presentation scanning without additional configuration.

Barcode Scanning Capabilities

1D and 2D Symbology Support

This scanner supports a wide variety of barcode types including UPC, EAN, Code 39, Code 128, QR codes, DataMatrix, and PDF417. This versatility ensures compatibility with modern digital labeling systems used across industries.

Omnidirectional Scanning

Users can scan barcodes from any angle, eliminating the need for precise alignment. This significantly speeds up checkout processes and inventory management tasks.

High-Speed Decoding

The DS2278-SR7U2100PRW delivers rapid decoding performance, ensuring quick data capture even in high-throughput environments such as supermarkets and logistics centers.

Deployment in Retail and POS Environments

Point-of-Sale Optimization

This scanner is widely used in retail checkout systems where speed and accuracy are critical. It reduces customer wait times by ensuring smooth and uninterrupted scanning of products, coupons, and loyalty cards.

Inventory and Stock Management

Beyond retail checkout, it is also used for inventory tracking and stockroom operations. Its wireless design allows staff to move freely through aisles while scanning shelf labels and product codes.

Omnichannel Retail Integration

With the rise of digital commerce, the DS2278-SR7U2100PRW supports scanning of electronic coupons and mobile barcodes, helping retailers integrate online and offline shopping experiences.

Software and Management Features

Zebra Scanner Management Tools

The device is compatible with Zebra’s Scanner Management Service, enabling centralized configuration and monitoring across multiple devices in different locations. This helps businesses maintain consistent performance standards.

Firmware and Configuration Flexibility

Administrators can easily update firmware and adjust settings such as beeper volume, LED indicators, and barcode symbology support. This ensures adaptability to different business requirements.

Multi-Platform Compatibility

The scanner works across multiple operating systems including Windows, Android, and iOS, making it highly adaptable for modern POS systems and mobile-based workflows.

Performance Advantages in Business Operations

Reduced Error Rates

By accurately capturing both damaged and high-density barcodes, the scanner reduces manual entry errors and improves transaction accuracy in business environments.

Improved Workflow Efficiency

Faster scanning speeds and wireless mobility help streamline workflows in retail, warehousing, and hospitality sectors, improving employee productivity.

Lower Operational Costs

With durable construction, long battery life, and minimal maintenance requirements, the DS2278-SR7U2100PRW helps businesses reduce long-term operational expenses.

Environmental and Operational Reliability

Consistent Performance in Varied Lighting

The scanner performs reliably under different lighting conditions, including bright retail environments and dim warehouse settings, ensuring consistent barcode capture quality.

Temperature and Usage Stability

Designed for commercial use, it maintains stable performance during continuous operation, making it suitable for high-demand business environments.

Reduced Downtime Design

Its reliable battery system and durable hardware construction help minimize downtime, ensuring continuous business operations without frequent interruptions.
