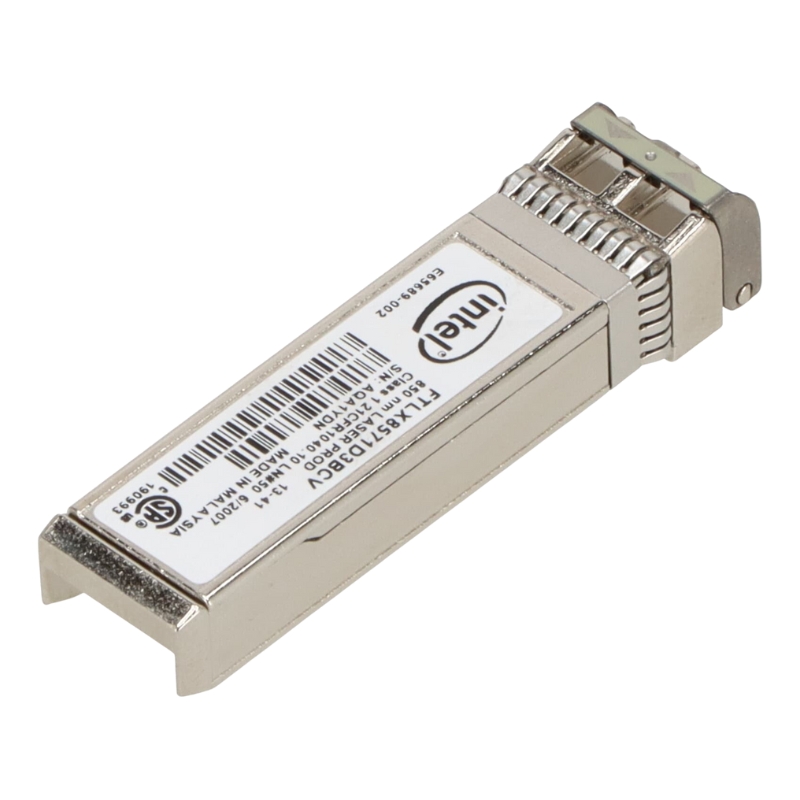

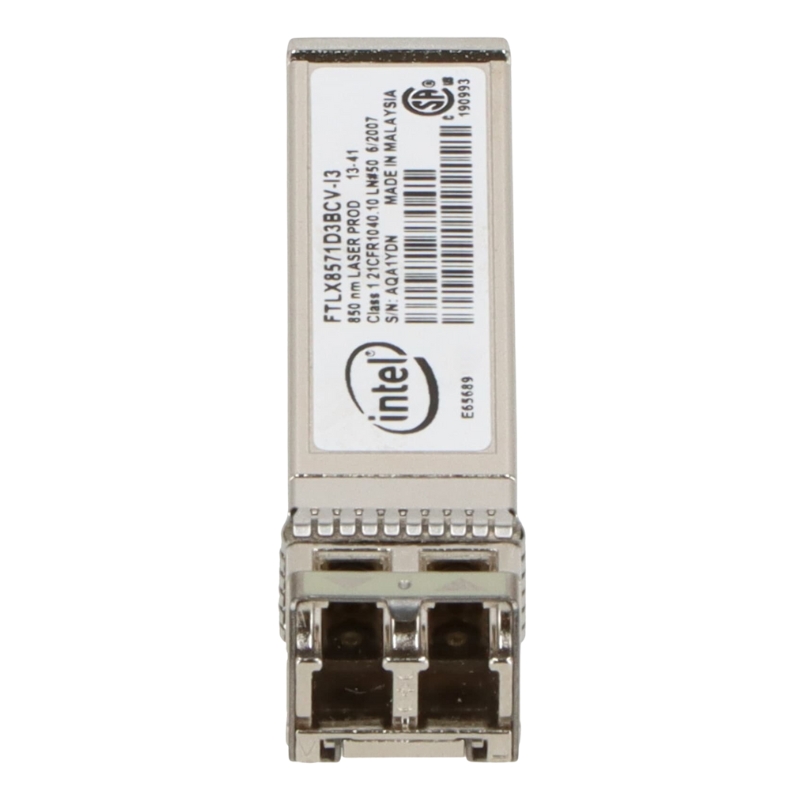

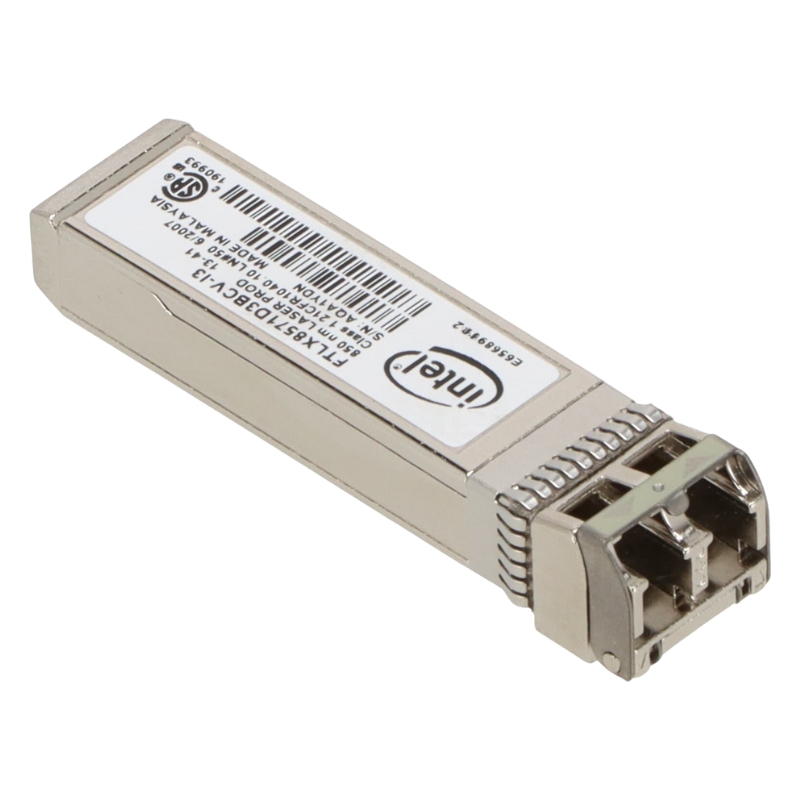

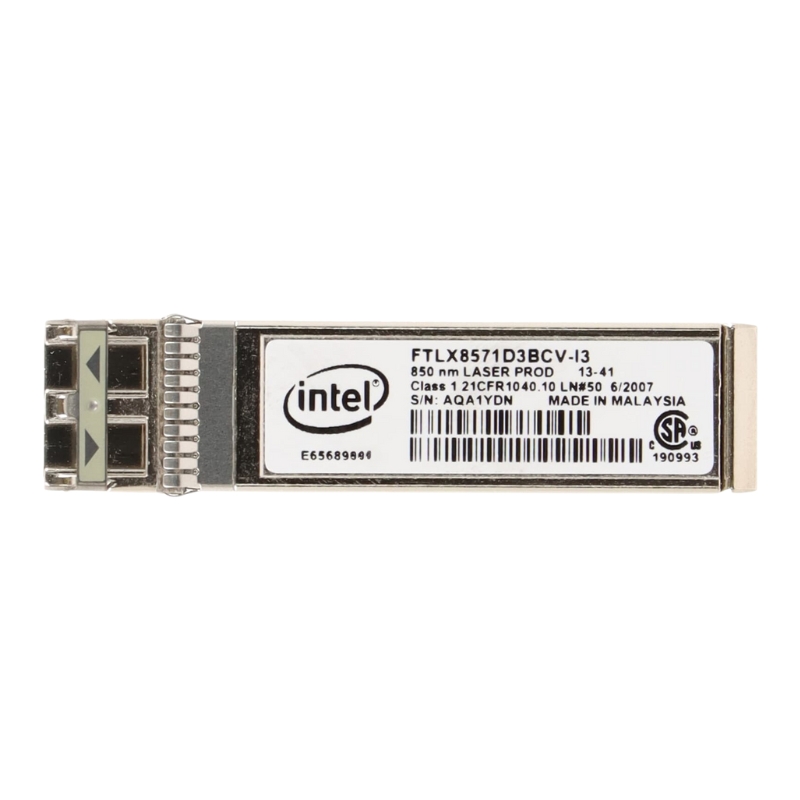

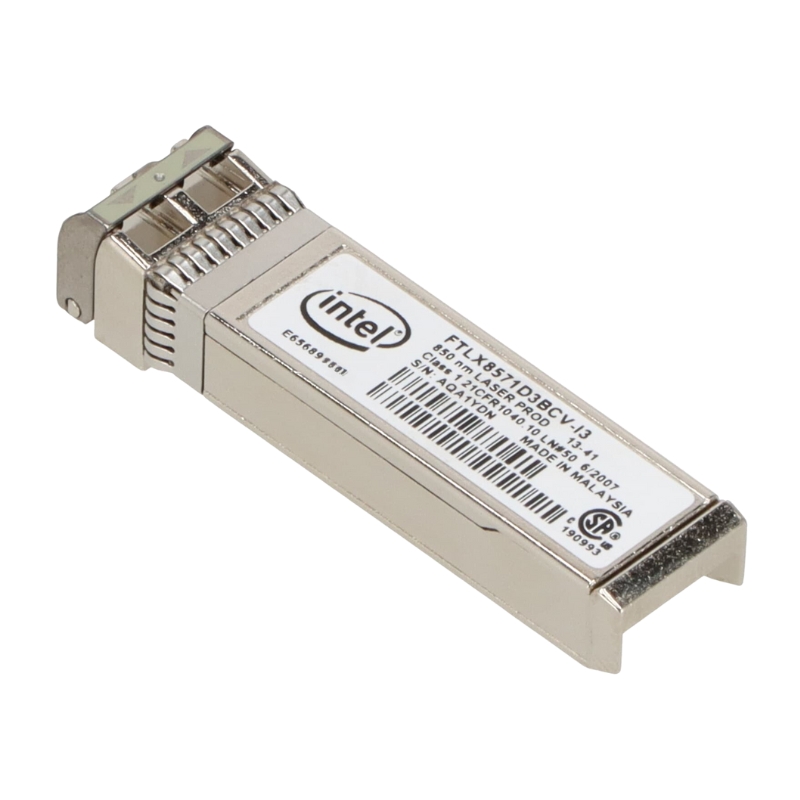

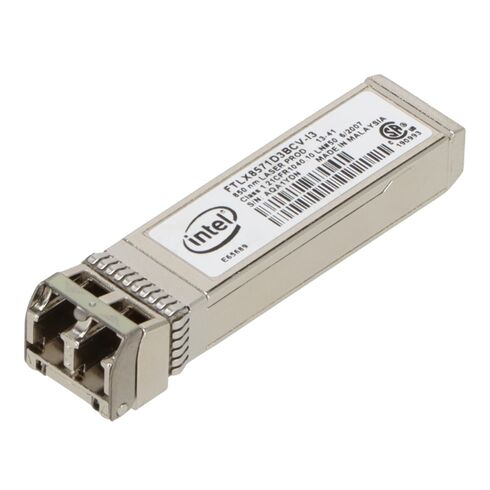

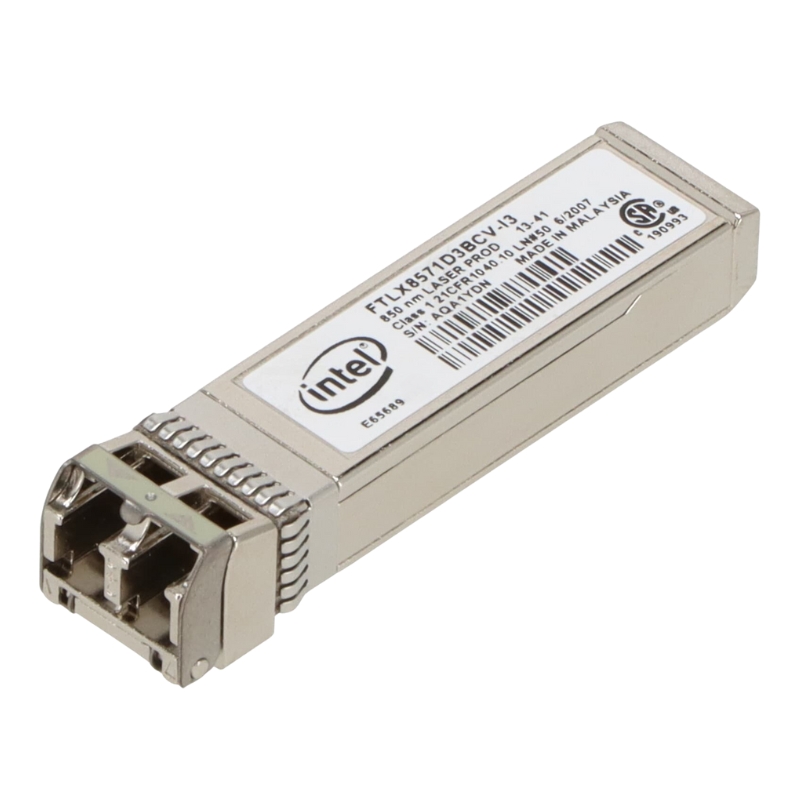

E65689-005 Intel SFP+ Transceiver Module, 850nm Duplex MMF, 300m, LC Connector

Intel SFP+ 10G Optical Transceiver Module

The Intel E65689-005 SFP+ transceiver is a compact, hot-swappable optical solution designed for high-speed data communication. Featuring LC connectors and multi-mode fiber compatibility, it ensures reliable connectivity for enterprise networking environments.

General Information

• Manufacturer: Intel
• Part Number: E65689-005
• Device Type: Optical Transceiver

Technical Specifications

• Hot-pluggable SFP+ footprint for flexible installation
• Supports selectable data rates: 1.25 Gb/s or 9.95–10.3 Gb/s
• Low power consumption under 1W
• Single 3.3V power supply operation

Compliance and Standards

• RoHS-6 compliant (lead-free design)
• Commercial operating temperature range: -5°C to 70°C

Optical Characteristics

• Maximum link distance of 400m on OM4 multi-mode fiber
• Uncooled 850nm VCSEL laser for efficient transmission
• Receiver with limiting electrical interface
• Duplex LC connector for secure fiber connections

Advanced Capabilities

• Integrated digital diagnostic monitoring functions
• Reliable performance across diverse networking environments

Applications

• Data center interconnects
• Enterprise LAN and SAN environments
• High-performance computing clusters
• Telecommunication backbone systems

Intel E65689-005 SFP+ 10G Optical Transceiver Overview

The Intel E65689-005 SFP+ Transceiver Module is a high-performance 10 Gigabit Ethernet optical networking component designed for short-range data transmission over multi-mode fiber infrastructure. Featuring an 850nm wavelength, duplex LC connector interface, and support for up to 300 meters of transmission distance, this module is widely deployed in enterprise data centers, high-density switching environments, storage networks, and virtualization clusters that require reliable, low-latency, and high-bandwidth interconnectivity.

As modern IT environments increasingly rely on high-speed connectivity to support cloud workloads, virtualization platforms, distributed computing, and large-scale data processing, the demand for efficient optical transceivers has grown significantly. The Intel E65689-005 addresses these requirements by providing a compact, hot-swappable SFP+ form factor designed for seamless integration into compatible networking equipment while delivering stable 10Gbps throughput over multi-mode fiber links.

This transceiver module is optimized for short-distance high-density networking scenarios, particularly within rack-to-rack or intra-data center communication layers where low latency and high bandwidth efficiency are essential for maintaining application performance and system responsiveness.

Role of SFP+ Transceivers in Modern Networking Infrastructure

SFP+ transceivers play a critical role in enabling high-speed optical and electrical connectivity across enterprise networks. They serve as the physical interface between networking equipment and fiber optic cabling, converting electrical signals into optical signals for transmission and vice versa.

The Intel E65689-005 leverages this architecture to deliver reliable 10Gbps data transmission in compact form factors, enabling network engineers to scale bandwidth without increasing physical footprint or power consumption significantly.

These modules are essential in environments where network density, performance consistency, and scalability are key operational requirements.

Importance of 850nm Multi-mode Fiber Technology

The 850nm wavelength used in the Intel E65689-005 is optimized for multi-mode fiber (MMF) transmission. Multi-mode fiber is commonly used in short-range data center environments due to its cost-effectiveness and ease of installation compared to single-mode fiber.

This wavelength is ideal for VCSEL-based transmission, providing high-speed data transfer over distances up to 300 meters depending on fiber grade (OM3/OM4). It enables efficient communication between network devices located within the same building or data center facility.

The use of multi-mode fiber ensures reduced deployment costs while maintaining high-performance connectivity standards required by modern enterprise workloads.

10 Gigabit Ethernet High-Speed Performance

The Intel E65689-005 supports full 10 Gigabit Ethernet data rates, ensuring high-throughput communication for demanding network applications. This performance level is essential for modern data centers where large volumes of data must be transmitted quickly and reliably.

The module supports continuous operation under high traffic loads, making it suitable for mission-critical enterprise environments.

850nm VCSEL Laser Technology

The module utilizes 850nm VCSEL laser technology, which is specifically designed for multi-mode fiber communication. VCSEL technology offers high efficiency, low power consumption, and stable optical performance, making it ideal for short-range high-speed networking applications.

This technology ensures consistent signal quality and reduces the risk of transmission errors in dense network environments.

LC Duplex Connector Interface

The LC duplex connector is a widely adopted standard for fiber optic networking due to its compact size and reliable connection performance. The Intel E65689-005 uses this interface to provide secure bidirectional communication over two fiber strands.

The duplex configuration ensures simultaneous transmission and reception of data, enabling efficient full-duplex communication between network devices.

Hot-Swappable SFP+ Design

The hot-swappable design of the SFP+ module allows for installation and replacement without powering down network equipment. This feature is essential in enterprise environments where uptime is critical.

Network administrators can perform upgrades or maintenance operations without disrupting ongoing services, ensuring continuous availability of network resources.

Performance Benefits of Intel E65689-005 in Enterprise Networks

Latency is a critical factor in high-performance networking environments. The Intel E65689-005 is engineered to provide low-latency communication between network devices, making it suitable for applications such as virtualization, cloud computing, and real-time analytics.

By minimizing transmission delays, the module helps ensure responsive application performance and efficient workload execution.

Stable Short-Range Optical Connectivity

The module is optimized for short-range optical transmission up to 300 meters over multi-mode fiber. This makes it ideal for intra-data center connectivity, including rack-to-rack and row-to-row communication.

Stable optical performance ensures consistent data delivery and minimizes packet loss in high-density network environments.

Enterprise Data Centers

In enterprise data centers, high-speed interconnects are essential for maintaining efficient communication between servers, storage systems, and network switches. The Intel E65689-005 supports these requirements by providing reliable 10Gbps optical connectivity over short distances.

It is commonly used in top-of-rack and end-of-row switching architectures where efficient aggregation of server traffic is required.

Cloud Computing Environments

Cloud infrastructure relies on high-speed networking to support distributed computing workloads. The Intel E65689-005 enables fast communication between virtualized servers and storage systems, ensuring efficient cloud service delivery.

Its low-latency performance is particularly beneficial in multi-tenant cloud environments where performance isolation is critical.

Virtualization and Hyper converged Infrastructure

Virtualized environments generate significant east-west traffic between virtual machines and storage nodes. The Intel E65689-005 provides the bandwidth necessary to support these workloads efficiently.

Hyper converged infrastructure deployments benefit from its ability to maintain stable and high-speed interconnectivity between compute and storage resources.

High-Performance Computing Clusters

HPC environments require extremely fast communication between compute nodes to process complex workloads. The Intel E65689-005 supports these environments by delivering reliable low-latency optical connectivity.

This ensures efficient distribution of computational tasks and improved overall system performance.

Thermal Stability in Dense Deployments

Thermal management is a critical consideration in networking hardware design. The compact SFP+ form factor of the Intel E65689-005 minimizes heat generation and supports efficient airflow within networking equipment.

This helps maintain system stability and ensures long-term reliability in dense deployments.

Compatibility and Integration Flexibility

The Intel E65689-005 is designed to operate with a wide range of networking devices that support SFP+ interfaces. This includes switches, routers, and network interface cards from various manufacturers.

This interoperability ensures flexible deployment across heterogeneous network environments without compatibility concerns.

Seamless Network Upgrade Path

Organizations transitioning from Gigabit Ethernet to 10 Gigabit Ethernet can use the Intel E65689-005 to upgrade network performance without replacing entire infrastructure systems.

This enables cost-effective scalability and supports gradual network modernization strategies.

Integration with Multi-Mode Fiber Infrastructure

The module is specifically designed for multi-mode fiber environments, making it compatible with existing OM3 and OM4 fiber installations commonly found in data centers.

This ensures easy integration into existing optical networking infrastructure without extensive cabling modifications.

Reliability and Fault Tolerance in Optical Networks

The Intel E65689-005 contributes to network reliability by providing stable optical transmission performance across supported distances. In redundant network architectures, multiple transceivers can be deployed to ensure failover capability and continuous connectivity.

This enhances fault tolerance and supports high-availability enterprise network designs.
