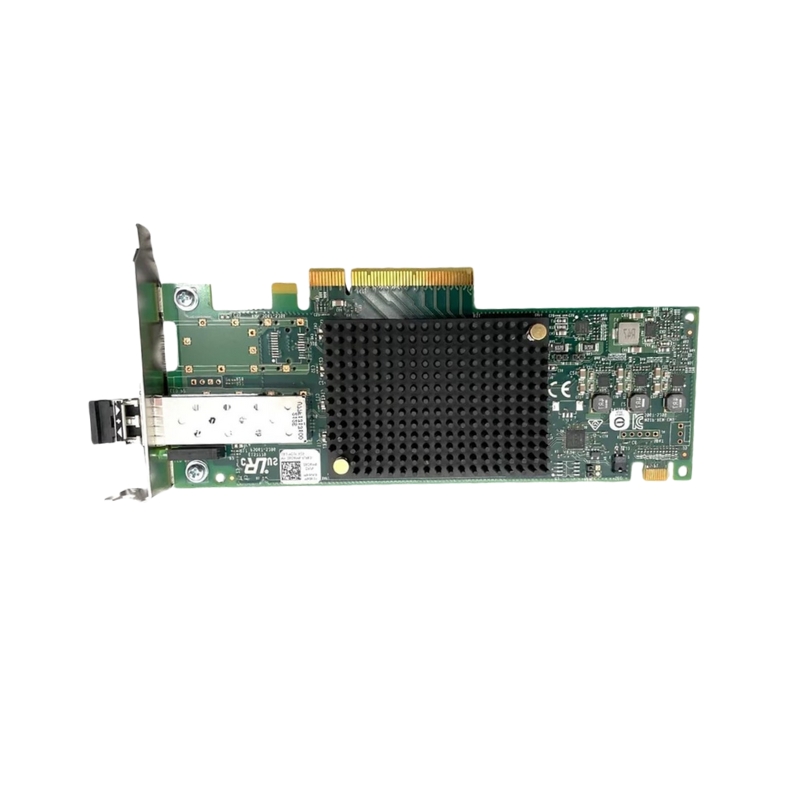

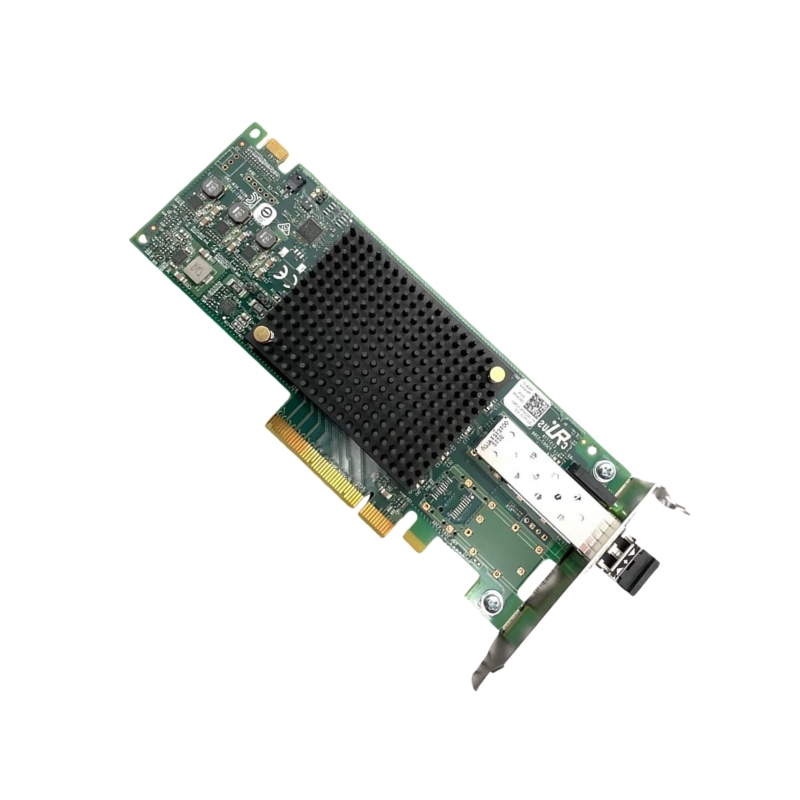

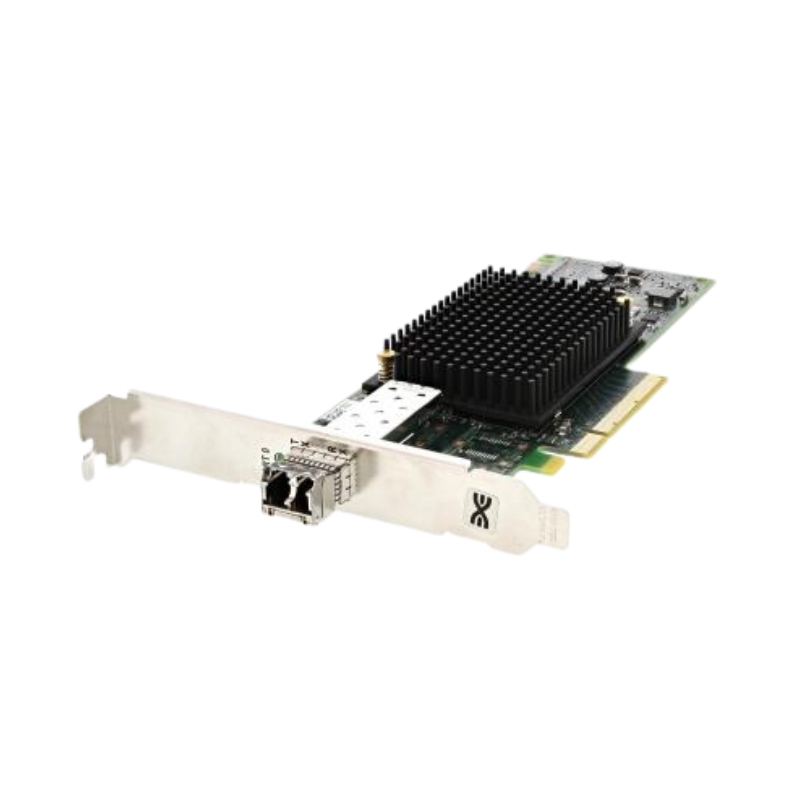

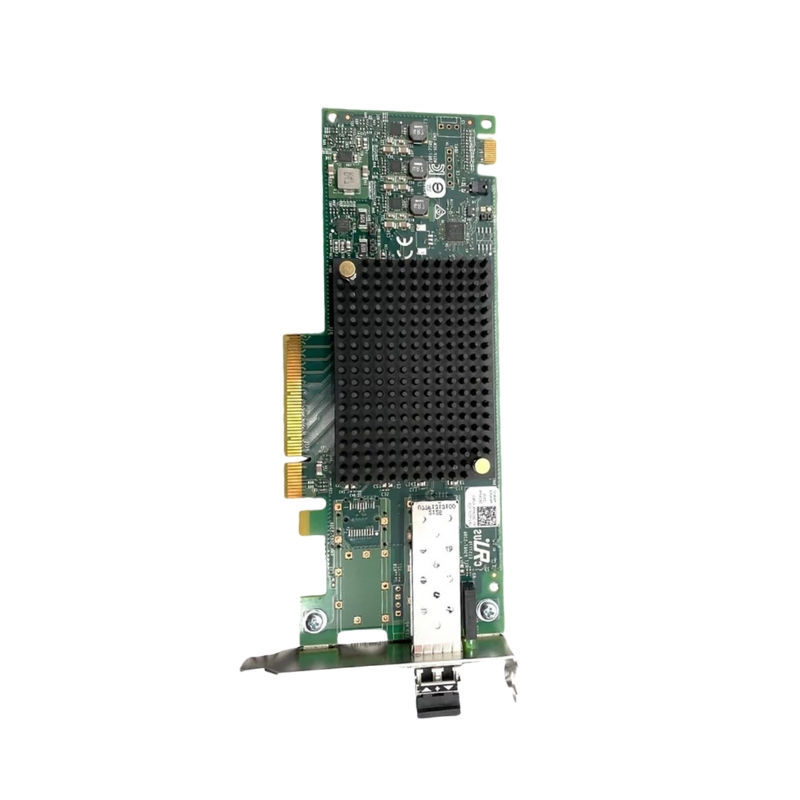

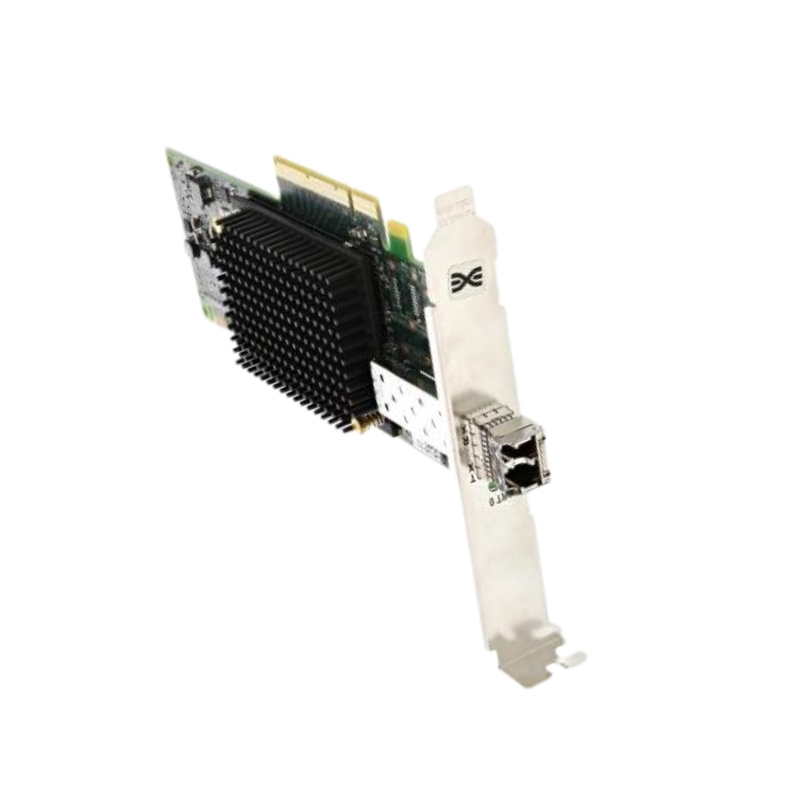

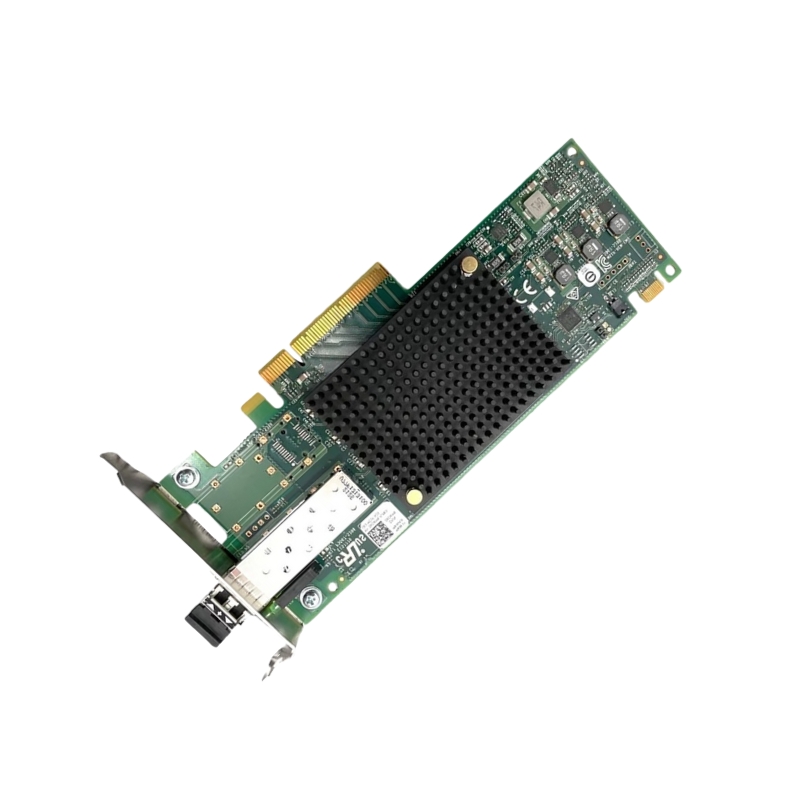

Emulex Lpe31000 Dell WY46N 16GB Single Port Fiber Channel HBA

WY46N
Hover on image to enlarge

Brief Overview of WY46N

Emulex Lpe31000 Single Port Fiber Channel HBA Dell WY46N 16GB. New (System) Pull with 1-Year Replacement Warranty

QR Code of Emulex Lpe31000 Dell WY46N 16GB Single Port Fiber Channel HBA
$220.05
$163.00
You save: $57.05 (26%)
Ask a question
180 days
+
Quote
Additional 7% discount at checkout
SKU/MPNWY46NAvailability✅ In StockProcessing TimeUsually ships same day ManufacturerDell Manufacturer Warranty1 Year Warranty Original Brand Product/Item ConditionNew (System) Pull ServerOrbit Replacement WarrantySix-Month (180 Days)
Our Advantages
  • Free Ground Shipping
  • — Min. 6-month Replacement Warranty
  • — Genuine/Authentic Products
  • — Easy Return and Exchange
  • — Different Payment Methods
  • — Best Price
  • — We Guarantee Price Matching
  • — Tax-Exempt Facilities
  • — 24/7 Live Chat, Phone Support
Payment Options
  • — Visa, MasterCard, Discover, and Amex
  • — JCB, Diners Club, UnionPay
  • — PayPal, ACH/Wire Transfer
  • — Apple Pay, Amazon Pay, Google Pay
  • — Buy Now, Pay Later - Affirm, Afterpay
  • — GOV/EDU/Institutions PO's Accepted
  • — Invoices
Delivery
  • — Deliver Anywhere
  • — Express Delivery in the USA and Worldwide
  • — Ship to -APO -FPO
  • For USA - Free Ground Shipping
  • — Worldwide - from $30
Description

Product Details

Overview of Dell WY46N Emulex Lpe31000-m6-d

The Dell Emulex Lpe31000-m6-d Host Bus Adapter delivers outstanding performance combined with sophisticated management capabilities, significantly reducing the time required for installation and maintenance. This adapter is engineered to provide up to three times the input/output operations per second (IOPS) efficiency per watt, making it an ideal choice for demanding environments, including virtualized settings, cloud infrastructures, and critical mission applications.

Key Information

  • Manufacturer: Dell
  • Part Number/SKU: WY46N
  • Product Type: HBA & Controllers
  • Sub-Type: Fibre Channel

Technical Specifications

Form Factor and Type

  • Form Factor: Plug-in Card
  • Device Type: Host Bus Adapter

Interface Details

  • Interface (Bus): PCI Express 3.0 x8
  • PCI Specification Revision: PCIe 3.0
  • Ports: 16GB Fibre Channel x1
  • Connectivity Technology: Wired
  • Cabling Type: Fibre Optic

Data Transfer Rates

Supports a maximum data transfer rate of 14.025 Gbps and is compatible with a variety of Fibre Channel protocols:

  • FC-DA
  • FC-FS
  • FC-GS-2
  • FC-GS-3
  • FC-GS-4
  • FC-MI
  • FC-PH-2
  • FC-PH-3
  • FC-PI
  • FC-TAPE
  • FCP-4
  • FCP-2
  • FC-PI-2
  • FC-GS-5
  • FCP-3
  • FC-PI-4
  • FC-FS-3
  • FC-GS-6
  • FC-PI-3
  • FC-HBA
  • FC-PI-5
  • FC-LS-2
  • FC-DA-2
  • SSC-2
  • SBC-2
  • SPC-3
  • FC-PI-6
  • SBC-3
  • SPC-4
  • SSC-4

Key Features

  • Forward Error Correction (FEC)

Compliance Standards

  • CSA
  • UL
  • FCC
  • RoHS
  • TUV Bauart
  • BSMI Class A
  • ICES Class A
  • VCCI Class A
  • MSIP Class A
  • China RoHS
  • RCM

System Requirements

  • Operating Systems:
    • SUSe Linux Enterprise Server
    • Microsoft Windows
    • Red Hat Enterprise Linux

Environmental Specifications

  • Minimum Operating Temperature: 0 °C
  • Maximum Operating Temperature: 55 °C
  • Humidity Range: 5 - 95% (non-condensing)

Compatible Devices

This adapter is designed for use with the following systems:

  • DELL PowerEdge T630
  • DELL EMC PowerEdge R440
  • DELL EMC PowerEdge R530
  • DELL EMC PowerEdge R540
  • DELL EMC PowerEdge R630
  • DELL EMC PowerEdge R640
  • DELL EMC PowerEdge R730
  • DELL EMC PowerEdge R730xd
  • DELL EMC PowerEdge R740
  • DELL EMC PowerEdge R740xd
  • DELL EMC PowerEdge R830
  • DELL EMC PowerEdge R930
  • DELL EMC PowerEdge R940
  • DELL PowerEdge T640

Compatibility

The Emulex Lpe31000 Single Port Fiber Channel HBA is a state-of-the-art storage connectivity solution that offers exceptional compatibility with various systems. One of its notable features is its compatibility with the Dell WY46N, which makes it an ideal choice for users utilizing Dell servers and storage solutions.

Seamless Integration with Dell WY46N

The Emulex Lpe31000 Single Port Fiber Channel HBA is specifically designed to seamlessly integrate with the Dell WY46N. This compatibility ensures that users can effortlessly connect their storage systems to Dell servers, enabling efficient data transfer and access. With this HBA, users can enjoy a hassle-free and reliable storage solution that perfectly complements their Dell infrastructure.

Enhanced Performance and Reliability

By choosing the Emulex Lpe31000 Single Port Fiber Channel HBA with Dell WY46N compatibility, users can experience enhanced performance and reliability. The seamless integration between the HBA and Dell servers eliminates any potential compatibility issues, resulting in improved data transfer speeds and reduced latency. This compatibility also ensures optimal communication between the server and storage system, maximizing overall system performance.

Simplified Management

The compatibility of the Emulex Lpe31000 Single Port Fiber Channel HBA with the Dell WY46N simplifies management for users. With both components working harmoniously together, users can leverage Dell's management tools to easily configure and monitor their storage connectivity. This streamlined management process saves time and effort, allowing administrators to focus on other critical tasks.

Future-Proof Investment

Investing in the Emulex Lpe31000 Single Port Fiber Channel HBA with Dell WY46N compatibility ensures a future-proof solution. As technology advances and new Dell infrastructure is introduced, this HBA will continue to be compatible, eliminating the need for frequent upgrades or replacements. This compatibility provides users with peace of mind, knowing that their investment will remain relevant and functional for years to come.

Expert Support and Warranty

Choosing an Emulex HBA with Dell WY46N compatibility also comes with the added advantage of expert support and warranty. Emulex, in collaboration with Dell, offers comprehensive technical assistance to ensure a smooth integration and troubleshooting process. Additionally, the product is backed by a reliable warranty, providing users with the assurance that any potential issues will be promptly addressed.

Speed

With the demand for high-performance storage solutions increasing, the Emulex Lpe31000 Single Port Fiber Channel HBA stands out with its exceptional speed capabilities. Featuring a blazing-fast 16GB speed, this HBA delivers unparalleled data transfer rates, making it an ideal choice for users seeking optimal performance.

Lightning-Fast Data Transfer

The Emulex Lpe31000 Single Port Fiber Channel HBA's 16GB speed ensures lightning-fast data transfer rates. Whether it's transferring large files, backing up critical data, or running resource-intensive applications, this HBA guarantees minimal waiting time and accelerated workflows. Users can experience unparalleled efficiency and productivity, allowing them to focus on their core tasks without being hindered by slow data transfer speeds.

Improved Workload Performance

By harnessing the power of 16GB speed, users can enjoy improved workload performance. The increased data transfer rates enable faster access to stored information, resulting in quicker application launch times and reduced latency. Whether it's accessing databases, running virtual machines, or processing multimedia content, the Emulex Lpe31000 Single Port Fiber Channel HBA ensures smooth and uninterrupted performance, even under heavy workloads.

Scalability and Future-Proofing

The 16GB speed of the Emulex Lpe31000 Single Port Fiber Channel HBA offers scalability and future-proofing for users. As data volumes continue to grow exponentially, having a high-speed HBA becomes crucial to accommodate the increasing demands. This HBA provides users with the necessary bandwidth to handle current and future workloads, ensuring that their storage connectivity solution remains efficient and capable of meeting evolving data requirements.

Compatibility with High-Speed Networks

The 16GB speed of the Emulex Lpe31000 Single Port Fiber Channel HBA makes it fully compatible with high-speed networks. Whether it's a Fibre Channel SAN or other high-speed storage network infrastructure, this HBA can seamlessly integrate and deliver optimal performance. Users can leverage the full potential of their high-speed networks without any bottlenecks or performance limitations, guaranteeing smooth and uninterrupted data transfer.

Enhanced Data Security

The Emulex Lpe31000 Single Port Fiber Channel HBA's 16GB speed not only improves performance but also enhances data security. With faster data transfer rates, users can quickly back up critical information, reducing the vulnerability window for potential data loss. Additionally, this high-speed HBA enables efficient replication and disaster recovery processes, ensuring the safety and integrity of important data.

Features
Manufacturer Warranty:
1 Year Warranty Original Brand
Product/Item Condition:
New (System) Pull
ServerOrbit Replacement Warranty:
Six-Month (180 Days)
