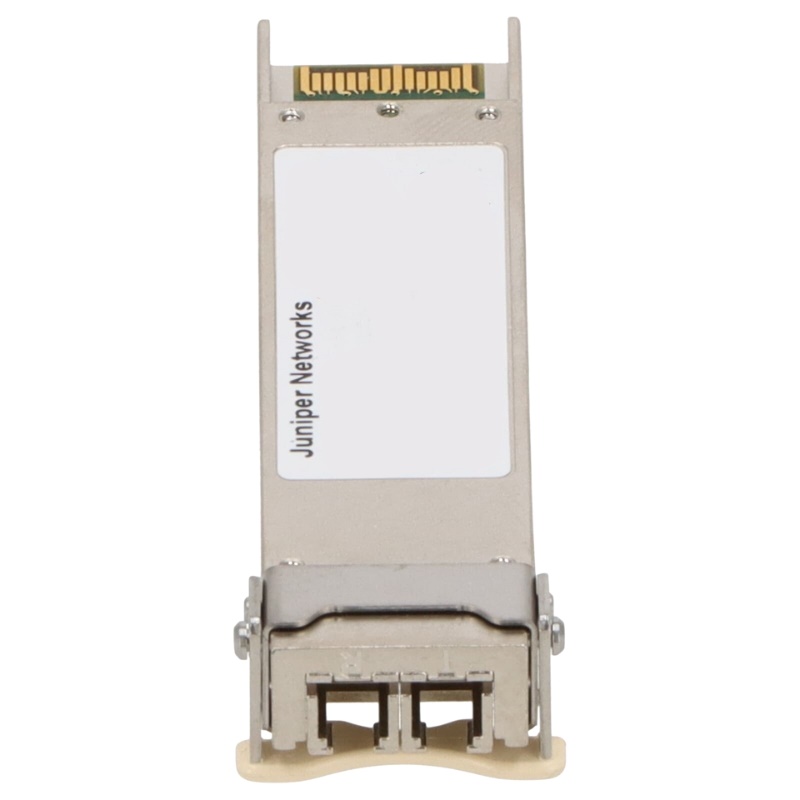

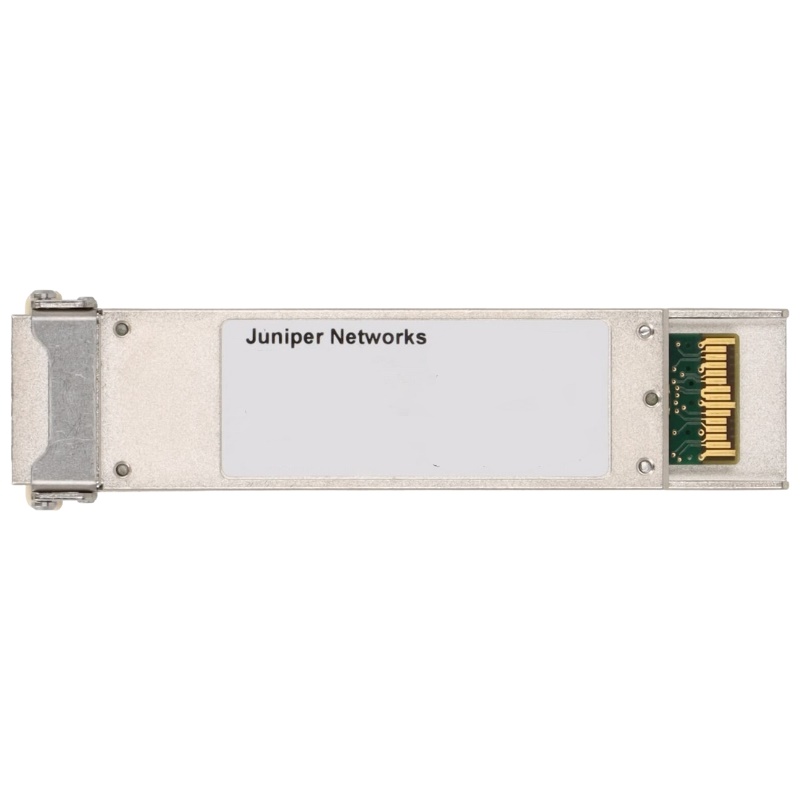

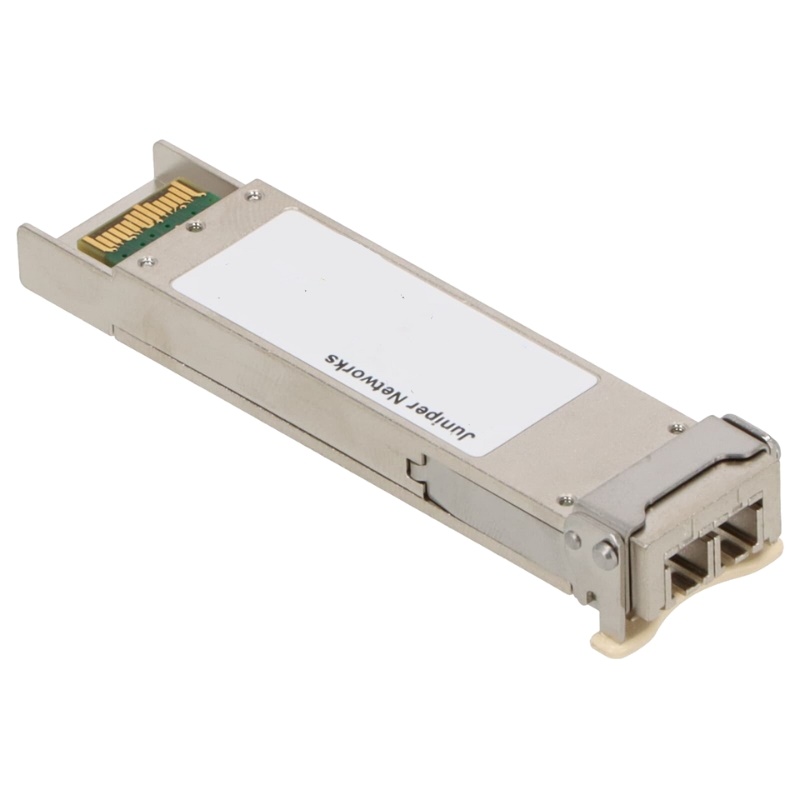

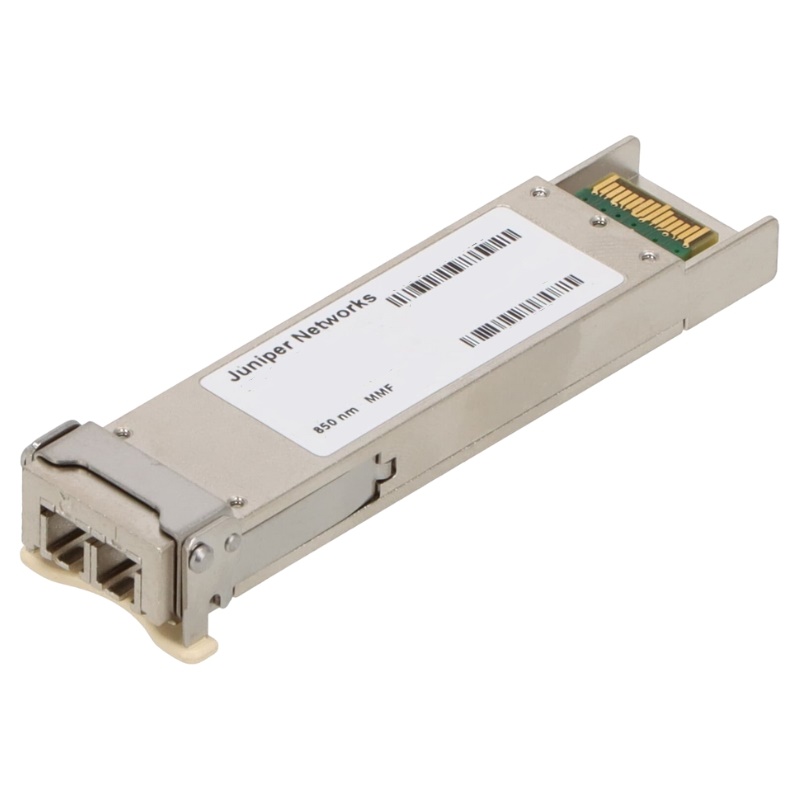

EX-SFP-10GE-SR Juniper Networks LC MM SFP+ Ethernet 10 Gigabit Transceiver

Overview of the Juniper Transceiver

The EX-SFP-10GE-SR Juniper Networks LC MM SFP+ Ethernet 10 Gigabit Transceiver category represents a highly specialized segment of optical networking components designed for high-performance data transmission across modern enterprise, data center, and service provider infrastructures. This category encompasses short-range (SR) small form-factor pluggable plus (SFP+) modules engineered to deliver reliable 10 Gigabit Ethernet connectivity over multimode fiber (MMF) cabling using LC duplex interfaces. The EX-SFP-10GE-SR module is widely recognized for its optimized balance between cost efficiency, energy consumption, and high-speed optical performance, making it an essential component in scalable network architectures.

General Information

• Manufacturer: Juniper
• Part Number: EX-SFP-10GE-SR
• Product Type: Transceiver

Key Specifications

• Device Type: SFP+ Transceiver Module
• Enclosure Type: Plug-in Module
• Data Transfer Rate: 10 Gbps
• Optical Wave Length: 850 nm
• Cabling Type: 10GBASE-SR
• Connectivity Technology: Wired

High-Speed Connectivity

• Data Link Protocol: 10 Gigabit Ethernet
• Interfaces: 1 x Network – Ethernet 10GBASE-SR - LC Multi-mode
• Compatibility: Works with a variety of devices supporting SFP+ slots

Expansion and Connectivity

• Interfaces: 1 x Ethernet 10GBASE-SR - LC Multi-mode
• Compatible Slots: 1 x SFP+
• Form Factor: Compact and easily integrates into network infrastructure

Applications

• Data Centers
• Enterprise Networking
• High-Bandwidth Applications
• Fiber Optic Networks

The Juniper LC MM SFP+ Ethernet 10 Gigabit Transceiver

In contemporary network environments, the demand for low-latency, high-bandwidth communication continues to increase, especially with the proliferation of cloud computing, virtualization, hyper-converged infrastructure, and large-scale storage systems. Within this context, the EX-SFP-10GE-SR Juniper Networks transceiver category serves as a foundational building block for short-distance optical links within racks, between adjacent racks, and across structured cabling systems in enterprise campuses.

Structure and Classification

The EX-SFP-10GE-SR category is part of the broader Juniper Networks SFP+ optical transceiver family, which includes a variety of modules designed for different transmission distances, fiber types, and wavelengths. This specific subcategory is optimized for short-range multimode fiber applications, typically supporting distances up to 300 meters on OM3 fiber and up to 400 meters on OM4 fiber, depending on network conditions and deployment standards.

Short-Range Multimode Fiber Transceivers

Short-range multimode fiber transceivers such as the EX-SFP-10GE-SR are designed to operate at an 850nm wavelength using vertical-cavity surface-emitting laser (VCSEL) technology. This allows for efficient transmission over cost-effective multimode fiber infrastructure. The use of LC duplex connectors ensures compact, reliable connectivity with minimal insertion loss and optimized signal integrity.

10G Ethernet SFP+ Module Segment

Within the 10G Ethernet SFP+ module segment, the EX-SFP-10GE-SR stands as a standardized solution compliant with IEEE 802.3ae 10GBASE-SR specifications. It is engineered to support high-speed data transfer rates of up to 10.3 Gbps, including encoding overhead, making it suitable for mission-critical applications where throughput and reliability are essential.

Juniper Networks Optical Transceiver Ecosystem

As part of the Juniper Networks optical transceiver ecosystem, this module integrates seamlessly with Juniper switches, routers, and network edge devices. Compatibility validation ensures optimal performance, firmware interoperability, and diagnostic support through Digital Diagnostic Monitoring (DDM) capabilities. This integration reduces deployment complexity while enhancing operational visibility.

Specifications of EX-SFP-10GE-SR Modules

The EX-SFP-10GE-SR Juniper Networks LC MM SFP+ Ethernet 10 Gigabit Transceiver category is defined by precise technical characteristics that ensure consistent performance across diverse network environments. These specifications are essential for network engineers when designing scalable and resilient infrastructures.

Data Rate and Encoding

The module supports a nominal data rate of 10 Gbps Ethernet, utilizing 64b/66b encoding to maintain signal efficiency and reduce overhead. This enables high-throughput communication with minimal latency, making it suitable for data-intensive applications such as virtualization clusters, cloud storage replication, and high-performance computing networks.

Wavelength and Optical Interface

Operating at a central wavelength of 850nm, the EX-SFP-10GE-SR utilizes multimode optical transmission optimized for short-range connectivity. The LC duplex interface ensures secure physical connection with industry-standard fiber optic cabling systems. The 850nm wavelength is particularly effective for multimode fiber due to its compatibility with VCSEL laser technology.

Transmission Distance

The transmission distance varies depending on the fiber type used. On OM3 multimode fiber, the module supports up to 300 meters, while on OM4 multimode fiber, it can extend up to 400 meters. These ranges make it suitable for intra-data center connectivity, switch-to-switch links, and server-to-top-of-rack (ToR) connections.

Power Consumption and Thermal Profile

Energy efficiency is a key design consideration in the EX-SFP-10GE-SR category. The module typically consumes low power, often under 1 watt, depending on operational conditions. This reduced power footprint contributes to lower operational costs and improved thermal management within densely populated networking equipment.

Optical Performance and Signal Integrity

Optical performance is a defining attribute of the EX-SFP-10GE-SR Juniper Networks LC MM SFP+ Ethernet 10 Gigabit Transceiver category. Signal integrity is maintained through advanced modulation techniques, precise laser calibration, and built-in error correction capabilities at the network protocol level.

VCSEL Laser Technology

The use of VCSEL technology enables efficient short-wavelength optical transmission with reduced dispersion over multimode fiber. VCSELs offer high reliability, low power consumption, and stable performance, making them ideal for high-density networking environments.

Digital Diagnostic Monitoring (DDM)

Many modules in this category support Digital Diagnostic Monitoring, which provides real-time telemetry data such as optical output power, input power, temperature, laser bias current, and supply voltage. This functionality allows network administrators to proactively identify potential issues and maintain optimal network performance.

Signal Loss and Attenuation Management

Proper attenuation management is critical for maintaining signal quality across multimode fiber links. The EX-SFP-10GE-SR module is engineered to minimize signal degradation over supported distances, ensuring stable connectivity even in high-density patch panel environments.

Juniper Networks Compatibility and Ecosystem Integration

The EX-SFP-10GE-SR category is designed to function seamlessly within the Juniper Networks hardware ecosystem. This includes compatibility with a wide range of EX Series switches, QFX Series data center switches, and other Juniper Ethernet-enabled platforms. Verified interoperability ensures stable operation without requiring additional configuration or third-party firmware modifications.

Switch and Router Compatibility

Juniper EX Series switches frequently utilize EX-SFP-10GE-SR modules for high-speed uplinks and inter-switch connectivity. These modules are also used in QFX Series environments where low-latency switching and high throughput are essential.

Application Scenarios for EX-SFP-10GE-SR Transceivers

The EX-SFP-10GE-SR Juniper Networks LC MM SFP+ Ethernet 10 Gigabit Transceiver category is widely used across multiple industries and network environments due to its versatility and performance characteristics.

Data Center Networking

In data center environments, these transceivers are commonly deployed for server-to-switch and switch-to-switch connections. Their low latency and high bandwidth capabilities make them ideal for virtualization clusters, cloud computing infrastructure, and storage area networks.

Enterprise Campus Networks

Enterprise campuses rely on EX-SFP-10GE-SR modules for backbone connectivity between network distribution layers. They support high-speed communication across buildings and floors where multimode fiber infrastructure is already installed.

High-Performance Computing Environments

HPC environments require extremely fast data exchange between compute nodes. The 10G capability of these transceivers ensures minimal bottlenecks and supports parallel processing workloads effectively.

Storage and Backup Systems

Storage networks benefit from the high throughput of EX-SFP-10GE-SR modules, particularly in backup replication and distributed storage systems where large volumes of data must be transferred quickly and reliably.

Fiber Cable Selection

The performance of the module is closely tied to the quality and type of multimode fiber used. OM3 and OM4 fibers are recommended due to their optimized bandwidth-distance capabilities for 10G Ethernet applications.

Connector Handling and Maintenance

LC connectors should be handled carefully to avoid contamination or damage. Proper cleaning tools and procedures should be used to maintain signal integrity and prevent insertion loss caused by dust or debris.

Hot-Swap Deployment

The hot-swappable nature of SFP+ modules allows network administrators to replace or upgrade transceivers without disrupting network operations. This is particularly valuable in mission-critical environments requiring high uptime.

Performance Optimization and Network Efficiency

Optimizing network performance using EX-SFP-10GE-SR modules involves careful planning of fiber layout, switch configuration, and traffic management policies. These transceivers are designed to support consistent throughput under heavy load conditions.

Latency Considerations

The low-latency design of these modules ensures minimal delay in packet transmission, which is crucial for real-time applications such as financial trading systems and live data processing.

Bandwidth Utilization

Efficient utilization of 10 Gigabit bandwidth allows organizations to consolidate network infrastructure while supporting increasing data demands. This reduces the need for multiple lower-speed links.

Comparative Positioning Within Optical Transceiver

Within the broader optical transceiver market, the EX-SFP-10GE-SR category is positioned as a short-range, cost-effective solution compared to long-range (LR) and extended-range (ER) modules. While LR and ER modules are designed for single-mode fiber and longer distances, SR modules focus on high-performance short-distance connectivity.

Comparison with Long-Range Modules

Unlike long-range modules that operate over single-mode fiber at different wavelengths (typically 1310nm), the EX-SFP-10GE-SR uses 850nm multimode technology, making it more suitable for intra-building connectivity.

Cost Efficiency Advantage

Multimode fiber infrastructure combined with SR modules typically results in lower deployment costs compared to single-mode solutions, particularly in environments where long-distance transmission is not required.

Quality Assurance and Reliability Standards

The EX-SFP-10GE-SR Juniper Networks LC MM SFP+ Ethernet 10 Gigabit Transceiver category adheres to stringent quality assurance standards, ensuring consistent performance under varying environmental conditions. Modules are typically tested for temperature stability, optical performance, and compatibility across supported Juniper platforms.

Environmental Tolerance

These modules are designed to operate within standard commercial temperature ranges, ensuring reliability in controlled data center environments and enterprise network facilities.

Lifecycle and Durability

Built for long operational lifecycles, the modules maintain performance stability over extended periods, reducing the need for frequent replacements and minimizing operational disruptions.

Market Relevance and Industry Adoption

The EX-SFP-10GE-SR category continues to be widely adopted in modern networking deployments despite the emergence of higher-speed technologies such as 25G, 40G, and 100G Ethernet. Its balance of cost, performance, and compatibility ensures ongoing relevance in many existing infrastructures.

Legacy Infrastructure Support

Many organizations continue to rely on 10G infrastructure, making EX-SFP-10GE-SR modules a critical component for maintenance, expansion, and interoperability within hybrid network environments.

Scalability Considerations

These modules allow incremental scaling of network capacity without requiring full infrastructure replacement, enabling gradual migration strategies toward higher-speed technologies.

Operational Best Practices for Network Engineers

Effective deployment of EX-SFP-10GE-SR modules requires adherence to best practices in fiber management, switch configuration, and performance monitoring. Engineers must ensure proper cable routing, label management, and port utilization to maintain network efficiency.

Redundancy Planning

Implementing redundant links using multiple EX-SFP-10GE-SR modules enhances network resilience and ensures uninterrupted connectivity in case of hardware failure.

Future Outlook of 10G SR Transceiver Technology

While higher-speed technologies continue to evolve, the EX-SFP-10GE-SR category remains a foundational element of many network infrastructures. Its continued use is supported by its cost-effectiveness, ease of deployment, and compatibility with existing fiber installations. As network demands evolve, these transceivers will continue to serve as essential components in hybrid environments where 10G connectivity remains sufficient for specific workloads and applications.
