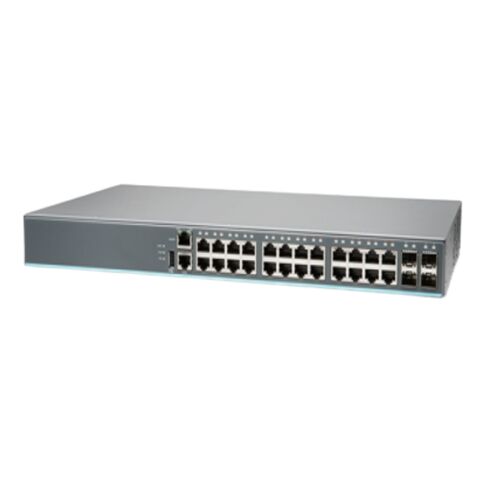

Juniper 24-Ports PoE+ SFP+ Ports Layer 3 Network Switch EX2300-24MP.

EX2300-24MP Juniper 24-Ports PoE+ Layer 3 Switch

The EX2300-24MP is a high-performance, 24-port Layer 3 managed switch from Juniper Networks, designed to provide robust network connectivity and management capabilities. With its 24 ports, 4 SFP+ ports, and advanced features, this switch is well-suited for various applications, including enterprise networks, branch offices, and network edge deployments.

Key Features and Specifications

Port Configuration and Connectivity

The EX2300-24MP is equipped with a comprehensive array of 24 ports to support diverse networking needs:

• 24 x Gigabit Ethernet Ports: These ports support standard 10/100/1000Base-T connections, providing high-speed network access for various devices such as computers, printers, and access points.
• 8 x 2.5 Gigabit Ethernet Ports: These ports offer enhanced performance over standard Gigabit Ethernet, supporting higher data rates and reducing bottlenecks for devices that require more bandwidth.
• 4 x 10 Gigabit Ethernet Expansion Slots: The switch features four SFP+ slots for 10GBase-X connections, enabling high-speed uplinks to other switches or routers and supporting demanding applications with significant data throughput needs.

Modular and Expandable Design

The EX2300-24MP is designed with modularity in mind. It includes four SFP+ expansion slots, allowing for flexible network expansion and integration with high-speed optical fiber connections. This modular design ensures that the switch can adapt to growing network requirements and evolving technology.

Media Types Supported

The switch supports multiple media types, enhancing its versatility in different network environments:

• Twisted Pair: Compatible with standard twisted pair cabling, including Cat5e, Cat6, and Cat6a, which is commonly used for Ethernet connections.
• Optical Fiber: The SFP+ slots support optical fiber connections, which are essential for high-speed and long-distance networking, ensuring minimal signal degradation and high performance.

Power over Ethernet (PoE+)

The EX2300-24MP features PoE+ support on its 24 Gigabit Ethernet ports. This capability allows the switch to deliver power to connected devices such as IP cameras, VoIP phones, and wireless access points over the Ethernet cables. PoE+ enhances installation flexibility and reduces the need for additional power supplies, simplifying network deployments and maintenance.

Layer 3 Managed Capabilities

As a Layer 3 managed switch, the EX2300-24MP provides advanced routing features that facilitate efficient network traffic management. The switch supports a range of Layer 3 protocols, including:

• Static Routing: Allows for manual configuration of routing paths between different network segments.
• Dynamic Routing: Supports protocols such as OSPF (Open Shortest Path First) and RIP (Routing Information Protocol) for automated route discovery and management.

Layer 3 capabilities enable the switch to handle complex network architectures and improve overall network efficiency.

Performance and Scalability

High-Speed Network Access

The EX2300-24MP provides high-speed network access through its 1G, 2.5G, and 10G ports. This range of speeds ensures that the switch can meet the needs of various network applications, from standard office connectivity to high-performance data transfers. The 10G SFP+ ports, in particular, are ideal for connecting to other high-speed switches or network devices, providing a backbone for demanding applications.

Scalability and Flexibility

The modular design of the EX2300-24MP supports future network expansion. The four SFP+ expansion slots allow for the addition of high-speed uplinks and optical fiber connections, enabling the switch to scale with network growth and changing requirements. This flexibility makes the EX2300-24MP a suitable choice for evolving network environments.

Advanced Network Management

The switch's Layer 3 management capabilities offer advanced network management features, including:

• VLAN Support: Enables segmentation of network traffic into virtual LANs, improving network organization and security.
• QoS (Quality of Service): Provides mechanisms for prioritizing critical network traffic, ensuring that high-priority applications receive the necessary bandwidth.
• Network Monitoring: Includes tools for monitoring network performance, troubleshooting issues, and maintaining optimal network health.

Deployment Scenarios

Enterprise Networks

The EX2300-24MP is well-suited for deployment in enterprise networks, where it can serve as a core or distribution switch. Its PoE+ capabilities are particularly beneficial for powering endpoint devices such as IP phones and wireless access points. The switch's Layer 3 features and high-speed ports support a range of enterprise applications and ensure efficient network performance.

Network Edge Deployments

The switch's high-speed connectivity options and advanced management features make it a suitable choice for network edge deployments. The EX2300-24MP can handle high-bandwidth applications and provide the necessary routing and switching capabilities at the edge of the network, ensuring seamless connectivity and performance.

Technical Specifications

Product Type and Family

The EX2300-24MP belongs to Juniper Networks' EX Series, known for its reliable and high-performance networking solutions. As a Gigabit Ethernet switch with PoE+ capabilities, it offers a blend of connectivity, power delivery, and management features, making it suitable for various networking applications.

Power and Cooling

The EX2300-24MP operates with a standard power supply, and its design includes efficient cooling mechanisms to maintain optimal operating temperatures. Power consumption details and cooling requirements should be considered during installation to ensure proper operation and reliability.

Environmental and Compliance Standards

The EX2300-24MP adheres to several environmental and compliance standards, ensuring that it meets global regulations for electronic devices. These include:

• RoHS (Restriction of Hazardous Substances): Compliance with RoHS regulations ensures that the switch is free from certain hazardous materials.
• WEEE (Waste Electrical and Electronic Equipment): The switch meets WEEE requirements for the proper disposal and recycling of electronic waste.
• REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals): Adherence to REACH regulations ensures the switch meets safety standards related to chemical substances.

Benefits and Advantages

Enhanced Performance and Speed

The EX2300-24MP delivers high performance with its combination of Gigabit, 2.5G, and 10G ports. This performance ensures that the switch can handle various network demands, from basic connectivity to high-speed data transfers, making it a versatile choice for different applications.

Flexibility and Scalability

The modular design of the EX2300-24MP allows for future network expansion and adaptation. The switch's flexibility in port configuration and support for high-speed uplinks make it suitable for evolving network environments and growing infrastructure needs.

Reliability

The switch's PoE+ capability and efficient power consumption contribute to cost savings by reducing the need for additional power supplies and simplifying installation. Its reliability, combined with advanced management features, ensures stable network performance and minimal downtime.

Environmental Compliance

The EX2300-24MP's adherence to environmental standards reflects Juniper Networks' commitment to sustainability. Compliance with RoHS, WEEE, and REACH regulations demonstrates the switch's alignment with global environmental and safety requirements, making it an eco-friendly choice for network deployments.

Compatibility and Integration

Network Architecture Compatibility

The EX2300-24MP integrates seamlessly into various network architectures, including hierarchical and spine-leaf models. Its range of port types and expansion options supports diverse network topologies and ensures compatibility with other networking equipment.

Integration with Existing Infrastructure

The switch's support for standard networking protocols and interfaces facilitates smooth integration with existing network infrastructure. Its compatibility with other Juniper devices and third-party equipment ensures that it can be easily incorporated into current network environments.

Network Management Tools

Juniper Networks Junos OS provides a comprehensive suite of network management tools for the EX2300-24MP. These tools include configuration, monitoring, and troubleshooting features that help network administrators maintain optimal performance and manage network operations efficiently.
