FG-100E Fortinet Fortigate-100e 16 Ports Fast Ethernet External Security Appliance

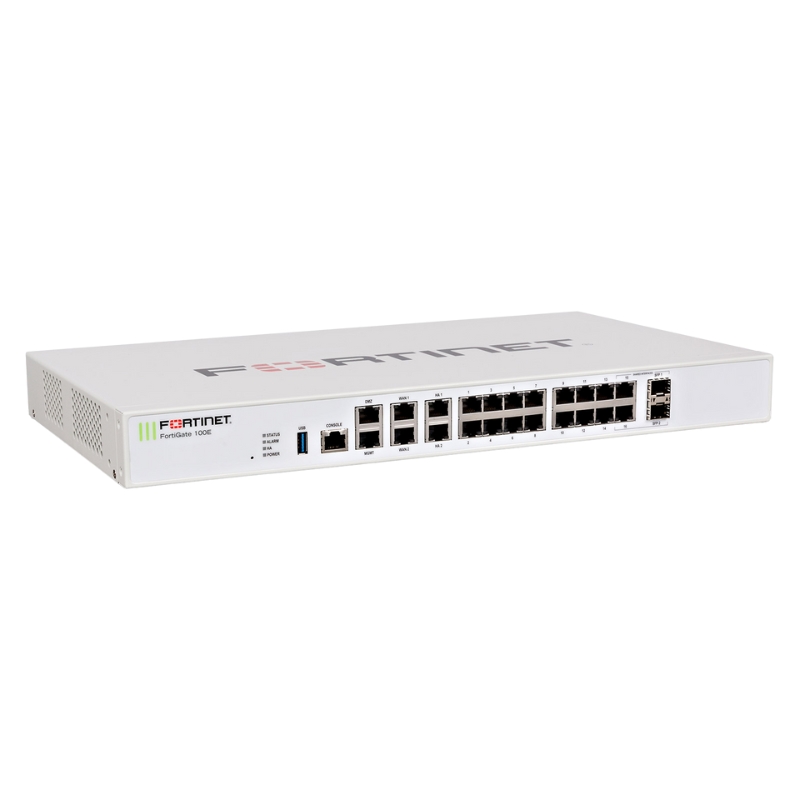

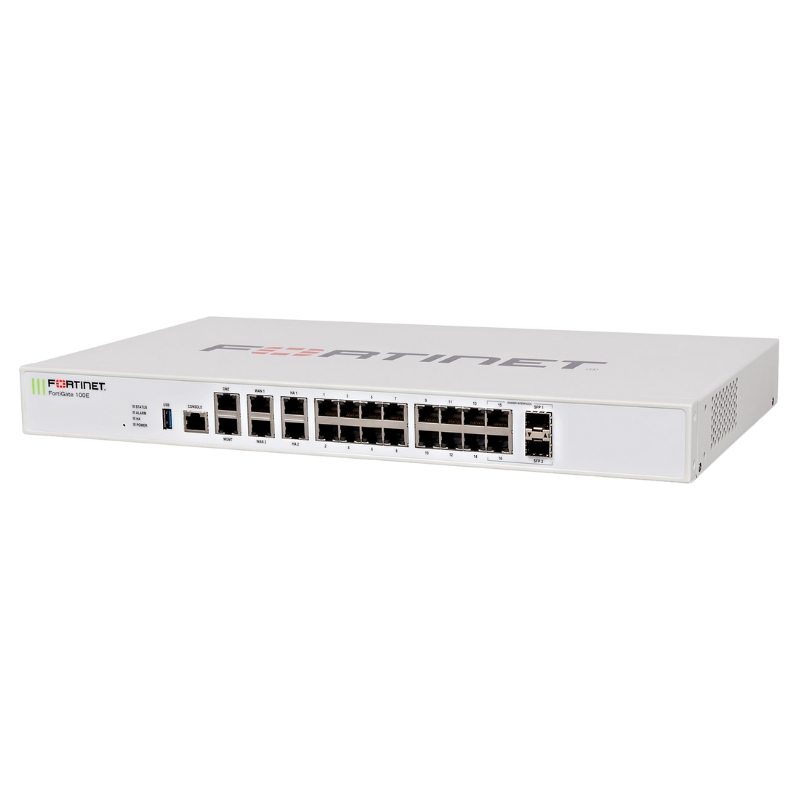

Fortinet FortiGate-100E Security Appliance

The Fortinet FG-100E FortiGate-100E is a high-performance network security appliance designed to safeguard enterprise environments. With 16 fast Ethernet ports and advanced firewall protection, it ensures reliable connectivity and robust defense against cyber threats.

General Information

• Manufacturer: Fortinet
• Part Number: FG-100E
• Device Type: Security Appliance

Technical Specifications

• Wired connections
• Ethernet
• Fast Ethernet
• Gigabit Ethernet

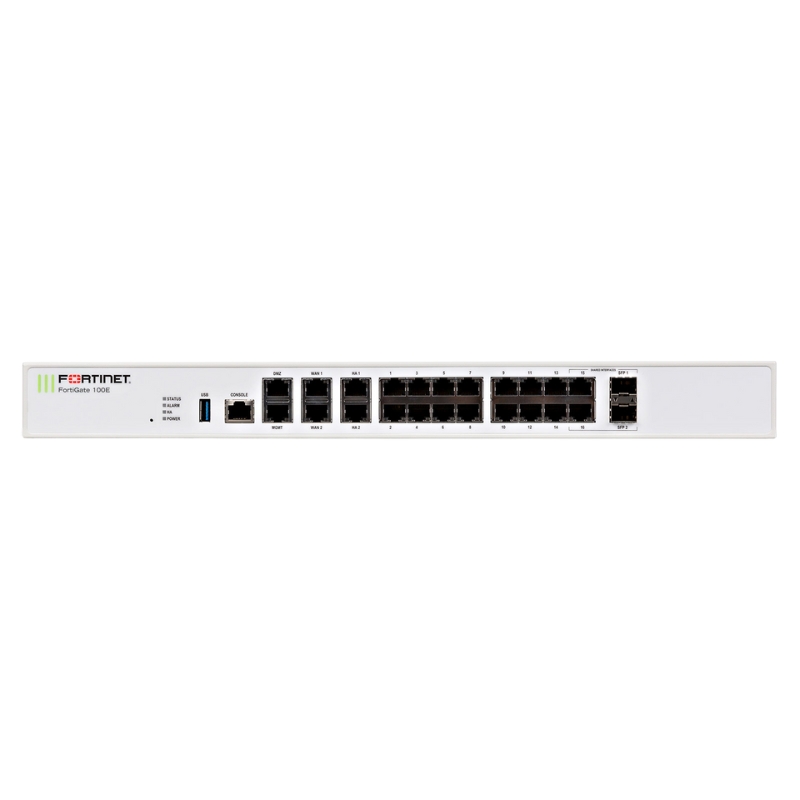

Interface Options

• 2 x 1000Base-T RJ-45 (WAN)
• 16 x 1000Base-T RJ-45
• 1 x Management RJ-45
• 1 x USB Type-A
• 2 x Ethernet 1000 SFP (Mini-GBIC)
• 2 x 1000Base-T RJ-45
• 1 x 1000Base-T RJ-45 (DMZ)
• 1 x Console RJ-45

Power Details

• AC 120/230 V
• Frequency: 50/60 Hz

Fortinet FG-100E FortiGate-100E Security Appliance Overview

Enterprise-Grade Unified Threat Management Platform

The Fortinet FG-100E FortiGate-100E 16 Ports Fast Ethernet External Network Security Appliance represents a mid-range enterprise firewall solution designed to deliver comprehensive network protection, secure connectivity, and high-performance traffic inspection for small to medium-sized businesses and distributed branch environments. Developed by , this appliance integrates advanced security services into a single hardware platform powered by the FortiOS operating system, enabling centralized policy enforcement and unified threat management across diverse network infrastructures.

At its core, the FG-100E functions as a next-generation firewall (NGFW), combining traditional packet filtering with deep packet inspection, intrusion prevention systems, application control, VPN support, and advanced malware detection capabilities. Its architecture is optimized to handle simultaneous security workloads while maintaining consistent throughput across multiple Fast Ethernet interfaces.

Positioning Within FortiGate Product Family

The FG-100E sits within the FortiGate 100E series, which is designed for branch office security consolidation and mid-sized network environments requiring a balance between performance and cost efficiency. It is part of a broader ecosystem of Fortinet security appliances that scale upward into higher-end models such as 200E, 300E, and data center-class firewalls, and downward into entry-level SMB appliances.

Within this product family, the FG-100E is recognized for its flexibility in deployments that require multiple segmented network zones, support for legacy Fast Ethernet infrastructure, and integration into hybrid cloud environments. Its design ensures compatibility with traditional enterprise LAN architectures while also enabling modern security orchestration frameworks.

Network Interface Configuration and Port Density

The FortiGate FG-100E is equipped with 16 Fast Ethernet ports that support 10/100 Mbps connectivity, allowing extensive segmentation of internal networks into multiple security zones. These ports are engineered for flexible configuration as LAN, WAN, DMZ, or internal VLAN interfaces depending on deployment requirements.

The availability of multiple interfaces enables organizations to design granular security policies across departments, guest networks, operational technology segments, and external connectivity channels. The hardware architecture ensures that each interface can independently enforce firewall policies and routing rules without compromising throughput efficiency.

Processing Power and Security Acceleration

The appliance integrates a specialized security processing unit that offloads computationally intensive tasks such as intrusion detection, SSL inspection, and antivirus scanning. This hardware acceleration ensures that even under heavy traffic conditions, the system maintains stable performance levels without introducing latency spikes.

Fortinet’s proprietary architecture combines ASIC-based acceleration with multi-core CPU processing, enabling simultaneous execution of firewall, VPN, and content filtering tasks. This design significantly improves packet inspection rates and supports real-time threat mitigation in high-traffic environments.

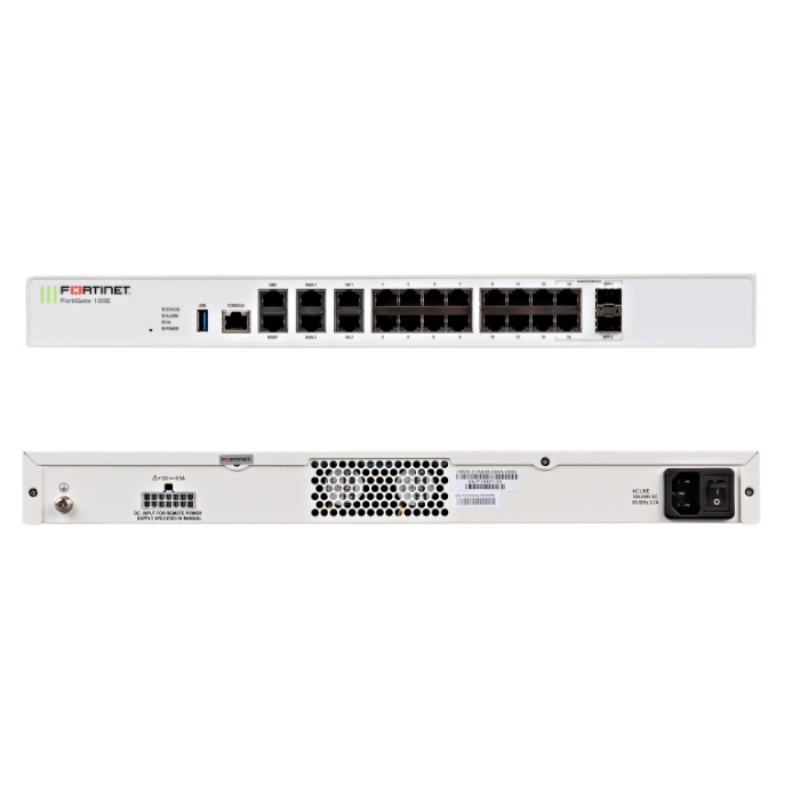

Chassis Design and Deployment Flexibility

The FG-100E features a compact rack-mountable chassis suitable for standard network racks and edge deployments. Its external form factor is designed for efficient airflow and thermal management, ensuring stable operation in enterprise network closets or branch office environments.

The physical design emphasizes durability and long-term operational reliability, making it suitable for environments where continuous uptime is essential. The appliance can be deployed in both centralized and distributed network topologies without requiring significant infrastructure modifications.

Integrated Security Operating Environment

The FortiGate FG-100E runs on , a purpose-built security operating system that integrates all core security functions into a unified management interface. FortiOS provides administrators with centralized control over firewall policies, VPN configurations, intrusion prevention rules, and application-level filtering.

This operating system is continuously updated with threat intelligence from FortiGuard Labs, enabling real-time protection against emerging vulnerabilities, malware signatures, and zero-day exploits. The integration of security intelligence directly into the OS reduces reliance on external systems and improves response times for threat mitigation.

Intrusion Prevention System (IPS)

The integrated IPS engine monitors network traffic for known exploit patterns, suspicious behavior, and protocol anomalies. It uses signature-based detection combined with heuristic analysis to identify both known and unknown threats.

The IPS system is continuously updated through FortiGuard threat intelligence feeds, ensuring protection against newly discovered vulnerabilities in operating systems, web applications, and network services.

Antivirus and Anti-Malware Inspection

The FG-100E includes advanced antivirus scanning capabilities that inspect files transferred across the network in real time. It detects viruses, worms, trojans, ransomware payloads, and spyware before they can enter internal systems.

The inspection process occurs at multiple layers, including application layer filtering and deep packet inspection, ensuring comprehensive coverage across all traffic types including HTTP, HTTPS, FTP, and email protocols.

Web Filtering and Content Control

Web filtering functionality enables organizations to regulate employee internet usage by categorizing websites based on content type, security risk, and organizational policy compliance. This ensures protection against phishing sites, malicious domains, and inappropriate content.

Content filtering rules can be dynamically applied based on user identity, time schedules, and device type, offering flexible control mechanisms for enterprise environments.

SSL and TLS Inspection Capabilities

Modern network traffic is increasingly encrypted, making SSL and TLS inspection a critical feature in enterprise firewalls. The FG-100E is capable of decrypting, inspecting, and re-encrypting secure traffic to detect hidden threats embedded within encrypted sessions.

This capability ensures that malicious payloads cannot bypass security controls simply by using encryption as a concealment mechanism.

IPSec VPN Implementation

The appliance supports IPSec VPN tunnels for secure site-to-site connectivity between branch offices and central data centers. These encrypted tunnels ensure confidentiality and integrity of data transmitted over public internet infrastructure.

The VPN implementation includes support for advanced encryption standards, authentication protocols, and key exchange mechanisms, ensuring compliance with enterprise-grade security requirements.

SSL VPN for Remote Access

SSL VPN functionality enables remote users to securely access internal network resources through encrypted web-based connections. This is particularly useful for mobile workforces and remote employees requiring secure access without dedicated hardware VPN clients.

The system supports multi-factor authentication integration, enhancing identity verification and reducing the risk of unauthorized access.

Quality of Service (QoS) Configuration

The FG-100E includes advanced QoS mechanisms that prioritize critical business applications such as VoIP, video conferencing, and cloud services. By allocating bandwidth based on application importance, the system ensures consistent performance for mission-critical services even during peak traffic loads.

Application Control and Visibility

Application control features allow administrators to identify, classify, and regulate thousands of applications running across the network. This includes cloud services, peer-to-peer applications, collaboration tools, and streaming platforms.

Deep application visibility ensures that bandwidth consumption is monitored and controlled effectively, reducing the risk of network congestion and unauthorized application usage.

Branch Office Security Consolidation

The FG-100E is widely used in branch office deployments where centralized security management is required. It consolidates multiple security functions into a single appliance, reducing hardware complexity and operational overhead.

Organizations can deploy consistent security policies across multiple branch locations, ensuring uniform protection standards throughout the enterprise network.

Small and Medium Business Infrastructure Protection

For SMB environments, the appliance provides enterprise-grade security capabilities without the complexity of large-scale data center solutions. It supports scalable growth, allowing businesses to expand network capacity without replacing core security infrastructure.

Hybrid Cloud Connectivity

The FG-100E supports integration with cloud environments, enabling secure connectivity between on-premises networks and cloud platforms. This hybrid approach allows organizations to extend security policies across distributed environments.

Centralized Security Management Integration

Integration with centralized management platforms enables large-scale deployments to manage multiple FortiGate devices from a single console. This improves operational efficiency and reduces administrative complexity.

Failover and Redundancy Support

The FG-100E supports high availability configurations that ensure continuous network protection in the event of hardware or software failure. Redundant configurations allow seamless failover between primary and secondary appliances.

Session Persistence and State Synchronization

In high availability setups, session synchronization ensures that active connections are maintained during failover events, minimizing disruption to end users and critical applications.

FortiGuard Threat Intelligence Services

The appliance is deeply integrated with , which provides continuous updates on emerging cyber threats, vulnerabilities, and attack patterns. This intelligence is automatically distributed to the FG-100E to enhance its detection capabilities.

Integration with Fortinet Security Fabric

The FG-100E participates in the Fortinet Security Fabric architecture, enabling seamless communication between security devices, endpoint protection systems, and cloud security services. This interconnected ecosystem improves visibility and coordination across all layers of network security.

Endpoint and Cloud Security Synchronization

Through Security Fabric integration, endpoint devices and cloud workloads can share threat intelligence in real time, enabling rapid containment of security incidents and automated policy enforcement across distributed environments.

Enterprise Network Segmentation

The FG-100E is particularly effective in environments requiring strict network segmentation, such as financial institutions, healthcare organizations, and educational campuses. Its ability to enforce zone-based policies ensures that sensitive data remains isolated from general network traffic.
