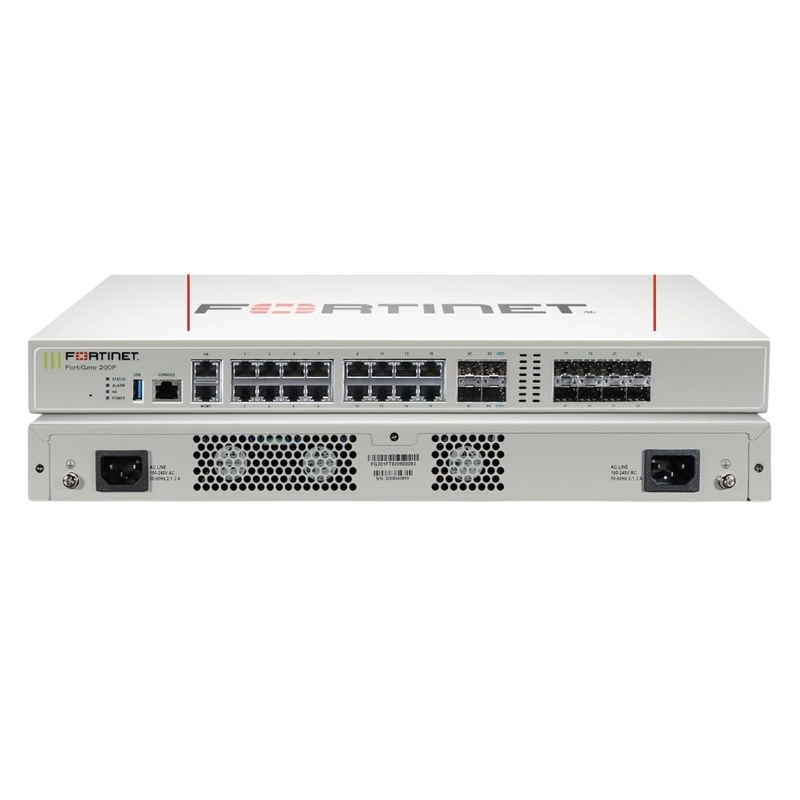

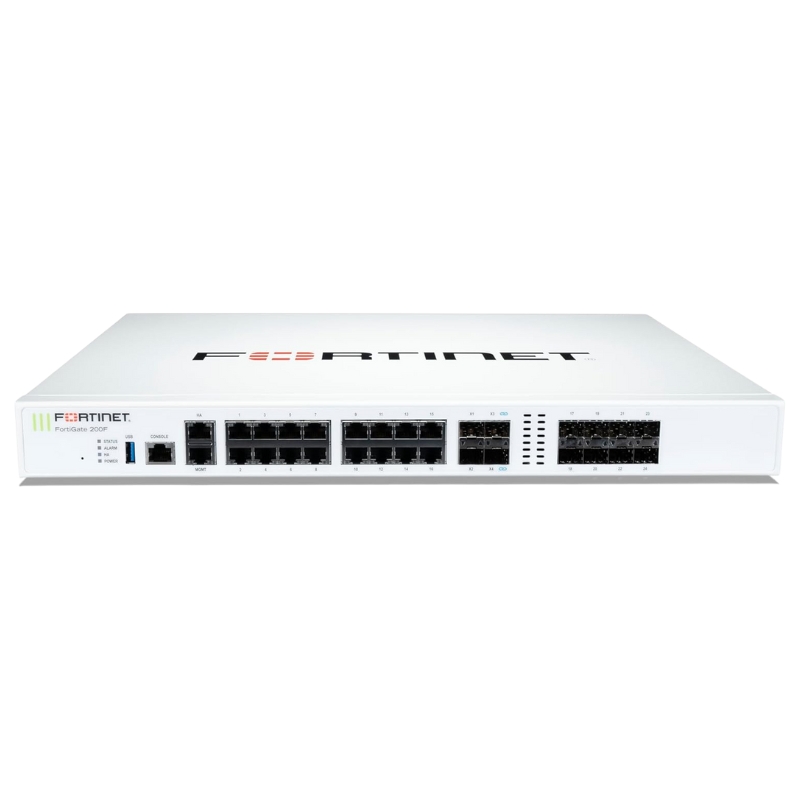

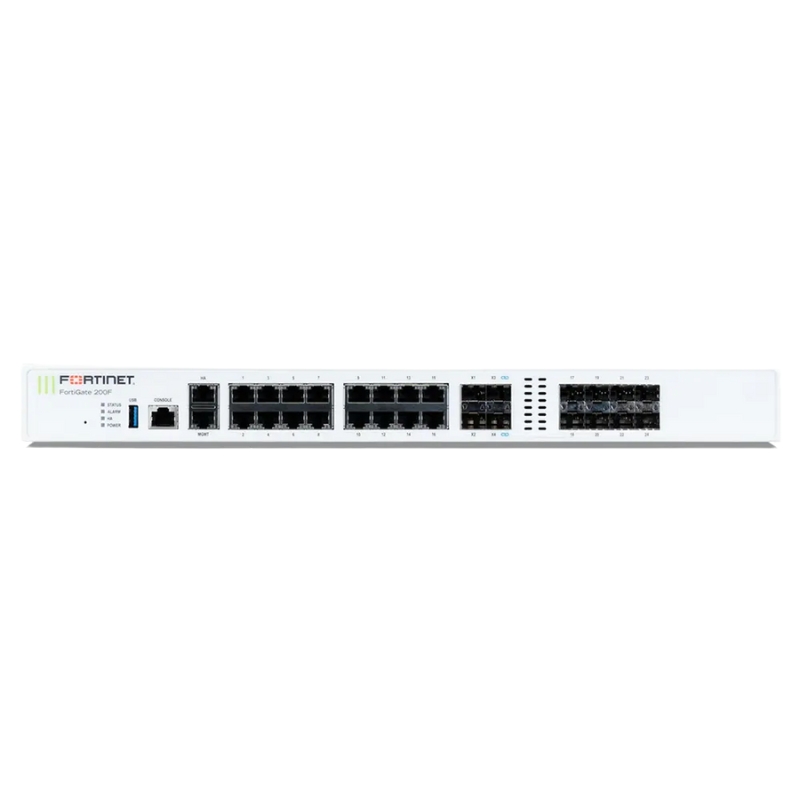

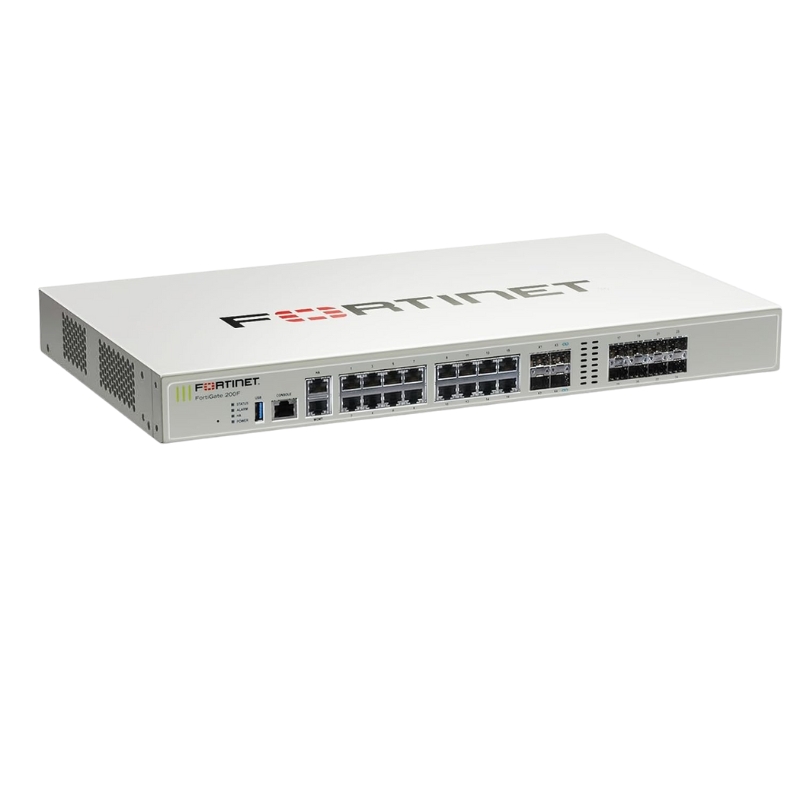

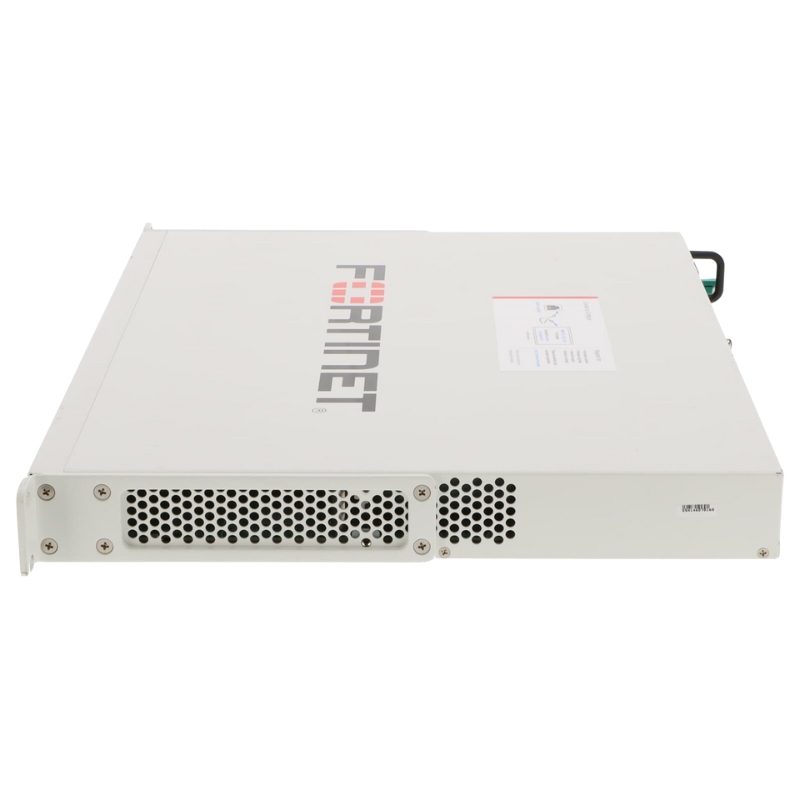

FG-200F Fortinet Network Security Firewall Appliance

Fortinet FortiGate Firewall Security Appliance

The Fortinet FG-200F FortiGate Network Security Firewall Appliance is a high-performance hardware solution designed to safeguard enterprise networks with advanced protection features. This unit is hardware-only and optimized for local management.

General Information

• Manufacturer: Fortinet
• Part Number: FG-200F
• Device Category: Security Appliance

Technical Specifications

• 18x 1 Gigabit Ethernet RJ-45
• 2x 1GB RJ45 HA/MGMT
• 16x 1GB RJ45 Ports
• Packet per Second: 16.5 Mpps
• Throughput: 27 / 27 / 11 Gbps (1518 / 512 / 64 byte, UDP)

Uplink Ports

• 8x 1 Gigabit Ethernet SFP
• 4x 10 Gigabit Ethernet SFP+

Management Interfaces

• 1x USB Port
• 1x Console Port

Advanced Security Throughput

• IPS Throughput: 5 Gbps (Enterprise Traffic Mix)
• Threat Protection: 3 Gbps (Enterprise Traffic Mix)
• NGFW Throughput: 3.5 Gbps (Enterprise Traffic Mix)

VPN and Encryption Performance

• IPsec VPN Throughput: 13 Gbps
• SSL-VPN Throughput: 2 Gbps
• SSL Inspection Throughput: 4 Gbps

Concurrent Sessions

• Supports up to 3 Million concurrent sessions

New Sessions per Second

• Handles up to 280,000 new sessions per second

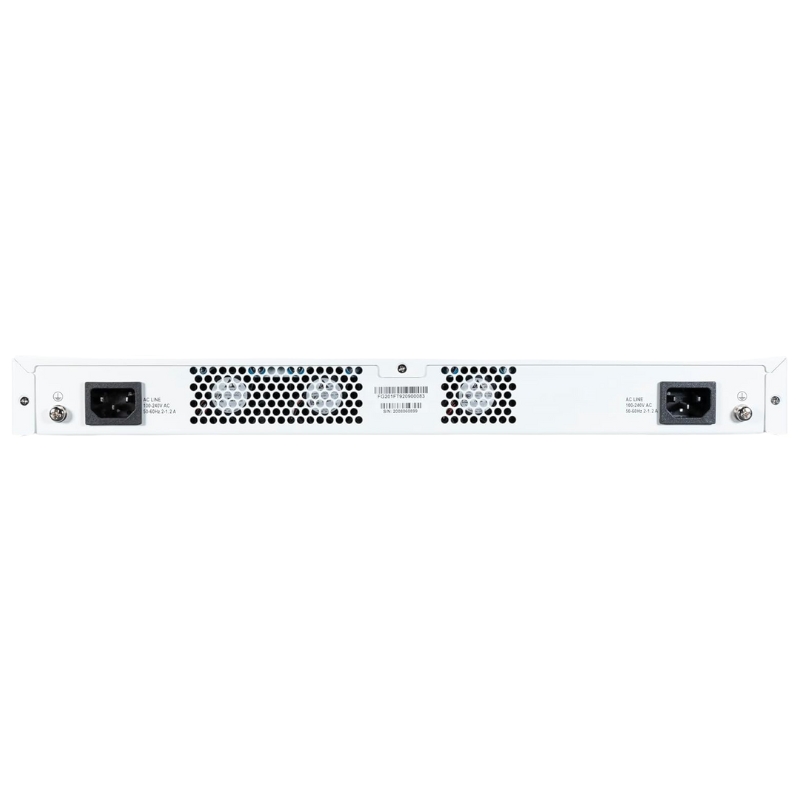

Power Supply

• Dual fixed AC PSU for redundancy

Fortinet FG-200F FortiGate Security Appliance Overview

The Fortinet FG-200F FortiGate Network Security Firewall Appliance Hardware Only category represents a critical segment of enterprise-grade cybersecurity infrastructure designed to deliver advanced network protection, high-performance threat mitigation, and scalable security operations for modern digital environments. Positioned within the next-generation firewall (NGFW) ecosystem, this appliance is engineered to support mid-to-large enterprise branch deployments, distributed networks, and organizations requiring unified threat management capabilities combined with hardware-accelerated security processing.

As a hardware-only offering, this category focuses exclusively on the physical FortiGate 200F appliance, allowing organizations to integrate their preferred licensing models, security subscriptions, and FortiGuard services according to their operational requirements. This separation of hardware and software licensing provides flexibility in deployment planning, cost optimization strategies, and long-term infrastructure scalability.

Positioning in Next-Generation Firewall Infrastructure

The Fortinet FG-200F is designed as a next-generation firewall solution that extends beyond traditional packet filtering and stateful inspection. It integrates deep packet inspection, intrusion prevention systems, application control, and secure socket layer inspection within a unified platform. In enterprise environments, this appliance acts as a central enforcement point for security policies, ensuring that inbound and outbound traffic adheres to organizational compliance and cybersecurity frameworks.

Within distributed enterprise architectures, the FG-200F often serves as a branch gateway, securing remote offices and regional hubs while maintaining centralized visibility and control through Fortinet’s centralized management ecosystem. Its design supports high-density traffic environments where application performance and security enforcement must operate simultaneously without introducing latency bottlenecks.

Role in Hybrid and Cloud-Connected Environments

The increasing adoption of hybrid infrastructures has elevated the importance of edge firewalls capable of seamless integration with cloud workloads and SaaS applications. The FortiGate 200F hardware platform supports secure connectivity between on-premises environments and cloud-based resources, enabling encrypted tunnels, secure SD-WAN routing, and application-aware traffic management.

Organizations leveraging multi-cloud strategies benefit from the appliance’s ability to enforce consistent security policies across diverse environments, reducing configuration drift and minimizing security gaps between cloud and on-premises networks.

Hardware Architecture and Engineering Design

The FG-200F hardware architecture is built on Fortinet’s purpose-designed Security Processing Unit (SPU) technology, which offloads computationally intensive security functions from the general-purpose CPU. This includes tasks such as encryption, decryption, intrusion detection, and deep packet inspection. By leveraging specialized hardware acceleration, the appliance maintains high throughput levels even under complex security workloads.

This architecture is particularly beneficial in environments where SSL/TLS encrypted traffic dominates network flows. As encrypted traffic inspection becomes increasingly necessary for threat detection, hardware acceleration ensures that performance degradation is minimized while maintaining strict security inspection policies.

System Design and Reliability Engineering

The FortiGate 200F hardware is engineered with enterprise-grade reliability in mind, incorporating redundant system components, optimized thermal management, and energy-efficient design principles. The appliance is typically deployed in rack-mounted configurations, making it suitable for data centers, server rooms, and structured network closets.

Its compact form factor allows it to fit into space-constrained environments while still delivering robust security capabilities typically associated with larger firewall appliances. The hardware design prioritizes continuous uptime, ensuring that network security enforcement remains uninterrupted in mission-critical environments.

Thermal Efficiency and Power Optimization

Efficient thermal design plays a key role in maintaining long-term hardware stability. The FG-200F incorporates optimized airflow pathways and intelligent cooling mechanisms that regulate internal temperatures under high processing loads. This ensures that sustained inspection workloads do not compromise hardware integrity or performance consistency.

Durability in Continuous Operation Environments

Enterprise firewall appliances are expected to operate continuously without downtime. The FG-200F is built to withstand 24/7 operational demands, making it suitable for high-availability deployments where network interruptions are unacceptable. This durability extends to both hardware components and system firmware optimization, ensuring consistent security enforcement across long operational cycles.

High-Density Ethernet Interface Design

The FortiGate 200F hardware platform includes a wide range of Ethernet interfaces designed to support flexible network segmentation and high-speed data transfer. These interfaces enable organizations to separate internal networks, DMZ zones, guest networks, and external WAN connections effectively. The multi-interface design supports complex routing scenarios and security zoning configurations that are essential in enterprise environments.

By offering multiple high-speed ports, the appliance ensures that network traffic can be distributed efficiently across different security policies and routing paths. This enhances both performance and security by reducing congestion and isolating sensitive data flows.

WAN Optimization and SD-WAN Integration

Modern enterprise networks increasingly rely on SD-WAN technologies to optimize connectivity across multiple internet service providers. The FG-200F hardware supports SD-WAN functionality that enables intelligent traffic routing based on application performance, latency, and link quality.

This capability allows businesses to maintain stable connectivity for mission-critical applications while optimizing bandwidth usage and reducing dependency on single WAN links. The integration of SD-WAN with firewall security ensures that performance optimization does not compromise security enforcement.

Branch Connectivity and Distributed Network Support

In distributed enterprise environments, the FG-200F functions as a central connectivity hub for branch offices. It supports secure tunneling between remote locations and headquarters, ensuring encrypted communication channels and consistent security policy enforcement across all network endpoints.

Next-Generation Firewall Capabilities

The FortiGate 200F integrates advanced NGFW capabilities that extend beyond traditional firewall functions. These include application-layer inspection, user identity awareness, and deep packet inspection. By analyzing traffic at the application level, the appliance can identify and control specific applications regardless of port or protocol usage.

This level of visibility enables organizations to enforce granular access policies, restrict unauthorized application usage, and detect anomalous traffic patterns that may indicate malicious activity.

Intrusion Prevention System Integration

The built-in intrusion prevention system (IPS) provides real-time detection and blocking of known and unknown threats. By analyzing traffic patterns and comparing them against continuously updated threat intelligence databases, the FG-200F can prevent exploitation attempts, malware propagation, and network-based attacks.

The IPS functionality operates inline, ensuring that threats are mitigated before they can reach internal systems or sensitive data repositories.

Advanced Malware Protection and Antivirus Inspection

Malware protection is a core component of the FortiGate security architecture. The appliance inspects files and network traffic for malicious signatures and behavioral anomalies. This includes protection against ransomware, trojans, spyware, and zero-day exploits.

By combining signature-based detection with heuristic analysis, the system provides layered defense mechanisms that adapt to evolving threat landscapes.

SSL and Encrypted Traffic Inspection

With the majority of modern web traffic being encrypted, SSL inspection has become a critical security requirement. The FG-200F supports deep inspection of encrypted traffic, allowing security policies to be applied even within SSL/TLS sessions.

This ensures that malicious payloads hidden within encrypted channels can still be detected and blocked effectively, closing a significant gap in traditional firewall architectures.

Intelligent Traffic Steering

The SD-WAN capabilities integrated into the FG-200F enable intelligent traffic steering based on real-time network conditions. Applications can be prioritized according to business importance, ensuring that critical services such as VoIP, video conferencing, and cloud applications receive optimal network performance.

This dynamic routing capability enhances user experience while reducing operational costs associated with traditional MPLS networks.

Site-to-Site VPN Architecture

The FG-200F supports secure site-to-site VPN connections that enable encrypted communication between geographically distributed offices. These VPN tunnels ensure data confidentiality and integrity while maintaining high-speed connectivity across public networks.

Remote Access VPN for Distributed Workforces

With the rise of remote work environments, secure remote access has become essential. The appliance supports VPN configurations that allow employees to securely connect to corporate networks from remote locations while maintaining strict authentication and encryption standards.

Micro-Segmentation for Enhanced Security

Micro-segmentation capabilities allow networks to be divided into smaller security zones, limiting lateral movement of threats within the infrastructure. This approach enhances containment strategies and reduces the potential impact of security breaches.

FortiOS Operating System Integration

The FG-200F operates using Fortinet’s FortiOS, a unified operating system designed to manage all security and networking functions within a single interface. This integration simplifies configuration management and reduces administrative complexity.

Separation of Hardware and Licensing Models

The hardware-only classification of the FortiGate 200F provides organizations with flexibility in selecting licensing options based on operational requirements. This approach allows businesses to scale security services independently from hardware procurement cycles.

Customization for Enterprise Security Requirements

Organizations can tailor security subscriptions, threat intelligence services, and feature sets according to their unique risk profiles and compliance obligations. This modular approach ensures that security investments are aligned with business needs.

Scalability, Integration, and Security Fabric Architecture

The FG-200F is a key component of the Fortinet Security Fabric, which provides unified visibility and control across the entire security ecosystem. This integration enables seamless communication between firewalls, endpoints, switches, and cloud security services.

Through Security Fabric integration, organizations gain centralized threat intelligence sharing, automated response mechanisms, and enhanced situational awareness across their infrastructure.

Enterprise Scalability and Network Growth Support

As organizations expand, the FG-200F supports scalable deployment models that allow additional security nodes to be integrated without disrupting existing infrastructure. This ensures long-term adaptability in evolving network environments.

Support for Industry Compliance Standards

The FortiGate 200F assists organizations in meeting various regulatory requirements by enforcing security policies that align with industry standards such as data protection regulations, financial compliance frameworks, and cybersecurity governance models.
