FG-61F-BDL-950-12 Fortinet 10-Ports Hardware Forticare Premium And Fortiguard Security appliance

Fortinet FG-61F-BDL-950-12 10-Ports Security appliance

The Fortinet FG-61F-BDL-950-12 FortiGate 61F security appliance is a compact yet powerful network protection solution engineered for modern enterprise environments. It combines advanced FortiCare Premium support and FortiGuard security services to deliver intelligent, real-time threat prevention. Designed with a 10-port configuration, this hardware firewall ensures secure traffic inspection, optimized routing efficiency, and reliable connectivity for distributed business networks requiring continuous uptime and strong perimeter defense.

General Information

• Manufacturer: FORTINET
• Model Number: FG-61F-BDL-950-12
• Product Category: Networking Security Appliance

Technical Specifications

• Integrated high-speed 128GB SSD storage enabling rapid data processing and secure logging operations
• Optimized architecture for deep packet inspection and high-throughput routing without additional external modules
• Engineered for consistent performance in demanding, high-traffic enterprise network environments
• Compact desktop-ready design suitable for branch offices and distributed network deployments

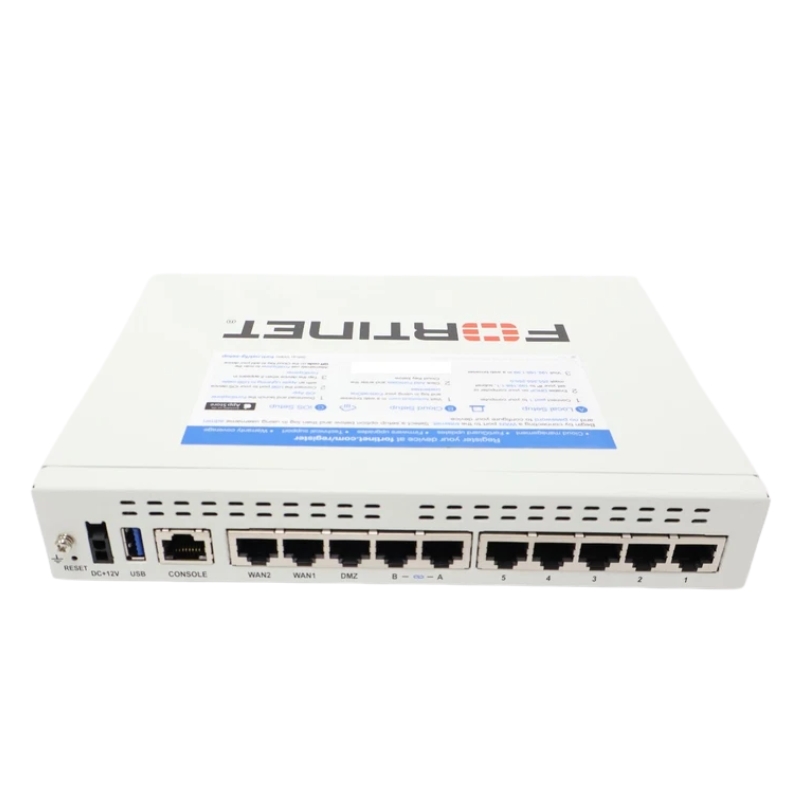

Wired Network Interface Layout

• 2 × RJ-45 Gigabit WAN ports for dual internet uplink redundancy
• 1 × RJ-45 Gigabit DMZ port for secure public-facing service segmentation
• 7 × RJ-45 LAN ports supporting internal network distribution and segmentation
• 1 × USB 3.0 Type-A port for external device integration
• 1 × RJ-45 Console port for direct local administration and configuration

High-Performance Security Processing

• Firewall throughput reaching up to 10 Gbps for high-speed traffic filtering
• Intrusion Prevention System (IPS) performance up to 1.4 Gbps for real-time threat blocking
• Next-Generation Firewall (NGFW) throughput up to 1 Gbps for application-aware protection
• Advanced threat protection delivering up to 700 Mbps security inspection capability
• Ultra-low latency processing as fast as 4 microseconds for minimal packet delay

VPN, Encryption & Secure Access Performance

• IPSec VPN throughput up to 6.5 Gbps using strong encryption standards
• SSL VPN performance reaching 900 Mbps for secure remote connectivity
• Deep SSL inspection capability supporting up to 750 Mbps throughput
• Supports encrypted gateway-to-gateway tunnels for secure site-to-site communication

Session Handling & Traffic Control Capacity

• Supports up to 700,000 concurrent TCP sessions for large-scale environments
• Processes up to 35,000 new TCP sessions per second for dynamic traffic loads
• Allows configuration of up to 5,000 firewall policies for granular control
• Handles up to 55,000 simultaneous SSL inspection sessions

Scalability & Enterprise Management

• Supports up to 10 Virtual Domains (VDOMs) for multi-tenant segmentation
• Manages up to 30 FortiAP wireless access points
• Integrates with up to 16 FortiSwitch units for extended LAN infrastructure
• Supports up to 20 FortiClient endpoints for endpoint security management
• Enables up to 500 FortiToken MFA devices for enhanced authentication security

Deployment Advantages

• Ideal for branch offices, SMB environments, and distributed enterprise networks
• Provides centralized visibility and unified threat management
• Reduces operational complexity with integrated security services
• Ensures continuous protection against evolving cyber threats

Compatibility

• Fully compatible with FortiGuard Security Services for real-time threat intelligence updates
• Seamless integration with FortiCare Premium support ecosystem for enterprise-grade assistance
• Works with FortiAP wireless access points for scalable Wi-Fi expansion
• Supports FortiSwitch networking devices for unified LAN management
• Compatible with FortiClient endpoint protection software for endpoint security enforcement
• Supports FortiToken authentication solutions for multi-factor identity verification
• Integrates with FortiAnalyzer and FortiManager platforms for centralized monitoring and policy control

Fortinet FG-61F-BDL-950-12 FortiGate 61F Security Appliance

The Fortinet FG-61F-BDL-950-12 FortiGate 61F Hardware appliance with FortiCare Premium and FortiGuard Security subscription represents a compact yet highly capable network security platform designed for modern enterprise branch environments, distributed networks, retail infrastructures, and mid-sized organizational deployments. Built on Fortinet’s security-driven networking philosophy, this appliance integrates advanced firewall functionality, intrusion prevention, application control, secure connectivity, and cloud-managed intelligence services into a unified security solution.

As network environments evolve toward hybrid infrastructures and cloud-first architectures, the need for integrated security and performance becomes increasingly important. The FortiGate 61F series addresses these requirements by combining high-throughput security processing with intelligent threat detection and centralized management capabilities. This allows organizations to maintain secure digital operations across multiple locations while ensuring consistent policy enforcement and visibility.

Next Generation Firewall Capabilities

The FortiGate 61F platform functions as a next generation firewall designed to inspect traffic at multiple layers of the network stack. Unlike traditional firewall solutions that focus primarily on port and protocol filtering, this appliance incorporates deep inspection mechanisms that analyze application behavior, user identity, and content characteristics in real time.

This enhanced inspection capability allows organizations to identify and control modern application traffic, including cloud-based services, collaboration tools, and encrypted communication channels. As businesses increasingly rely on digital platforms for daily operations, maintaining visibility into application usage becomes essential for both security and performance optimization.

The integrated security engine supports granular control over network traffic while maintaining efficient throughput levels, making it suitable for branch offices and distributed enterprise environments where consistent performance and strong security must coexist.

Integrated FortiCare Premium Support

The inclusion of FortiCare Premium support provides organizations with continuous technical assistance, firmware updates, and proactive system monitoring capabilities. This service ensures that the FortiGate 61F appliance remains optimized throughout its operational lifecycle, reducing downtime and improving system reliability.

FortiCare Premium is designed to support enterprise IT teams by offering direct access to expert technical resources and rapid issue resolution pathways. This allows organizations to maintain operational continuity even in complex network environments where security infrastructure plays a critical role in daily business operations.

Lifecycle assurance is particularly important in environments where network availability directly impacts productivity, customer engagement, and service delivery. The combination of hardware reliability and premium support services enhances the long-term value of the security investment.

FortiGuard Security Intelligence and Threat Protection

The FortiGuard Security subscription delivers continuous threat intelligence updates that enhance the appliance’s ability to detect and respond to emerging cyber threats. This global security network analyzes millions of data points across diverse environments to identify malicious patterns, vulnerabilities, and attack vectors.

By integrating FortiGuard intelligence directly into the FortiGate 61F appliance, organizations benefit from real-time protection against malware, ransomware, phishing attempts, zero-day exploits, and advanced persistent threats. The system continuously updates its detection signatures and behavioral analysis models to adapt to evolving cyber risk landscapes.

The FortiGuard ecosystem strengthens network defenses by providing automated protection mechanisms that reduce the dependency on manual intervention. This allows security teams to focus on strategic initiatives rather than constant reactive monitoring.

Secure SD WAN Functionality for Modern Branch Connectivity

The FortiGate 61F appliance is designed to support secure software defined wide area networking capabilities, enabling organizations to optimize connectivity across multiple branch locations. SD WAN functionality allows intelligent routing of traffic based on application type, network conditions, and security policies.

This dynamic routing capability improves application performance by selecting optimal network paths for latency sensitive traffic while maintaining secure encrypted tunnels for critical data transmissions. As organizations adopt cloud services and remote collaboration platforms, SD WAN becomes a key enabler of efficient and resilient connectivity.

Secure SD WAN integration within the FortiGate 61F platform eliminates the need for separate networking appliances, reducing infrastructure complexity while improving visibility and control across distributed environments.

Advanced Threat Prevention and Intrusion Detection

The appliance incorporates advanced intrusion prevention systems designed to detect and block malicious activity before it impacts network resources. These systems analyze traffic patterns, protocol behavior, and payload characteristics to identify suspicious activity in real time.

Threat prevention capabilities extend beyond signature based detection to include behavioral analysis and anomaly detection techniques. This multi layered approach enables the system to identify both known threats and emerging attack strategies that may not yet have established signatures.

The continuous monitoring of network traffic helps maintain a strong security posture across all connected devices and endpoints, ensuring that vulnerabilities are addressed proactively rather than reactively.

Application Control and User Awareness Capabilities

Modern enterprise networks require visibility into application usage to ensure productivity, compliance, and security. The FortiGate 61F appliance provides detailed application control features that allow administrators to define policies based on application categories, usage patterns, and risk levels.

This capability enables organizations to manage bandwidth allocation, restrict unauthorized applications, and prioritize business critical services. User identity awareness enhances this control by linking network activity to specific users or groups, improving accountability and policy enforcement accuracy.

Application visibility is essential in environments where cloud based tools, remote collaboration platforms, and encrypted applications are widely used. The system ensures that network administrators maintain control without disrupting legitimate business activities.

Secure VPN Connectivity for Remote Access

The FortiGate 61F appliance supports secure virtual private network connectivity, enabling encrypted communication between remote users, branch offices, and centralized data centers. VPN functionality ensures that sensitive information remains protected during transmission across public networks.

This capability is critical for organizations that support remote workforces, mobile employees, and distributed operational structures. Secure VPN tunnels provide consistent access to corporate resources while maintaining strong encryption standards and authentication mechanisms.

The integration of VPN services within the firewall platform simplifies deployment and management, reducing the need for separate security appliances and improving operational efficiency.

High Performance Security Processing

The FortiGate 61F hardware architecture is optimized for efficient security processing, enabling the system to inspect and manage traffic without creating significant latency. Dedicated security processing units enhance throughput performance while maintaining deep inspection capabilities.

This balance between performance and security is essential in environments where high traffic volumes and real time applications must coexist with strict security requirements. The appliance is engineered to handle simultaneous security functions without compromising network responsiveness.

Efficient resource utilization ensures that organizations can deploy comprehensive security policies without negatively impacting user experience or application performance.

Cloud Integration and Hybrid Infrastructure

As enterprises adopt hybrid infrastructure models, secure integration between on premises systems and cloud platforms becomes increasingly important. The FortiGate 61F appliance supports secure connectivity to public and private cloud environments, enabling seamless data flow across distributed systems.

This integration allows organizations to extend security policies consistently across physical and virtual environments, ensuring that cloud workloads are protected with the same rigor as on premises systems.

Hybrid infrastructure support also enables scalable growth strategies, allowing businesses to expand digital operations without compromising security visibility or control.

Centralized Management and Network Visibility

The FortiGate 61F appliance can be integrated into centralized management systems that provide unified visibility across multiple network devices and locations. This centralized approach simplifies configuration, monitoring, and policy enforcement across distributed environments.

Network visibility tools enable administrators to analyze traffic patterns, identify performance bottlenecks, and detect security anomalies. This data driven approach improves decision making and enhances overall network efficiency.

Centralized management reduces administrative overhead while improving consistency in security policy deployment across the organization.

Data Protection and Encryption Frameworks

Data protection is a fundamental requirement in modern digital environments. The FortiGate 61F appliance supports encryption mechanisms that secure data in transit across network connections. These encryption frameworks help prevent unauthorized access and ensure confidentiality of sensitive information.

Encryption capabilities are applied across multiple communication channels, including VPN tunnels, cloud connections, and internal network traffic flows. This comprehensive approach ensures consistent data protection across all network layers.

Strong encryption frameworks are essential for maintaining compliance with regulatory requirements and industry standards across various sectors.
